4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments (P 171)
❙POWER Button (P 152)
❙Road Departure Mitigation (RDM)
Button
(P 420)
❙Parking Sensor System Button* (P 471)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 463)
❙Navigation System
() See the Navigation System Manual
❙Audio/Information Screen (P 225)
❙Hazard Warning Button
❙On Demand Multi-Use DisplayTM (P 217)
❙Audio System (P 212)
❙System Indicators (P 76)
❙Gauges (P 112)
❙Multi-Information Display
(P 114)
❙Climate Control System (P 200)
❙Rear Window Defogger/Heated Mirror/
Heated Windshield Button
(P 168)
❙Headlight Washer Button (P 165)
❙CAMERA Button* (P 481)
Canadian models
❙Acoustic Vehicle Alerting System OFF
Button
(P 397)
❙Front Seat Heater Buttons* (P 195)
❙Front Seat Heaters and Ventilation
Buttons* (P 196)
❙ (Vehicle Stability Assist (VSA ®)
System OFF) Button
(P 442)
18 ACURA RLX E-AWD-31TY36400.book 4 ページ ２０１７年７月２０日　木曜日　午後６時８分

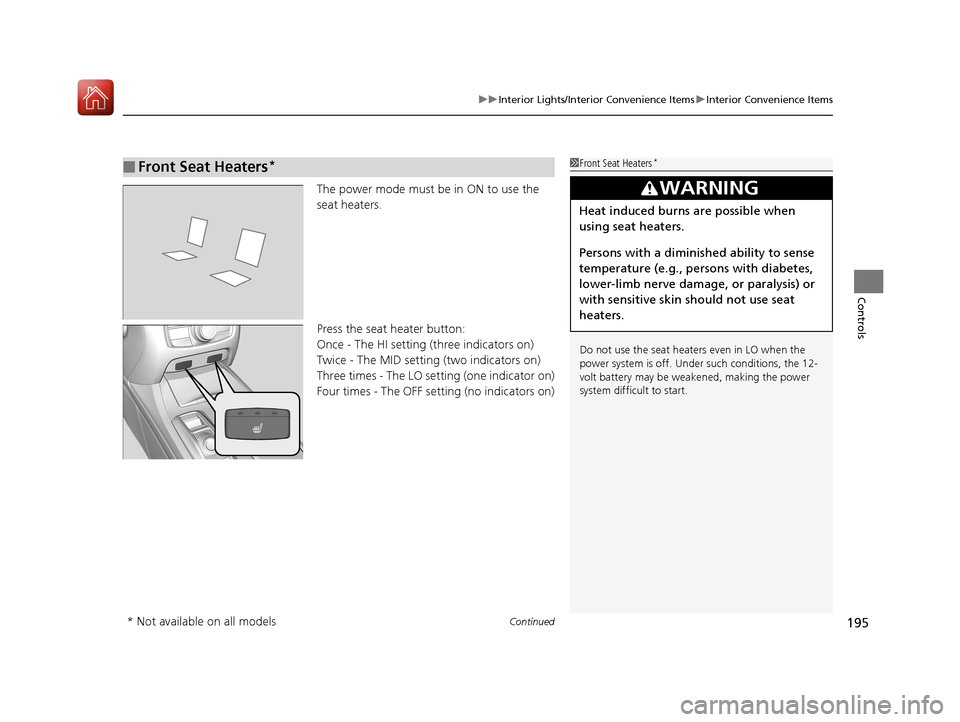

Continued195
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
■Front Seat Heaters*1Front Seat Heaters*
Do not use the seat heaters even in LO when the
power system is off. U nder such conditions, the 12-
volt battery may be weakened, making the power
system difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 195 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

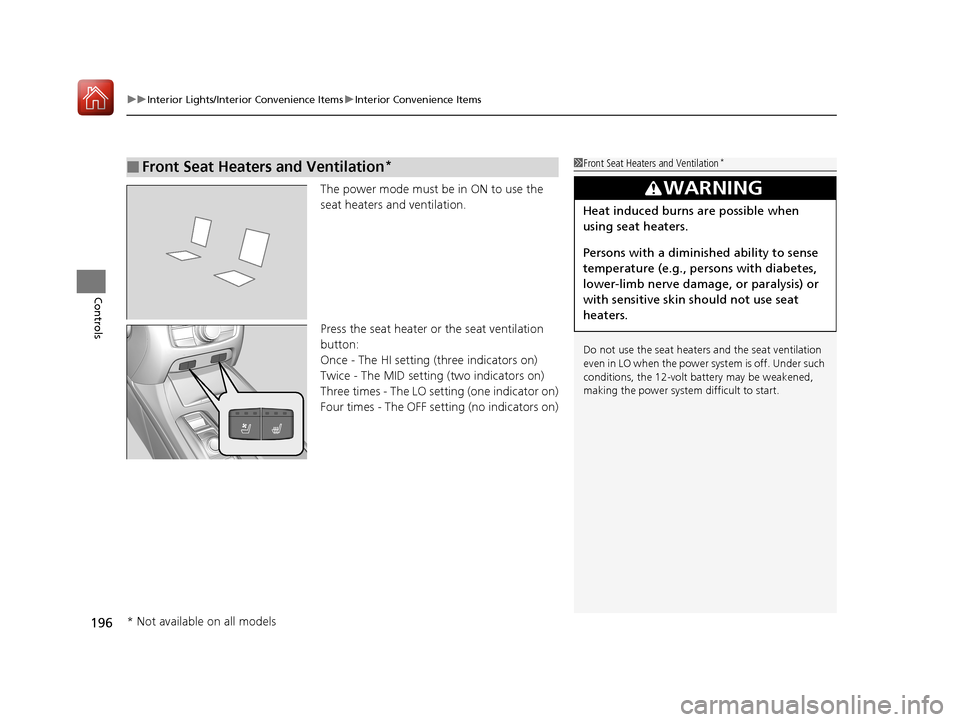

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
196
Controls
The power mode must be in ON to use the
seat heaters and ventilation.
Press the seat heater or the seat ventilation
button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
■Front Seat Heaters and Ventilation*1Front Seat Heaters and Ventilation*
Do not use the seat heater s and the seat ventilation
ev en in LO when the power system is off. Under such
conditions, the 12-volt ba ttery may be weakened,
making the power system difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 196 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

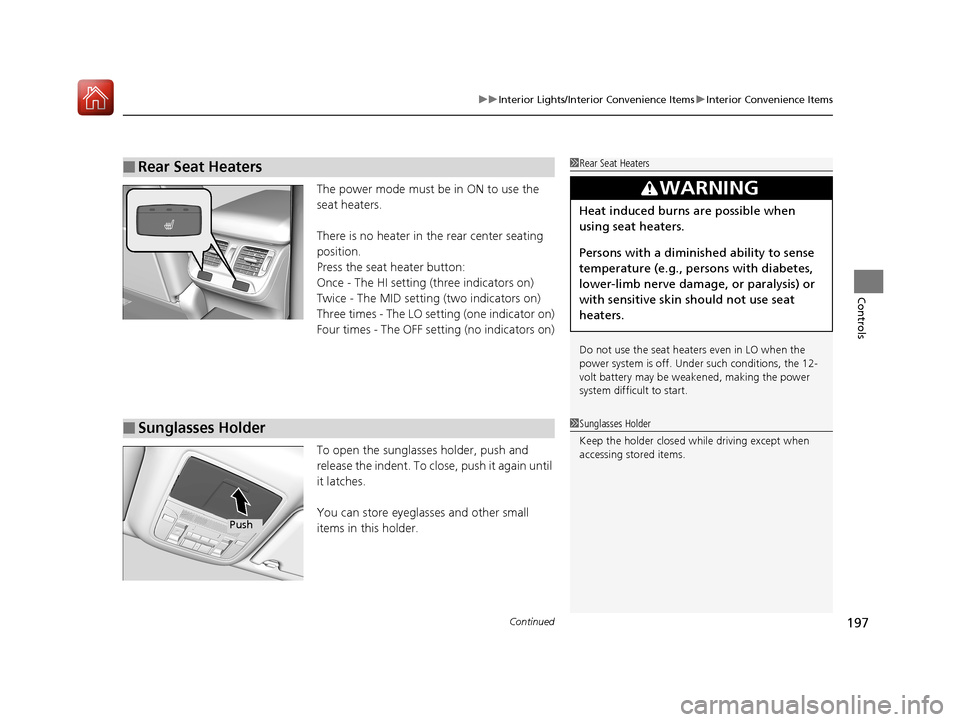

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
To open the sunglasses holder, push and
release the indent. To clos e, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Rear Seat Heaters1 Rear Seat Heaters
Do not use the seat heaters even in LO when the
power system is off. U nder such conditions, the 12-
volt battery may be weakened, making the power
system difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
18 ACURA RLX E-AWD-31TY36400.book 197 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

380
Driving
When Driving
Turning on the Power
1.Make sure the parking brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up the electric parking brake switch.
2. Depress the brake pedal.1Turning on the Power
Keep your foot firmly on the brake pedal when
starting the power system.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When turning on the power system in cold weather,
turn off all electrical accessories such as the lights,
climate control system, and rear defogger in order to
reduce 12-volt battery drain.
If you live in a region where winter is extremely cold,
an engine block heater and transmission clutch
actuator heater will impr ove starting and reduce the
warming time required befo re driving. Consult a
dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Electric Parking
Brake Switch
Brake Pedal
18 ACURA RLX E-AWD-31TY36400.book 380 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

Continued383
uuWhen Driving uTurning on the Power
Driving
■To turn the power system off1Remote Engine Start with Vehicle Feedback
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.
•The security system alarm is not set.
Before turning the power sy stem on, make sure to
check the door lock status using the remote. When
you press the button, wait for the green LED to
blink. If the red LED turns on, the doors and trunk did
not lock, and the power system is not turned on.
While the power system is on, the vehicle will
automatically preconditi on inside the vehicle.
When it is cold outside:
•The defroster and heated windshield are activated
at a moderately warm temperature.
•The rear defogger, door mi rror heaters and heated
windshield are activated.
•The heated steering wheel is activated. 2Heated Steering Wheel P. 194
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you know
that the power system is turned off.
●Blinks when the remote is out of the keyless
access system range. The power system will not
be turned off.
18 ACURA RLX E-AWD-31TY36400.book 383 ページ ２０１７年７月２０日　木曜日　午後６時
８分

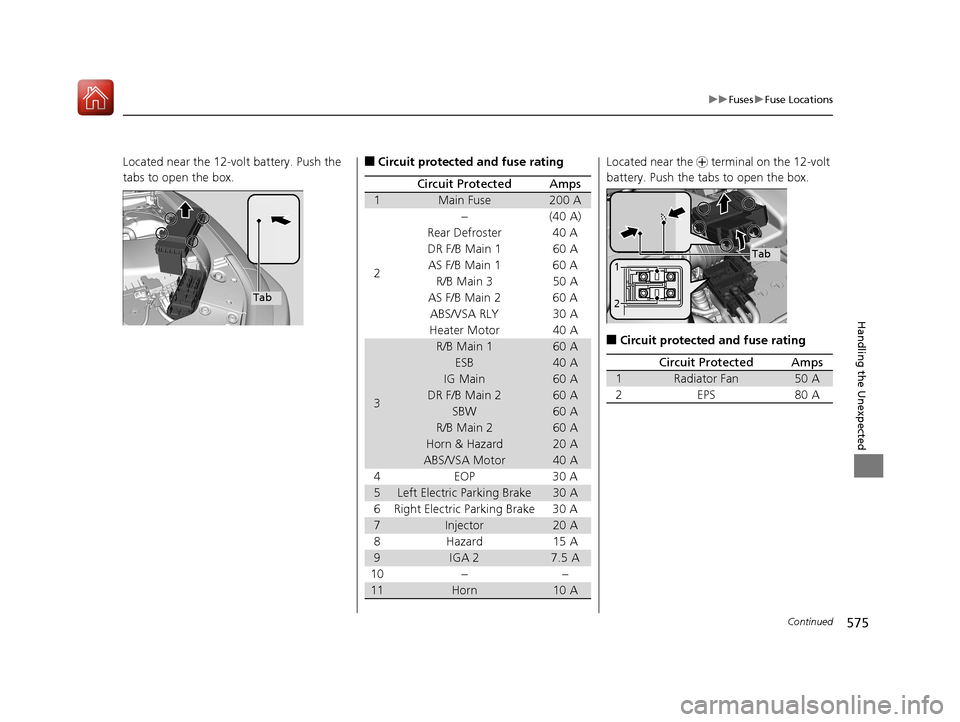

575
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located near the 12-volt battery. Push the
tabs to open the box.
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse200 A
2
−(40 A)
Rear Defroster 40 A DR F/B Main 1 60 AAS F/B Main 1 60 A R/B Main 3 50 A
AS F/B Main 2 60 A ABS/VSA RLY 30 A
Heater Motor 40 A
3
R/B Main 160 A
ESB40 A
IG Main60 A
DR F/B Main 260 A
SBW60 A
R/B Main 260 A
Horn & Hazard20 A
ABS/VSA Motor40 A
4EOP 30A
5Left Electric Parking Brake30 A
6 Right Electric Parking Brake 30 A
7Injector20 A
8 Hazard 15 A
9IGA 27.5 A
10 − −
11Horn10 A
Located near the + terminal on the 12-volt
battery. Push the tabs to open the box.
■Circuit protected and fuse rating
1
2Tab
Circuit ProtectedAmps
1Radiator Fan50 A
2EPS80 A
18 ACURA RLX E-AWD-31TY36400.book 575 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

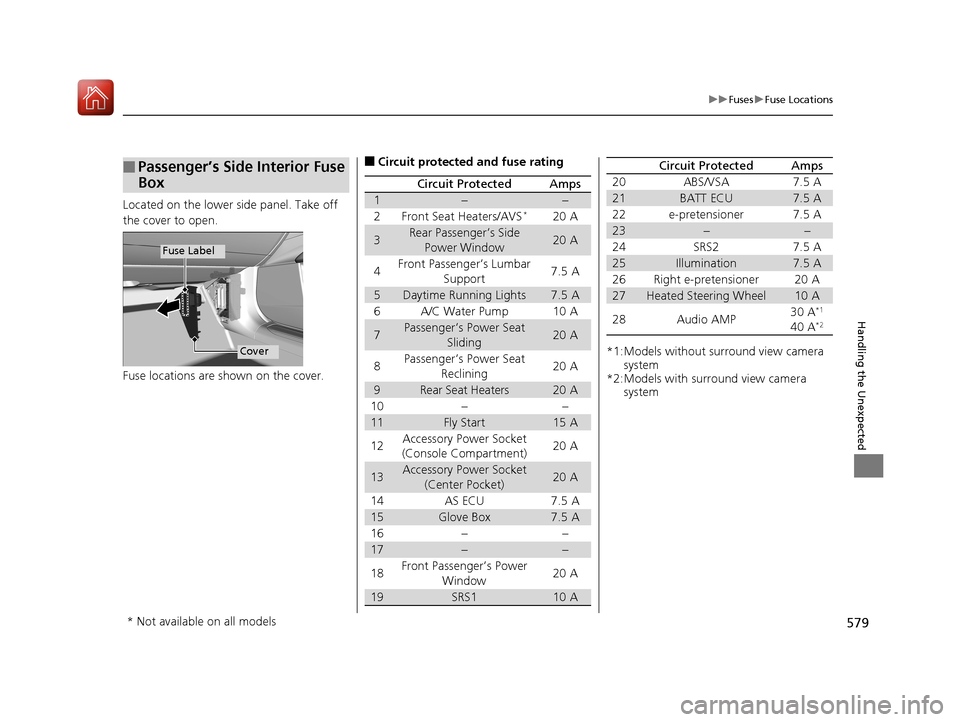

579
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS*20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5Daytime Running Lights7.5 A
6A/C Water Pump10 A
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters20 A
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21BATT ECU7.5 A
22e-pretensioner7.5 A
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner20 A
27Heated Steering Wheel10 A
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 579 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

603
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 532
Oil .......................................................... 508
Flat Tire ............................................. 543, 555
Floor Mats ................................................ 534
Fluids
Brake ...................................................... 513
Dual Clutch Transmission ........................ 513
Engine Coolant ....................................... 510
Inverter Coolant ...................................... 512
Windshield Washer ................................. 514
Foot Brake ................................................ 455
Front Airbags (SRS) .................................... 48
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................ 175, 178, 180
Adjusting ................................ 175, 178, 180
Front Sensor Camera ............................... 402
Fuel ..................................................... 25, 490
Economy................................................. 492
Gauge .................................................... 112
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 83
Range ..................................................... 117
Recommendation............................ 490, 586
Refueling ................................................ 490
Fuel Economy ........................................... 492
Fuel Fill Door ...................................... 25, 491 Fuses
.......................................................... 574
Inspecting and Changing ......................... 580
Locations ................................. 574, 577, 579
G
Gasoline (Fuel)
Economy ................................................. 492
Gauge ..................................................... 112
Information ............................................. 490
Instant Fuel Economy ............................... 117
Low Fuel Indicator ..................................... 83
Refueling ................................................. 490
Gauges ...................................................... 112
Gear Position Indicator ...................... 81, 389
Gear Shift Positions
Dual Clutch Transmission ......................... 387
Glass (care) ........................................ 533, 536
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 541
HandsFreeLink ® (HFL) ............................... 326
Auto Answer ........................................... 340
Automatic Import of Cellular Phonebook and
Call History ............................................ 342
Automatic Transferring ............................ 340
Displaying Messages ................................ 360
Editing User Name ................................... 339
HFL Buttons ............................................. 326 HFL Menus .............................................. 328
HFL Status Display ................................... 327
Limitations for Manual Operation ............ 327
Making a Call .......................................... 351
Options During a Call .............................. 357
Phone Setup............................................ 332
Phonebook Phonetic Modification ........... 346
Receiving a Call ....................................... 356
Receiving a Text/E-m
ail Message.............. 358
Ring Tone................................................ 341
Roadside Assistance ................................ 364
Selecting a Mail Account ......................... 359
Speed Dial ............................................... 343
To Create a Security PIN .......................... 338
To Set Up a Text/E-mail Message Option................................................... 337
Use Contact Photo .................................. 341
Hard Disk Drive (HDD) Audio .................. 248
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 156
Aiming .................................................... 515
Auto High-Beam ..................................... 160
Automatic Operation............................... 157
Dimming ................................................. 156
Operating................................................ 156
Head-Up Display ....................................... 119
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
18 ACURA RLX E-AWD-31TY36400.book 603 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

606
Index
P
Paddle Shifters (Sequential Mode).......... 394
Pandora® ................................................... 267
Panic Mode ............................................... 148
Parking ...................................................... 468
Parking Brake ............................................ 452
Parking Sensor System .............................. 470
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 156
POWER Button .......................................... 152
Power Distribution Monitor ............. 124, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 380
POWER SYSTEM Indicator .......................... 80
Power Windows ........................................ 149
Precautions While Driving
Rain ......................................................... 385
Pregnant Women ....................................... 43
Puncture (Tire) .................................. 543, 555
R
Radiator..................................................... 511
Radio (AM/FM) .......................................... 237
Radio (SiriusXM ®)...................................... 242
Radio Data System (RDS) .......................... 239
Range ........................................................ 117
RDS (Radio Data System) .......................... 239
Reactive Force Pedal ................................. 396
Readiness Codes (Emissions Testing) ....... 591READY Indicator
......................................... 80
Rear Defogger/Heated Door Mirror
Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 490
Fuel Gauge.............................................. 112
Gasoline .......................................... 490, 586
Low Fuel Indicator ..................................... 83
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 449, 524, 589
Remote Engine Start with Vehicle
Feedback ................................................. 382
Remote Transmitter ................................. 136
Replacement
Battery .................................................... 531
Bulbs ....................................................... 515
Fuses ....................................... 574, 577, 579
Tires ........................................................ 527
Wiper Blade Rubber ................................ 518
Reporting Safety Defects ......................... 590
Resetting a Trip Meter ............................. 116
Reverse Tilt Door Mirror .......................... 173
Right Selector Wheel ............................... 114
Road Departure Mitigation (RDM) ......... 418
On and Off.............................................. 420
S
Safe Driving ................................................ 33
Safety Labels .............................................. 73
Safety Message ............................................ 1
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor ................. 42
Automatic Seat Belt Tensioners ................. 40
Checking .................................................. 44
e-pretensioners ......................................... 40
Fastening .................................................. 41
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Pregnant Women...................................... 43
Reminder ............................................ 39, 83
Warning Indicator ............................... 39, 83
Seat Heaters ............................. 195, 196, 197
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats.............................. 175, 178, 180
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 146
Immobilizer System Indicator..................... 87
Security System Alarm Indicator ................ 88
Selecting a Child Seat ................................ 64
Sequential Mode ...................................... 393
Sequential Mode Operation ................... 394
Setting the Clock ...................................... 128
Shift Button ........................................ 23, 387
Operation ............................................... 389
Shifting (Transmission) ...................... 23, 387
Shoulder Anchor ........................................ 42
18 ACURA RLX E-AWD-31TY36400.book 606 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
