wiper blades Acura RLX HYBRID 2018 Owner's Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 45
2Instrument Panel P. 75
Indicators P. 76 Gauges and Displays P. 112
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 129
Opening and Closing the Moonroof P. 151
Adjusting the Seats P. 175
2 Features P. 211
Audio System P. 212 Audio System Basic Operation P. 216
Customized Features P. 297 HomeLink® Universal Transceiver P. 323
2 Driving P. 373
Before Driving P. 374 Towing a Trailer P. 379
Multi-View Rear Camera* P. 478 Surround View Camera System* P. 480
2Maintenance P. 493
Before Performing Maintenance P. 494 Maintenance MinderTM P. 497
Checking and Maintaining Wiper Blades P. 518
Climate Control System Maintenance P. 532
2Handling the Unexpected P. 541
Tools P. 542 If a Tire Goes Flat P. 543
Overheating P. 567 Indicator, Coming On/Blinking P. 569
When You Cannot Open the Trunk P. 583
2 Information P. 585
Specifications P. 586 Identification Numbers P. 588
Emissions Testing P. 591 Warranty Coverages P. 593
18 ACURA RLX E-AWD-31TY36400.book 2 ページ ２０１７年７月２０日　木曜日　午後６時８分

27
Quick Reference Guide
Maintenance (P 493)
Under the Hood (P 502)
● Check engine oil, engine coolant, and inverter coolant. Add
when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 515)
● Inspect all lights regularly.
Wiper Blades (P 518)
● Replace blades if they leave streaks
across the windshield.
Tires (P 521)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
18 ACURA RLX E-AWD-31TY36400.book 27 ページ ２０１７年７月２０日　木曜日　午後６時８分

163
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, AUTO, LO, HI)
Move the lever up or down to change the
wiper settings.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Windshield Wiper/Washer1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wipers stop operating due to any obstacle such
as the build-up of snow, park the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
MIST
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
AUTO
18 ACURA RLX E-AWD-31TY36400.book 163 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

493
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 494
Safety When Performing Maintenance .... 495Parts and Fluids Used in Maintenance Service ........................................... 496
Maintenance Minder
TM..................... 497
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 502Opening the Hood ........................... 503
Engine Compartment Cover ............. 504
Recommended Engine Oil ................ 505
Oil Check ......................................... 506
Adding Engine Oil ............................ 507
Changing the Engine Oil and Oil Filter ..... 508Cooling System ................................ 510
Inverter Coolant ............................... 512
Transmission Fluid ............................ 513
Brake Fluid ....................................... 513
Refilling Window Washer Fluid......... 514
Replacing Light Bulbs ....................... 515
Checking and Maintaining Wiper Blades.... 518Checking and Maintaining Tires
Checking Tires ................................. 521
Tire and Loading Information Label .. 522
Tire Labeling .................................... 522
DOT Tire Quality Grading (U.S. Vehicles).. 524
Wear Indicators ............................... 526
Tire Service Life ................................ 526
Tire and Wheel Replacement ........... 527
Tire Rotation .................................... 528
Winter Tires ..................................... 529
12-Volt Battery ................................. 530
Remote Transmitter Care Replacing the Button Battery ........... 531
Climate Control System Maintenance.... 532CleaningInterior Care .................................... 533
Exterior Care.................................... 535
Accessories and Modifications ........ 538
18 ACURA RLX E-AWD-31TY36400.book 493 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

494
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 513
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 521
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 515
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 518
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the mult i-information display.
2 Maintenance Service Items P. 500
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 595
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
18 ACURA RLX E-AWD-31TY36400.book 494 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

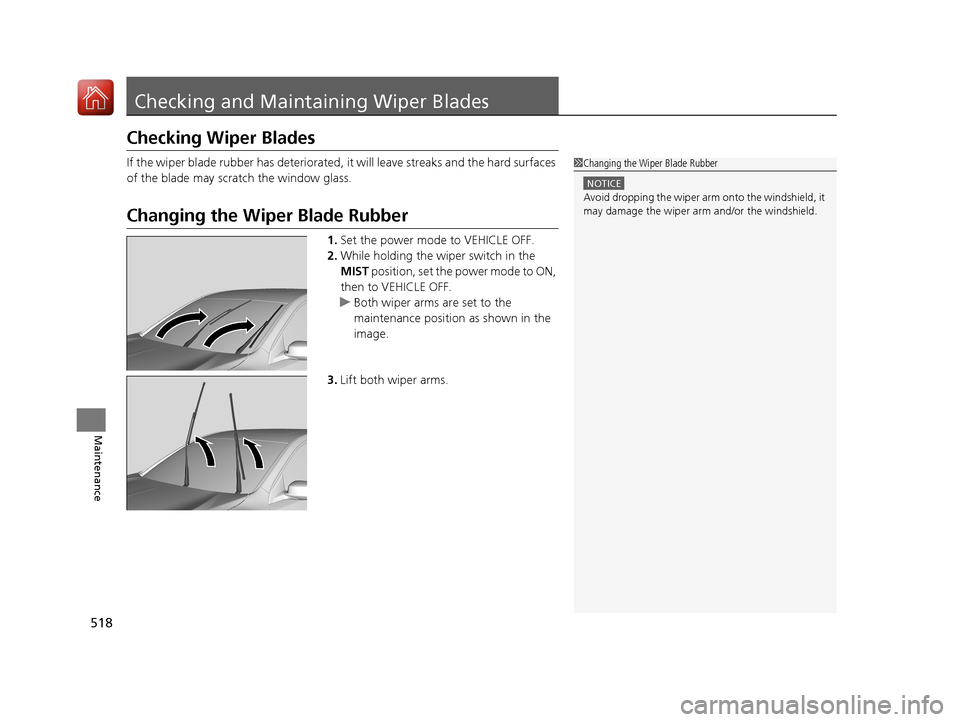

518
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Set the power mode to VEHICLE OFF.
2. While holding the wiper switch in the
MIST position, set the power mode to ON,
then to VEHICLE OFF.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
18 ACURA RLX E-AWD-31TY36400.book 518 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

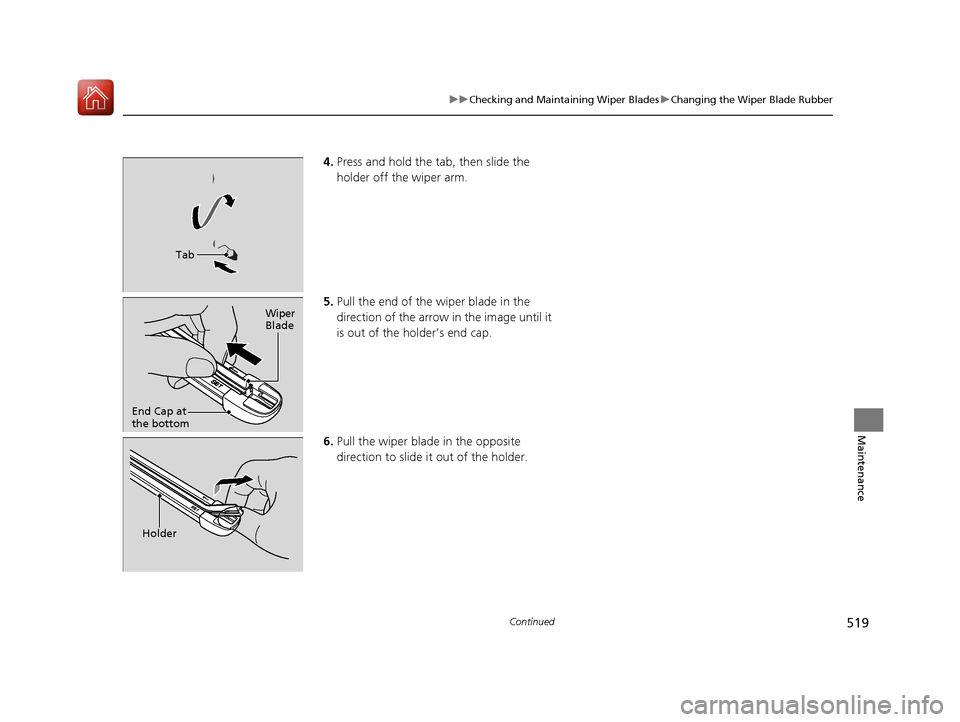

519
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Continued
Maintenance
4. Press and hold the ta b, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.
Tab
Wiper
Blade
End Cap at
the bottom
Holder
18 ACURA RLX E-AWD-31TY36400.book 519 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

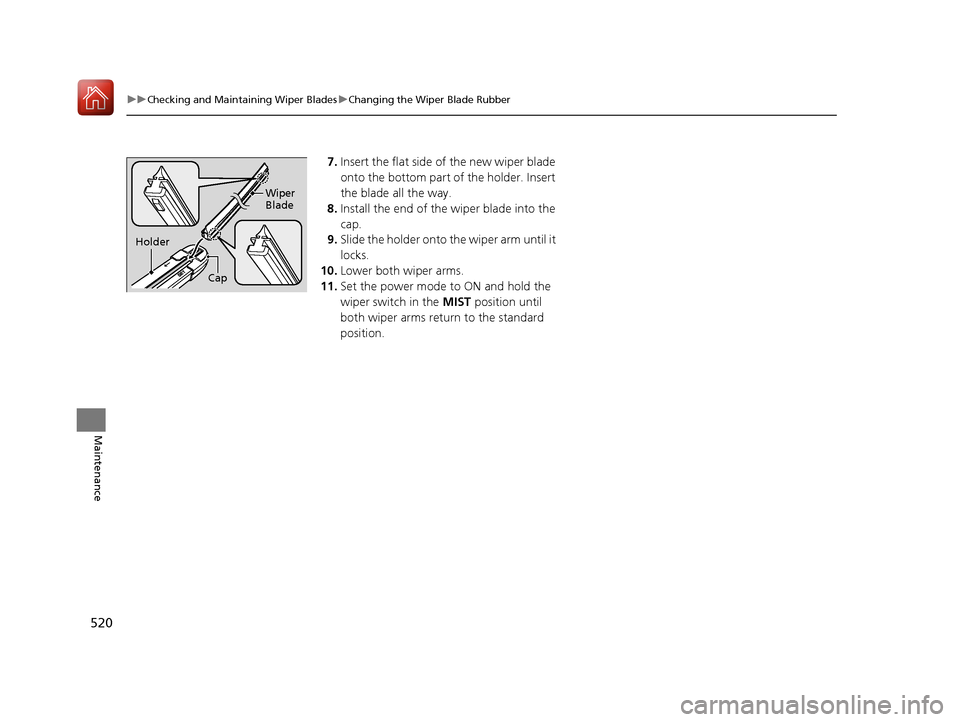

520
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Set the power mode to ON and hold the
wiper switch in the MIST position until
both wiper arms return to the standard
position.
Cap Wiper
Blade
Holder
18 ACURA RLX E-AWD-31TY36400.book 520 ページ ２０１７年７月２０日　木曜日　午後６時
８分

608
Index
U
Unlocking the Doors................................. 131
Unlocking the Front Doors from the Inside ........................................... 18, 139
USB Flash Drives ........................................ 282
USB Port .................................................... 213
Using the Keyless Access System .............. 131
V
Valet Mode............................................... 185
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................. 588
Vehicle Speed ............................................ 123
Vehicle Stability Assist (VSA ®).................. 441
Off Button ............................................... 442
Off Indicator ...................................... 85, 442
System Indicator ................................ 85, 441
Viscosity (Oil) ..................................... 505, 587
VSA ® (Vehicle Stability Assist) .................. 441
W
Warning and Information Messages ......... 94
Warning Indicator On/Blinking ................ 569
Warning Labels ........................................... 73
Warranties (Warranty Manual provided separately) ............................................... 593
Watts ......................................................... 586
Wear Indicators (Tire) ............................... 526
Wheel Nut Wrench (Jack Handle) ............ 558Window Washers
..................................... 163
Adding/Refilling Fluid .............................. 514
Switch ..................................................... 163
Windows (Opening and Closing) ............ 149
Windshield
Cleaning ......................................... 533, 536
Defrosting/Defogging .............................. 207
Washer Fluid ........................................... 514
Wiper Blades ........................................... 518
Wipers and Washers................................ 163
Winter Tires
Snow Tires .............................................. 529
Tire Chains .............................................. 529
Wipers and Washers ................................. 163
Checking and Replacing Wiper Blades ..... 518
WMA ................................................. 245, 269
Worn Tires ................................................ 521
18 ACURA RLX E-AWD-31TY36400.book 608 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
