ESP Acura RLX HYBRID 2019 Owner's Guide

308
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Meter/
Head-
up
Display
SetupLanguage Selection
Changes the displayed language on the multi-
information display. English
*1/
Français /
Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A,
average speed A, and
elapsed time A. When Refueled
/
IGN Off /Manually
Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B,
average speed B, and
elapsed time B. When Refueled
/
IGN Off /Manually
Reset*1
Reverse Alert Tone Turns the reverse alert tone on and off. On*1/Off
Turn By Turn Display Selects whether the turn-by-turn display comes on
during the route guidance. On
*1/
Off
Display Speed Unit Changes the speed unit for ACC with LSF on the
multi-information display, and the speed unit on
the head-up display. km/h
/mph
*1
(U.S.)
km/h*1/mph
(Canada)
19 ACURA RLX HYBRID CSS-31TY36500.book 308 ページ ２０１８年３月７日　水曜日　午後４時１９分

325
uuBluetooth ® HandsFreeLink ®u Using HFL
Features
The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or
inoperable while the ve hicle is in motion.
You cannot select a grayed-out option until
the vehicle is stopped.
Only previously stored speed dial entries with
voice tags, phonebook names, or numbers
can be called using voice commands while the
vehicle is in motion.
2 Speed Dial P. 341

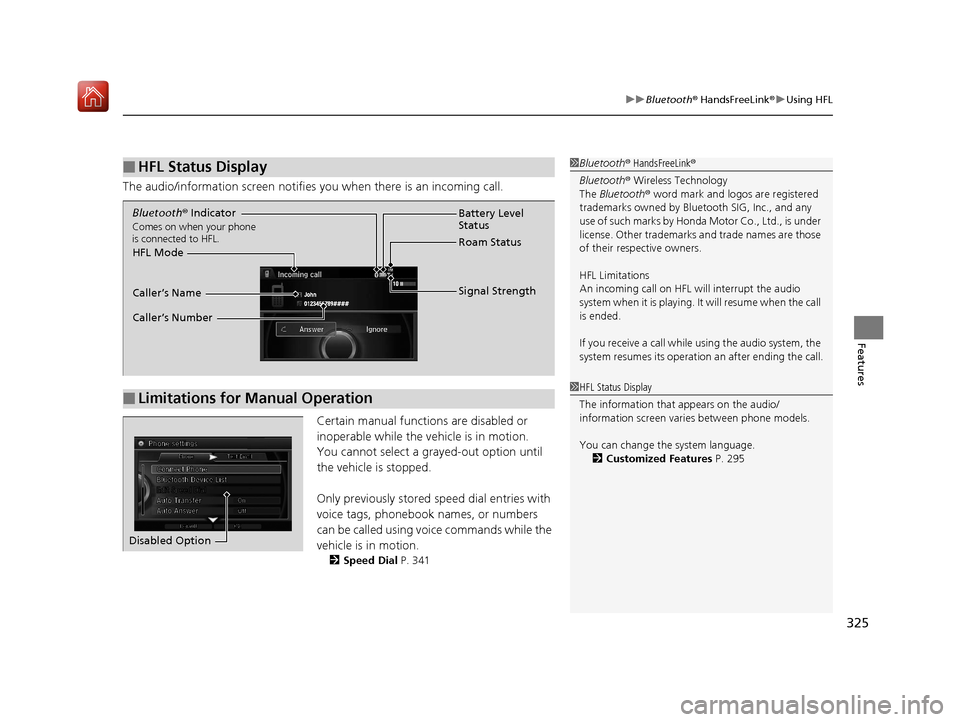

■HFL Status Display1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Blue tooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
If you receive a call while using the audio system, the
system resumes its operation an after ending the call.
1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language. 2 Customized Features P. 295■Limitations for Manual Operation
Bluetooth® Indicator
Comes on when your phone
is connected to HFL.
Signal Strength
HFL Mode Battery Level
Status
Roam Status
Caller’s Name
Caller’s Number
Disabled Option
19 ACURA RLX HYBRID CSS-31TY36500.book 325 ページ ２０１８年３月７日　水曜日　午後４時１９分

uuWhen Driving uDual Clutch Transmission
384
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
Dual Clutch Transmission
As with a conventional gasoline-powered vehicle with an automatic transmission,
this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unex pectedly increasing vehicle speed. Depress
the accelerator pedal carefully, especi ally on slippery roads and curves.
■Other Precautions
■Creeping
■Kickdown
1Precautions While Driving
Do not change the gear position to
(N, as you will
lose regenerative brak ing (and acceleration)
performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
19 ACURA RLX HYBRID CSS-31TY36500.book 384 ページ ２０１８年３月７日　水曜日　午後４時１９分

394
uuWhen Driving uReactive Force Pedal
Driving

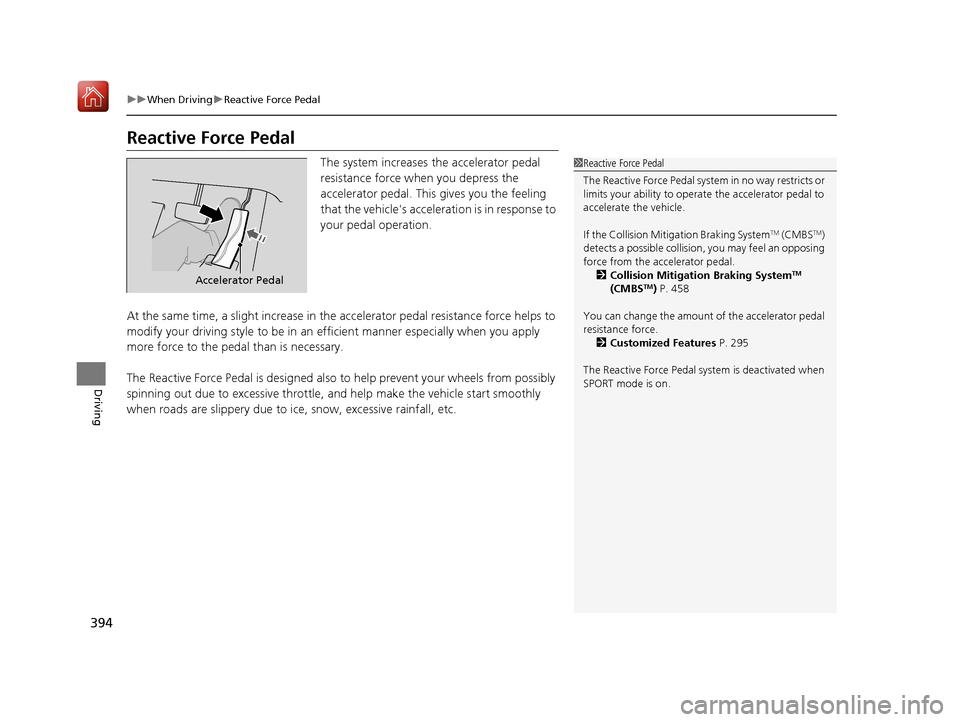

Reactive Force Pedal
The system increases the accelerator pedal
resistance force when you depress the
accelerator pedal. This gives you the feeling
that the vehicle's acceleration is in response to
your pedal operation.
At the same time, a slight increase in the accelerator pedal resistance force helps to
modify your driving style to be in an efficient manner especially when you apply
more force to the pedal than is necessary.
The Reactive Force Pedal is designed also to help prevent your wheels from possibly
spinning out due to excessive throttle, an d help make the vehicle start smoothly
when roads are slippery due to ic e, snow, excessive rainfall, etc.1Reactive Force Pedal
The Reactive Force Pedal system in no way restricts or
limits your ability to operate the accelerator pedal to
accelerate the vehicle.
If the Collision Miti gation Braking System
TM (CMBSTM)
detects a possible collision, you may feel an opposing
force from the accelerator pedal. 2 Collision Mitigation Braking System
TM
(CMBSTM) P. 458
You can change the amount of the accelerator pedal
resistance force. 2 Customized Features P. 295
The Reactive Force Pedal system is deactivated when
SPORT mode is on.Accelerator Pedal
19 ACURA RLX HYBRID CSS-31TY36500.book 394 ページ ２０１８年３月７日　水曜日　午後４時１９分

Continued403
uuWhen Driving uAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Driving

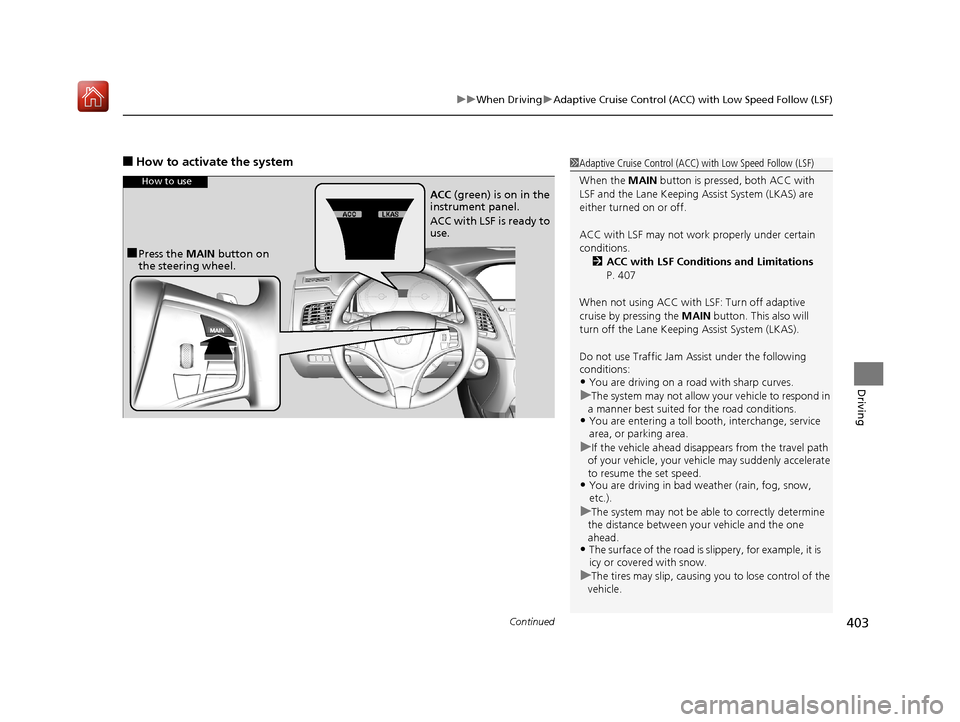

■How to activate the system1Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
When the MAIN button is pressed, both ACC with
LSF and the Lane Keeping Assist System (LKAS) are
either turned on or off.
ACC with LSF may not work properly under certain
conditions. 2 ACC with LSF Conditions and Limitations
P. 407
When not using ACC with LSF: Turn off adaptive
cruise by pressing the MAIN button. This also will
turn off the Lane Keeping Assist System (LKAS).
Do not use Traffic Jam Assist under the following
conditions:
•You are driving on a ro ad with sharp curves.
uThe system may not allow your vehicle to respond in
a manner best suited for the road conditions.
•You are entering a toll booth, interchange, service
area, or parking area.
uIf the vehicle ahead disappears from the travel path
of your vehicle, your vehi cle may suddenly accelerate
to resume the set speed.
•You are driving in bad we ather (rain, fog, snow,
etc.).
uThe system may not be able to correctly determine
the distance between yo ur vehicle and the one
ahead.
•The surface of the road is slippery, for example, it is
icy or covered with snow.
uThe tires may slip, causing you to lose control of the
vehicle.
How to use
■Press the MAIN button on
the steering wheel. ACC
(green) is on in the
instrument panel.
ACC with LSF is ready to
use.
19 ACURA RLX HYBRID CSS-31TY36500.book 403 ページ ２０１８年３月７日　水曜日　午後４時１９分

416
uuWhen Driving uRoad Departure Mitigation (RDM) System
Driving
Road Departure Mitigation (RDM) System
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected la ne markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close
to detected lane markings without a turn
signal activated, the system, in addition to a
visual alert, applies steering torque and alerts
you with rapid vibrations on the steering
wheel, to help you remain within the detected
lane.
2 Customized Features P. 295
As a visual alert, the Lane Departure
message appears on the multi-information
display.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking. u Braking is applied only when the lane
markings are solid continuous lines.
■How the System Works
1Road Departure Mitigation (RDM) System
Important Safety Reminder
Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.
The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all la ne markings or lane or
roadway departures; accu racy will vary based on
weather, speed and lane marker condition. It is
always your responsibilit y to safely operate the
vehicle and avoid collisions.
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 400
The RDM system may not wo rk properly or may work
improperly under the certain conditions: 2 RDM Conditions and Limitations P. 419
There are times when you may not notice RDM
functions due to your opera tion of the vehicle, or
road surface conditions.
19 ACURA RLX HYBRID CSS-31TY36500.book 416 ページ ２０１８年３月７日　水曜日　午後４時１９分

Continued417
uuWhen Driving uRoad Departure Mitigation (RDM) System
Driving

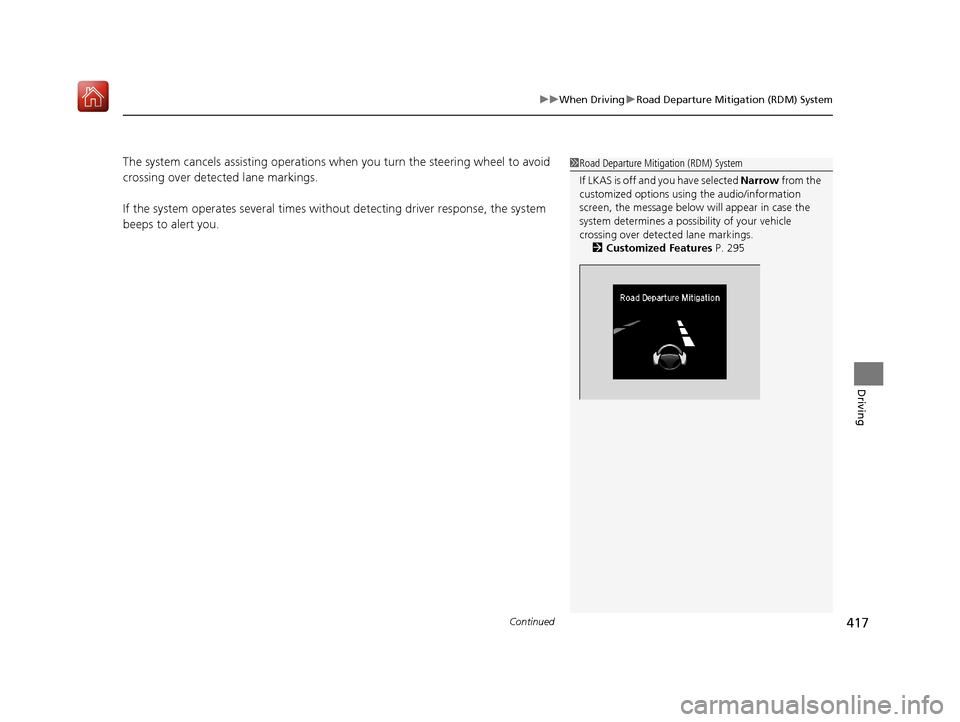

The system cancels assisting operations wh en you turn the steering wheel to avoid
crossing over detected lane markings.
If the system operates several times with out detecting driver response, the system
beeps to alert you.1 Road Departure Mitigation (RDM) System
If LKAS is off and you have selected Narrow from the
customized options using the audio/information
screen, the message below will appear in case the
system determines a possibility of your vehicle
crossing over detect ed lane markings.
2 Customized Features P. 295
19 ACURA RLX HYBRID CSS-31TY36500.book 417 ページ ２０１８年３月７日　水曜日　午後４時１９分

421
uuWhen Driving uLane Keeping Assist System (LKAS)
Continued
Driving
Lane Keeping Assist System (LKAS)
Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual al erts if the vehicle is detected drifting out of its lane.1Lane Keeping Assist System (LKAS)
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicl e control. The system does
not work if you take y our hands off the steering
wheel or fail to steer the vehicle.
2 Multi-Information Display Warning and
Information Messages P. 94
Do not place objects on the instrument panel.
Objects may reflect on th e front windshield and
prevent correct detectio n of the traffic lanes.
The LKAS only alerts you when lane drift is detected
without a turn signal in us e. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition. It is always your responsibility to safely
operate the vehicle an d avoid collisions.
The LKAS is convenient when it is used on freeways.
The LKAS may not work properly or may work
improperly under the certain conditions: 2 LKAS Conditions and Limitations P. 426
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 400
When you operate the turn signals to chan ge lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operat ing the turn signals, the LKAS alerts
activate, and torque is applied to the steering.
■Front sensor
camera
Monitors the lane
lines■Tactile and visual alerts
Rapid vibrations on the steering
wheel and a warning display alert you
that the vehicle is drifting out of a
detected lane.
■Steering input assist
The system applies torque to the steering to keep the vehicle between the left and
right lane lines. The applied torque becomes stronger as the vehicle gets closer to
either of the lane lines.
19 ACURA RLX HYBRID CSS-31TY36500.book 421 ページ ２０１８年３月７日　水曜日　午後４時１９分

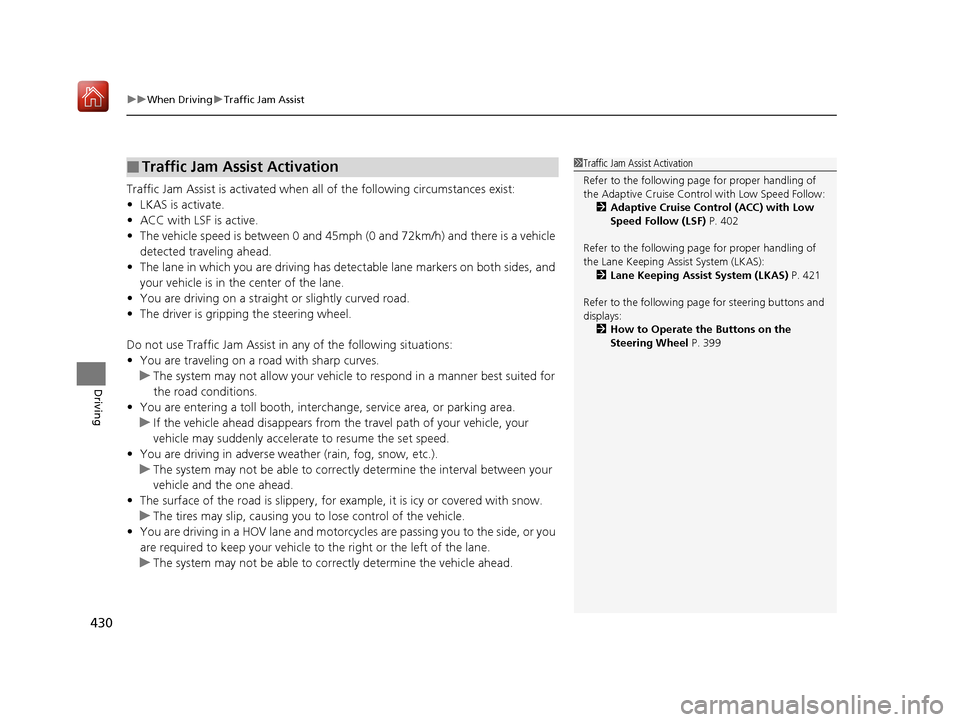

uuWhen Driving uTraffic Jam Assist
430
Driving
Traffic Jam Assist is activated when a ll of the following circumstances exist:
• LKAS is activate.
• ACC with LSF is active.
• The vehicle speed is between 0 and 45mph (0 and 72km/h) and there is a vehicle
detected traveling ahead.
• The lane in which you are driving has dete ctable lane markers on both sides, and
your vehicle is in the center of the lane.
• You are driving on a straight or slightly curved road.
• The driver is gripping the steering wheel.
Do not use Traffic Jam Assist in any of the following situations:
• You are traveling on a ro ad with sharp curves.
u The system may not allow your vehicle to respond in a manner best suited for
the road conditions.
• You are entering a toll booth, interchange, service area, or parking area.
u If the vehicle ahead disappears from th e travel path of your vehicle, your
vehicle may suddenly accelerate to resume the set speed.
• You are driving in adverse weat her (rain, fog, snow, etc.).
u The system may not be able to correctly determine the interval between your
vehicle and the one ahead.
• The surface of the road is slippery, for ex ample, it is icy or covered with snow.
u The tires may slip, causing you to lose control of the vehicle.
• You are driving in a HOV lane and motorcycles are passing you to the side, or you
are required to keep your vehicle to the right or the left of the lane.
u The system may not be able to co rrectly determine the vehicle ahead.
■Traffic Jam Assist Activation1Traffic Jam Assist Activation
Refer to the following pa ge for proper handling of
the Adaptive Cruise Control with Low Speed Follow:
2 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) P. 402
Refer to the following pa ge for proper handling of
the Lane Keeping Assist System (LKAS): 2 Lane Keeping Assist System (LKAS) P. 421
Refer to the following page for steering buttons and
displays:
2 How to Operate th e Buttons on the
Steering Wheel P. 399
19 ACURA RLX HYBRID CSS-31TY36500.book 430 ページ ２０１８年３月７日　水曜日　午後４時１９分

439
uuWhen Driving uVehicle Stability Assist ® (VSA ®), aka Electronic Stability Control (ESC), System
Continued
Driving
Vehicle Stability Assist ® (VSA ®), aka Electronic
Stability Control (ESC), System
VSA ® helps to stabilize the vehicle during corn ering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine and motor output and selectively applying the
brakes.
When VSA® activates, you may notice that the
engine and motor do not respond to the
accelerator. You may also notice some noise
from the hydraulic system. You will also see
the indicator blink.
■VSA ® Operation
1 Vehicle Stability Assist ® (VSA ®), aka Electronic Stability Control
(ESC), System
The VSA ® may not function properl y if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.
When the VSA ® system indicator comes on and stays
on while driving, there ma y be a problem with the
system. While this may not interfere with normal
driving, have your vehi cle checked by a dealer
immediately.
VSA ® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and alwa ys leave a sufficient
margin of safety.
The main function of the VSA ® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
VSA® System
Indicator
19 ACURA RLX HYBRID CSS-31TY36500.book 439 ページ ２０１８年３月７日　水曜日　午後４時１９分
