Shift Acura RLX HYBRID 2020 Owner's Guide

Continued453
uuBraking uBrake System
Driving
Your vehicle is equipped with disc brakes at all four wheels. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The an ti-lock brake system (ABS) helps you retain steering
control when brak ing very hard.
2Brake Assist System P. 457
2 Anti-lock Brake System (ABS) P. 456
■Foot Brake1Foot Brake
Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.
If you hear a continuous me tallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by a deal er. If you hear only an
occasional squeak or squeal when you initially apply
the brake pedal, this may be normal and caused by
high frequency vibr ation of the brake pads against
the rotating brake disc.
Constantly using the brak e pedal while going down a
long hill builds up heat, which reduces the brake
effectiveness. Apply regene rative braking by taking
your foot off the accelera tor pedal and downshifting
to a lower gear.
Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also conf use drivers behind you.
20 ACURA RLX HYBRID-31TY36601.book 453 ページ ２０１９年７月２３日　火曜日　午後６時２５分

568
uuIndicator, Coming On/Blinking uIf the Malfunction Indicato r Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.U.S.
Canada
20 ACURA RLX HYBRID-31TY36601.book 568 ページ ２０１９年７月２３日　火曜日　午後６時２５分

580
Handling the Unexpected

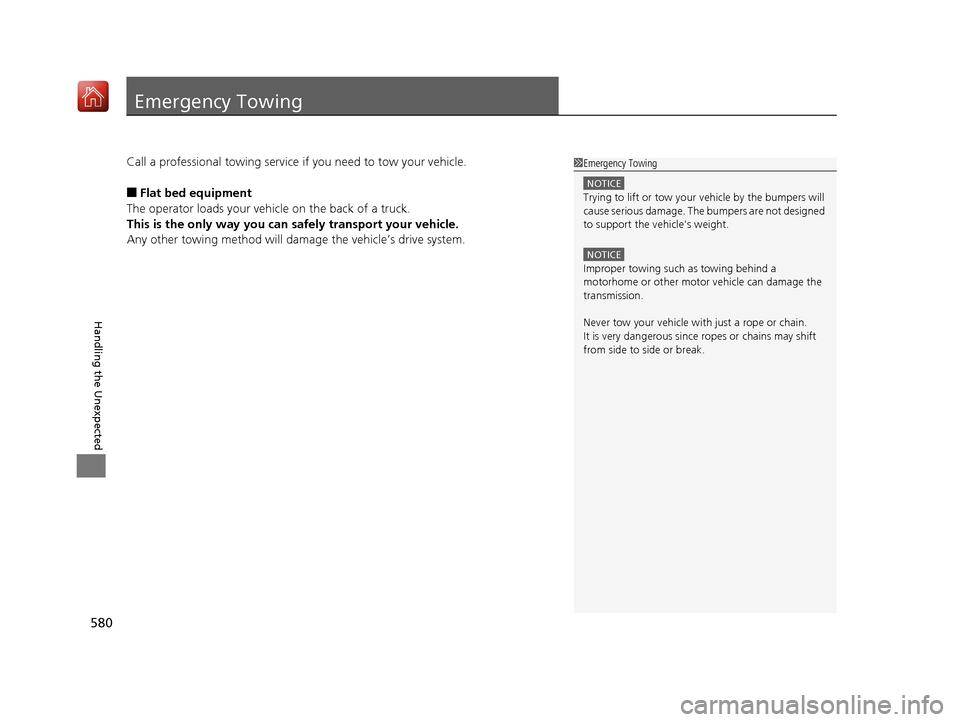

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
20 ACURA RLX HYBRID-31TY36601.book 580 ページ ２０１９年７月２３日　火曜日　午後６時２５分

602
Index
Compact Spare Tire (Optional)........ 553, 587
Console Compartment ............................. 187
Controls ..................................................... 127
Coolant (Engine) ....................................... 509
Adding to the Radiator ............................ 510
Adding to the Reserve Tank ..................... 509
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Overheating............................................. 565
Coolant (Inverter) ..................................... 511
Creeping (Dual Clutch Transmission) ....... 384
Cross Traffic Monitor ................................ 472
Cup Holders ............................................... 189
Customized Features ................................ 295
D
Daytime Running Lights ........................... 159
Dead Battery (12-Volt) ............................. 562
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 589
Dimming Headlights ............................................... 156
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 505
Directional Signals (Turn Signal) .............. 155
Door Mirrors ............................................. 173
Doors ......................................................... 129
Auto Door Locking .................................. 142
Auto Door Unlocking ............................... 142 Door Open Message.................................. 37
Keys ........................................................ 129
Locking/Unlocking the Doors from
the Inside ........................................ 18, 139
Locking/Unlocking the Doors from
the Outside ........................................... 131
Lockout Prevention System ...................... 137
DOT Tire Quality Grading ........................ 523
Driver’s Knee Airbag .................................. 52
Driving ...................................................... 371
Braking ................................................... 450
Dual Clutch Transmission ........................ 384
Shifting Gear ........................................... 385
Turning on the Power.............................. 378
Driving Position Memory System ............ 169
Dual Clutch Transmission Creeping ................................................. 384
Fluid ........................................................ 512
Kickdown ................................................ 384
Operating the Shift Button ................ 23, 387
Shifting ................................................... 385
Dust and Pollen Filter ............................... 531
E
Elapsed Time............................................. 117
Electric Parking Brake
Indicator.................................................... 77
Electric Parking Brake System Indicator............................................ 77, 569 Electric Power Steering (EPS) System
Indicator ........................................... 84, 569
Electronic Stability Control (ESC) ............ 439
Emergency ................................................ 580
Emissions Testing (Readiness Codes) ...... 591
Energy Efficiency ........................................ 12
Engine ....................................................... 588
Coolant .................................................. 509
Jump Starting ......................................... 562
Oil .......................................................... 504
Remote Engine Start ............................... 380
Engine Compartment Cover .................... 503
Engine Coolant ........................................ 509
Adding to the Radiator ........................... 510
Adding to the Reserve Tank .................... 509
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Overheating ............................................ 565
Engine Oil ................................................. 504
Adding ................................................... 506
Checking ................................................ 505
Displaying Oil Life ................................... 496
Low Oil Pressure Indicator ................. 76, 567
Recommended Engine Oil ....................... 504
e-pretensioners .......................................... 40
EPS (Electric Power Steering) System ........ 84
Exhaust Gas Hazard (Carbon Monoxide) .. 72
Expanded Rear Door Sunshades ............. 199
Exterior Care (Cleaning) .......................... 534
Exterior Mirrors ........................................ 173
20 ACURA RLX HYBRID-31TY36601.book 602 ページ ２０１９年７月２３日　火曜日　午後６時２５分

603
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 531
Oil .......................................................... 507
Flat Tire ............................................. 541, 553
Floor Mats ................................................ 533
Fluids
Brake ...................................................... 512
Dual Clutch Transmission ........................ 512
Engine Coolant ....................................... 509
Inverter Coolant ...................................... 511
Windshield Washer ................................. 513
Foot Brake ................................................ 453
Front Airbags (SRS) .................................... 48
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats Adjusting ................................ 175, 178, 180
Front Sensor Camera ............................... 400
Fuel ..................................................... 25, 488
Economy................................................. 490
Gauge .................................................... 112
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 83
Range ..................................................... 117
Recommendation............................ 488, 586
Refueling ................................................ 488
Fuel Economy ........................................... 490
Fuel Fill Door ...................................... 25, 489 Fuses
.......................................................... 572
Inspecting and Changing ......................... 579
Locations ................................. 572, 576, 577
G
Gasoline (Fuel)
Economy ................................................. 490
Gauge ..................................................... 112
Information ............................................. 488
Instant Fuel Economy ............................... 117
Low Fuel Indicator ..................................... 83
Refueling ................................................. 488
Gauges ...................................................... 112
Gear Position Indicator ...................... 81, 387
Gear Shift Positions
Dual Clutch Transmission ......................... 385
Glass (care) ........................................ 532, 535
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 539
HandsFreeLink ® (HFL) ............................... 324
Auto Answer ........................................... 338
Automatic Import of Cellular Phonebook and
Call History ............................................ 340
Automatic Transferring ............................ 338
Displaying Messages ................................ 358
Editing User Name ................................... 337
HFL Buttons ............................................. 324 HFL Menus .............................................. 326
HFL Status Display ................................... 325
Limitations for Manual Operation ............ 325
Making a Call .......................................... 349
Options During a Call .............................. 355
Phone Setup............................................ 330
Phonebook Phonetic Modification ........... 344
Receiving a Call ....................................... 354
Receiving a Text/E-m
ail Message.............. 356
Ring Tone................................................ 339
Roadside Assistance ................................ 362
Selecting a Mail Account ......................... 357
Speed Dial ............................................... 341
To Create a Security PIN .......................... 336
To Set Up a Text/E-mail Message Option................................................... 335
Use Contact Photo .................................. 339
Hard Disk Drive (HDD) Audio .................. 248
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 156
Aiming .................................................... 514
Auto High-Beam ..................................... 160
Automatic Operation............................... 157
Dimming ................................................. 156
Operating................................................ 156
Head-Up Display ....................................... 119
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
20 ACURA RLX HYBRID-31TY36601.book 603 ページ ２０１９年７月２３日　火曜日　午後６時２５分

606
Index
Outside Temperature Display.................. 116
Overheating .............................................. 565
P
Paddle Shifters (Sequential Mode) .......... 392
Pandora® ................................................... 267
Panic Mode ............................................... 148
Parking ...................................................... 466
Parking Brake ............................................ 450
Parking Sensor System .............................. 468
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 156
POWER Button .......................................... 152
Power Distribution Monitor ............. 124, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 378
POWER SYSTEM Indicator .......................... 80
Power Windows ........................................ 149
Precautions While Driving
Rain ......................................................... 383
Pregnant Women ....................................... 43
Puncture (Tire) .................................. 541, 553
R
Radiator..................................................... 510
Radio (AM/FM) .......................................... 237
Radio (SiriusXM ®)...................................... 242 Radio Data System (RDS)
......................... 239
Range ........................................................ 117
RDS (Radio Data System) ......................... 239
Reactive Force Pedal ................................ 394
Readiness Codes (Emissions Testing) ....... 591
READY Indicator ......................................... 80
Rear Defogger/Heated Door Mirror Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 488
Fuel Gauge.............................................. 112
Gasoline .......................................... 488, 586
Low Fuel Indicator ..................................... 83
Regenerative Energy and Regenerative Braking ...................................................... 12
Regulations ............................... 447, 523, 589
Remote Engine Start with Vehicle
Feedback ................................................. 380
Remote Transmitter ................................. 136
Replacement
Battery .................................................... 530
Bulbs ....................................................... 514
Fuses ....................................... 572, 576, 577
Tires ........................................................ 526
Wiper Blade Rubber ................................ 517
Reporting Safety Defects ......................... 590
Resetting a Trip Meter ............................. 116
Reverse Tilt Door Mirror .......................... 173Right Selector Wheel
............................... 114
Road Departure Mitigation (RDM) ......... 416
On and Off ............................................. 418
S
Safe Driving ................................................ 33
Safety Labels .............................................. 73
Safety Message ............................................ 1
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor ................. 42
Automatic Seat Belt Tensioners ................. 40
Checking .................................................. 44
e-pretensioners ......................................... 40
Fastening .................................................. 41
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Pregnant Women...................................... 43
Reminder ............................................ 39, 83
Warning Indicator ............................... 39, 83
Seat Heaters ............................. 195, 196, 197
Seats Adjusting ................................................ 175
Front Seats.............................. 175, 178, 180
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 146
Immobilizer System Indicator..................... 87
Security System Alarm Indicator ................ 88
Selecting a Child Seat ................................ 64
Sequential Mode ...................................... 391
20 ACURA RLX HYBRID-31TY36601.book 606 ページ ２０１９年７月２３日　火曜日　午後６時２５分

607
Index
Sequential Mode Operation................... 392
Setting the Clock ...................................... 128
Shift Button ........................................ 23, 385
Operation ............................................... 387
Shifting (Transmission) ...................... 23, 385
Shoulder Anchor ........................................ 42
Side Airbags ............................................... 54
Side Curtain Airbags .................................. 56
SiriusXM ® Radio ....................................... 242
Snow Tires ................................................ 528
Sounds Unique to the SPORT HYBRID SH-
AWD ® System ........................................... 13
Spare Tire (Optional) ....................... 553, 587
Spark Plugs ............................................... 586
Specifications ........................................... 586
Specified Fuel ................................... 488, 586
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®)....... 442
SPORT Mode ............................................. 393
SPORT Mode Indicator ....................... 88, 393
SRS Airbags (Airbags) ................................ 48
Steering Wheel
Adjusting ................................................ 171
Stopping ................................................... 466
Summer Tires ............................................ 528
Supplemental Restraint System (SRS) ....... 48
Surround View Camera System ............... 478
Switches (Around the Steering
Wheel) ............................................ 4, 5, 152
System Message Indicator ......................... 86
T
Temperature
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Temperature Sensor ................................. 209
Temporary Tire Repair Kit ........................ 542
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 445
Indicator ............................................ 86, 570
Tires ........................................................... 520
Air Pressure ..................................... 521, 587
Chains ..................................................... 528
Checking and Maintaining ....................... 520
Flat Tire (Puncture) ................................... 541
Inspection ................................................ 520
Labeling .................................................. 521
Regulations ............................................. 523
Rotation .................................................. 527
Spare (Optional) .............................. 553, 587
Summer .................................................. 528
Temporary Tire Repair Kit ........................ 542
Wear Indicators ....................................... 525
Winter ..................................................... 528
Tools .......................................................... 540
Towing a Trailer ....................................... 377
Towing Your Vehicle ................................ 377
Emergency .............................................. 580
Transmission ....................................... 23, 385
Dual Clutch ............................... 23, 384, 385 Fluid ........................................................ 512
Gear Position Indicator ...................... 81, 387
Number................................................... 588
Sequential Mode ..................................... 391
TRIP Button ............................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 539
Blown Fuse.............................. 572, 576, 577
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 580
Flat Tire/Puncture ............................ 541, 553
Noise When Braking .................................. 30
Overheating ............................................ 565
Power System Won’t Start ....................... 559
Premium Gasoline ........................... 488, 586
Rear Door Won’t Open...................... 29, 141
Warning Indicators .................................... 76
Trunk
Lid........................................................... 143
Light Bulbs .............................................. 586
Release Handle ........................................ 582
Unable to Open....................................... 582
Turn Signals .............................................. 155
Indicators (Instrument Panel) ..................... 86
Turn-by-Turn Directions ................... 118, 123
Turning on the Power .............................. 378
Does Not Activate ................................... 559
Jump Starting .......................................... 562
Remote Engine Start................................ 380
Two-way Keyless Access Remote ..... 138, 380
20 ACURA RLX HYBRID-31TY36601.book 607 ページ ２０１９年７月２３日　火曜日　午後６時２５分
