climate control Acura RLX HYBRID 2020 Owner's Guide

Continued205
uuClimate Control System uUsing Automatic Climate Control
Controls

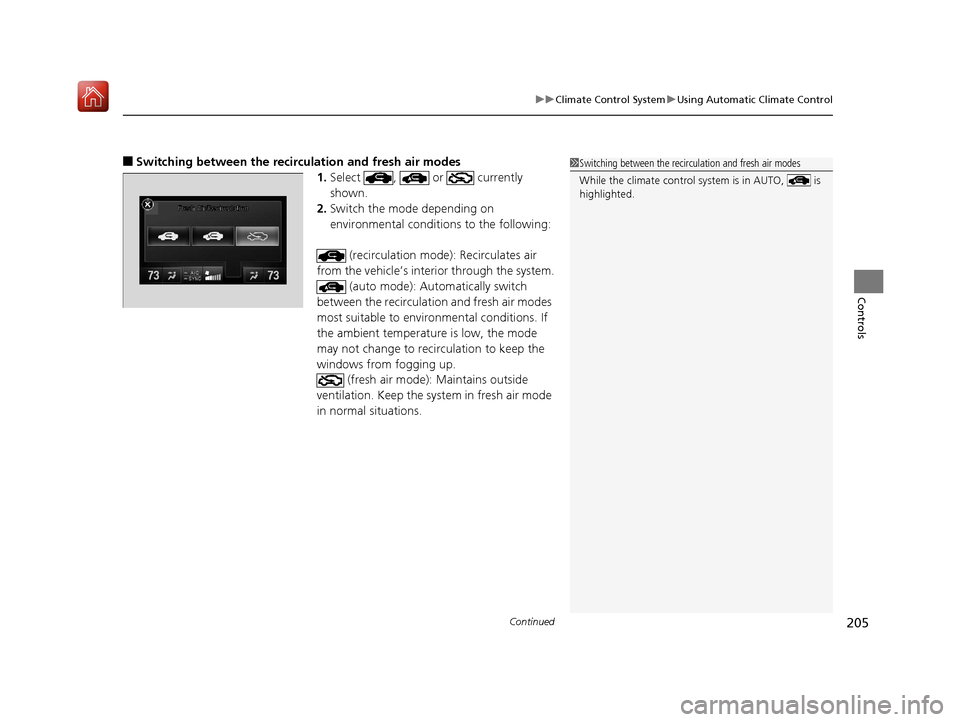

■Switching between the recirc ulation and fresh air modes
1.Select , or currently
shown.
2. Switch the mode depending on
environmental conditions to the following:
(recirculation mode): Recirculates air
from the vehicle’s interior through the system. (auto mode): Automatically switch
between the recirculation and fresh air modes
most suitable to environmental conditions. If
the ambient temperature is low, the mode
may not change to reci rculation to keep the
windows from fogging up. (fresh air mode): Maintains outside
ventilation. Keep the sy stem in fresh air mode
in normal situations.1 Switching between the recirc ulation and fresh air modes
While the climate control system is in AUTO, is
highlighted.
20 ACURA RLX HYBRID-31TY36601.book 205 ページ ２０１９年７月２３日　火曜日　午後６時２５分

uuClimate Control System uUsing Automatic Climate Control
206
Controls
■Shortcuts
You can store two sets of your preferred temperature, fan speed, and vent mode
settings to the climate control system. To store a set of the climate control settings:
1.Select Shortcuts .
2. Adjust the climate control system to your
preference.
2 Climate Control System P. 200
3.Select Climate .
4. Select Edit.
5. Select Add.
6. Select Preset 1 or Preset 2 you want to
store your settings to.
To recall one of the settings:
1. Select Shortcuts .
2. Select Climate .
3. Select Preset 1 or Preset 2 .
To delete a preset:
1. Select Shortcuts .
2. Select Climate .
3. Select Edit.
4. Select Delete.
5. Select Preset 1 or Preset 2 you want to
delete.
1 Shortcuts
You can also store a set by pressing and holding the
preset number you want to store that setting after
step 3.
20 ACURA RLX HYBRID-31TY36601.book 206 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Continued207
uuClimate Control System uUsing Automatic Climate Control
Controls
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■To rapidly defrost the windows
1.Press the button.
2. Select the recirculation mode.
2 Switching between the recirculation
and fresh air modes P. 205
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the winds hield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
20 ACURA RLX HYBRID-31TY36601.book 207 ページ ２０１９年７月２３日　火曜日　午後６時２５分

uuClimate Control System uUsing Automatic Climate Control
208
Controls

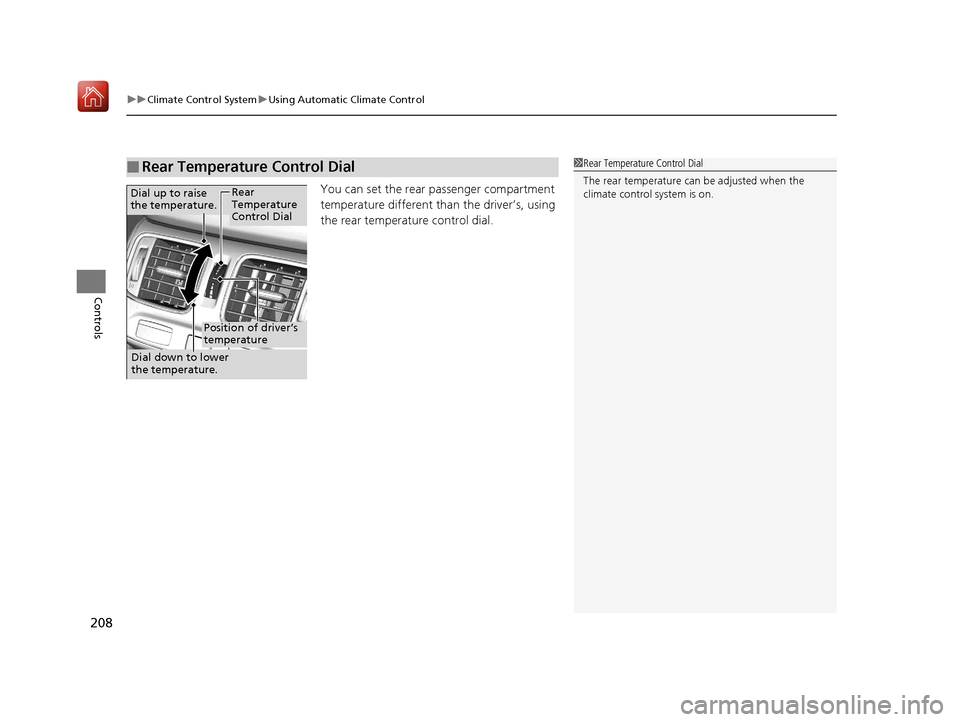

You can set the rear passenger compartment
temperature different th an the driver’s, using
the rear temperature control dial.
■Rear Temperature Control Dial1 Rear Temperature Control Dial
The rear temperature can be adjusted when the
climate control system is on.
Dial up to raise
the temperature.
Dial down to lower
the temperature.Rear
Temperature
Control Dial
Position of driver’s
temperature
20 ACURA RLX HYBRID-31TY36601.book 208 ページ ２０１９年７月２３日　火曜日　午後６時２５分

209
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
20 ACURA RLX HYBRID-31TY36601.book 209 ページ ２０１９年７月２３日　火曜日　午後６時２５分

233
uuAudio System Basic Operation uVoice Control Operation
Continued
FeaturesWhen the (Talk) button is pressed,
available voice comma nds appear on the
screen.
For a complete list of commands, say “Voice
Help” after the beep or select Voice Help.
You can see the list of commands in Voice
Info on the Info menu screen. Select Info,
then select .
The system only recognizes the commands
on the following pages, at certain screens.
Free form voice commands are not
recognized.
■Voice Portal Screen■Phone Call
This can be only used when the phone is
connected. When the sy stem recognizes the
Phone call command, the screen will
change the dedicated screen for the voice
recognition of the phone.
• Call
• Call
■Music Search
This can be only used when the iPod or HDD
device is connected.
■Voice Help
You can see a list of the available
commands on the screen.
• Navigation Commands
• Useful Commands
• Phone Commands
• Audio Commands
• On Screen Commands
• Music Search Commands
• General Commands
• Climate Control Commands
• All Commands
• Voice Settings
• Getting Started
■Navigation
The screen changes the navigation screen.
2 Refer to the Navigation System Manual
20 ACURA RLX HYBRID-31TY36601.book 233 ページ ２０１９年７月２３日　火曜日　午後６時２５分

234
uuAudio System Basic Operation uVoice Control Operation
Features
■Audio
When the system recognizes the Audio
command, the screen will change the
dedicated screen for the voice recognition
of the audio.
• Audio On
*1
•Audio Off*1
•FM
• AM
• SXM
• Disc
• HDD
• USB
• iPod
• Bluetooth ® Audio
• Pandora
*
•AUX
2 Audio Commands P. 235
*1: These commands toggle the function on and
off, so the command may not match your
intended action.
■Climate Control
The screen changes the climate control
screen.
2 Climate Control Commands P. 236
The system accepts these commands on the
voice portal top screen.
•Call
• Call
• What time is it?
• What is today’s date?
■Useful Commands
The system accepts these commands on the
dedicated screen for the voice recognition
of the phone.
• Call
• Call
■Phone Commands
* Not available on all models
20 ACURA RLX HYBRID-31TY36601.book 234 ページ ２０１９年７月２３日　火曜日　午後６時２５分

236
uuAudio System Basic Operation uVoice Control Operation
Features

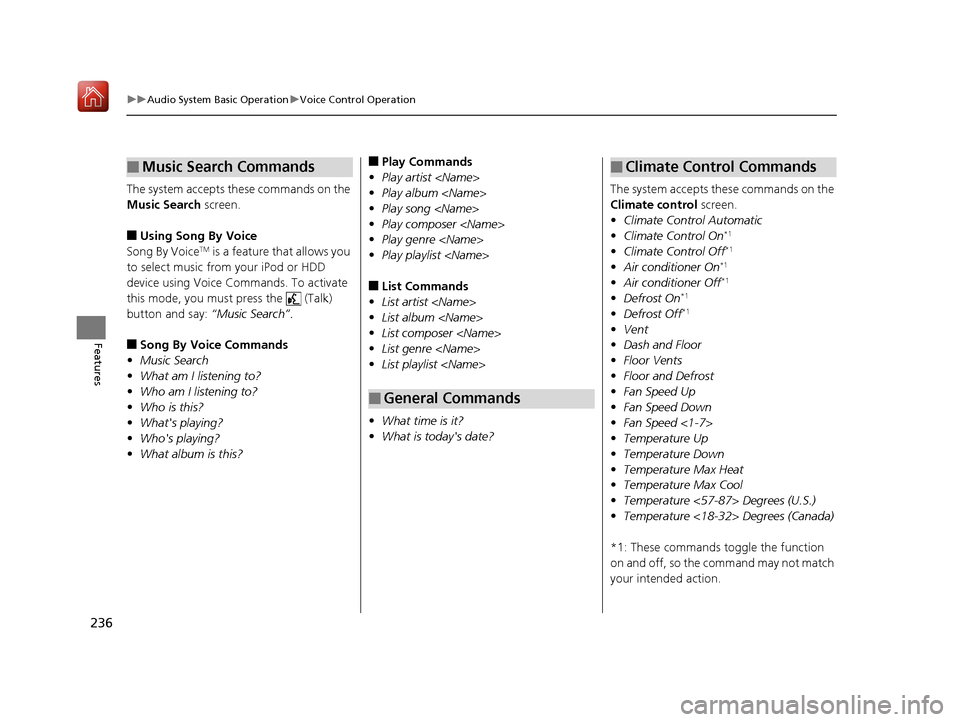

The system accepts these commands on the
Music Search screen.
■Using Song By Voice
Song By VoiceTM is a feature that allows you
to select music from your iPod or HDD
device using Voice Commands. To activate
this mode, you must press the (Talk)
button and say: “Music Search”.
■Song By Voice Commands
• Music Search
• What am I listening to?
• Who am I listening to?
• Who is this?
• What's playing?
• Who's playing?
• What album is this?
■Music Search Commands■Play Commands
• Play artist
• Play album
• Play song
• Play composer
• Play genre
• Play playlist
■List Commands
• List artist
• List album
• List composer
• List genre
• List playlist
• What time is it?
• What is today's date?
■General Commands
The system accepts these commands on the
Climate control screen.
• Climate Control Automatic
• Climate Control On
*1
•Climate Control Off*1
•Air conditioner On*1
•Air conditioner Off*1
•Defrost On*1
•Defrost Off*1
•Vent
• Dash and Floor
• Floor Vents
• Floor and Defrost
• Fan Speed Up
• Fan Speed Down
• Fan Speed <1-7>
• Temperature Up
• Temperature Down
• Temperature Max Heat
• Temperature Max Cool
• Temperature <57-87> Degrees (U.S.)
• Temperature <18-32> Degrees (Canada)
*1: These commands toggle the function
on and off, so the command may not match
your intended action.
■Climate Control Commands
20 ACURA RLX HYBRID-31TY36601.book 236 ページ ２０１９年７月２３日　火曜日　午後６時２５分

378
Driving
When Driving
Turning on the Power
1.Make sure the parking brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up the electric parking brake switch.
2. Depress the brake pedal.1Turning on the Power
Keep your foot firmly on the brake pedal when
starting the power system.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When turning on the power system in cold weather,
turn off all electrical accessories such as the lights,
climate control system, and rear defogger in order to
reduce 12-volt battery drain.
If you live in a region where winter is extremely cold,
an engine block heater and transmission clutch
actuator heater will impr ove starting and reduce the
warming time required befo re driving. Consult a
dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Electric Parking
Brake Switch
Brake Pedal
20 ACURA RLX HYBRID-31TY36601.book 378 ページ ２０１９年７月２３日　火曜日　午後６時２５分

401
uuWhen Driving uFront Sensor Camera
Driving
1Front Sensor Camera
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.
