climate control Acura RLX HYBRID 2020 Owner's Guide

491
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 492
Safety When Performing Maintenance .... 493
Parts and Fluids Used in Maintenance Service ........................................... 494
Maintenance Minder
TM..................... 495
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 501Opening the Hood ........................... 502
Engine Compartment Cover ............. 503
Recommended Engine Oil ................ 504
Oil Check ......................................... 505
Adding Engine Oil ............................ 506
Changing the Engine Oil and Oil Filter ..... 507Cooling System ................................ 509
Inverter Coolant ............................... 511
Transmission Fluid ............................ 512
Brake Fluid ....................................... 512
Refilling Window Washer Fluid......... 513
Replacing Light Bulbs ....................... 514
Checking and Maintaining Wiper Blades.... 517Checking and Maintaining Tires
Checking Tires ................................. 520
Tire and Loading Information Label .. 521
Tire Labeling .................................... 521
DOT Tire Quality Grading (U.S. Vehicles).. 523
Wear Indicators ............................... 525
Tire Service Life ................................ 525
Tire and Wheel Replacement ........... 526
Tire Rotation .................................... 527
Winter Tires ..................................... 528
12-Volt Battery ................................. 529
Remote Transmitter Care
Replacing the Button Battery ........... 530
Climate Control System Maintenance.... 531CleaningInterior Care .................................... 532
Exterior Care.................................... 534
Accessories and Modifications ........ 537
20 ACURA RLX HYBRID-31TY36601.book 491 ページ ２０１９年７月２３日　火曜日　午後６時２５分

523
uuChecking and Maintaining Tires uDOT Tire Quality Grading (U.S. Vehicles)
Continued
Maintenance
DOT Tire Quality Grading (U.S. Vehicles)
The tires on your vehicle m eet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.
Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested un der controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual co nditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practi ces and differences in road
characteristics and climate.
■Uniform Tire Quality Grading
■Treadwear
1 Uniform Tire Quality Grading
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
20 ACURA RLX HYBRID-31TY36601.book 523 ページ ２０１９年７月２３日　火曜日　午後６時２５分

531
Maintenance
Climate Control System Maintenance
Dust and Pollen Filter
The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you repl ace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.
20 ACURA RLX HYBRID-31TY36601.book 531 ページ ２０１９年７月２３日　火曜日　午後６時２５分

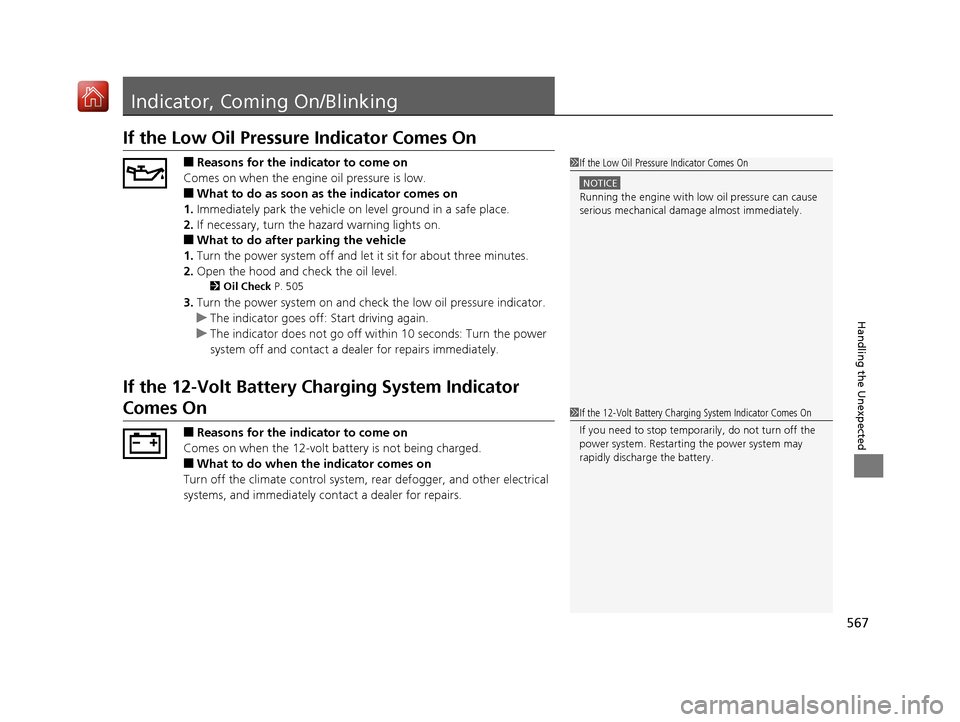

567
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 505
3.Turn the power system on and chec k the low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Turn the power
system off and contact a dealer for repairs immediately.
If the 12-Volt Battery Cha rging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
20 ACURA RLX HYBRID-31TY36601.book 567 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Index
600
Index
Index
Numbers
12-Volt Battery Charging System Indicator ............................................ 81, 567
A
AAC.................................................... 245, 268
ABS (Anti-lock Brake System) ................... 456
Accessories and Modifications ................. 537
Accessory Power Sockets .......................... 190
Acoustic Vehicle Alerting System ............ 395
AcuraLink .................................................. 363
AcuraWatch
TM..................................... 26, 396
Adaptive Cruise Control (ACC) with Low Speed Follow ..................................... 90, 402
Additives
Coolant ........................................... 509, 511
Washer .................................................... 513
Additives, Engine Oil ................................ 504
Adjusting Armrest ................................................... 181
Front Seats .............................. 175, 178, 180
Head Restraints........................................ 178
Mirrors .................................................... 172
Steering Wheel ........................................ 171
Temperature ............................................ 116
Agile Handling Assist ................................ 441
Air Conditioning System (Climate Control System) .................................................... 200
Changing the Mode ................................ 203 Defrosting the Windshield and
Windows ............................................... 207
Dust and Pollen Filter............................... 531
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Air Pressure ....................................... 521, 587
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
Airbag Care............................................... 59
Driver’s Knee Airbag.................................. 52
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator.............................................. 57, 84
Passenger Airbag Off Indicator .................. 58
Sensors ..................................................... 45
Side Airbags .............................................. 54
Side Curtain Airbags.................................. 56
AM/FM Radio ............................................ 237
Anti-lock Brake System (ABS) .................. 456
Indicator.................................................... 84
Armrest ..................................................... 181
Audio Remote Controls ........................... 215
Audio System ............................................ 212
Adjusting the Sound................................ 230
Auxiliary Input Jack.................................. 213
Error Messages ........................................ 273
General Information ................................ 277
HDD ........................................................ 248
Internet Radio ......................................... 266 iPod ........................................................ 258
MP3/WMA/AAC ............................. 245, 268
Reactivating ............................................ 214
Recommended CDs ................................ 278
Recommended Devices ........................... 280
Remote Controls ..................................... 215
Security Code ......................................... 214
Shortcuts ................................................ 218
Theft Protection ...................................... 214
USB Flash Drives...................................... 280
USB Port ................................................. 213
Audio/Information Screen ....................... 225
Authorized Manuals ................................ 595
Auto Door Locking/Unlocking ................ 142
Customize .............................................. 310
Auto Engine Stop/Start .............................. 13
Auto High-Beam ...................................... 160
Indicator ................................................... 87
Automatic Brake Hold ............................. 454
Indicator ........................................... 78, 454
Automatic Brake Hold System Indicator ........................................... 78, 454
Automatic Lighting .................................. 157
Auxiliary Input Jack ................................. 213
Average Fuel Economy ............................ 116
Average Speed ......................................... 117
20 ACURA RLX HYBRID-31TY36601.book 600 ページ ２０１９年７月２３日　火曜日　午後６時２５分

601
Index
B
Battery12-Volt ................................................... 529
12-Volt Battery Charging System
Indicator ......................................... 81, 567
Charging (12-Volt Battery) ...................... 529
High Voltage........................................... 449
Jump Starting ......................................... 562
Maintenance (Checking the 12-Volt Battery) ................................................. 529
Maintenance (Replacing) ......................... 530
Battery Types .............................................. 12
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 189
Blind spot information System ................ 443
Bluetooth ® Audio ..................................... 271
Bluetooth ® HandsFreeLink ®.................... 324
Booster Seats (For Children) ...................... 71
Brake System ............................................ 450
Anti-lock Brake System (ABS) .................. 456
Automatic Brake Hold ............................. 454
Brake Assist System................................. 457
Fluid ....................................................... 512
Foot Brake .............................................. 453
Parking Brake.......................................... 450
Brake System (Amber) Indicator ................................................... 79
Brake System (Red)
Indicator ........................................... 76, 568
Brightness Control (Head-Up Display) .... 167Brightness Control (Instrument Panel)
.... 166
Bulb Replacement .................................... 514
Back-Up Lights ........................................ 516
Brake/Taillight s and Rear Side Marker
Lights .................................................... 515
Door Outer Handle Ambient Lights .......... 516
Fog Lights ................................................ 514
Front Side Marker Lights .......................... 515
Front Turn Signal Lights ........................... 514
Headlights ............................................... 514
High-Mount Brake Light .......................... 516
Parking/Daytime Running Lights .............. 514
Rear License Plate Lights .......................... 516
Rear Turn Signal Lights ............................ 515
Side Turn Signal/Em ergency Indicator
Lights .................................................... 515
Taillights .................................................. 515
Bulb Specifications ................................... 586
C
CAMERA Button....................................... 479
Carbon Monoxide Gas ................................ 72
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 373, 375
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 588
Changing Bulbs ......................................... 514 Child Safety
................................................. 60
Childproof Door Locks............................. 141
Child Seat .................................................... 60
Booster Seats ............................................ 71
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 70
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 141
Cleaning the Exterior ............................... 534
Cleaning the Interior ................................ 532
Client Service Information ....................... 596
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 531
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 458
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 458
20 ACURA RLX HYBRID-31TY36601.book 601 ページ ２０１９年７月２３日　火曜日　午後６時２５分

605
Index
L
Lane Keeping Assist System (LKAS)........ 421
Language (HFL) ........................................ 325
LATCH (Child Seats) ................................... 65
Lights ................................................ 156, 514
Auto High-Beam ..................................... 160
Auto High-Beam Indicator......................... 87
Automatic............................................... 157
Bulb Replacement ................................... 514
Daytime Running Lights .......................... 159
Fog Lights ............................................... 159
High Beam Indicator ................................. 87
Interior.................................................... 182
Light Switches......................................... 156
Lights On Indicator.................................... 87
Turn Signals ............................................ 155
Load Limits ............................................... 375
Locking/Unlocking ................................... 129
Auto Door Locking/Unlocking ................. 142
Childproof Door Locks ............................ 141
From Inside ............................................. 139
From Outside .......................................... 131
Keys........................................................ 129
Using a Key............................................. 137
Lockout Prevention System ..................... 137
Low Battery Charge (12-Volt) ................. 567
Low Fuel Indicator ..................................... 83
Low Keyless Access Remote Signal
Strength .................................................. 130
Low Oil Pressure Indicator ................. 76, 567
Lower Anchors ........................................... 65 Luggage (Maximum Load Limit)
............. 375
Lumbar Support ........................................ 176
M
Maintenance............................................. 491
12-Volt Battery ........................................ 529
Brake Fluid .............................................. 512
Cleaning .................................................. 532
Climate Control System ........................... 531
Coolant ........................................... 509, 511
Maintenance Minder
TM............................ 495
Oil ........................................................... 505
Precautions .............................................. 492
Radiator .................................................. 510
Remote Transmitter ................................. 530
Replacing Light Bulbs ............................... 514
Safety ...................................................... 493
Service Items ........................................... 498
Tires ........................................................ 520
Transmission Fluid ................................... 512
Under the Hood ...................................... 501
Malfunction Indicator Lamp .............. 81, 568
Map Lights ................................................ 183
Maximum Load Limit ............................... 375
Meters, Gauges ......................................... 112
Mirrors
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172 Modifications (and Accessories)
.............. 537
Moonroof ................................................. 151
MP3 ................................................... 245, 268
Multi-Information Display ....................... 114
Multi-View Rear Camera .......................... 476
N
Numbers (Identification).......................... 588
O
Odometer................................................. 116
Oil (Engine) ....................................... 504, 587
Adding .................................................... 506
Checking................................................. 505
Displaying Oil Life .................................... 496
Low Oil Pressure Indicator ................. 76, 567
Recommended Engine Oil ............... 504, 587
Viscosity .......................................... 504, 587
On Demand Multi-Use Display
TM............. 217
Open Source Licenses ............................... 294
Opening
Trunk ...................................................... 582
Opening/Closing Hood....................................................... 502
Moonroof ............................................... 151
Power Windows ...................................... 149
Trunk ...................................................... 143
Operating the Switches Around the Steering Wheel ...................................................... 152
20 ACURA RLX HYBRID-31TY36601.book 605 ページ ２０１９年７月２３日　火曜日　午後６時２５分
