565Continued
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The high temperature indicator comes on or the engine suddenly loses power.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
u Change the gear position to
(P and set the parking brake.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present : Keep the power system on and open the hood.
u Steam or spray is present : Turn off the power system and wait until it
subsides. Then open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the high temperature
indicator on may da mage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
20 ACURA RLX HYBRID-31TY36601.book 565 ページ ２０１９年７月２３日　火曜日　午後６時２５分

uuOverheating uHow to Handle Overheating
566
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the high
temperature indicator goes off.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
2 Radiator P. 510
■Last thing to do
Once the engine has cooled sufficiently , turn the power system on and check the
high temperature indicator. If the high temp erature indicator is off, resume driving.
If it stays on, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
20 ACURA RLX HYBRID-31TY36601.book 566 ページ ２０１９年７月２３日　火曜日　午後６時２５分

567
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 505
3.Turn the power system on and chec k the low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Turn the power
system off and contact a dealer for repairs immediately.
If the 12-Volt Battery Cha rging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
20 ACURA RLX HYBRID-31TY36601.book 567 ページ ２０１９年７月２３日　火曜日　午後６時２５分

568
uuIndicator, Coming On/Blinking uIf the Malfunction Indicato r Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.U.S.
Canada
20 ACURA RLX HYBRID-31TY36601.book 568 ページ ２０１９年７月２３日　火曜日　午後６時２５分

569
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place a nd turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
If the Electric Parking Brake System Indicator Comes
On
■Reasons for the indicator to come on
Comes on when there is a proble m with the electric parking brake
system.
■What to do when th e indicator comes on
Avoid using the parking brake and immediately get your vehicle
inspected at a dealer.
■What to do when th e electric parking brake indicator comes on
or blinks at the same time.
• Release the parking brake. If you cannot release it, immediately stop
the vehicle in a safe place and call a dealer.
• If only the electric parking brake indicator goes off, immediately get
your vehicle inspected at a dealer.
• If the electric parking brake indicato r remains on or blinks even after
releasing the parking brake, immediately stop the vehicle in a safe
place and call a dealer.
20 ACURA RLX HYBRID-31TY36601.book 569 ページ ２０１９年７月２３日　火曜日　午後６時２５分

572
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
There are four fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reserve tank.
Push the tabs to open the box.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1IG1A ACG FR15 A
2IG1A MISS SOL110 A
3−−
4− −
5SMART7.5 A
6 IG1B ECU FR 7.5 A
7IG1B OP FR7.5 A
8 IGP2 15 A
9DBW15 A
10 IGP 15 A
11IG Coil15 A
12 ACM 20 A
13Headlight Washer*(30 A)
14 Interior Lights 10 A
15Back Up Radio10 A
16 Back Up 10 A
17AFP10 A
18 Front Washer 15 A
19Stop7.5 A
20 Right Headlight High Beam 10 A
21Trunk10 A
22 Small 15 A
23Front Fog Lights*(7.5 A)
24 Left Headlight High Beam 10 A
25IMA Motor15 A
26 Right Headlight Low Beam 15 A
27Left Headlight Low Beam15 A
28 IGP2 Sub 7.5 A
29Power Rear Sunshade*(20 A)
30 Heated Windshield 20 A
31Wiper30 A
Circuit ProtectedAmps
* Not available on all models
20 ACURA RLX HYBRID-31TY36601.book 572 ページ ２０１９年７月２３日　火曜日　午後６時２５分

579
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 572 to 577.
There is a fuse puller in the engine compartment fuse
box located near the br ake fluid reserve tank.Blown Fuse
Combined Fuse
Blown
Fuse
Fuse Puller
20 ACURA RLX HYBRID-31TY36601.book 579 ページ ２０１９年７月２３日　火曜日　午後６時２５分

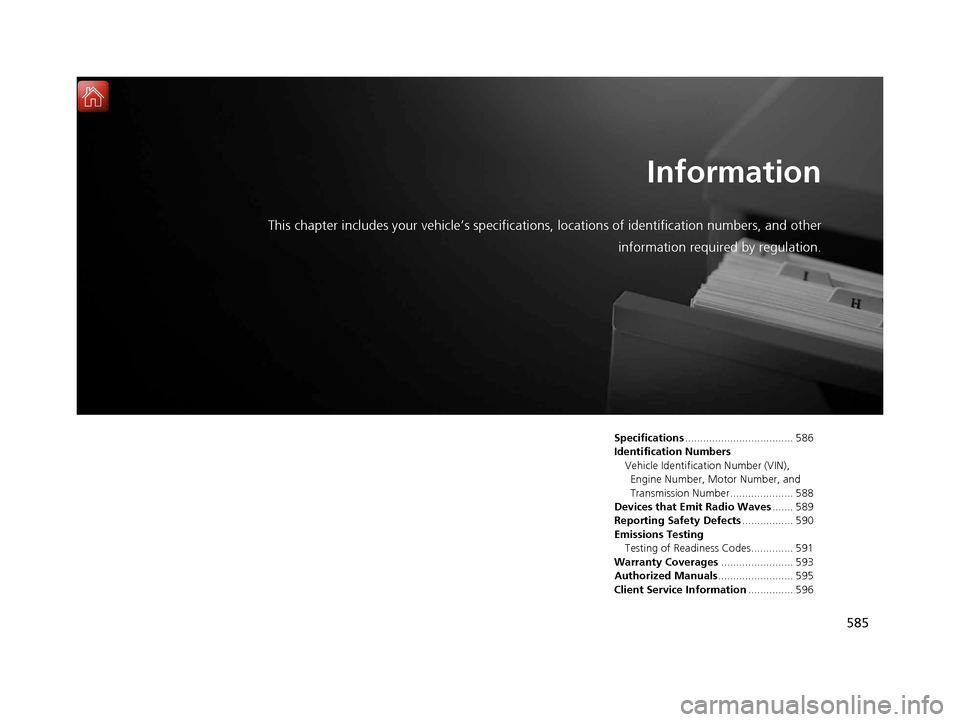

585
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 586
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number..................... 588
Devices that Emit Radio Waves ....... 589
Reporting Safety Defects ................. 590
Emissions Testing Testing of Readiness Codes.............. 591
Warranty Coverages ........................ 593
Authorized Manuals ......................... 595
Client Service Information ............... 596
20 ACURA RLX HYBRID-31TY36601.book 585 ページ ２０１９年７月２３日　火曜日　午後６時２５分

586
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelRLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.3 - 17.1 oz (435 - 485 g)
Lubricant TypeND-OIL 11
Quantity 7.9 - 8.8 cu-in (130.0 - 145.0 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.2 US gal (57 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.3 US qt (5.0 L)
■ Light Bulbs
*1: Not available on all models
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*1LED
Front Turn Signal Lights LED
Parking/Daytime Running LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake Lights LED
TaillightsLED
Rear Side Marker Lights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Lights LED
Door Outer Handle Ambient LightsLED
Interior Lights Front and Rear Map Lights LED
Front and Rear Ambient Lights LED
Vanity Mirror Lights 1.4 W
Front Door Pocket Lights LED
Center Pocket Light LED
Beverage Holder Light LED
Door Courtesy Lights 3.4 W
Console Compartment Light LED
Glove Box Light LED
Front and Rear
*1 Foot Lights LED
Door Inner Handle Lights LED
Trunk Light 5 W
20 ACURA RLX HYBRID-31TY36601.book 586 ページ ２０１９年７月２３日　火曜日　午後６時２５分

587
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF DW-1
Capacity Change 3.7 US qt (3.5 L)
SpecifiedAcura ATF DW-1
Capacity Change 2.56 US qt (2.42 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.5 US qt (4.3 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity2.1 US gal (7.9 L)
(change including the remaining
0.225 US gal (0.85 L) in the reserve tank)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.32 US gal (1.23 L)
(change including the remaining
0.03 US gal (0.11 L) in the reserve tank)
■ Tire
*1: Vehicles with optional spare tire kit
RegularSize245/40R19 98WPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Compact
Spare*1
SizeT155/70D17 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular19 x 8JCompact Spare*117 x 4T
20 ACURA RLX HYBRID-31TY36601.book 587 ページ ２０１９年７月２３日　火曜日　午後６時２５分
