While training or using the
transmitter, make sure you have a
clear view of the garage door or gate,
and that no one will be injured by its
movement.
The HomeLink Universal
Transmitter built into your car can
be programmed to operate remotely-
controlled devices around your home,
such as garage doors, lighting, or
home security systems. It can
replaceuptothreeremote
transmitters.
Always ref er to the operating
instructions and saf ety inf ormation
that came with your garage door
opener or other equipment you
intend to operate with the HomeLink
Universal Transmitter. If you do not
have this inf ormation, you should
contact the manuf acturer of the
equipment.
If you are training the transmitter to
operate a garage door or gate, it is
recommended that you unplug the
motor f or that device during training.
Repeatedly pressing the remote
control button could burn out the
motor.The HomeLink transmitter stores
the code in a permanent memory.
There should be no need to retrain
the transmitter if your car’s battery
goes dead or is disconnected.
If your garage door opener was
manuf actured bef ore April 1982, you
may not be able to program the
HomeLink Universal Transmitter to
operate it. Garage door openers
manufactured before that date do
not have a safety feature that causes
them to stop and reverse if an
obstacle is detected during closing,
increasing the risk of injury. If you
have questions, call (800) 355-3515.
If you have problems with training
the HomeLink Universal
Transmitter, or would like
inf ormation on home products that
can be operated by the transmitter,
call (800) 355-3515. On the Internet,
go to www.homelink.jci.com. Customer Assistance Important Saf ety Precautions
General Inf ormation
HomeL ink Universal T ransmitter
Inst rument s and Cont rols88

µ
CONT INUED
If you are training the second or
third buttons, go directly to Step 1.Unplug the garage door opener
motor f rom the house current.
Bef ore you can use the HomeLink
Universal Transmitter to operate
devices around your home, it must
‘‘learn’’ the proper codes. For
example, to train the transmitter to
open and close the garage door:
Press the button on the remote
control and the button on the
transmitter at the same time. Hold
down both buttons. Select the transmitter button you
want to train.
If you just took
delivery of your vehicle and have not
trained any of the buttons in the
HomeLink transmitter bef ore, you
should erase any previously learned
codes bef ore training the f irst button.
Todothis,pressandholdthetwo
outside buttons on the HomeLink
transmitter for about 20 seconds,
until the red light f lashes. Release
the buttons, then proceed to Step 1.
Holdtheendof thegaragedoor
opener remote control 2 to 5
inches f rom the HomeLink
transmitter. Make sure you are
not blocking your view of the red
light in the transmitter.
2. 3.
4.
1.
HomeL ink Universal T ransmitter
Inst rument s and Cont rols
T raining the T ransmitterBef ore you begin
89

Canadian Owners:
The remote control you are training
from may stop transmitting after two
seconds. This is not long enough f or
the HomeLink transmitter to learn
thecode.Releaseandpressthe
button on the remote control every
two seconds until the transmitter has
learned the code.The red light in the transmitter
should begin f lashing. It will f lash
slowly at first, then rapidly.
When the red light f lashes rapidly,
release both buttons. The
transmitter should have learned
the code f rom the remote control.
Plug in the garage door opener
motor, then test the transmitter
button by pushing it. It should
operate the garage door.
If the button does not work, repeat
this procedure to train it again. If it still does not work, you may have a
variable or rolling code garage
door opener. Test this by pressing
and holding the HomeLink
transmitter button you just trained.
If the red light blinks f or two
seconds,thenstayson,youhavea
rolling code garage door opener.
You may be able to verify this with
the manufacturer’s documentation.
Go to ‘‘Training With a Rolling
Code System.’’
Repeat these steps to train the
other two transmitter buttons to
operate any other remotely-
controlled devices around your
home (lighting, automatic gate,
security system, etc.).
For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Inf ormation f rom
the remote control and the garage
door opener are needed bef ore the
HomeLink transmitter can operate
the garage door opener.
The‘‘Training the Transmitter’’
procedure trains the HomeLink
transmitter to the proper garage
door opener code. The f ollowing
procedure synchronizes the
HomeLink transmitter to the garage
door opener so they send and
receive the correct codes.
5.
6.
8.
7.
Inst rument s and Cont rols
HomeL ink Universal T ransmitter
T raining With a Rolling Code
System
90

Itmaybehelpfultohavesomeone
assist you with this procedure.Make sure you have properly
completed the ‘‘Training the
Transmitter’’ procedure.
Find the ‘‘Training’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer. The
manufacturer’s documentation
may help. Press the Training button on the
garage door opener unit until the
light next to the button comes on,
then release it. The light may blink,
or come on and stay on. You then
have approximately 30 seconds to
complete the f ollowing steps.Press and release the button on
the HomeLink transmitter. (The
same button you trained with the
‘‘Training the Transmitter’’
procedure.)
Press and release the HomeLink
transmitter button again. This
should turn of f the training light
on the garage door opener unit.
(Some systems may require you to
press and release the button up to
three times.)
Press the transmitter button again.
It should operate the garage door.
6.
2. 4.
5.
1.
3.
HomeL ink Universal T ransmitter
Inst rument s and Cont rols91
T TR
RA A I
INNI INNG G B
BUUT TT
TO
ON N

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Totrainanalreadyprogrammed
transmitter button to operate a new
device:
Select the transmitter button you
want to train.
Press and hold the transmitter
button until the red light begins to
f lash slowly (approximately 20
seconds).
Press and hold the button on the
remote control. Hold both buttons
until the red light begins to f lash
rapidly. Release both buttons. The
transmitter should now be trained
to operate the device.
Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red light
begins to f lash, then release the
buttons.
Youshoulderaseallthreecodes
bef ore selling the car.
While continuing to hold the
transmitter button, place the
remotecontrolforthedevice2to
5 inches f rom the HomeLink
transmitter.
1.
2.
3.
4. 5.
HomeL ink Universal T ransmitter
Inst rument s and Cont rols
Retraining a Button
Erasing Codes
92

µ
Pull up or push down on the f ront of
the switch to move the seat bottom’s
f ront edge up or down. Pull up or
push down on the rear of the switch
to move the rear of the seat bottom
up or down.
Push the horizontal switch forward
or backward to move the seat
forward or backward.
You can adjust the seat with the
ignition switch in any position. Make
all adjustments bef ore you start
driving. The two power seat adjustment
switches are on the outside edge of
the seat bottom. The horizontal
switch adjusts the seat bottom in
several directions. The short vertical
switch adjusts the seat-back angle.
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs. 1413
CONT INUED
Driver’s Seat Full Power
Adjustments
Seat A djustments
Inst rument s and Cont rols93

µ
Pull the center of the horizontal
switch up to raise the seat. Push it
down to lower the seat.Adjust the seat-back angle by
pushing the rear switch in the
direction you want to move.Make all seat adjustments bef ore
you start driving.
You can adjust the seat with the
ignition switch in any position.
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs. 13 14
Seat A djustments
Inst rument s and Cont rols
Front Passenger’s Seat
Adjustments
94

See page f or important saf etyinf ormation and a warning about how toproperly position the head restraints. 15
The f ront head restraints help
protect you and your passenger f rom
whiplash and other injuries. They are
most effective when you adjust them
so the back of the occupant’s head
rests against the center of the
restraint. A taller person should
adjust the restraint as high as
possible.
Vary the lumbar support by moving
the lever on the right side of the
seat-back. Move the lever forward or
backward to adjust the lumbar
support through its f ull range.
The seat adjustment switches are on
the outside edge of the seat bottom.
Push the long horizontal switch
forward or backward to move the
seat bottom in that direction.
Adjust the seat-back angle by
pushing the vertical switch in the
direction you want to move.
CONT INUED
Seat A djustments
Inst rument s and Cont rols
Head Restraints
Driver’s L umbar Support
95

The center console armrest can be
moved forward and backward.

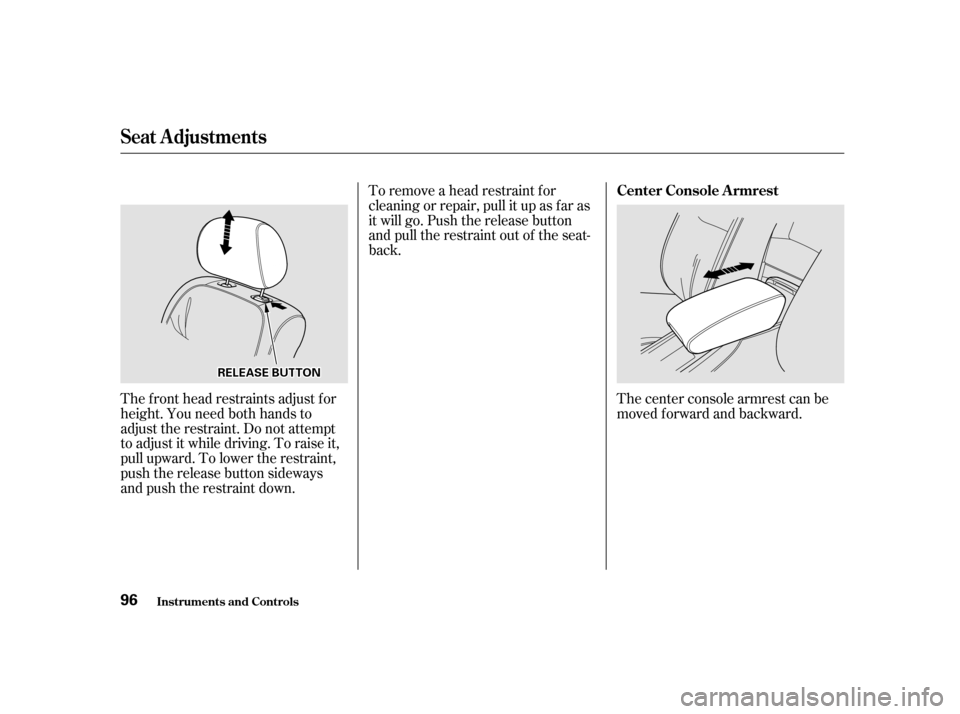

The f ront head restraints adjust f or
height. You need both hands to
adjust the restraint. Do not attempt
to adjust it while driving. To raise it,
pull upward. To lower the restraint,
push the release button sideways
and push the restraint down. To remove a head restraint f or
cleaning or repair, pull it up as f ar as
it will go. Push the release button
and pull the restraint out of the seat-
back.
Seat A djustments
Inst rument s and Cont rols
Center Console A rmrest
96
R RE
EL
LEE A
A S
SEE B
BUUT TT
TO
ON N

Make sure all items in the trunk and
those extending through the pass-
through are secured.
For security, this cover can be
locked and unlocked only with the
master key. To lock the cover, insert
thekeyandturnitclockwise.
Never drive with this cover open and
the trunk lid open.
Seeon
page .
The rear seat armrest is located at
the center of the rear seat. Pivot it
down to use it. The pass-through cover can be
opened f rom either side; it f olds
f orward onto the center armrest.
Open the cover by sliding the knob
downward and pushing or pulling on
the cover. To close the cover, swing
it up and push f irmly on the top.
Make sure it latches properly. 51
Seat A djustments
Inst rument s and Cont rols
Carbon Monoxide Hazard
Rear Seat Armrest
T runk Pass-through Cover
97
