Depending on the severity of the
problem, the message will let you
know if you should see your dealer
immediately or if you can wait until a
later date.
When an instrument panel indicator
comes on or a message is displayed
on the multi-information display
(MID), AcuraLink can provide
inf ormation about the cause of the
indicator or message and the
recommended action to address it.
This helps you handle the problem
as it occurs, preventing or limiting
costly repairs.
When an instrument panel indicator
comes on or a message is displayed
on the MID, AcuraLink immediately
notif ies you with the message, ‘‘An
indicator is on. AcuraLink can help
you decide what to do.’’ If you do not
want the inf ormation right away,
select the Check Later option. If you
want the inf ormation now, select the
Check Now option. (If the navigation
screen is not active, you must select
OK from the navigation disclaimer
screen bef ore you can check theinf ormation.)
For more inf ormation on the
instrument panel indicators, see page .
The AcuraLink system cannot
determinesomemechanical
problems (such as squeaks or
rattles) that are not triggered by the
diagnostic indicator monitors.
57
Diagnostic Inf o
AcuraLink
226
\f—\f—
y
y
(%\fy\f
y
2008 TL

µ
µ
µ
Select ON if you want to be notif ied
of new messages (envelope icon
appears on the navigation screen).
Select OFF if you do not want to be
notif ied of new messages (envelope
icon does not appear on the screen).
Messages can still be accessed using
the INFO menu. If you would like to
stop receiving messages, visit the
OwnerLink website at www.owners.
acura.com to change your messaging
pref erences.
Select ON to have
the system automatically read each
message to you. Select OFF to
manually select the Voice button
when you want a message read to
you.

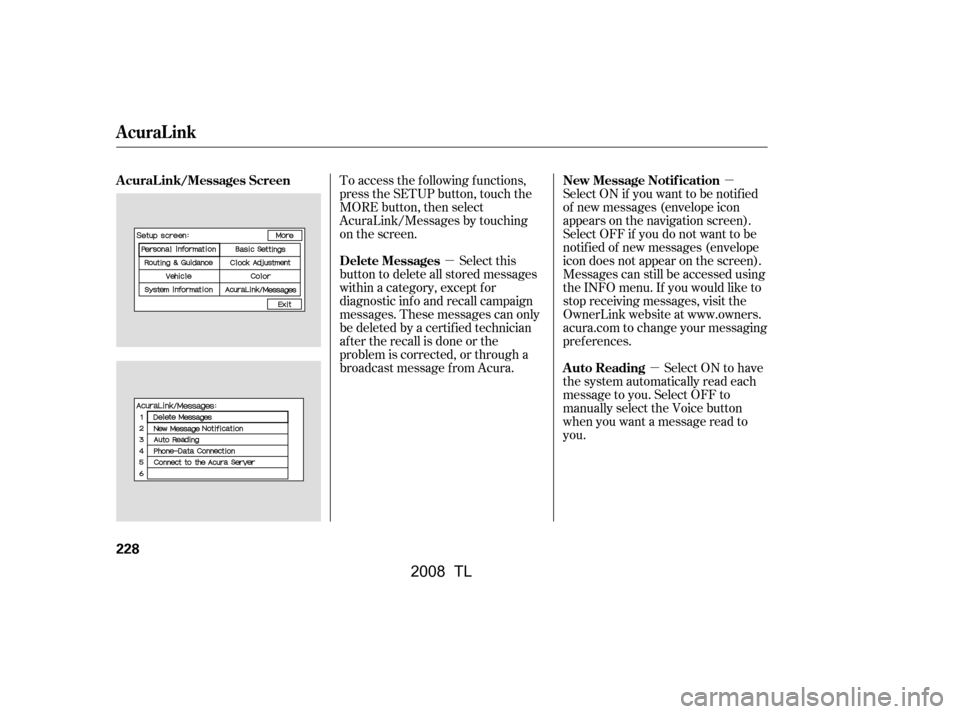

To access the f ollowing f unctions,
press the SETUP button, touch the
MORE button, then select
AcuraLink/Messages by touching
on the screen.
Select this
button to delete all stored messages
within a category, except f or
diagnostic info and recall campaign
messages. These messages can only
be deleted by a certif ied technician
af ter the recall is done or the
problem is corrected, or through a
broadcast message f rom Acura. New Message Notif ication
Auto Reading
AcuraL ink/Messages Screen
Delete Messages
AcuraLink
228
\f—\f—
y
y
(%\fy\fy
2008 TL

Compass operation can be af f ected
by driving near power lines or
stations, across bridges, through
tunnels, over railroad crossings, past
large vehicles, or driving near large
objects that can cause a magnetic
disturbance. It can also be af f ected
by accessories such as antennas and
roof racks that are mounted by
magnets.
In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone, do this:Press and hold the and buttons simultaneously until
the temperature display changes
(about 5 seconds). Verif y the zone f or your area on
the map on page .
Press the button to cycle the
count down, or the button to
cycle the count up. Once the
correct zone is displayed, continue
to step 4.
Press the OFF button to save the
zone selection.
To exit the zone setting mode,
either press the button and
button simultaneously f or
about 5 seconds, or press any
climate control button on either
side of the display other than the or button.
1. 2.
3.
4.
5.
232
On models without navigation system
Compass Operation
Compass Zone Selection
Compass
230
\f—\f—
y
\f
y
(%\fy\fy
2008 TL

On vehicles with navigation systemSince the rearview camera display
area is limited, you should always
back up slowly and caref ully, and
look behind you f or obstacles.
Whenever you shif t to reverse (R)
with the ignition switch in the ON
(II) position, the rear view is shown
on the navigation system screen.
For the best picture, always keep the
rearview camera clean, and do not
cover the camera lens. To avoid
scratching the lens when you clean it,
use a moist, sof t cloth.
Rearview Camera and Monitor
Features
233
\f—\f—
y
y
(%\fy\fy
2008 TL

T he publications shown below can be purchased f rom Helm
Incorporated. You can order by phone or online:Call Helm Inc. at 1-800-782-4356 (credit card orders only)
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
Covers maintenance and recommended procedures f or
repair to engine and chassis components. It is written
f or the journeyman mechanic, but it is simple enough
f or most mechanically inclined owners to understand.
Complements the Service Manual by providing in-depth
troubleshooting inf ormation f or each electrical circuit
in your vehicle.
Describes the procedures involved in the replacement
of damaged body parts.
Authorized Manuals
Purchasing Factory Authorized Manuals
(U.S. only) Service Manual:
Electrical T roubleshooting Manual:
Body Repair Manual:
Authorized Manuals
361
Publication
Form Number 61SEP04
61SEP04EL 61SEP30
31SEP640
31SEP810
31SEPM00 31SEPQ40 ACU-R Form Description
2008 Acura TL Service Manual
2008 Acura TL Electrical Troubleshooting Manual
2004 Model Series Acura TL Body Repair Manual 2008 Acura TL Owner’s Manual
2008 Acura TL Navigation Manual
2008 Acura TL Maintenance Journal 2008 Acura TL Quick Start GuideOrder Form for Previous Years-
Indicate Year and Model Desired
