Page 7 of 376
Î
ÎTo use the horn, press the center pad of the steering wheel.
:
Your Vehicle at a Glance
4
HAZARD WARNING
BUTTON
HEADLIGHTS/TURN SIGNALS/
FOG LIGHTS
REAR WINDOW
DEFOGGER
BUTTONCRUISE
CONTROL
BUTTONS
SEAT HEATER
SWITCHES
HORN
STEERING WHEEL
ADJUSTMENT
(P.86,89)
(P.91)(P.183) (P.192)(P.111)
(P.186)
(P.90)
(P.90)
WINDSHIELD WIPERS/
WASHERS
PASSENGER AIRBAG OFF INDICATOR
(P.60)
BLUETOOTH
HANDSFREELINKBUTTONS
(P.85)
REMOTE AUDIO CONTROL
BUTTONS
INSTRUMENT PANEL
BRIGHTNESS
(P.89)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
MIRROR CONTROLS
(P.107)
(P.271)
\f—\f—
y
\fy
(%\fy\f\f\fy
2008 TL
Page 58 of 376
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .56
............................
Instrument Panel .57
..........
Instrument Panel Indicators .58
.............................................
Gauges .65
...................
Temperature Gauge .65
..................................
Fuel Gauge .65
.............
Multi-Inf ormation Display .66
......
Controls Near Steering Wheel .84
.
Windshield Wipers and Washers .85
...........
Turn Signal and Headlights .86
Automatic Lighting Off .....................................
Feature .88
............
Daytime Running Lights .88
........................................
Fog Lights .89
........
Instrument Panel Brightness .89
.................
Hazard Warning Button .90
.................
Rear Window Def ogger .90
..........
Steering Wheel Adjustment .91
...............................
Keys and Locks .92
........................
Immobilizer System .94
................................
Ignition Switch .95
......................................
Door Locks .96
................................................
Trunk .97
........
Emergency Trunk Opener .98
..................
Childproof Door Locks .98
.......................
Remote Transmitter .99 ...............................................
Seats .103
..........
Trunk Pass-through Cover .105
...........................................
Mirrors .106
Driving Position Memory
........................................
System .108
..................................
Seat Heaters .111
............................
Power Windows .112
.......................................
Moonroof .115
..............................................
Clock .116
...............................
Parking Brake .117
...............................
Interior Lights .118
.........
Interior Convenience Items .119
.....................
Beverage Holders .120
........
Accessory Power Sockets .120
..................................
Glove Box .121
.............
Console Compartment .121
...............................
Coin Holder .122
..................
Front Door Pockets .123
............................
Vanity Mirror .123
...................................
Sun Visor .123
Instruments and Controls
Inst rument s and Cont rols
55
\f—\f—
y
y
(%\fy\f\f\fy
2008 TL
Page 60 of 376
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
57
VSA ACTIVATION
INDICATORLOW OIL PRESSURE INDICATOR
CRUISE MAIN INDICATOR
SEAT BELT REMINDER INDICATOR
CRUISE CONTROL INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
HIGH BEAM
INDICATOR
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
INDICATOR
CHARGING
SYSTEM
INDICATOR
DAYTIME RUNNING
LIGHT INDICATOR MESSAGE
INDICATOR
LOW FUEL
INDICATOR ANTI-LOCK BRAKE SYSTEM INDICATOR
FOG LIGHT INDICATOR MULTI-INFORMATION
DISPLAY PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
MALFUNCTION INDICATOR
(P.59,331)
(P.59) (P.61)
(P.61) (P.63)
(P.62) (P.59)
(P.64)
(P.63)
(P.66)
(P.62)
SIDE AIRBAG OFF
INDICATOR(P.61)
(P.58)
(P.61)
(P.60)
(P.60)
(P.59) (P.60)
(P.62) LOW TIRE PRESSURE/
TPMS INDICATOR
(P.64)
LIGHTS ON INDICATOR
IMMOBILIZER SYSTEM INDICATOR
(P.63)
— —
y
y
(% y y
2008 TL
Page 65 of 376
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the circuit. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. See page
f or inf ormation on the headlight
controls. This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. This indicator
will also come on when the light
switch is in AUTO and the lights
turn on automatically. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash. 86
298
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator
High Beam Indicator
Daytime Running L ights
Indicator
Instrument Panel Indicators
62
\f—\f—
y
\f\f\fy
(%\fy\f\fy
2008 TL
Page 66 of 376
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).This indicator comes on when you
turn on the fog lights. See page
f or inf ormation on f og light
operation.
You will also see a ‘‘FUEL LOW’’
message on the multi-inf ormation
display (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator is in the f uel gauge. It
comesonasareminderthatyou
must ref uel soon. When the indicator
comes on, there is about 2.3 U.S. gal
(8.6
) of f uel remaining in the tank
bef ore the needle reaches E. There
is a small reserve of f uel remaining
in the tank when the needle does
reach E.
68 86
94
Immobilizer System
Indicator
L ow Fuel Indicator Fog L ight Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
63
LOW FUEL INDICATOR
\f—\f—
y
\f\fy
(%\fy\f\fy
2008 TL
Page 80 of 376
ÎÎÎ
ÎÎ
ÎÎ ÎÎ
ÎÎ
Î
ÎÎ Menu Item
AUTO DOOR LOCK
AUTO DOOR UNLOCK (AT)
AUTO DOOR UNLOCK (MT)
KEY AND REMOTE UNLOCK
MODE
KEYLESS LOCK
ACKNOWLEDGMENT Setting Option
SHIFT FROM P
WITH VEH SPD
OFF
SHIFT TO P
DRIVER DOOR
SHIFT TO P
ALL DOORS
IGN OFF
DRIVER DOOR
IGN OFF
ALL DOORS
OFF
IGN OFF
DRIVER DOOR
IGN OFF
ALL DOORS
OFF
ALL DOORS
BEEP ON
BEEP OFF
Description
Changes the setting of when to automatically lock the
doors
Changes the setting of when to automatically unlock
the driver’s/all the doors.
Changes the setting of when to automatically unlock
the driver’s/all doors.
Changes which doors unlock with the remote
transmitter when the button is first pushed
The exterior lights flash each time you press the
LOCK or UNLOCK button. A beeper will also sound
when you press the LOCK button twice.
Setup Category
DOOR SETUP Page
P.79
P.80
P.80
P.81
P.81
: Automatic transmission model only : Default setting
CONT INUED
DRIVER’S DOOR
Multi-Inf ormation Display
Inst rument s and Cont rols
77
\f—\f—
y
\fy
(%\fy\f\fy
2008 TL
Page 81 of 376
ÎÎ
ÎÎ
ÎÎ
ÎÎMenu Item
SECURITY RELOCK TIMER
HEADLIGHT AUT O OFF
TIMER
INTERIOR LIGHT DIMMING
TIME Page
P.81
P.82
P.83
P.83
Description
Changes how long it takes (in seconds) for the doors
to relock and the security system to set af ter you
unlock but do not open the door.
Changes how long (in seconds) the headlights stay on
after you close the driver’s door.
Changes how long (in seconds) the interior lights stay
on after you close the doors.
Changes all the customized settings as default. Setting Option
30 sec
60 sec
90 sec
0sec
15sec
30 sec
60 sec
5sec
15sec
30 sec
SET
CANCEL
Setup Category
DOOR SET UP
LIGHTING SETUP
DEFAULT ALL
: Default setting
Multi-Inf ormation Display
78
— —
y
y
(% y y
2008 TL
Page 85 of 376
ÝÝ
Select the desired relock time by
moving the pointer with the INFO
( ) button and enter your selection
by pressing the SEL/RESET button. The headlights, parking lights, side
marker lights, taillights, and license
plate lights go of f af ter the selected
time when you close the driver’s
door.
You can change how long the lights
stay on bef ore they go of f as
described next.
Select the desired time (‘‘0s, 15s, 30s
or 60s’’) by moving the pointer with
the INFO ( ) button and enter your
selection by pressing the SEL/
RESET button.
Headlight Auto Of f Timer
Multi-Inf ormation Display
82
\f—\f—
y
\f
y
(%\fy\f\fy
2008 TL
Page 86 of 376
ÝÝ
ÛÝ
Ý

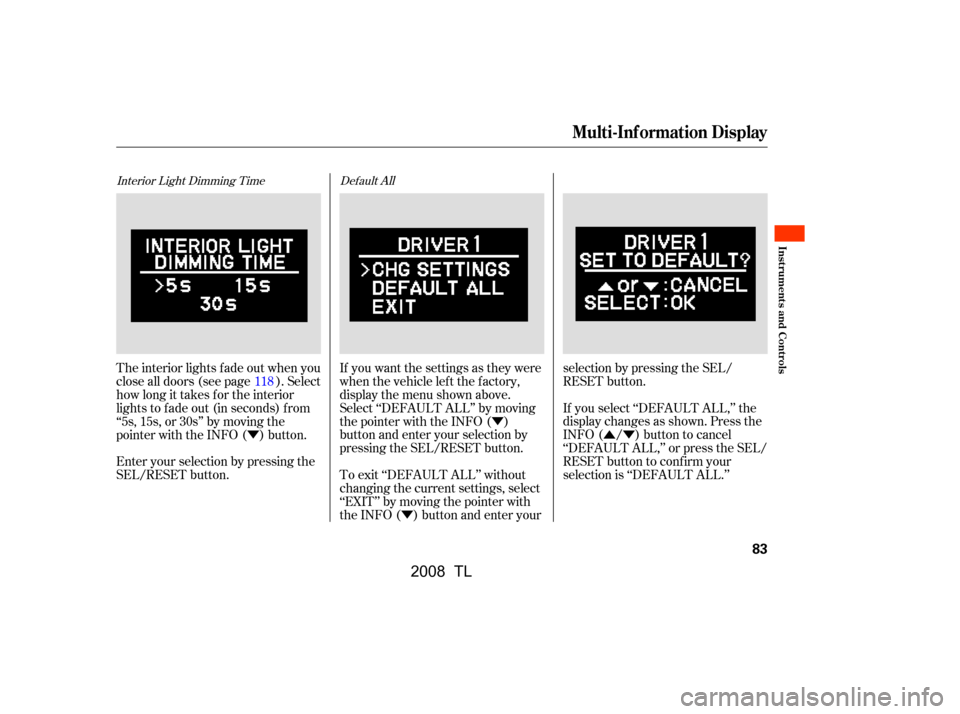

Interior Light Dimming Time Def ault All
The interior lights f ade out when you
close all doors (see page ). Select
how long it takes f or the interior
lights to f ade out (in seconds) f rom
‘‘5s, 15s, or 30s’’ by moving the
pointer with the INFO ( ) button. If you want the settings as they were
when the vehicle lef t the f actory,
display the menu shown above.
Select ‘‘DEFAULT ALL’’ by moving
the pointer with the INFO ( )
button and enter your selection by
pressing the SEL/RESET button.
Enter your selection by pressing the
SEL/RESET button. If you select ‘‘DEFAULT ALL,’’ the
display changes as shown. Press the
INFO ( / ) button to cancel
‘‘DEFAULT ALL,’’ or press the SEL/
RESET button to conf irm your
selection is ‘‘DEFAULT ALL.’’
To exit ‘‘DEFAULT ALL’’ without
changing the current settings, select
‘‘EXIT’’ by moving the pointer with
the INFO ( ) button and enter your selection by pressing the SEL/
RESET button.
118
Multi-Inf ormation Display
Inst rument s and Cont rols
83
\f—\f—
y
\fy
(%\fy\f\fy
2008 TL
Page 87 of 376
Î
ÎTo use the horn, press the center pad of the steering wheel.
:
Controls Near the Steering Wheel
84
HAZARD WARNING BUTTON
HEADLIGHTS/TURN SIGNALS/
FOG LIGHTS
SEAT HEATER
SWITCHES
HORN
MIRROR CONTROLS STEERING WHEEL ADJUSTMENTREMOTE AUDIO
CONTROL BUTTONS CRUISE CONTROL
BUTTONS
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH (P.86,89)
(P.89)
(P.271)
(P.107) (P.91)(P.183) (P.85)
(P.90)
(P.111)
(P.192)
INSTRUMENT PANEL
BRIGHTNESS
WINDSHIELD
WIPERS/WASHERS
(P.186)
REAR WINDOW
DEFOGGER BUTTON
(P.90)
BLUETOOTH
HANDSFREELINKBUTTONS
