navigation Acura TL 2009 Owner's Manual

CONT INUED

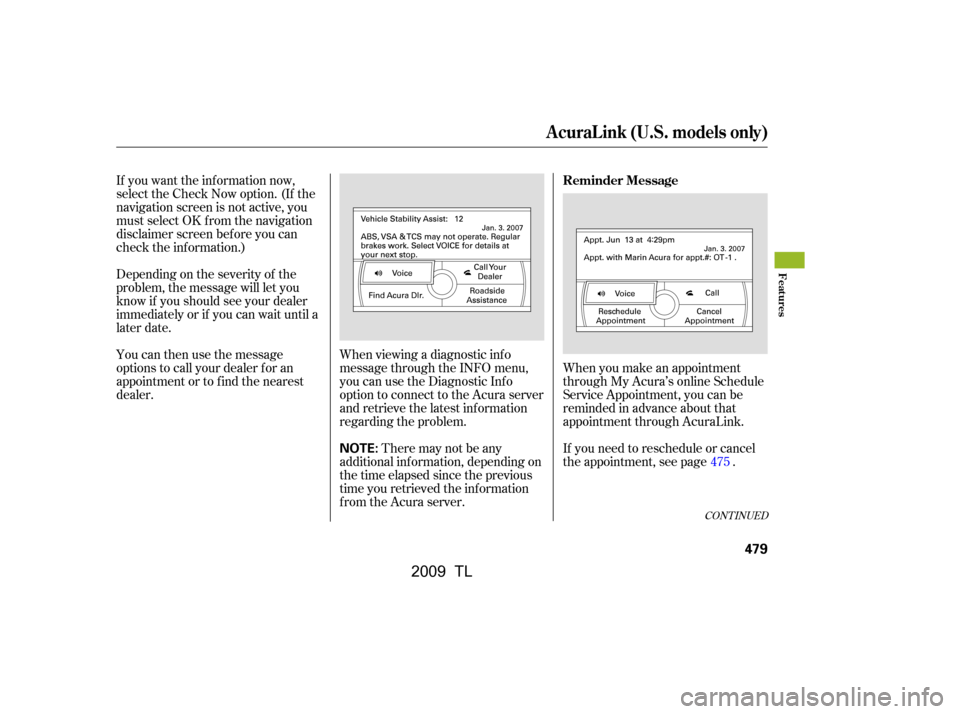

You will see the screen to reschedule
as shown. To make an appointment,
select ‘‘Reschedule Appointment,’’
then press ENTER.
The system will automatically
connect to the Acura server, then
show you a new appointment date
and time on the navigation screen. If
you accept this appointment, select
‘‘Conf irm Appointment,’’ then press
ENTER.
The conf irmation message will be
displayed on the screen. Make sure
to conf irm the appointment date,
time and dealer. If it is OK, press
ENTER.
If you want to change or reschedule
the appointment date, select ‘‘Cancel,’’
then press ENTER.
Select ‘‘AcuraLink/Messages’’ on
the Setup screen, then press ENTER.
Select ‘‘Scheduled Dealer
Appointment,’’ then press ENTER.
A curaL ink (U.S. models only)
T o reschedule t he appoint ment :
Scheduled Dealer A ppointment
Features
475
\f—\f—y
\fy
) \f\fy\f\fy
2009 TL

The system will request you to
conf irm the cancel on the navigation
screen. To cancel the appointment,
select ‘‘YES,’’ then press ENTER. If
you select ‘‘NO,’’ the screen goes
back to the previous message display.The system will automatically
connect to the Acura server, then
show you the conf irmation on the
navigation screen. If you accept the
cancel, press ENTER.
Select ‘‘AcuraLink/Messages’’ on
the Setup screen, then press ENTER.
Select the appointment message
then press ENTER. You will see the
screen to cancel as shown. To cancel
the appointment, select ‘‘Cancel
Appointment,’’ then press ENTER.
T o cancel t he appoint ment :
A curaL ink (U.S. models only)
476
\f—\f—y

\fy
) \f\fy\f
y
2009 TL

If you want the information now,
select the Check Now option. (If the
navigation screen is not active, you
must select OK f rom the navigation
disclaimer screen bef ore you can
check the inf ormation.)
Depending on the severity of the
problem, the message will let you
know if you should see your dealer
immediately or if you can wait until a
later date.
You can then use the message
options to call your dealer f or an
appointment or to f ind the nearest
dealer.When viewing a diagnostic inf o
message through the INFO menu,
you can use the Diagnostic Inf o
option to connect to the Acura server
and retrieve the latest inf ormation
regarding the problem.
Theremaynotbeany
additional inf ormation, depending on
thetimeelapsedsincetheprevious
time you retrieved the inf ormation
f rom the Acura server. When you make an appointment
through My Acura’s online Schedule
Service Appointment, you can be
reminded in advance about that
appointment through AcuraLink.
If you need to reschedule or cancel
the appointment, see page .
475
CONT INUED
A curaL ink (U.S. models only)
Reminder Message
Features
479
NOTE:
\f—\f—y
y
) \f\fy\fy
2009 TL

µ
µ
µ For the Phone Data
Connection button to be active, you
need a Bluetooth
compatible and
enabled cellphone paired to the
Bluetooth
HandsFreeLink(HFL).
To complete the data connection
setup, the paired phone must have a
compatible data service.
Select
this option to begin the process
required to connect to Acura. This is
used to access the most recent
diagnostic inf ormation when a
problem occurs.
Select ON if you want to be notif ied
of new messages (envelope icon
appears on the navigation screen).
Select OFF if you do not want to be
notif ied of new messages (envelope
icon does not appear on the screen).
Messages can still be accessed using
the INFO menu. If you would like to
stop receiving messages, visit the
My Acura website at
to change your messaging
pref erences.
Select ON to have
the system automatically read each
message to you. Select OFF to
manually select the Voice option
when you want a message read to
you.
www.owners.
acura.com
CONT INUED
Phone-Data Connection
New Message Notif ication
Auto Reading
A curaL ink (U.S. models only)
Features
481
NOTE:
\f—\f—y
y
) \f\fy\fy
2009 TL

For the best picture, always keep the
rearview camera clean, and do not
cover the camera lens. To avoid
scratching the lens when you clean it,
use a moist, sof t cloth.
Whenever you shif t to reverse (R)
with your vehicle in the ON mode,
the rearview is shown on the
navigation system screen. Since the rearview camera display
area is limited, you should always
back up slowly and caref ully, and
look behind you f or obstacles.
You can adjust the brightness of the
rearview camera image by turning
the interf ace dial.
Parking guidelines are also included
on the screen.
If the engine has just been started, it
maytakeashorttimeforthemto
display.On models wit h navigat ion syst em
Rearview Camera and Monitor
Features
483
REARVIEW
CAMERA
The camera brightness cannot be
adjusted by voice control.
\f—
—y
\f
y
) \f\fy\fy
2009 TL

Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the f uel tank.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Leave the parking brake off. Put
the transmission in Park.
If your vehicle’s battery is
disconnected, or goes dead, the time
setting may be lost. To reset the time,
see page .
If your vehicle’s battery is
disconnected or goes dead, the audio
system may disable itself . The next
timeyouturnontheradio,youwill
see ‘‘ENTER CODE’’ in the
f requency display. Use the preset
buttons to enter the code (see page
).
The navigation system will also
disableitself.Thenexttimeyouset
to the ON mode, the system will
require you to enter a PIN bef ore it
can be used. Ref er to the navigation
system manual. 377
376On models without navigation system
On models with navigation system
Vehicle Storage
578
\f—
—y
\f
y
) \f\fy\fy
2009 TL

T he publications shown below can be purchased f rom Helm
Incorporated. You can order by phone or online:Call Helm Inc. at 1-800-782-4356 (credit card orders only)
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
Covers maintenance and recommended procedures f or
repair to engine and chassis components. It is written
f or the journeyman mechanic, but it is simple enough
f or most mechanically inclined owners to understand.
Complements the Service Manual by providing in-depth
troubleshooting inf ormation f or each electrical circuit
in your vehicle.
Describes the procedures involved in the replacement
of damaged body parts.
Authorized Manuals
Purchasing Factory Authorized Manuals
(U.S. only) Service Manual:
Electrical T roubleshooting Manual:
Body Repair Manual:
Authorized Manuals
633
Form Description
2009 Acura TL Service Manual
2009 Acura TL Electrical Troubleshooting Manual
2009 Model Series Acura TL Body Repair Manual 2009 Acura TL Owner’s Manual
2009 Acura TL Navigation Manual
2009 Acura TL Maintenance Journal 2009 Acura TL Quick Start GuideOrder Form for Previous Years-
Indicate Year and Model Desired
Publication
Form Number 61TK400
61TK400EL 61TK430
31TK4600
31TK4800
31TK4M00 31TK4Q00 ACU-R
www. helminc. com
\f—\f—y
\fy
) \f\fy\fy
2009 TL
