Acura TL 2009 Navigation Manua

Table of Contents
Navigation System
1
Introduction .................................. 4
Manual Overview ............................ 4
System Overview ........................... 4
Accessories Precautions ................. 5
Important Safety Information ......... 5
Map Overview ................................. 6
Current Street ................................... 6
Ve r i fi ed/Unverifi ed Street ................ 6
User Agreement ............................ 8
Getting Started ........................... 10
System Controls ............................ 10
Voice Control Basics ..................... 13
Using the Voice Control System .....14
Improving Voice Recognition .........14
Selecting an Item (Button) on the
Screen ....................................... 15
Selecting an Item in a List ............ 15
Entering Information .................... 16
System Start-up ............................. 18
System Language Selection .......... 18
Bluetooth
® HandsFreeLink® ......... 19
Map Screen Legend ...................... 20
Map Screen Description ................ 21
Zoom In/Out .................................. 21
Map Scrolling ................................ 21
Displaying Current Location......... 21
Tra f fi c Display Legend .................. 22
AcuraLink Real-Time Traffi c .......23
Tra f fi c Status Indicator .................. 23
Viewing Flow Data ........................ 24
Viewing Incident Reports .............. 25
System Function Diagram ............. 27
Entering a Destination ...............28
By Address .................................... 29
Selecting the State or Province ...... 29
Selecting the ZIP Code .................. 30
Selecting the City ........................... 30
Selecting the Street ........................ 32
Entering the Street Number ........... 33
By Address Book .......................... 34
Adding Addresses to the Personal
Address Book ............................ 35
By Previous Destinations .............. 35
By Place Name .............................. 36
By Place Category ......................... 37
Subcategories ................................. 37
Place Name .................................... 40
City Vicinity .................................. 40
Sort by Distance to Travel ..............41
Search by Keyword .........................41
Sort by Zagat Rating ...................... 42
By Place Phone Number ............... 42
By Coordinate ............................... 43
By Destination Lists ...................... 44
Verifying Destination Lists............ 45
Editing Destination Lists ............... 45
By Intersection .............................. 45
By Map Input ................................ 46
Showing the Map of Current
Positi on ...................................... 46
Showing the Map of City ............... 47
Show Map of State ......................... 49
Show Map of Continental USA and Canada ................................ 50
By Go Home 1 or 2 ....................... 50
Driving to Your Destination ......52
Driving to Your Destination .......... 52
Calculate Route to Screen ............. 52
Changing the Routing Method ...... 53
Viewing the Routes ........................ 53
Viewing the Destination Map ........ 54
Map Screen ................................... 55
Route Line ...................................... 55
Map Screen Legend ....................... 56
Guidance Screen ........................... 57
Guidance Screen Legend ............... 57
Distance and Time to Destination ...58
00X31-TK4-8000
2009 TL

Table of Contents
2 Navigation System
Map Menu ..................................... 58
Directions ...................................... 59
EXIT INFO (Freeway Exit
Information ) .............................. 60
Guidance Mode ............................. 60
Current Location ........................... 61
Map Legend .................................. 61
Map Scale ..................................... 62
Map Orientation ............................ 63
Destination Icon ............................ 63
Various Other Icons ...................... 64
Landmark Icons ............................. 64
Incident Icons ................................. 65
Weather Icons ................................ 65
Showing Icons on the Map ............ 68
Icon Options ................................... 68
Going Off the Route...................... 70
Off-road Tracking ......................... 70
Viewing/Saving the Current Location .................................... 71
Pop-ups and Disclaimers .............. 72
Tra f fi c Rerouting ........................... 73
Changing the Route ...................... 74
MENU Screen (Route) .................. 74
Changing Your Destination ........... 77
Find Nearest (Voice command) ..... 77
Go Home (Voice command) .......... 77
Using Interface Dial to Change
Destinatio n ................................ 77
Entering a Destination from the Menu Screen (while en route) ... 78
Continue Trip to Screen ................ 78
AcuraLink Messages ..................... 79
Information Features .................80
INFO Screen (Main Info) ............. 80
Cellular Phone................................ 80
Tra f fi c Incidents ............................. 81
AcuraLink Weather ....................... 81
Voice Info ....................................... 85
Calenda r ......................................... 86
Scenic Road Information ............... 88
Calcul ator ....................................... 89
System /Device Information ........... 90
Map Update Status ......................... 90
Roadside Assistance ...................... 90
Key to Zagat Ratings ..................... 91
Show Wallpaper ............................. 92
System Setup ............................... 93
SETUP Mode ................................ 93
SETUP Screen (Main Set up) ....... 93
Brightness ...................................... 93 Contras
t .......................................... 93
Black Level .................................... 93
Volu me ........................................... 94
Interface Dial Feedback ................. 94
Personal Information ..................... 94
Address Book ................................. 94
Home Address ................................ 98
PIN Number ................................... 99
Previous Destinations ...................101
SET UP Screen (Other) ............... 101
Basic Settings .............................. 101
Units (mile or km) ....................... 102
Voice Recognition Feedback ....... 102
Verbal Reminders ........................ 102
Routing & Guidance ................... 102
Rerouting ..................................... 10 2
Unver ifi ed Area Routing .............. 103
Edit Avoid Area ........................... 10 7
Edit Waypoint Search Area ......... 109
Guidance Mode .............................11 0
Street Name Guidance ..................110
Tra f fi c Rerouting ...........................11 0
Clock Adjustment .........................111
Auto Daylight ................................ 11 1
Auto Time Zone ............................11 2
Time Adjustment ...........................11 2
2009 TL

Table of Contents
Navigation System
3
Vehicle ........................................ 112
Off-road Tracking .........................112
Correct Vehicle Position ...............113
Color .......................................... 114
Map Color ..................................... 11 4
Menu Color ...................................11 5
Switching Display Mode Manuall y ..................................11 5
Switching Display Mode Automaticall y ........................... 11 6
Language ......................................117
Wallpapers Setting .......................117
Importing Pictures from USB ....... 118
Selecting Wallpaper Pictures ........ 118
Delete Pictures on HDD ...............119
Reset Factory Default Settings .... 119
Clear Personal Data .................... 120
AcuraLink/Messages .................. 121
Tra f fi c & Weather Status ............ 121
Rearview Camera ........................ 122
Rearview Camera Brightness
Adjustmen t .............................. 12 2
Rearview Camera Image ............. 122
System Initialization ................. 123
System Initialization ................... 123
Entering the Security Code ......... 123GPS Initialization........................
123
Map Matching ............................. 124
System Limitations ...................125
Database Limitations ............... 126
Client Assistance ...................... 128
Coverage Areas ......................... 130
Map Coverage ............................. 130
U.S. Detailed Coverage Areas ..... 130
Canada Detailed Coverage Areas ...135
Operation in Alaska, Hawaii,
Canada, and Puerto Rico ........ 142
Alaska, Hawaii, Canada, and
Puerto Rico ...............................14 2
Other Map Issues ..........................14 2
INFO Screen Differences .............143
Shipping a Vehicle To or From Alaska, Hawaii, Canada, and Puerto Rico ...............................14 3
Frequently Asked Questions .... 144
Troubleshooting ........................ 152
Glossary .................................... 153
Glossary ...................................... 153
Voice Command Index .............156
Global Commands ...................... 156
Navigation General Commands... 156
Navigation Display Commands... 157
Find Place Commands ................ 158
Climate Control Commands ....... 159
Radio Voice Commands ............. 160
Disc Voice Commands ................ 161
HDD Voice Commands .............. 161
AUX Voice Commands............... 161
USB Voice Commands ............... 162
iPod Voice Commands ................ 162
Bluetooth AUDIO Commands .... 162
Cellular Phone Voice Commands .............................. 163
SET
UP Screen (Main Set up)
Commands .............................. 163
On-Screen Commands ................ 163
On-Screen Spelling Assist .......... 164
Index ..........................................168
Others ........................................ 172
2009 TL

Introduction
4 Navigation System
Manual Overview
The manual is divided into the
following sections:
• Getting Started - A basic introduction that discusses the controls and how to
communicate with the system.
• Entering a Destination - How to enter an address or locate a point of interest
(POI).
• Driving to Your Destination - An explanation of the map features,
guidance, and cautions.
• Information Features - Cellular Phonebook, Voice Info, Map Legend,
Calendar, Calculator, Weather
Information, Traffi c Incidents,
Wallpaper, and Key to Zagat Ratings.
• System Setup - How to set up and tailor the system for your personal
use and use the Address Book. The back of this manual contains:
• Map Coverage (pag
e 130 )
• Cities with Traffi c Coverage (page
141 )
• Frequently Asked Questions (FAQs) (page 145 )
• Troubleshooting Guide (pag e 152 )
• Glossary of Terms (pag e 153 )
• Voice Command List (pag e 156 )
• Operation Specifi c to Alaska, Hawaii,
Canada, and Puerto Rico (pag e 142 )
System Overview
Your navigation system is a highly
sophisticated location system with
voice control that uses satellites and a
map database to show you where you
are and to help guide you to a desired
destination.
The navigation system receives signals
from the global positioning system
(GPS), a network of 24 satellites in
orbit around the earth. By receiving
signals from several of these satellites,
the navigation system can determine the
latitude, longitude, and elevation of your
vehicle. In addition, a gyroscopic yaw
sensor and a vehicle speed sensor in
your vehicle keep track of the direction
and speed of travel at all times.
2009 TL

Introduction
Navigation System5
The navigation system applies location,
direction, and speed information to
the maps and calculates a route to the
destination you enter. As you drive to
that destination, the system provides
map and voice guidance.
The navigation system is easy to
use. The locations of many places of
business and entertainment are already
entered in the system. You can select
any of them as a destination by using
the Interface Dial or voice control.
There are several ways to enter a
destination, such as by point of interest
(POI), by address, by phone number,
and by selecting it from the map. The
last 50 destinations are saved for reuse
at a later date. The system also allows
you to store a home address to simplify
returning home from your destination. Accessories Precautions
If you have front or side window tinting
installed, be aware that if the tint has
metallic properties, it can seriously
degrade or prevent GPS reception. This
is because the GPS antenna is located
behind the navigation display in the
center of the dashboard.
If you plan to install electronic
components such as radar detectors,
vehicle tracking devices, remote
starters, additional amplifi ers, or other
audio components, ensure that they are
not located near the navigation display
in the center of the dashboard, or near
the GPS antenna behind the navigation
display. Signal noise emanating from
these devices can cause intermittent
disruption of the navigation system.
Important Safety Information
The navigation system can distract your
attention from the road if you focus
on the screen or operate the system’s
controls while driving.
Enter as much information as possible
into the system before you begin
driving, or when the vehicle is stopped.
Then, as you drive, listen to the audio
instructions and use voice commands
when possible.
2009 TL

Introduction
6 Navigation System

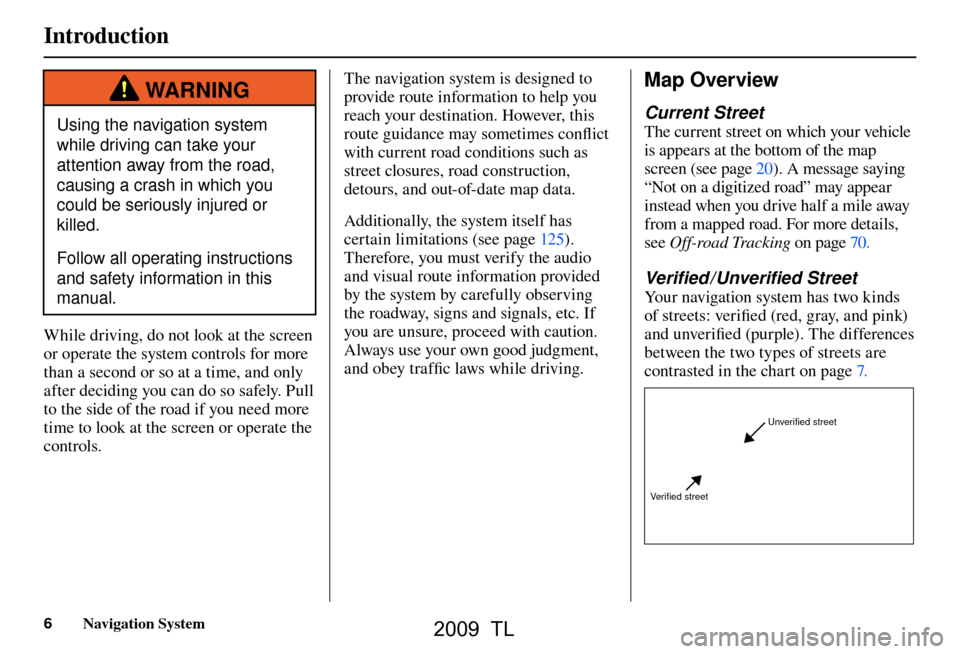

WAR N I N G
Using the navigation system
while driving can take your
attention away from the road,
causing a crash in which you
could be seriously injured or
killed.
Follow all operating instructions
and safety information in this
manual.
While driving, do not look at the screen
or operate the system controls for more
than a second or so at a time, and only
after deciding you can do so safely. Pull
to the side of the road if you need more
time to look at the screen or operate the
controls. The navigation system is designed to
provide route information to help you
reach your destination. However, this
route guidance may sometimes confl
ict
with current road conditions such as
street closures, road construction,
detours, and out-of-date map data.
Additionally, the system itself has
certain limitations (see page 125 ).
Therefore, you must verify the audio
and visual route information provided
by the system by carefully observing
the roadway, signs and signals, etc. If
you are unsure, proceed with caution.
Always use your own good judgment,
and obey traffi c laws while driving.
Map Overview

Current Street
The current street on which your vehicle
is appears at the bottom of the map
screen (see page 20 ). A message saying
“Not on a digitized road” may appear
instead when you drive half a mile away
from a mapped road. For more details,
see O f f - r o a d T r a c k i n g on page 70 .
Verifi ed/Unverifi ed Street
Your navigation system has two kinds
of streets: verifi ed (red, gray, and pink)
and unverifi ed (purple). The differences
between the two types of streets are
contrasted in the chart on pag e 7 .
Verified street Unverified street
2009 TL

Introduction
Navigation System7

Ve r i fi ed streets Unverifi ed streets
When
displayed These roads are found within metropolitan areas, and
include interstate freeways and major roads connecting
cities. These roads are found in rural areas, and typically include
residential streets away from the center of a town.
Street color Shown as red (freeways), pink (state routes), or gray
(ver i fi
ed streets) on the daytime map screen. Shown on the daytime
map screen as purple.
Map quality The database vendor has verifi
ed these streets.
Information like turn restrictions, average speed, and
whether it is a one-way street have been gathered and used
when creating your route to a destination. These streets have not been verifi
ed by the database
vendor. The system does not contain information on one-
way streets, turn restrictions, or the road’s average speed.
They are shown on the map for reference and may have
errors in map location, naming, and address range.
Routing
differences While driving to your destination, the displayed route line
is solid blue. The system provides voice and map guidance
to your destination.
Your route line is either a purple dotted “vector line,” or
a dashed pink/blue line. For information on selecting this
option, and the routing differences, see
Unverifi ed Area
Routing on page 103 .
Cautions There are no pop-up boxes urging extra caution during
a route. However, because roads constantly change, you
are urged to use common sense, and always obey posted
traffi
c restrictions. Regardless of whether the user chooses route guidance,
there are cautionary screens before and during the route
urging the user to be extra cautious, and obey all traffi
c
restrictions. See Unverifi ed Area Routing on page 103 .
Guidance
voice Voice guidance issues instructions such as “In a half-mile,
make a right turn.”
The phrase “if possible” is added to each guidance
instruction. For example: “In a half-mile, make a right
turn, if possible.”
Time and
distance
“to go” The time and distance “to go,” displayed while en route to
a destination, is based on the average speed and distance
for the roads used for your route.
The time and distance “to go,” displayed while en route to
a destination, is based on the average speed and distance
for the roads used for your route.
2009 TL

User Agreement
8 Navigation System

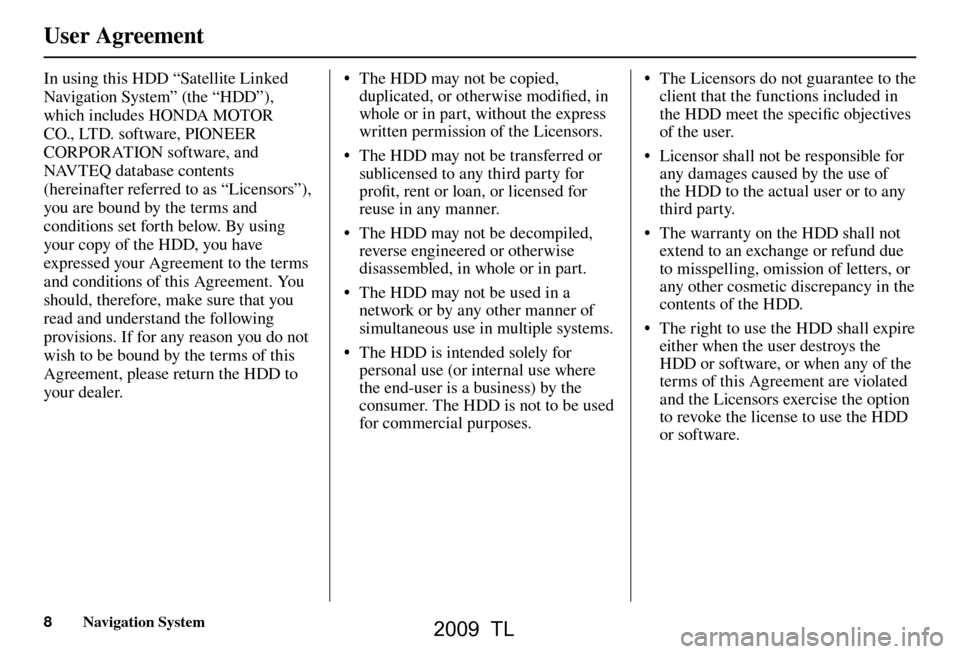

In using this HDD “Satellite Linked
Navigation System” (the “HDD”),
which includes HONDA MOTOR
CO., LTD. software, PIONEER
CORPORATION software, and
NAVTEQ database contents
(hereinafter referred to as “Licensors”),
you are bound by the terms and
conditions set forth below. By using
your copy of the HDD, you have
expressed your Agreement to the terms
and conditions of this Agreement. You
should, therefore, make sure that you
read and understand the following
provisions. If for any reason you do not
wish to be bound by the terms of this
Agreement, please return the HDD to
your dealer. • The HDD may not be copied,
duplicated, or otherwise modifi ed, in
whole or in part, without the express
written permission of the Licensors.
• The HDD may not be transferred or sublicensed to any third party for
profi t, rent or loan, or licensed for
reuse in any manner.
• The HDD may not be decompiled, reverse engineered or otherwise
disassembled, in whole or in part.
• The HDD may not be used in a network or by any other manner of
simultaneous use in multiple systems.
• The HDD is intended solely for personal use (or internal use where
the end-user is a business) by the
consumer. The HDD is not to be used
for commercial purposes. • The Licensors do not guarantee to the
client that the functions included in
the HDD meet the specifi c objectives
of the user.
• Licensor shall not be responsible for any damages caused by the use of
the HDD to the actual user or to any
third party.
• The warranty on the HDD shall not extend to an exchange or refund due
to misspelling, omission of letters, or
any other cosmetic discrepancy in the
contents of the HDD.
• The right to use the HDD shall expire either when the user destroys the
HDD or software, or when any of the
terms of this Agreement are violated
and the Licensors exercise the option
to revoke the license to use the HDD
or software.
2009 TL

User Agreement
Navigation System9
• The terms and conditions hereof
apply to all subsequent users and
owners as well as to the original
purchaser.
• The logos of oil companies, hotels, convenience stores, and other
businesses are displayed for your
information and convenience, and
in no way imply any sponsorship,
approval or endorsement of these
companies, or their products.
The logos are trademarks of their
respective owners. The user shall indemnify and save
harmless the Licensors, and their
offi
cers, employees and agents, from
and against any claim, demand or
action, irrespective of the nature of the
cause of the claim, demand or action,
alleging loss, costs, expense, damages
or injuries (including injuries resulting
in death) arising out of the use or
possession of the HDD or software. Use, duplication, or disclosure of this
HDD by or on behalf of the United
States government is subject to
“Restricted Rights” as set forth at FAR
52.227-14, -19 or DFARS 252.227-
7013, as applicable. Manufacturers
are the Licensors, including HONDA
MOTOR CO., LTD., 2-1-1 Minami
Aoyama Minato-Ku Tokyo 107-8556
JAPAN., PIONEER CORPORATION,
1-4-1 Meguro Meguro-ku Tokyo 153-
8654 Japan., NAVTEQ Corporation,
425 W Randolph St. Chicago, IL
60606, USA.
2009 TL

Getting Started
10 Navigation System
AUDIO button
Press to display the audio screen.
For more information on audio system
features, see the Audio section of the
vehicle Owner’s manual.
INFO button
Displays the “Main Info” options on
the INFO screen. When selecting
the “Other” tab, displays the “Other”
options on the INFO screen. See page
80 .
MAP/GUIDE button
Displays the map. When en route,
switches between the map and
Directions screens. See pag e 20 or 56 .
MENU button
Displays the “Dest. MENU 1” options
on the MENU screen. When en route,
displays the “Route” options on the
MENU screen. See pag e 28 or 74 .
Display Mode button
Adjusts the screen brightness for Day
or Night mode, or turns the screen OFF.
See page 115 .
CANCEL button
INFO button
Interface Dial/
ENTER button MENU button AUDIO button
MAP/GUIDE button
Lower Display
Screen
Display Mode
button
Passenger’s Temperature
Driver’s Temperature
Time (set by navigation system)
System Controls
2009 TL
