check engine Acura TL 2009 Owner's Guide

Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
message, press the INFO button.If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
Put your f ingers between the f ront
edge of the hood and the f ront
grille to locate the hood latch
handle. Push this handle up until it
releases the hood. Lif t the hood.
The ‘‘TIGHTEN FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message of f .
1.
2.
596
CONT INUED
Service Station Procedure
Opening and Closing the Hood
Bef ore Driving
489
HOOD RELEASE HANDLE
\f—\f—y
y
) \f\fy\fy
2009 TL

Lif t the hood up most of the way.
The hydraulic supports will lif t it
uptherestof thewayandholdit
up.To close the hood, lower it to about a
f oot (30 cm) above the f ender, then
press down f irmly with your hands.
Make sure the hood is securely
latched.
Park the vehicle on a level surf ace.
Insert the dipstick all the way back
into its hole.
Wipe of f the dipstick with a clean
cloth or paper towel.
Remove the dipstick (orange loop).
Wait a f ew minutes af ter turning the
engine of f bef ore you check the oil.
If the hood latch handle moves
stif f ly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
3. 1.
3.
2.
Service Station Procedures
Oil Check
490
LATCH
DIPSTICK
\f—
—y
\fy
) \f\fy\fy
2009 TL

Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .See page f or the engine coolant
location. Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page f or
inf ormation on adding the proper
coolant.
Refer to on page f or inf ormation
about checking other items on your
vehicle.
To access the radiator reserve tank,
remove the right-side engine
compartment cover (see page ).
4.
547545 550
543
546
Service Station Procedures
A dding Engine Oil Engine Coolant Check
A dding
Engine Coolant
Owner’s Maintenance
Checks
Bef ore Driving
491
RESERVE TANK
MAX
MIN
UPPER MARK
LOWER MARK
\f—
—y
\fy
) \f\fy\fy
2009 TL

µµ
µ µ
µ
µ
µ
Aggressive driving (hard
acceleration and braking)
Excessive idling, accelerating and
braking in stop-and-go traf f ic
Cold engine operation (engines
aremoreefficientwhenwarmed
up)
Driving with a heavy load or the
air conditioner running
Improperly inf lated tires
The f ollowing f actors can lower your
vehicle’s f uel economy:
A properly maintained vehicle
maximizes f uel economy. Poor
maintenance can signif icantly reduce
f uel economy. Always maintain your
vehicle according to the maintenance
messages displayed on the
inf ormation display (see
on page ).
For example: Rapid
acceleration, abrupt cornering,
and hard braking increase fuel
consumption.
Aerodynamic drag has a big ef f ect
on f uel economy at speeds above
45 mph (75 km/h). Reduce your
speed and you reduce the drag.
Trailers, car top carriers, roof
racks and bike racks are also big
contributors to increased drag.
If your vehicle has a
manual transmission, you can
boost your f uel economy by up
shif ting as early as possible.
Idling
results in 0 miles per gallon (0 kms
per liter).
It puts a heavier
load on the engine, increasing f uel
consumption.
In
particular, a build-up of snow or
mud on your vehicle’s underside
adds weight and rolling resistance.
Frequent cleaning helps your f uel
economy. An underinf lated tire increases
‘‘rolling resistance,’’ which reduces
f uel economy.
543
CONT INUED
Fuel Economy Factors Use the recommended viscosity
motor oil, displaying the A PI
Certif ication Seal (see page ).
Improving Fuel Economy Owner’s
Maintenance Checks Drive moderately
Observe the speed limit
Always drive in the highest gear
possible
Avoid excessive idling
A void carrying excess weight in
your vehicle
K eep your vehicle clean
Maintain proper tire inf lation
547
Vehicle Maint enance Drive Ef f icient ly
Fuel Economy
Bef ore Driving
493
\f—
—y
\fy
) \f\fy\fy
2009 TL

µµ
Fill the f uel tank until the nozzle automatically clicks of f .
Reset trip counter to zero.
Record the total gallons (liters) needed to ref ill.
Follow one of the simple calculations above.
The A/C
puts an extra load on the engine
which makes it use more f uel. Use
the f resh-air ventilation when
possible.
Combine several short trips into
one. A warmed-up engine is more
f uel ef f icient than a cold one.
Direct calculation is the
recommended source of inf ormation
about your actual f uel economy.
Using f requency of f ill-ups or taking
f uel gauge readings are NOT
accurate measures of f uel economy.
Fuel economy may improve over the
f irst several thousand miles. 1)
2)
3)
4)
Checking Your Fuel Economy
Measuring T echniquesMinimize the use of the air
conditioning system
Plan and combine trips

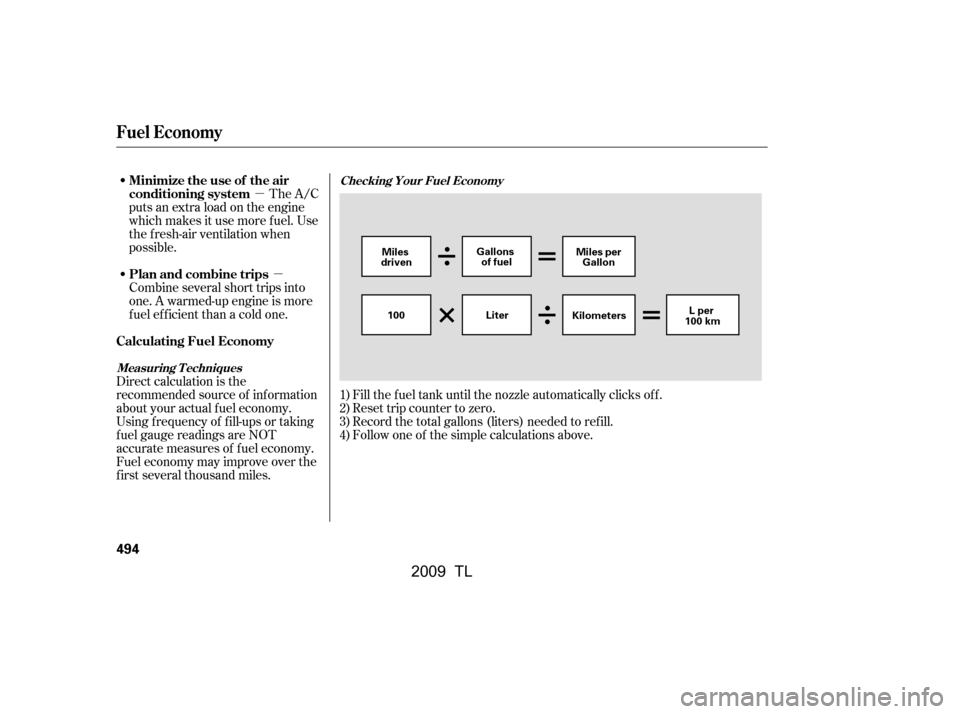

Calculating Fuel Economy
Fuel Economy
494
Miles per Gallon
100 Kilometers
Gallons
of fuel
Miles
driven
Liter Lper
100 km
\f—\f—y
y
) \f\fy\fy
2009 TL

Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove f rost, snow,
or ice.Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page ).
Make sure the doors are securely
closed and locked.
Fasten your seat belt. Check that
your passengers have f astened
their seat belts (see page ).When you start the engine, check
the gauges and indicators in the
instrument panel, and the
messages on the multi-inf ormation
display (see pages , and
).
Youshoulddothesechecksand
adjustments bef ore you drive your
vehicle:
Check that the hood is f ully closed.
Check that the trunk is f ully
closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that any items you may be
carrying are stored properly or
f astened down securely.
3.
2.
1.
7.
8.
9.
4.
5. 6.
155
63 75
77
16
161
140
10. 11.
Preparing to Drive
502
——y
y
) yy
2009 TL

If there is a problem with the
starting system, you will see a
‘‘CHECK STARTING SYSTEM’’
message on the multi-inf ormation
display when the ignition switch is
turned to the ON (II) position. You
will also see this message when the
auto control mode of the starting
system has a problem.If this message is on, the ignition
switchhastobeheldintheSTART
(III) position manually until the
engine starts. The ignition switch
canbeheldinthatpositionupto15
seconds.
Even though you may be able to
start the engine manually without
the auto control mode of the starting
system, have your vehicle inspected
by a dealer.
Check Starting System Message
Starting the Engine (Models without Keyless Access System)
504
\f—\f—y
\f\f\fy
) \f\fy\f\fy
2009 TL

If there is a problem with the
starting system, you will see a
‘‘CHECK STARTING SYSTEM’’
message on the multi-inf ormation
display with the power mode ON.You will also see this message when
the auto control mode of the starting
system has a problem.
If this message is on, you should
press and hold the engine start/stop
button until the engine starts. The
engine start/stop button can be
pressedupto15seconds.
Even though you may be able to
start the engine manually without
the auto control mode of the starting
system, have your vehicle inspected
by a dealer.
Your vehicle has the engine start/
stop button instead of an ignition
switch to select the power mode. For
more information, see page .
If you cannot start the engine using
the normal engine start procedure,
do the f ollowing:
Set the parking brake.
Put the shif t lever into Park.
Press the engine start/stop button
to turn on the ACCESSORY mode.
Press and hold the engine start/
stop button f or about 15 seconds
while pressing the brake pedal.
Do not f ollow this procedure unless
it is a case of emergency. Even if you
can start the engine using this
method, the system may have a
malf unction. Contact your dealer as
soon as possible.
178 1.
2.
3.
4.
Starting the Engine (Models with Keyless Access System)
Check Starting System Message
Emergency Engine Start
506
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
\f—\f—y
\f
y
) \f\fy\f

y
2009 TL

Î
Î
CONT INUED
These indicators between the
tachometer and speedometer show
which position the shif t lever is in.Using a paddle shif t mode, the gear
position indicator shows you the
selected gear number (see page
).
The ‘‘D’’ indicator comes on f or a
f ew seconds when you turn the
ignition switch to the ON (II)
position. If it f lashes while driving (in
any shif t position), it indicates a
possible problem in the transmission. Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. ON Mode
is the equivalent of ON (II). For
more inf ormation, see pages
and .
If the malf unction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem with the
automatic transmission control
system. Avoid rapid acceleration and
have the transmission checked by
your dealer as soon as possible.
When the ‘‘D’’ indicator warns of a
possible problem with the
transmission, you will see a ‘‘CHECK
TRANSMISSION’’ message on the
multi-inf ormation display.
512 :
180
178
Shif t L ever Position Indicators
Automatic Transmission
Driving
507
GEAR POSITION INDICATOR on
PADDLE SHIFT MODE
\f—
—y
\fy
) \f\fy\f
y
2009 TL

Put a cloth on the edge of the shif t
lock release slot cover. Use a small
f lat-tipped screwdriver or metal
f ingernail f ile to caref ully pry up
the edge of the cover and remove
it f rom the slot.Insert a key or built-in key in the
shif t lock release slot.
Push down on the key or built-in
key while you press the release
buttonontheshiftleverandmove
the shift lever out of Park to
neutral.Remove the key or built-in key
from the shift lock release slot,
then reinstall the cover. Make
sure the notch on the cover is on
the rear side. Press the brake
pedal, and restart the engine.
If you need to use the shif t lock
release, it means your vehicle is
developing a problem. Have it
checked by your dealer.
3. 6.
5.
4.
Automatic Transmission
Driving
511
COVER SHIFT LOCK
RELEASE SLOT
Vehicle without keyless access system
is shown.
\f—\f—y
\fy
) \f\fy\f
y
2009 TL
