Specif ications
578
Air Conditioning Seating Capacities Weights Dimensions Capacities
195.5 in (4,966 mm) 18.5 US gal (70
)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.182 US gal (0.69
)
Excluding the oil remaining in the engine 6.1 US qt (5.8
)
2.6 US qt (2.5)
0.48 US qt (0.45
)
0.45 US qt (0.43)
2.93 US qt (2.77
)
2.67 US qt (2.53)
ND-OIL8
17.6 19.4 oz (500 550 g) HFC-134a (R-134a)
Refrigerant type
Charge quantity
Lubricant type Total
Front
Rear 3 2
5
See the certification label attached
to the driver’s doorjamb.
Gross vehicle weight rating 63.8 in (1,620 mm) 63.2 in (1,605.5 mm)
109.3 in (2,775 mm)
57.2 in (1,452 mm)
74.0 in (1,880 mm)
Length
Width
Height
Wheelbase
Track 196.4 in (4,989 mm)
1.66 US gal (6.3
)
2.19 US gal (8.3)
4.5 US qt (4.3
)
4.2 US qt (4.0)
5.3 US qt (5.0)
3.5 US qt (3.3
)
3.0 US qt (2.8)
7.9 US qt (7.5
)
8.1 US qt (7.7)
2.2 US qt (2.1)
2.6 US qt (2.5)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Manual
transmission
fluid
Rear
differential
fluid (SH-AWD)
Transfer
assembly
fluid (SH-AWD)
Windshield
washer
reservoir Approx.
Front
Rear
Change
Total
Change
Total Change
Total
ChangeIncluding filter
Without filter
Total
Change
Total
U.S. Vehicle
Canada Vehicle 2WD
SH-AWD
2WD
SH-AWD
1:
2: Change
Total
U.S. Vehicle
Canada Vehicle
1
2
09/07/29 18:40:19 31TK4610_583
2010 TL

The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear
T raction
DOT Tire Quality Grading (U.S. Vehicles)
Technical Inf ormation
581
09/07/29 18:41:04 31TK4610_586
2010 TL

µ
µ
µ
µ
µ
µ µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below. Whenever tires are replaced, they
should be replaced with tires of the
same size. Below is an example of
tire size with an explanation of what
each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches. Speed symbol (an
alphabetical code indicating
the maximum speed rating). Load index (a numerical code
associated with the maximum
load the tire can carry).
P
R
17 245
50 V 98
CONT INUED
Tire Size

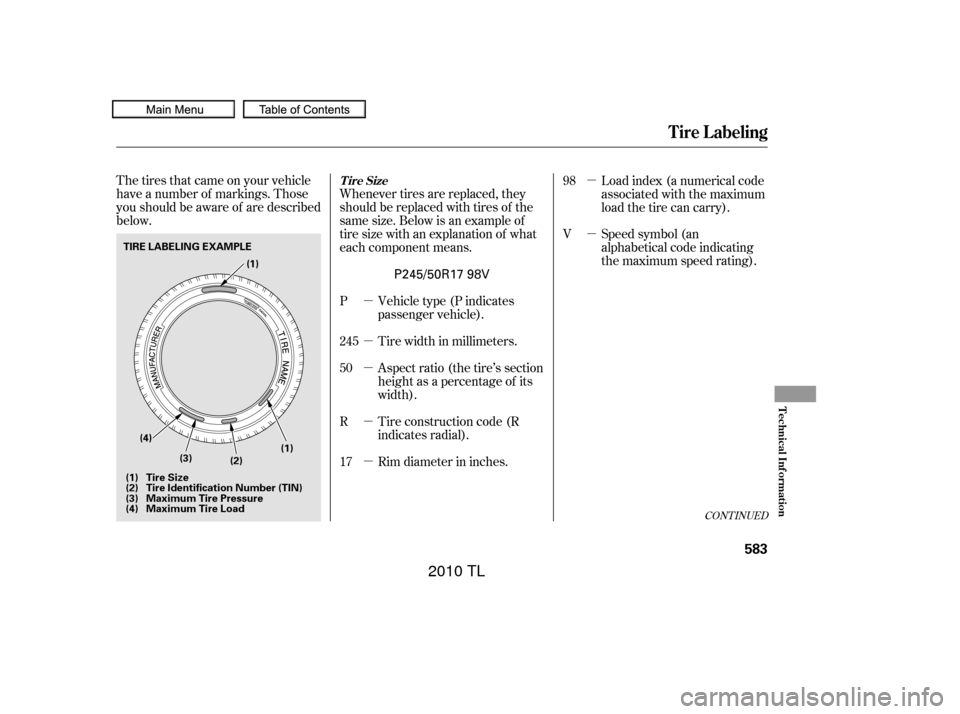

Tire Labeling
Technical Inf ormation
583
Tire Size
(1)
(1)
Tire Identification Number (TIN)
(3) Maximum Tire Pressure
(4) Maximum Tire Load (2)
(3)
(4)
(2) (1)
TIRE LABELING EXAMPLE
P245/50R17 98V
