navigation system Acura TL 2011 Owner's Manual

To create your own pass-key, select
‘‘Fixed’’ and f ollow steps 3 and 4.Delete the current pass-key.
Enter a new pass-key, and select
‘‘OK.’’
Select ‘‘Setup Bluetooth Phone’’
f rom the Phone Setup screen.
Select ‘‘Pass-key.’’
The def ault pass-key ‘‘0000’’
is used until you change the setting.
For a randomly generated pass-key
each time you pair a phone, select
‘‘Random.’’
Up to six phones can be paired.
Your phone’s battery may drain
f aster when it is paired to HFL. You cannot pair your phone while
the vehicle is moving.
3.
1.
2.
4.
To change the pass-key setting:
BluetoothHandsFreeL ink(Models with navigation system)
Phone pairing tips
414
NOTE:
Example
Push the selector to left to delete.
10/07/29 12:34:40 31TK4620_419
2011 TL

CONT INUED
You can name up to six HFL users.
Each can be PIN protected, and have
its own phonebook, speed dial, and
call history.
Select the user you want to edit on
the Cellular Phone screen.
If the user you selected is PIN-
protected, the ‘‘Speed Dial’’ list on
the right side of the screen will not
appear until the PIN is entered.
To change f rom the currently linked
phone to another paired phone,
select ‘‘Search f or next phone’’ on
the Phone Setup screen.
HFL disconnects the linked phone
and starts searching f or another
paired phone.
If no other paired phone is f ound,
HFL will automatically link the
previous phone.
Select ‘‘Setup Bluetooth Phone’’
f rom the Phone Setup screen.
Select ‘‘Delete a phone.’’
Select the phone you want to
delete. The Bluetooth icon shows
you the currently linked phone.
A trash icon appears next to the
selected phone. Select ‘‘OK’’ to
continue.
1.
2.
3.
4.
To delete a paired phone:
BluetoothHandsFreeL ink(Models with navigation system)
Edit User
Search f or Next Connect ed Phone
Features
415
SPEED DIAL LIST
Select a user name.
TRASH ICON
BLUETOOTH ICON
10/07/29 12:34:53 31TK4620_420
2011 TL

Enter a 4-digit PIN, re-enter it, and
select ‘‘OK.’’Follow the prompts to complete
the deletion. Select ‘‘Delete.’’
Select ‘‘Edit User’’ f rom the Phone
Setup screen.
Deleting a user will delete all
settings, such as call history and
phonebook. If the user is already PIN-protected,
you need to enter the current PIN
bef ore creating a new one. If you select ‘‘DO NOT USE PIN,’’
bef ore entering any number, the
user will not have a PIN.
When you set a PIN f or a user, you
will be asked to enter the PIN every
time you select the user on the
Cellular Phone screen.
Select ‘‘Edit User’’ f rom the Phone
Setup screen.
Select ‘‘PIN.’’
Select ‘‘Name.’’
Enter a user name, and select
‘‘OK’’ when complete. Select ‘‘Edit User’’ f rom the Phone
Setup screen.
2. 1.
2.
1.
3. 3.
2. 1.
3.
To delete a user:
To create a PIN for each user:
To name a user:
BluetoothHandsFreeL ink(Models with navigation system)
416
10/07/29 12:35:06 31TK4620_421
2011 TL

ÃŽ
ÃŽ
CONT INUED
(available on some phones)

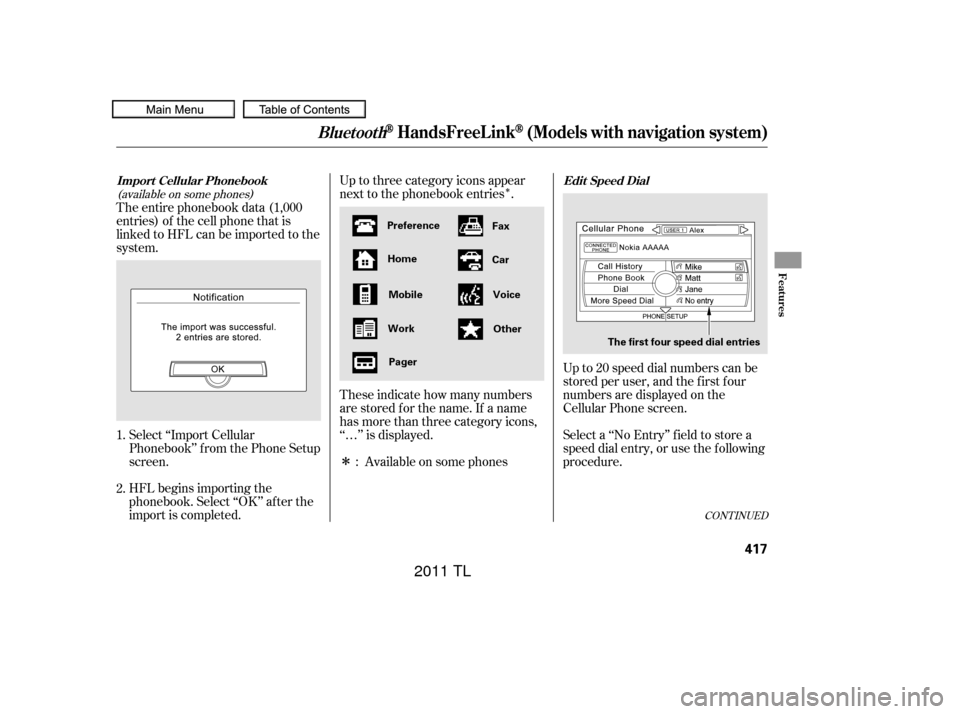

Select ‘‘Import Cellular
Phonebook’’ f rom the Phone Setup
screen.
HFL begins importing the
phonebook. Select ‘‘OK’’ af ter the
import is completed.Up to three category icons appear
next to the phonebook entries .
These indicate how many numbers
are stored for the name. If a name
has more than three category icons,
‘‘…’’ is displayed.
Availableonsomephones Up to 20 speed dial numbers can be
stored per user, and the f irst f our
numbers are displayed on the
Cellular Phone screen.
Select a ‘‘No Entry’’ f ield to store a
speed dial entry, or use the f ollowing
procedure.
The entire phonebook data (1,000
entries) of the cell phone that is
linkedtoHFLcanbeimportedtothe
system.
1.
2.
:
BluetoothHandsFreeL ink(Models with navigation system)
Import Cellular Phonebook
Edit Speed Dial
Features
417
Preference
Home
Mobile
Work Pager Fax
Car
VoiceOther The first four speed dial entries
10/07/29 12:35:19 31TK4620_422
2011 TL

µµ
To store a speed dial number:
Select ‘‘Edit Speed Dial’’ f rom the
Phone Setup screen.
Select ‘‘Store Speed-dial.’’
Select a number on the speed dial
listwhereyouwanttostorethe
number. When a voice tag is stored for the
entry, you can dial the number by
saying ‘‘Call’’ and the voice tag name.

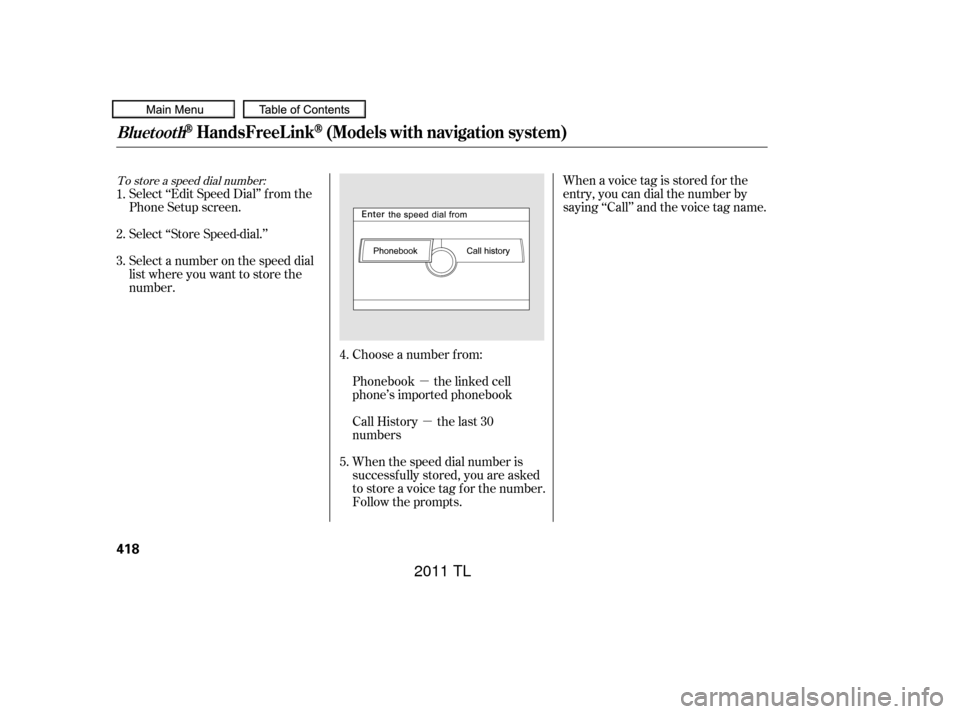

Choose a number f rom:
Phonebook the linked cell
phone’s imported phonebook
Call History the last 30
numbers
When the speed dial number is
successf ully stored, you are asked
to store a voice tag f or the number.
Follow the prompts.
2.
4.
1.
3.
5.
BluetoothHandsFreeL ink(Models with navigation system)
418
10/08/06 13:36:29 31TK4620_423
2011 TL

CONT INUED
To add a voice tag to a stored speed dialnumber: To delete a voice tag:
Select ‘‘Edit Speed Dial’’ f rom the
Phone Setup screen.
Select ‘‘Store Voice Tag.’’
Select the number you want to
storeavoicetagfor.
Follow the prompts to complete
the voice tag.
Avoid using duplicate voice tags.
Avoid using ‘‘home’’ as a voice tag.
It is easier f or HFL to recognize a
longername.Forexample,use
‘‘John Smith’’ instead of ‘‘John.’’Select ‘‘Edit Speed Dial’’ f rom the
Phone Setup screen.
Select ‘‘Delete Voice Tag.’’
Select the number you want to
delete the voice tag for, and select
‘‘OK.’’
1.
2.
3.
4.1.
2.
3.
BluetoothHandsFreeL ink(Models with navigation system)
Features
419
NOTE:
10/07/29 12:35:39 31TK4620_424
2011 TL

To delete a speed dial number:
Select ‘‘Edit Speed Dial’’ f rom the
Phone Setup screen.
Select ‘‘Delete Speed-dial.’’
Select the number you want to
delete, and select ‘‘OK.’’This option deletes the entire
phonebook of the currently linked
cell phone. Follow the conf irmation
and notif ication screens.
During a call, HFL allows you to talk
up to 30 minutes af ter you set the
power mode to VEHICLE OFF
(LOCK). However, this may weaken
the vehicle’s battery.
For more inf ormation on how to
select the power mode, see page . You can make calls by inputting any
phone number, using the imported
phonebook, using the call history, or
with speed dial entries.
2. 1.
3.
178
BluetoothHandsFreeL ink(Models with navigation system)
Delet e Import ed PhonebookMaking a Call
420
10/07/29 12:35:49 31TK4620_425
2011 TL

CONT INUED
To make a call using a phone number: To make a call using a name

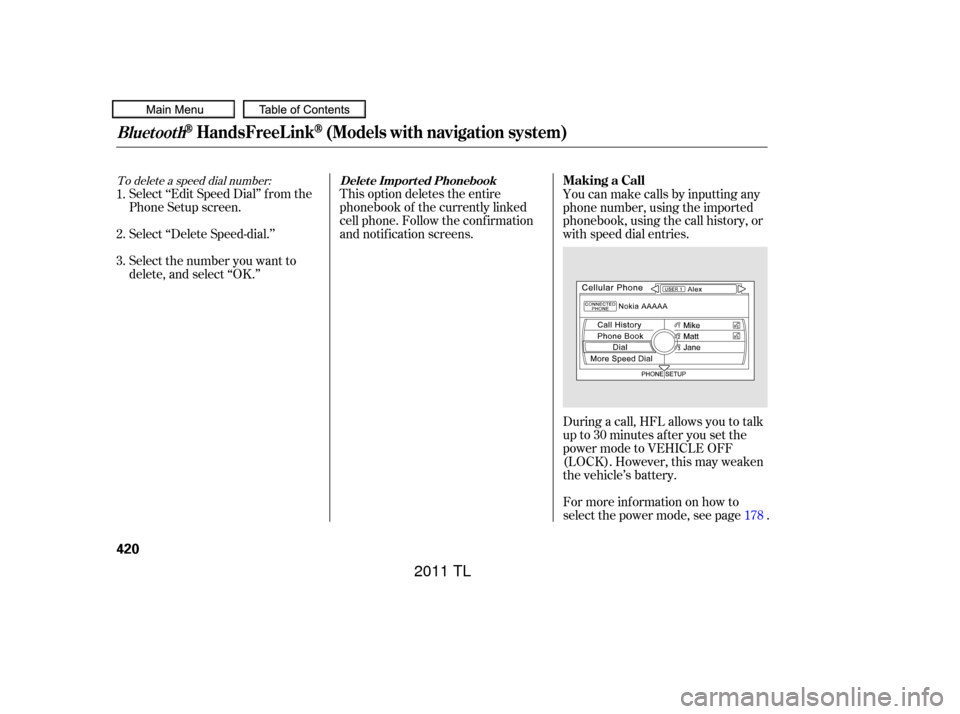

Select ‘‘Dial’’ f rom the Cellular
Phone screen.

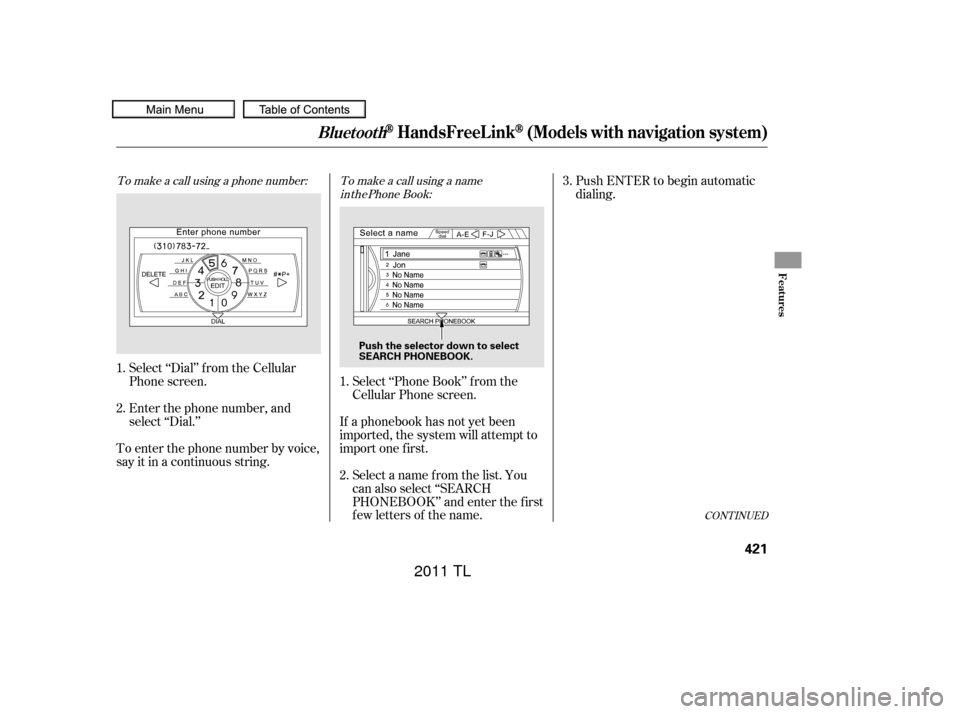

Enter the phone number, and
select ‘‘Dial.’’
To enter the phone number by voice,
say it in a continuous string. Select ‘‘Phone Book’’ f rom the
Cellular Phone screen.
If a phonebook has not yet been
imported, the system will attempt to
import one f irst. Select a name f rom the list. You
can also select ‘‘SEARCH
PHONEBOOK’’ and enter the f irst
few letters of the name. Push ENTER to begin automatic
dialing.
1.
2. 1.3.
2.
BluetoothHandsFreeL ink(Models with navigation system)
Features
421
Push the selector down to select
SEARCH PHONEBOOK.
10/07/29 12:35:59 31TK4620_426
in the Phone Book:
2011 TL

To make a call using Call History: To make a call using Speed Dial:To make a call using More Speed Dial:

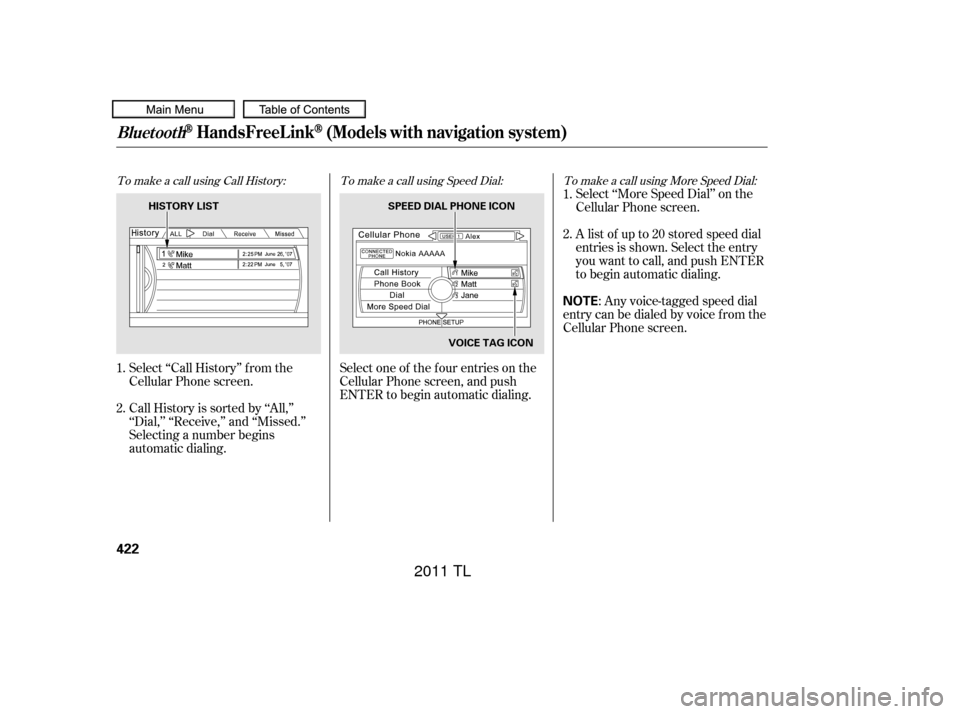

Select ‘‘Call History’’ f rom the
Cellular Phone screen.
Call History is sorted by ‘‘All,’’
‘‘Dial,’’ ‘‘Receive,’’ and ‘‘Missed.’’
Selecting a number begins
automatic dialing.Select one of the f our entries on the
Cellular Phone screen, and push
ENTER to begin automatic dialing. Select ‘‘More Speed Dial’’ on the
Cellular Phone screen.
Alistof upto20storedspeeddial
entries is shown. Select the entry
you want to call, and push ENTER
to begin automatic dialing.
: Any voice-tagged speed dial
entry can be dialed by voice f rom the
Cellular Phone screen.
1.
2. 2. 1.
BluetoothHandsFreeL ink(Models with navigation system)
422
NOTE
HISTORY LIST
VOICE TAG ICON
SPEED DIAL PHONE ICON
10/07/29 12:36:09 31TK4620_427
2011 TL

뵵
µ
ÃŽ
CONT INUED
The f ollowing options are available
during a call:
When you receive a call, a
notif ication appears on the screen
(see page ).
To answer the call, press the
PICK-UPbuttononthesteering
wheel.
To end or decline the call, press the
HANG-UP button.
Allows you to send
numbers or names during a call. This
is usef ul when you call a menu-
driven phone system. Allows you to transf er a
call f rom HFL to your phone, or
f rom your phone to HFL.
Allows you to mute your
voice.
Availableonsomephones
:
408
BluetoothHandsFreeL ink(Models with navigation system)
During a Call
Receiving a Call
Dial Transfer
Mut e
Features
423
Example
10/07/29 12:36:19 31TK4620_428
2011 TL
