With the system set, you can still
open the trunk with the remote
transmitter/keyless access remote
without triggering the alarm. The
alarm will sound if the trunk is
opened with the trunk release button
on the driver’s door, the trunk
release handle behind the trunk
pass-through cover, or the
emergency trunk opener.
Use the remote transmitter/
keyless access remote to quickly
check that the hood, the trunk, and
all doors are closed. Push the lock
button twice within 5 seconds.
There should be an audible
confirmation beep. The security system will not set if
the hood, trunk, or any door is not
f ully closed. If the system will not set,
turn the ignition switch to the ON
(II) position, and check the
indicators on the multi-information
display. Close any door or the trunk
indicated on the display. Check the
hood visually since it is not part of
the display, and shut it if necessary.
Do not attempt to alter this system
or add other devices to it.
Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. ON Mode
is the equivalent of ON (II). For
more inf ormation, see pagesand .
Once the security system is set,
opening any door (without using the
key or the remote transmitter/
keyless access remote), the hood, or
the trunk will cause the alarm to
activate. It will also activate if the
audio unit is removed f rom the
dashboard or the wiring is cut.
You can also set the security system
by pressing the lock button on either
f ront door handle while carrying the
keyless access remote.
:
178 181
On models with keyless access system
Security System
378
NOTE:
10/07/29 12:29:16 31TK4620_383
2011 TL

Compass operation can be affected
by driving near power lines or
stations, across bridges, through
tunnels, over railroad crossings,
past large vehicles, or driving near
large objects that can cause a
magnetic disturbance. It can also be
affected by accessories such
as antennas and roof racks that are
mounted by magnets.
When you turn the ignition switch to
the ON (II) position, the compass is
self-calibrating, then the compass
display is shown in the display.The compass may need to be
manually calibrated af ter exposure to
a strong magnetic field. If the
compassseemstobecontinually
showing the wrong direction and is
not self -calibrating, or the compass
display is blinking with the CAL
indicator on, do the f ollowing
procedure. Do this procedure in an open
area, away f rom buildings, power
lines, and other vehicles.
Turn the ignition switch to the ON
(II) position.
Press and hold the SETUP button
f or about 5 seconds. The display
shows you the compass setting
menu items.
1.
2.
On models without navigation system
CONT INUED
Compass Operation
Compass Calibration
Compass
Features
379
NOTE:
COMPASS SETTING MENU ITEMS
U.S. model is shown. COMPASS
10/07/29 12:29:26 31TK4620_384
2011 TL

Turn the selector knob to select
‘‘CALIBRATION.’’Press the selector knob (ENTER)
to enter your selection. The
display shows you ‘‘PUSH CAL
START.’’
While setting the compass, press
the RETURN button to go back to
the previous display. Pressing the
SETUP button will cancel the
compass setting mode.When the calibration is successf ully
completed, the CAL indicator goes
of f and the compass display will stop
blinking and show an actual heading.
The audio system is not related to
the compass system. Even if the
compasssystemiscalibrating,the
display returns to the normal display
which you last selected.Press the selector knob (ENTER).
The compass display is blinking
and the CAL indicator is shown.
Drive the vehicle slowly in two
complete circles.
3. 4. 5.
6.
Compass
380
10/07/29 12:29:34 31TK4620_385
2011 TL

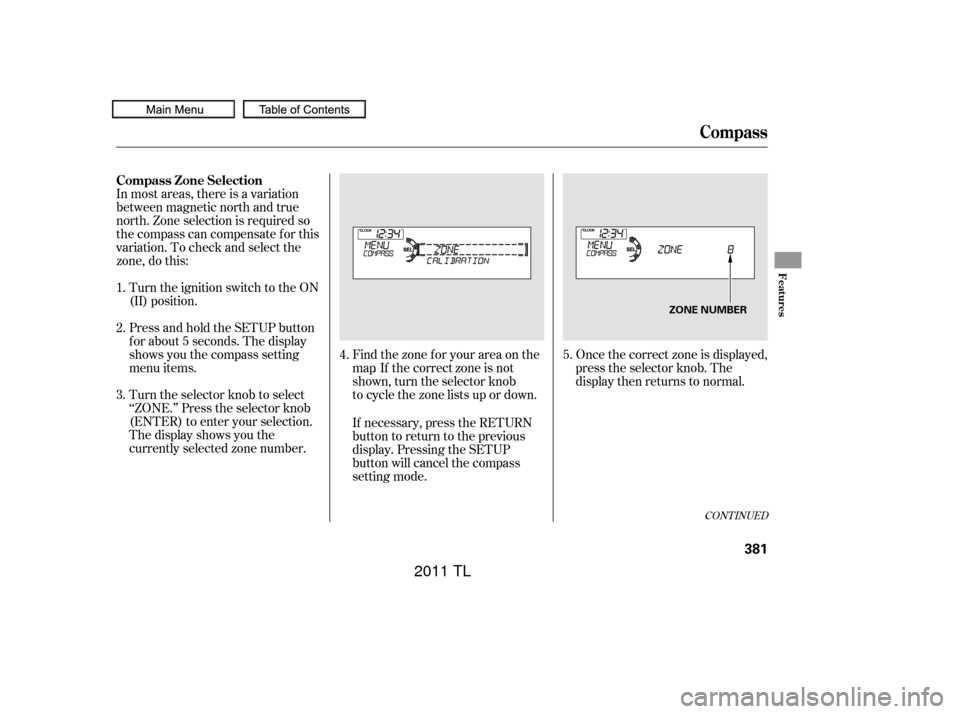

Once the correct zone is displayed,
press the selector knob. The
display then returns to normal.
Find the zone f or your area on the
map . If the correct zone is not
shown, turn the selector knob
to cycle the zone lists up or down.
In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone, do this:
Turn the ignition switch to the ON
(II) position.
If necessary, press the RETURN
button to return to the previous
display. Pressing the SETUP
button will cancel the compass
setting mode.
Press and hold the SETUP button
f or about 5 seconds. The display
shows you the compass setting
menu items.
Turn the selector knob to select
‘‘ZONE.’’ Press the selector knob
(ENTER) to enter your selection.
The display shows you the
currently selected zone number.
4.
5.
2.
3. 1.
CONT INUED
Compass Zone Selection
Compass
Features
381
ZONE NUMBER
10/07/29 12:29:44 31TK4620_386
2011 TL

The audio system is not related to
the compass system. Even if the
compasssystemisinthezone
setting mode, the display returns to
the normal display which you last
selected.
Compass
382

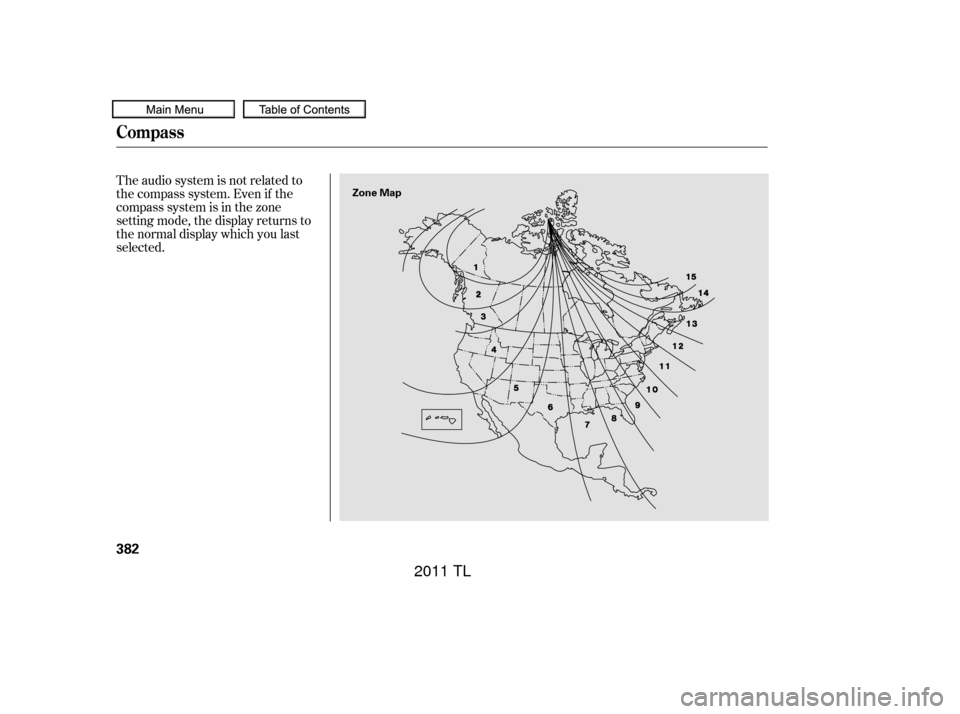

Zone Map
10/07/29 12:29:48 31TK4620_387
2011 TL

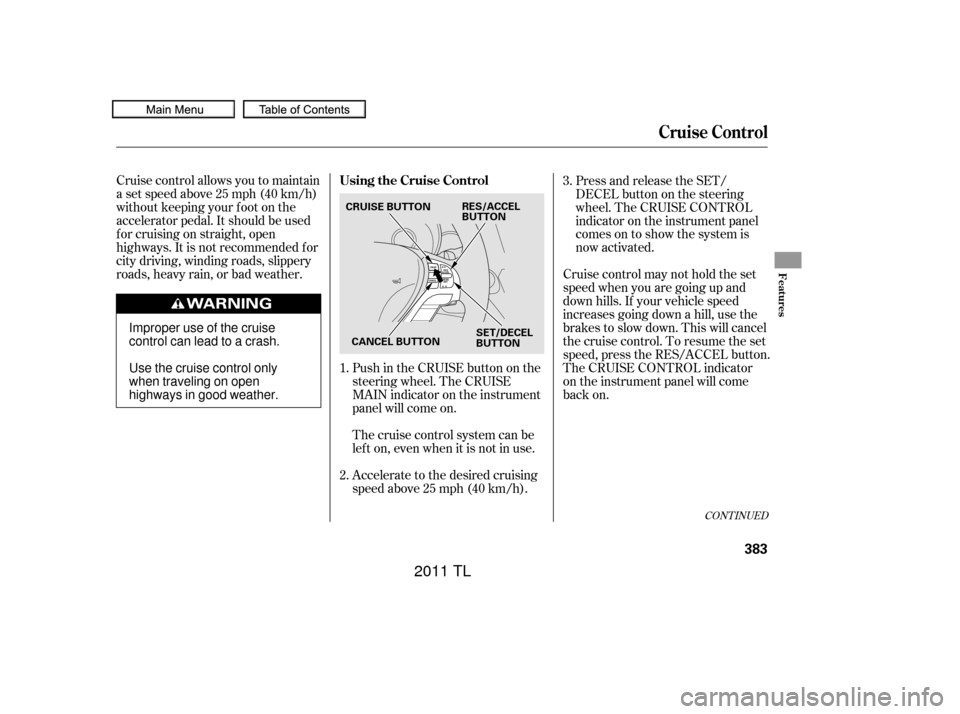

Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.Push in the CRUISE button on the
steering wheel. The CRUISE
MAIN indicator on the instrument
panel will come on.Press and release the SET/
DECELbuttononthesteering
wheel. The CRUISE CONTROL
indicator on the instrument panel
comes on to show the system is
now activated.
Cruise control may not hold the set
speed when you are going up and
down hills. If your vehicle speed
increases going down a hill, use the
brakes to slow down. This will cancel
thecruisecontrol.Toresumetheset
speed, press the RES/ACCEL button.
The CRUISE CONTROL indicator
on the instrument panel will come
back on.
Thecruisecontrolsystemcanbe
lefton,evenwhenitisnotinuse.
Accelerate to the desired cruising
speedabove25mph(40km/h).
1.
2. 3.
CONT INUED
Using the Cruise Control
Cruise Control
Features
383
RES/ACCEL
BUTTON
SET/DECEL
BUTTON
CRUISE BUTTON
CANCEL BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
10/07/29 12:29:56 31TK4620_388
2011 TL

You can increase the set cruising
speed in any of these ways:Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button. You can decrease the set cruising
speed in any of these ways:
To increase the speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, your vehicle speeds up about
1 mph (1.6 km/h). Push on the accelerator pedal.
Accelerate to the desired cruising
speed, then press the SET/
DECEL button. Even with cruise control turned on,
you can still use the accelerator
pedal to speed up f or passing. Af ter
completing the pass, take your foot
of f the accelerator pedal. The vehicle
will return to the set cruising speed.
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h). Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed. If you need to decrease your
speed quickly, use the brakes as you
normally would.
Tap the brake or clutch pedal
lightly with your f oot. The
CRUISE CONTROL indicator on
the instrument panel will go out.
When the vehicle slows to the
desired speed, press the SET/
DECEL button. Resting your f oot on the brake or
clutch pedal causes the cruise
control to cancel.
Changing the Set Speed
Cruise Control
384
NOTE:
10/07/29 12:30:05 31TK4620_389
2011 TL

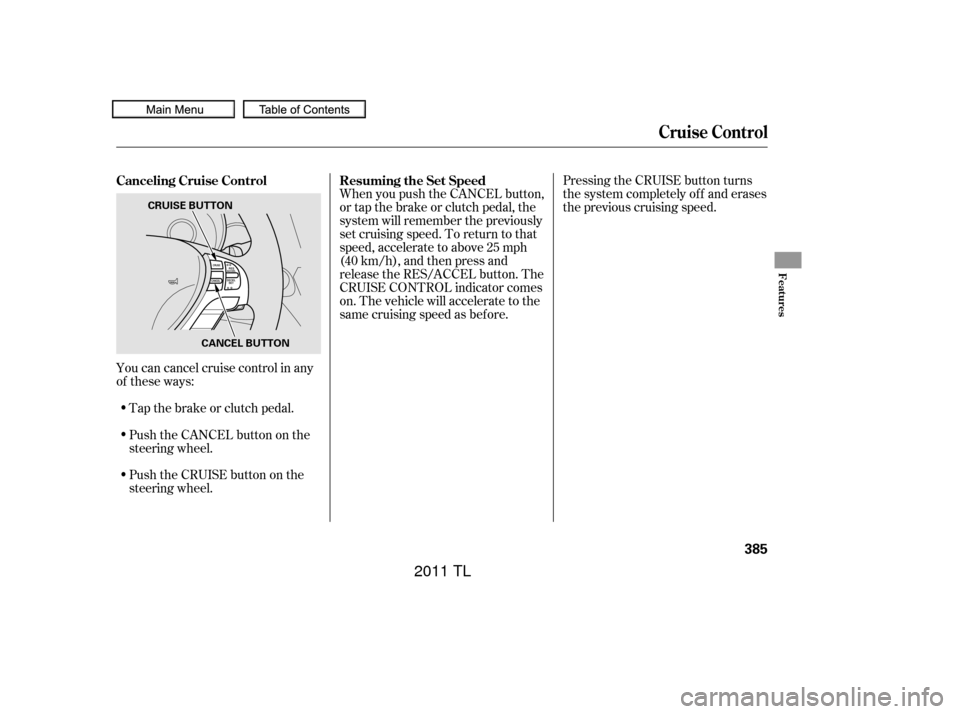

Push the CANCEL button on the
steering wheel.
You can cancel cruise control in any
of these ways:
Push the CRUISE button on the
steering wheel. Pressing the CRUISE button turns
the system completely of f and erases
the previous cruising speed.
Tap the brake or clutch pedal. When you push the CANCEL button,
or tap the brake or clutch pedal, the
system will remember the previously
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h), and then press and
release the RES/ACCEL button. The
CRUISE CONTROL indicator comes
on. The vehicle will accelerate to the
same cruising speed as bef ore. Resuming the Set Speed
Canceling Cruise Control
Cruise Control
Features
385
CANCEL BUTTON
CRUISE BUTTON
10/07/29 12:30:11 31TK4620_390
2011 TL

·µ
µ
The HomeLink
Universal
Transceiver built into your vehicle
canbeprogrammedtooperateupto
three remote controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
Bef ore programming your
HomeLink to operate a garage door
opener, conf irm that the opener has
an external entrapment protection
system, such as an ‘‘electronic eye,’’
or other saf ety and reverse stop
f eatures.
If your garage door was
manuf actured bef ore April 1, 1982,
you may not be able to program
HomeLink to operate it. These units
do not have safety features that
cause the motor to stop and reverse
it if an obstacle is detected during
closing, increasing the risk of injury.
Do not use HomeLink with any garage door opener that lacks saf ety
stop and reverse f eatures.
Units manuf actured between April 1,
1982 and January 1, 1993 may be
equipped with saf ety stop and
reverse f eatures. If your unit does
not have an external entrapment
protection system, an easy test to
conf irm the f unction and
perf ormance of the saf ety stop and
reverse f eature is to lay a 2 4
under the closing door. The door
should stop and reverse upon
contacting the piece of wood.
As an additional safety feature,
garage door openers manuf actured
af ter January 1, 1993 are required to
have external entrapment protection
systems, such as an electronic eye,
which detect an object obstructing
the door.
Refer to the safety information that
came with your garage door openerto test that the safety features are
f unctioning properly. If you do not
have this information, contact the
manuf acturer of the equipment.
Bef ore programming HomeLink to a
garage door or gate opener, make
sure that people and objects are out
of thewayof thedevicetoprevent
potential injury or damage.
When programming a garage door
opener, park just outside the garage.
If you just
received your vehicle and have not
trained any of the buttons in
HomeLink bef ore, you should erase
any previously learned codes bef ore
training the first button. To do this,
press and hold the two outside
buttons on the HomeLink
transceiver for about 10 20 seconds,
until the red indicator f lashes.
Release the buttons, then proceed to
step 1.
General Saf ety Inf ormation
Important Saf ety PrecautionsT raining HomeL ink
HomeL inkUniversal Transceiver
Bef ore you begin
386
10/07/29 12:30:20 31TK4620_391
2011 TL

If you are training the second or third buttons, go directly to step 1.
CONT INUED
HomeL inkUniversal Transceiver
Features
387
10/07/29 12:30:34 31TK4620_392
2011 TL
