key Acura TL 2013 Owner's Guide

Î
This indicator is in the f uel gauge. It
comesonasareminderthatyou
must ref uel soon. You will also see a
‘‘LOW FUEL’’ message on the multi-
inf ormation display.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If this indicator comes on at
any other time, there is a problem in
the SH-AWD system. You will also
see a ‘‘CHECK SH-AWD SYSTEM’’
message on the multi-information
display (see page ). Take your
vehicle to a dealer to have it checked.
For more inf ormation, see page .
When the indicator comes on, there
are about 2.5 U.S. gal (9.6
)on
SH-AWD models, and 2.8 U.S. gal
(10.5
)on2WDmodelsof fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank.
505504
CONT INUED
On SH-AWD models
L ow Fuel Indicator Super Handling-A ll
Wheel Drive (SH-AWD)
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
73
LOW FUEL INDICATOR
U.S. model is shown.
12/07/20 10:39:12 31TK4640_078
Î Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
2013 TL

If the indicator blinks while driving,
the dif f erential temperature is too
high.You will also see an ‘‘SH-AWD
DIFF TEMP. HIGH’’ message
on the multi-information display
(see page ).
Pull to the side of the road when it is
saf e, shif t to Park, and let the engine
idle until the indicator goes out. This indicator normally comes on f or
a f ew seconds when you select the
ON mode with the engine start/stop
button (see page ). If it comes on
at any other time, it indicates that
there is a problem with the system. If this indicator comes on along
with a ‘‘CHECK KEYLESS
STARTING SYSTEM’’ message
on the multi-information display,
there is a problem with the keyless
starting system. In this case, your
vehicle may not restart. If you can
continue to drive saf ely, take the
vehicle to your dealer and have it
checked as soon as possible. For
more information, see page .
This indicator has two f unctions:
If this indicator comes on along
with a ‘‘CHECK KEYLESS
ACCESS SYSTEM’’ message on
the multi-information display,
there is a problem with the keyless
access system. Have the vehicle
checked by your dealer as soon as
possible. For more inf ormation,
see page .
1. 2.
505 195
196 196
On models with keyless access system
Instrument Panel Indicators
K eyless Access System
Indicator
74
Continuing to drive with the SH-AWD
indicator blinking may cause serious
damage to the system.
12/07/20 10:39:20 31TK4640_079
Inst rument s and Cont rols
2013 TL

Î
You can select the displayed
language and also customize some
vehicle control settings to your liking
with the multi-information display
and the three buttons on the steering
wheel (see page ).
When you unlock and open the
driver’s door, the display shows
‘‘DRIVER 1’’ or ‘‘DRIVER 2’’
depending on which remote
transmitter/keyless access remoteyou use, and the driver’s seat and the
outside mirrors move to the position
stored in that remote transmitter/
keyless access remote (see
page
).
The driver’s ID (1 or 2) is displayed
when the power mode is set to ON.
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably. Others help to keep
you aware of the periodic
maintenance your vehicle needs f or
continued trouble-f ree driving.
There are three types of messages:
normal display messages, engine oil
lif e and maintenance messages, and
system messages. 79
170
On models with keyless access system
Normal Display Messages
Multi-Inf ormation Display
78
Remote transmitter/keyless
access remote 1 is used.
Remote transmitter/keyless
access remote 2 is used.
12/07/20 10:39:41 31TK4640_083
Inst rument s and Cont rols
ÎMod els eq uip ped wit h th e keyless
a cce ss sy ste m have an en gin e sta rt/
s to p butto n in ste ad of an ignition
s w it c h .O N Mod e is th e eq uiv ale n t of
O N (II) . F or m ore in fo rm atio n ,se e
p ag es
and .
:
184 187
2013 TL

Î
Î
ÛÝ
ÛÝ
These messages go of f af ter several
seconds. With the ignition switch in the ON
(II) position, the multi-inf ormation
display changes as shown on pageeach time you press the INFO
( / ) button or the SEL/RESET
button.
If you do not f asten your seat belt,
you will also see a ‘‘FASTEN SEAT
BELT’’ message on the multi-
inf ormation display when you turn
the ignition switch to the ON (II)
position. These messages go of f several
seconds af ter the key is inserted into
the ignition switch.
81
CONT INUED
On models with keyless access system
Multi-Inf ormation Display
Inst rument s and Cont rols
79
SEL/RESET BUTTONINFO BUTTONS ( / )
A/T model is shown.
12/07/20 10:39:49 31TK4640_084
Î Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
2013 TL

In the multi-information display, the
system message is also displayed
(see page ) and you can
customize your vehicle control
settings (see page ).In the normal display mode, the
upper segment displays trip
computer inf ormation, such as f uel
economy or average speed. The
lower segment displays the
odometer/trip meter (A/B), outside
temperature, and engine oil lif e and
maintenance item code(s).
The multi-inf ormation display
consists of an upper segment and a
lower segment. You will see some keyless access
system messages until you select the
ON mode by operating the engine
start/stop button. These messages
canbecustomized(seepage ).
89
94
110
On models with keyless access system
Multi-Inf ormation Display
80
LOWER
SEGMENT
U.S. model is shown. UPPER
SEGMENT
12/07/20 10:39:55 31TK4640_085
ÎWhen you turn the ignition switch
to the ON (II) position, your last
selection is displayed.
Î
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
Inst rument s and Cont rols
2013 TL

Î
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.

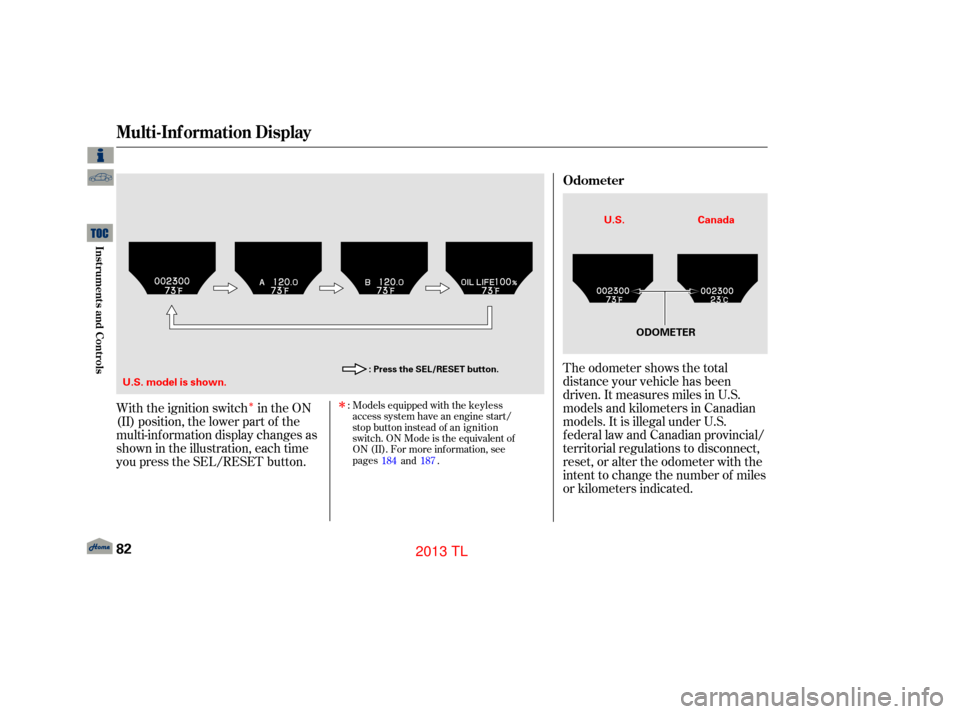

With the ignition switch in the ON
(II) position, the lower part of the
multi-inf ormation display changes as
shown in the illustration, each time
you press the SEL/RESET button.
Multi-Inf ormation Display
Odometer
82
Canada
U.S.
ODOMETER
U.S. model is shown.
: Press the SEL/RESET button.
12/07/20 10:40:07 31TK4640_087
Inst rument s and Cont rols
Î Mod els eq uip ped wit h th e keyless
a cce ss sy ste m have an en gin e sta rt/
s to p butto n in ste ad of an ignition
s w it c h .O N Mod e is th e eq uiv ale n t of
O N (II) . F or m ore in fo rm atio n ,se e
p ag es
and .
:
184 187
2013 TL

Î
This shows the estimated distance
you can travel on the fuel remaining
in the f uel tank. This distance is
estimated f rom the f uel economy
you received over the last several
miles (U.S.) or kilometers (Canada),
so it will vary with changes in speed,
traf f ic, etc.This shows the accumulated
traveling time since you last reset it.
When you turn the ignition switch
to the ON (II) position, ELAPSED
TIME is reset.
You can customize the ELAPSED
TIME reset conditions on the multi-
inf ormation display (see page ).This shows the average speed you
are traveling in miles per hour (mph)
forU.S.modelsorkilometersper
hour (km/h) f or Canadian models.
106
Multi-Inf ormation Display
RA NGE EL A PSED T IMEA VG. SPEED
Inst rument s and Cont rols
85
12/08/03 20:55:17 31TK4640_090
Î
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
2013 TL

CONT INUED
See page70
Seepage488
Seepage490 See pages
75 and 526
See pages
75 and 526
See page
77
See page 142
See page 516 See page
517
See page 516
See page 517
See page
515
See page494
See page
577
See page73
See page 505
See page 505
On models without
keyless accesssystem
On models withkeyless accesssystem
A/T model
Multi-Inf ormation Display
Inst rument s and Cont rols
91
U.S. model shown U.S. model shown
U.S.
Canada
SH-AWD model only
SH-AWD model only
12/08/03 20:55:52 31TK4640_096
2013 TL

See page196
See page 196
See page 193
See page 194
See page 198
See page
471
See page 548 See page
151
See page
532
See page 533
See page 534
Multi-Inf ormation Display
On models with
keyless accesssystem
92
On models without
keyless access system
Canadian models only
12/08/03 20:56:01 31TK4640_097
Inst rument s and Cont rols
2013 TL

ÎÎ
You can customize some vehicle
control settings. To change the
settings, the ignition switch must be
in the ON (II) position, and the
vehicle must be stopped with the
transmission in Park (automatic) or
with the parking brake set (manual). If you try to enter the customizing
mode while the vehicle is moving,
you will see a ‘‘MUST STOP AND
SHIFT TO PARK TO CHANGE
SETTINGS’’ (automatic) or ‘‘MUST
STOP AND SET PARK
BRAKE TO CHANGE SETTINGS’’
(manual) message and you cannot
change the settings.You can customize some vehicle
control settings f or ‘‘DRIVER 1’’ and
‘‘DRIVER 2’’ separately.
To have the driver’s ID detected,
make sure the driver’s door is
unlocked with a corresponding
remote transmitter/keyless
access remote.
If you turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position, move the shif t lever out of
Park (automatic) or release the
parking brake (manual), the display
will change to the normal screen.
Multi-Inf ormation Display
Customized Settings
94
12/07/20 10:41:58 31TK4640_099
Inst rument s and Cont rols
Î Mod els eq uip ped wit h th e
k eyle ss acce ss sy ste m have an en gin e
s ta rt/ sto p butto n in ste ad of
a n ig nit io n sw it c h .V EH IC LE OFF
( L O CK )M od e is th e eq uiv ale n t of
L O CK (0 ) an d ACCESSO RY M od e
i s th e eq uiv ale n t of A CCESSO RY (I) .
F or m ore in fo rm atio n ,se e pag es
an d .
:
184 187
2013 TL
