Adjust Outside Temp. Display
If you sometimes f ind that the
temperature reading is a f ew
degrees above or below the actual
temperature, you can adjust it by
f ollowing these instructions:
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly.
Press the SEL/RESET button to
enter the setting. The displayed number is the current
adjustment above or below the
outside temperature.
Adjust the outside temperature value
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET
button to set the desired value.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ADJUST OUTSIDE TEMP.
DISPLAY’’ and repeat the
procedure again.
Multi-Inf ormation Display
104
U.S. models Canadian models
Canadian models
U.S. models
12/07/20 10:43:08 31TK4640_109
Inst rument s and Cont rols
2013 TL

ÛÝ
ÛÝ Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
To cause Trip A and average fuel for
trip A to reset every time you ref uel
your vehicle, f ollow these
instructions:
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. If the ‘‘SETTING INCOMPLETE’’
message appears, go back to ‘‘TRIP
A RESET WITH REFUEL’’ and
repeat the procedure again.
CONT INUED
Trip A Reset With Ref uel
Multi-Inf ormation Display
Inst rument s and Cont rols
105
12/07/20 10:43:16 31TK4640_110
2013 TL

ÛÝÛÝ
µ
µ µ
Î

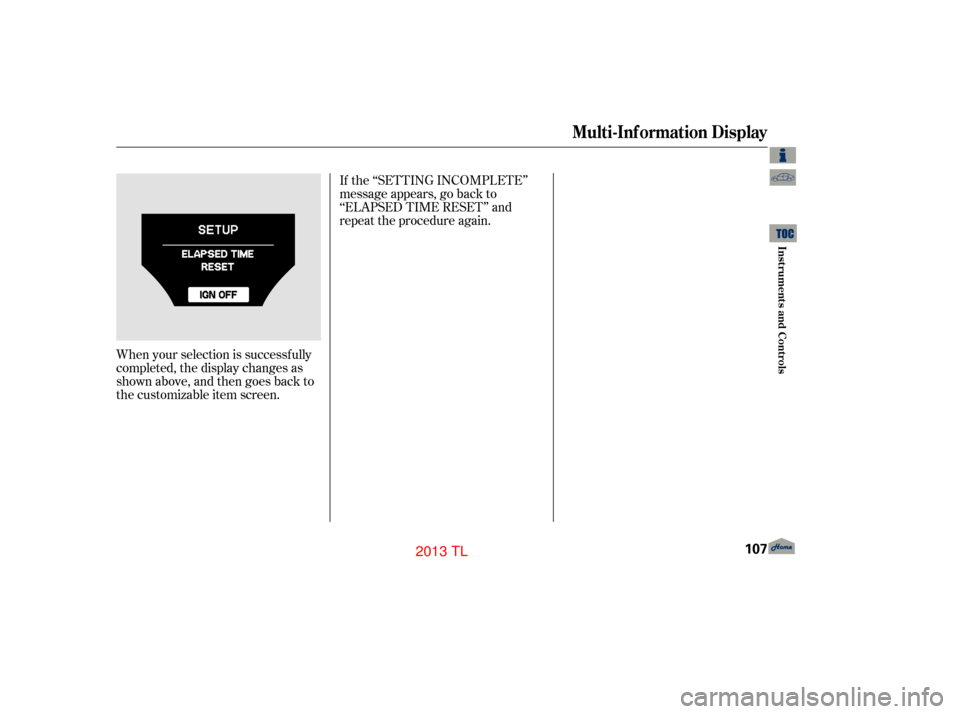

Elapsed Time Reset
You can choose this item to
customize from ‘‘METER SETUP’’
by pressing the INFO ( / )
button repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.
There are three elapsed time reset
choices you can make:
TRIP A The elapsed time is reset
when Trip A is reset.
TRIP B The elapsed time is reset
when Trip B is reset. IGN OFF The elapsed time is
reset when you turn the ignition
switch to the LOCK (0) position.
Multi-Inf ormation Display
106
12/07/20 10:43:24 31TK4640_111
Inst rument s and Cont rols
Î
Mod els eq uip ped wit h th e keyless
a cce ss sy ste m have an en gin e sta rt/
s to p butto n in ste ad of an ignition
s w it c h .O N Mod e is th e eq uiv ale n t of
O N (II) . F or m ore in fo rm atio n ,se e
p ag es
and .
:
184 187
2013 TL

When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ELAPSED TIME RESET’’ and
repeat the procedure again.
Multi-Inf ormation Display
Inst rument s and Cont rols
107
12/07/20 10:43:28 31TK4640_112
2013 TL

ÛÝÛÝ

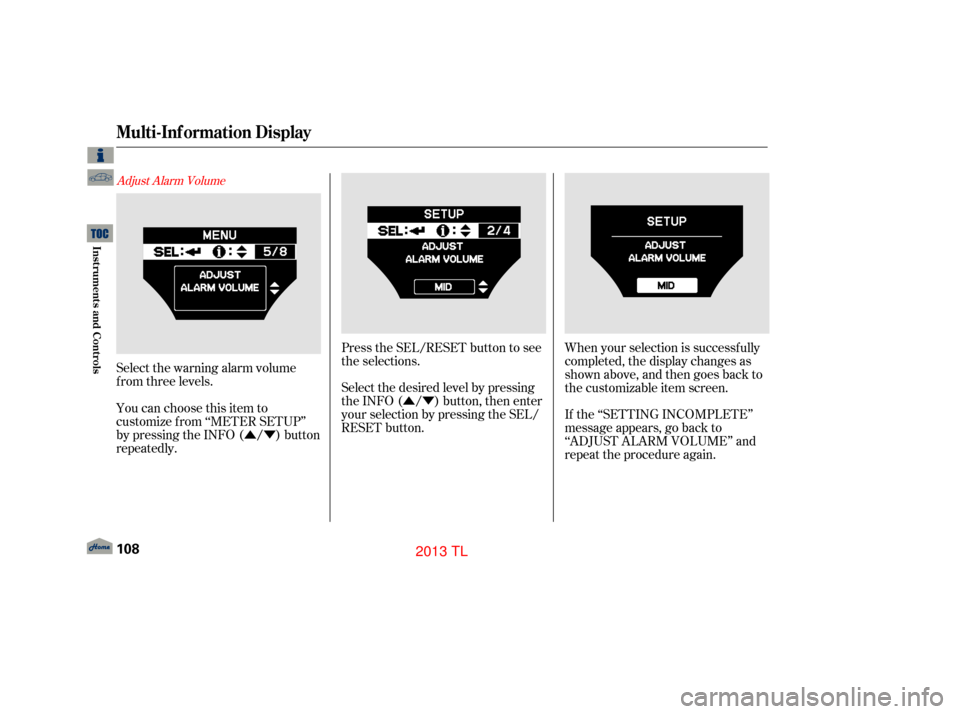

Adjust Alarm Volume
Select the warning alarm volume
f rom three levels.
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET button to see
the selections.
Select the desired level by pressing
the INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ADJUST ALARM VOLUME’’ and
repeat the procedure again.
Multi-Inf ormation Display
108
12/07/20 10:43:35 31TK4640_113
Inst rument s and Cont rols
2013 TL

ÛÝÛÝ

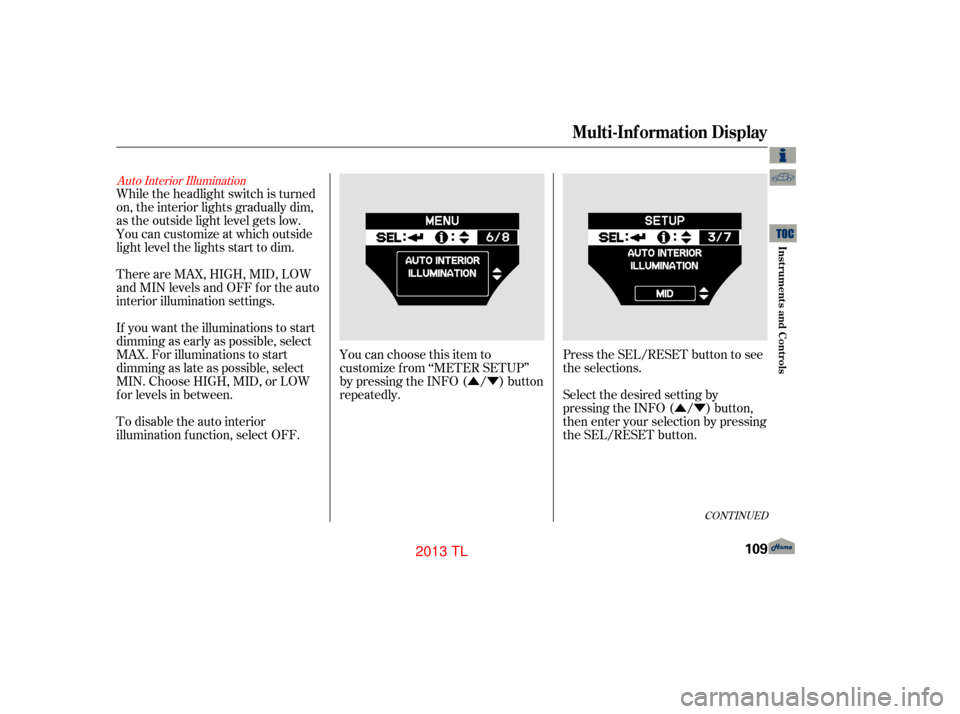

Auto Interior Illumination
While the headlight switch is turned
on, the interior lights gradually dim,
as the outside light level gets low.
You can customize at which outside
light level the lights start to dim.
ThereareMAX,HIGH,MID,LOW
and MIN levels and OFF for the auto
interior illumination settings.
If you want the illuminations to start
dimming as early as possible, select
MAX. For illuminations to start
dimming as late as possible, select
MIN. Choose HIGH, MID, or LOW
f or levels in between.
To disable the auto interior
illumination f unction, select OFF. You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
109
12/07/20 10:43:44 31TK4640_114
2013 TL

ÛÝ
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to ‘‘AUTO
INTERIOR ILLUMINATION’’ and
repeat the procedure again. When this item is set to ON, you will
see some guidance messages on the
multi-inf ormation display. You can
change this setting between on and
of f . For more inf ormation on start
guidance messages, see page .
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly.
188
Keyless Start Guidance Screens
On models with keyless access system
Multi-Inf ormation Display
110
12/07/20 10:43:50 31TK4640_115
Inst rument s and Cont rols
2013 TL

ÛÝ
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button. Press the SEL/RESET button to see
the selections. When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘KEYLESS START GUIDANCE
SCREENS’’ and repeat the
procedure again.
Multi-Inf ormation Display
Inst rument s and Cont rols
111
12/07/20 10:43:56 31TK4640_116
2013 TL

Û
Ý
ÛÝ
ÛÝ

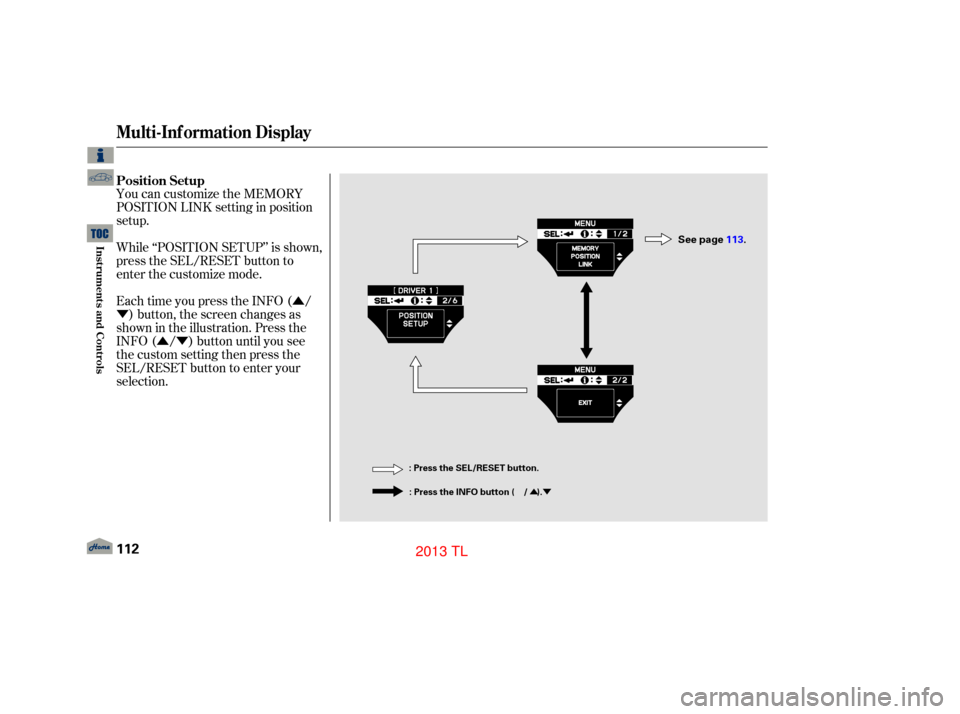

You can customize the MEMORY
POSITION LINK setting in position
setup.
While ‘‘POSITION SETUP’’ is shown,
press the SEL/RESET button to
enter the customize mode.
Each time you press the INFO ( /) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
the custom setting then press the
SEL/RESET button to enter your
selection. Position Setup
Multi-Inf ormation Display
112
Seepage113 .
: Press the SEL/RESET button.
: Press the INFO button ( / ).
12/07/20 10:44:02 31TK4640_117
Inst rument s and Cont rols
2013 TL

Û
Ý ÛÝ
Memory Position Link
On models with keyless access system
When Memory Position Link is set
to ON, the driver’s seat and the
outside mirrors move to the
positions stored in memory. To
cause the memory to activate, open
the driver’s door with the remote
transmitter. On models with
keyless access system, open the
driver’s door with the remote, or
grab the door handle while
carrying the remote.
To set the memory positions, see
page .
For inf ormation on using the remote,
see page . You can choose this item to
customize f rom ‘‘POSITION
SETUP’’ by pressing the INFO ( /
) button repeatedly. Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
170
173
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
113
