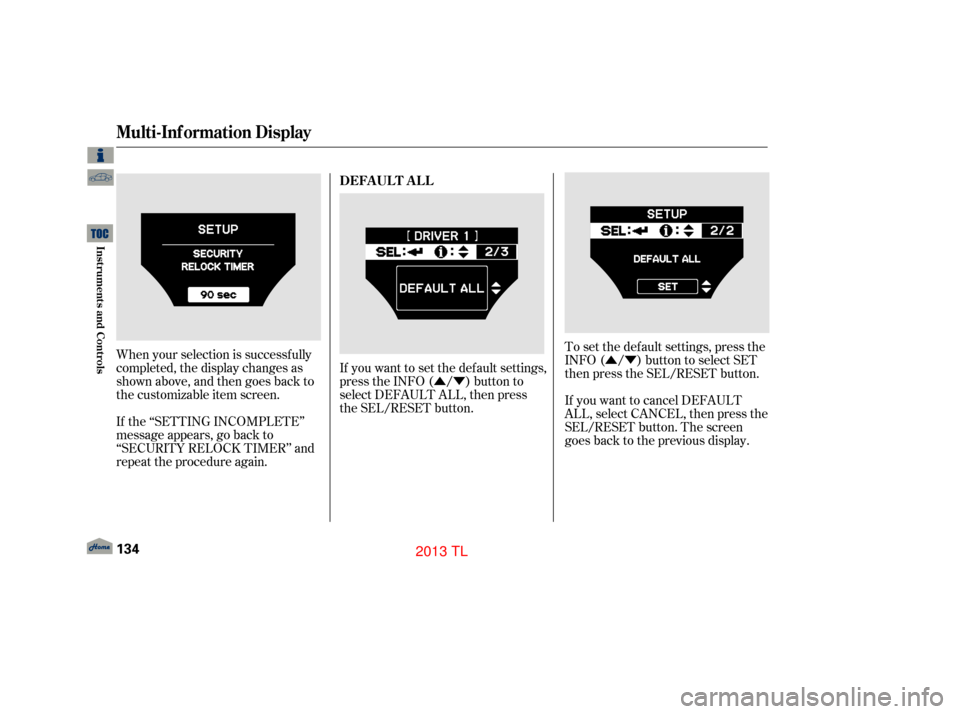

ÛÝ To set the def ault settings, press the
INFO ( / ) button to select SET
then press the SEL/RESET button.
If you want to cancel DEFAULT
ALL, select CANCEL, then press the
SEL/RESET button. The screen
goes back to the previous display.
If you want to set the def ault settings,
press the INFO ( / ) button to
select DEFAULT ALL, then press
the SEL/RESET button.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘SECURITY RELOCK TIMER’’ and
repeat the procedure again. DEFAUL T AL L
Multi-Inf ormation Display
134
12/07/20 10:46:33 31TK4640_139
Inst rument s and Cont rols
2013 TL

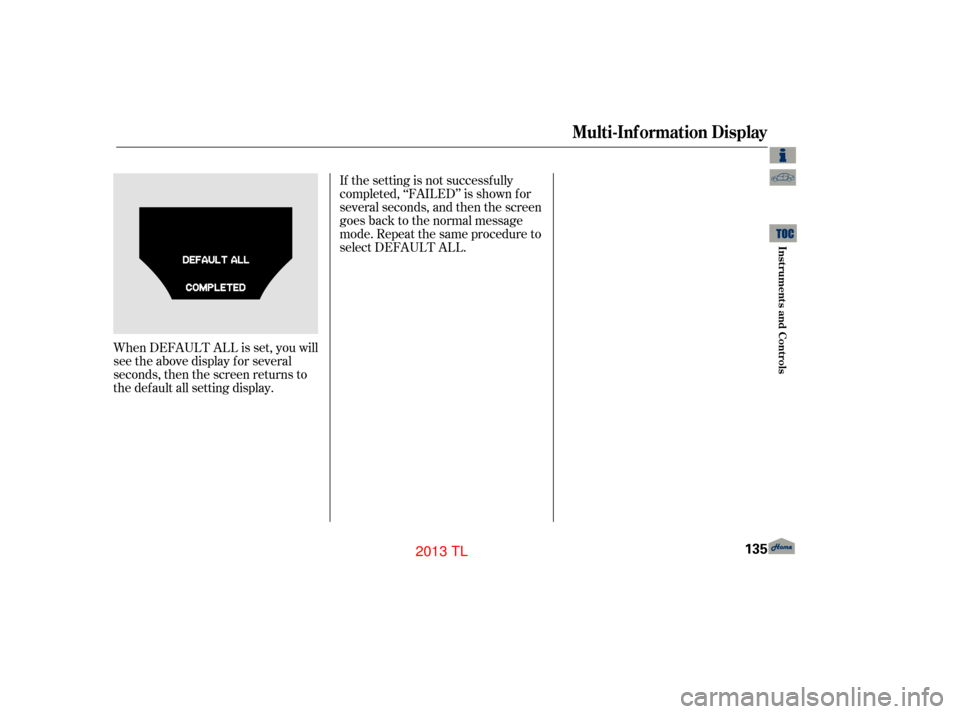

When DEFAULT ALL is set, you will
see the above display for several
seconds, then the screen returns to
the default all setting display.If the setting is not successf ully
completed, ‘‘FAILED’’ is shown f or
several seconds, and then the screen
goes back to the normal message
mode. Repeat the same procedure to
select DEFAULT ALL.
Multi-Inf ormation Display
Inst rument s and Cont rols
135
12/07/20 10:46:37 31TK4640_140
2013 TL

Î
Î
Î
Î
Î
Î
Î
Î
Î Î
Î Î
Î
To use the horn, press the center pad of the steering wheel.
If equipped
Ref er to the navigation system owner’s manual.
1:
2:
3:
4
: Switch location varies on models.
Controls Near the Steering Wheel
136
SEAT HEATER SWITCHES
PADDLE SHIFTERS
CRUISE CONTROL BUTTONS WINDSHIELD WIPERS/WASHERS
STEERING WHEEL
ADJUSTMENTS MULTI-INFORMATION
DISPLAY BUTTONSHORN
KEYLESS ACCESS REMOTE SLOTENGINE START/STOP BUTTON
A/T model with navigation system is shown. VOICE CONTROL BUTTONS for
NAVIGATION SYSTEM /
BLUETOOTH HANDSFREELINK
SYSTEM
SEAT HEATER/VENTILATION BUTTONS
(
P. 387)
( P. 407 , )
(P .146) (
P. 79)
(P. 401) (P. 197
) (P. 204
)
(
P. 202) (P. 184
)
REMOTE AUDIO CONTROL BUTTONS
HEADLIGHTS/TURN SIGNALS/
FOG LIGHTS
(
P .139 , )
INSTRUMENT PANEL
BRIGHTNESS
( P. 143)
( P .525)
BLIND SPOT INFORMATION
SYSTEM (BSI) OFF BUTTON
HEADLIGHT WASHER
BUTTON (
P .511)
(P. 138) PASSENGER AIR BAG
OFF INDICATOR
(P. 34)
HAZARD WARNING
BUTTON
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
(
P .145, P.169 )
PHONE BUTTON
( P .424)
INTERFACE DIAL (P. 285)
SELECTOR KNOB ( P. 236)
(
P. 145)
(
P .499)
(P .137)
VEHICLE STABILITY ASSIST
(VSA) SYSTEM OFF SWITCH
1
3
2
2
2 2
3 2
4
12/07/20 10:46:46 31TK4640_141
Inst rument s and Cont rols
P.4
25
P.1
43
2013 TL

Î
If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light system. Take your vehicle to a
dealer to have it checked.
The headlights revert to normal
operation when you turn them on
with the switch. With the headlight switch of f or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights on
reminder beeper.
Headlights
Daytime Running L ights
142
12/07/20 10:47:29 31TK4640_147
Inst rument s and Cont rols
Î
Mod els eq uip ped wit h th e keyless
a cce ss sy ste m have an en gin e sta rt/
s to p butto n in ste ad of an ignition
s w it c h .O N Mod e is th e eq uiv ale n t of
O N (II) . F or m ore in fo rm atio n ,se e
p ag es
and .
:
184 187
2013 TL

´
µ
´ µ
Î
Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
You can use the f og lights only when
the headlights are on low beam.
With the light switch in the AUTO
position, you can also use the f og
lights when the headlights turn on
automatically. They will go of f when
the headlights turn of f . Adjust the brightness of the
instrument panel by pressing the
or button with the ignition
switch in the ON (II) position. Press
the button to increase the
brightness and the button to
decrease it.
CONT INUED
Fog L ights
Instrument Panel Brightness
Fog L ights, Instrument Panel Brightness
Inst rument s and Cont rols
143
FOG LIGHT SWITCH
ADJUSTMENT BUTTONS
12/07/20 10:47:37 31TK4640_148
ÎModels equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
The level of brightness is shown on
the multi-information display while
you adjust it. It goes out 5 seconds
af ter you f inish adjusting.
U.S. model is shown.
2013 TL

´
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . To cancel the glare
reduction f unction, set the
brightness to the highest level, then
press the button. You will hear a
beep when it is canceled.
When the brightness reaches the
maximum level, ‘‘BRIGHTNESS
MAXIMUM LEVEL’’ appears on the
display. If your vehicle is equipped with the
navigation system, the navigation
system screen will also go to f ull
brightness. This can be helpf ul when
using the headlights during daylight
hours.
Instrument Panel Brightness
144
12/07/20 10:47:42 31TK4640_149
Inst rument s and Cont rols
2013 TL

µ
µ
µ
µ If the f ront wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom the
ACCESSORY (I) to the ON (II)
position. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn of f the beeper.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.

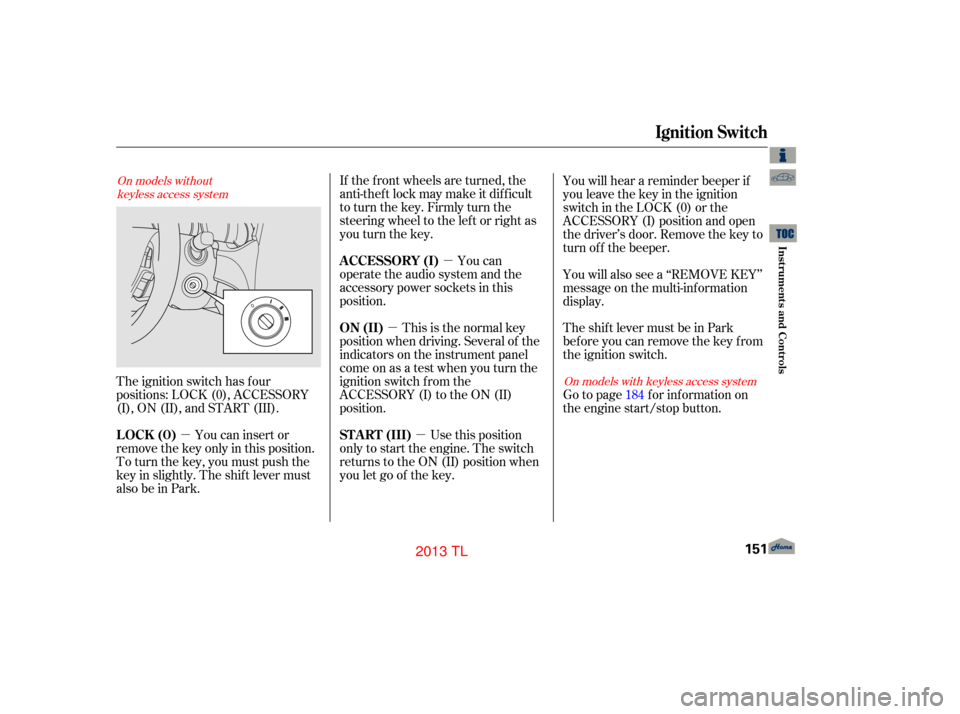

The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III). You will also see a ‘‘REMOVE KEY’’
message on the multi-information
display.
TheshiftlevermustbeinPark
bef ore you can remove the key f rom
the ignition switch.
You can insert or
remove the key only in this position.
To turn the key, you must push the
key in slightly. The shif t lever must
also be in Park. Go to page f or inf ormation on
the engine start/stop button.
184
On models without
keyless access system
On models with keyless access system
A CCESSORY (I)
ON (II)
ST A RT (III)
LOCK (0)
Ignition Switch
Inst rument s and Cont rols
151
12/07/20 10:48:33 31TK4640_156
2013 TL

When you unlock the driver’s door
with your remote transmitter, each
remote transmitter activates the
customized settings related to
that remote.When you unlock and open the
driver’s door with the remote, the
driver’s seat (except power lumbar)
and outside mirrors move to the
positions stored in memory. An
indicator on one of the driving
position memory buttons on the
driver’s door also comes on.
You will also see the ‘‘DRIVER 1’’ or
‘‘DRIVER 2’’ message on the multi-
information display, depending on
which linked remote transmitter
is used.
Driving position memory
(see page ). Customized settings
(see page ).
Here are the settings activated with
the remote: The driving position memory
activated (Driver 1, Driver 2) is
shownonthebackof each
transmitter. Make sure you store
your desired driving position in the
memory that is activated by the
transmitter you normally carry.
Audio system settings
(see page ).
Climate control settings
(see page ). 170
236 94
228
Remote Transmitter
Recalling a Memorized
Driving Position
160
Driver 1 Driver 2
12/08/03 20:56:10 31TK4640_165
Inst rument s and Cont rols
2013 TL

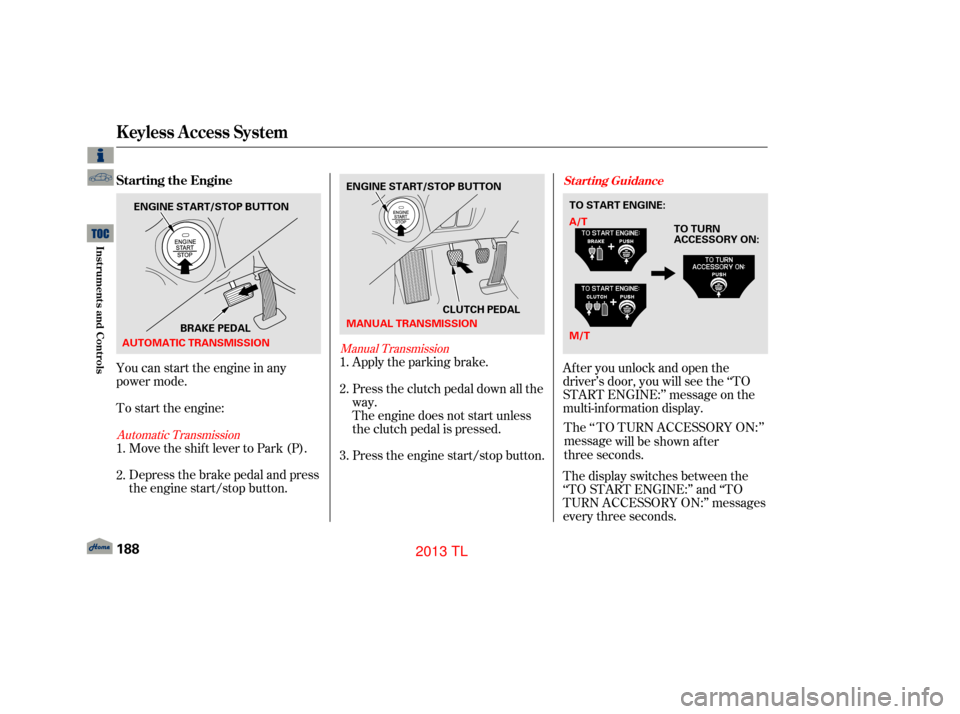

You can start the engine in any
power mode.
To start the engine:Depress the brake pedal and press
the engine start/stop button. Move the shift lever to Park (P). Af ter you unlock and open the
driver’s door, you will see the ‘‘TO
START ENGINE:’’ message on the
multi-inf ormation display.
The ‘‘ TO TURN ACCESSORY ON:’’
message will be shown af ter
three seconds.
The display switches between the
‘‘TO START ENGINE:’’ and ‘‘TO
TURN ACCESSORY ON:’’ messages
every three seconds.
Apply the parking brake.
Press the clutch pedal down all the
way.
The engine does not start unless
the clutch pedal is pressed.
Press the engine start/stop button.
1.
2. 1.
2.
3.
Automatic Transmission
Manual Transmission
K eyless A ccess System
Starting the EngineStarting Guidance
188
ENGINE START/STOP BUTTON
BRAKE PEDAL
AUTOMATIC TRANSMISSION ENGINE START/STOP BUTTON
MANUAL TRANSMISSION CLUTCH PEDAL
M/TTO TURN
ACCESSORY ON:
A/T
TO START ENGINE:
12/07/20 10:53:55 31TK4640_193
Inst rument s and Cont rols
2013 TL

Af ter entering the vehicle, insert the
keyless access remote into the slot
to start the engine (see page ). If the keyless access remote battery
dies, you may have to use the
built-in key to unlock/lock the
vehicle. The built-in key is stored
inside the keyless access remote
(see page).

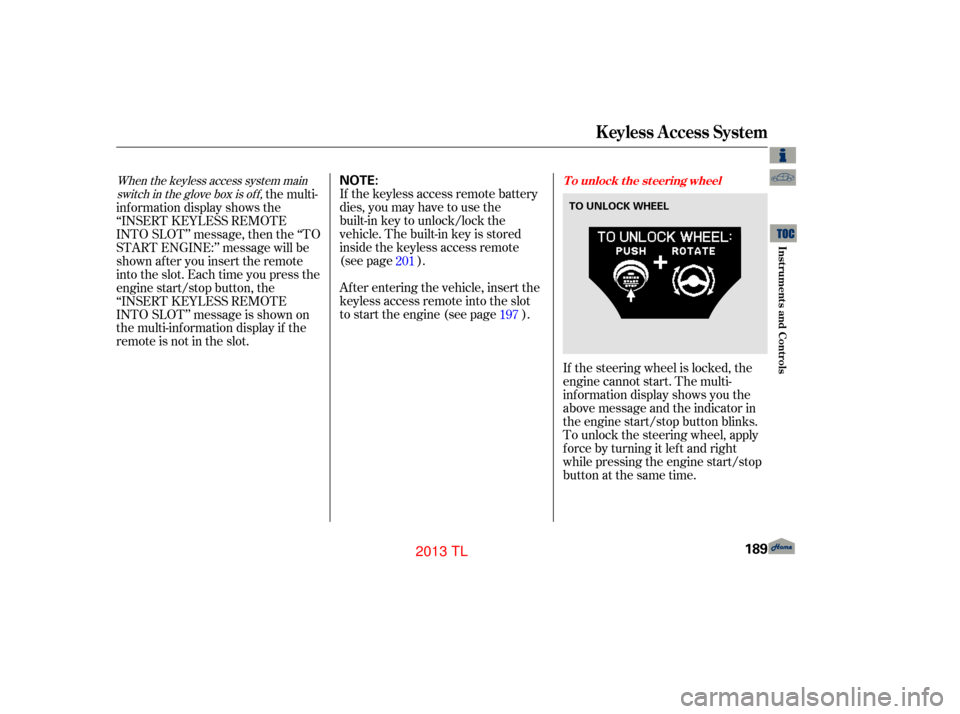

If the steering wheel is locked, the
engine cannot start. The multi-
inf ormation display shows you the
above message and the indicator in
the engine start/stop button blinks.
To unlock the steering wheel, apply
f orce by turning it lef t and right
while pressing the engine start/stop
button at the same time.
the multi-
inf ormation display shows the
‘‘INSERT KEYLESS REMOTE
INTO SLOT’’ message, then the ‘‘TO
START ENGINE:’’ message will be
shown af ter you insert the remote
into the slot. Each time you press the
engine start/stop button, the
‘‘INSERT KEYLESS REMOTE
INTO SLOT’’ message is shown on
the multi-information display if the
remote is not in the slot. 201
197
When the keyless access system mainswitch in the glove box is of f , T o unlock t he st eering wheel
K eyless A ccess System
Inst rument s and Cont rols
189
NOTE:
TO UNLOCK WHEEL
12/07/20 10:54:02 31TK4640_194
2013 TL
