Acura TL 2013 Repair Manual

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
With the trunk lid open, airf low can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows,
and set the climate control system as
shown below.
Select the f resh air mode.
Select the mode.
Set the f an speed to high.
Set the temperature control to a
comfortable setting.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the climate
control system as f ollows:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in a collision that
may have damaged the underside. 1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
57
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
12/07/20 10:37:02 31TK4640_062
2013 TL

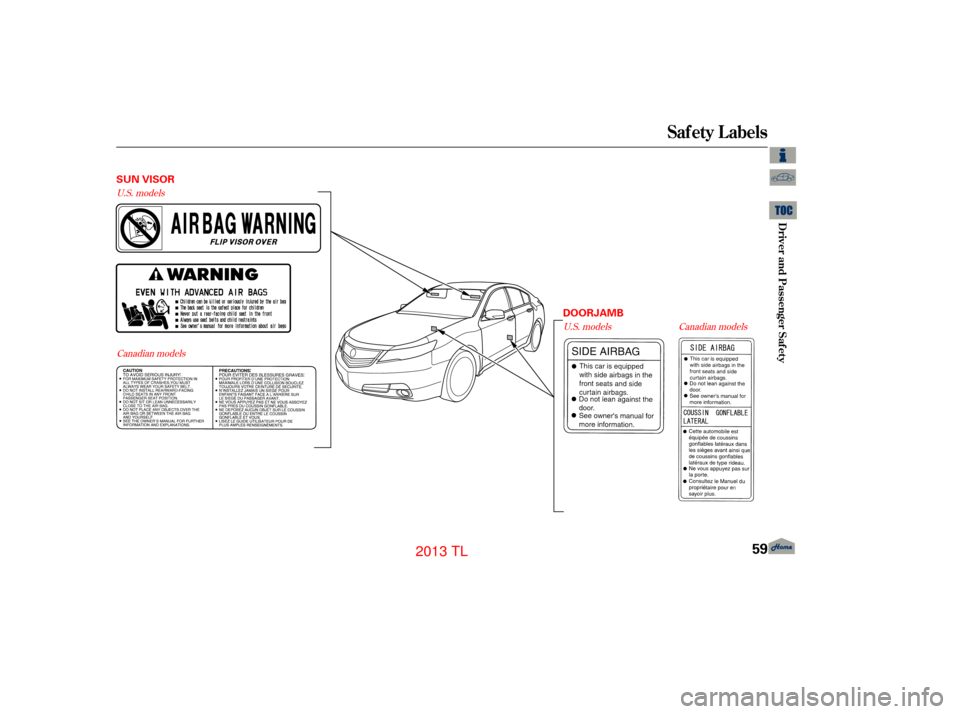

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.U.S. models only
Saf ety L abels
58
DASHBOARD
RADIATOR CAP
12/07/20 10:37:10 31TK4640_063
Driver and Passenger Saf ety
2013 TL

U.S. modelsCanadian models U.S. models
Canadian models
Saf ety L abels
Driver and Passenger Saf ety
59
SUN VISOR
DOORJAMB
12/07/20 10:37:24 31TK4640_064
2013 TL

60
12/07/20 10:37:25 31TK4640_065
2013 TL

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 62............................
Instrument Panel .63
..........
Instrument Panel Indicators . 64
.............................................
Gauges .76
..................................
Fuel Gauge .76
...................
Temperature Gauge . 77
.............
Multi-Inf ormation Display . 78
Controls Near the Steering .........................................
Wheel .136
Windshield Wipers and .....................................
Washers .137
.......
Turn Signals and Headlights . 139
Automatic Lighting Off ...................................
Feature .141
.........
Daytime Running Lights . 142
.....................................
Fog Lights .143
......
Instrument Panel Brightness . 143
...............
Hazard Warning Button . 145
...............
Rear Window Def ogger . 145
......
Steering Wheel Adjustments . 146
.............................
Keys and Locks .147
......................
Immobilizer System .149
..............................
Ignition Switch .151
....................................
Door Locks .152
............
Childproof Door Locks . 153
..............................................
Trunk .154
......
Emergency Trunk Opener . 156.....................
Remote Transmitter .157
...............................................
Seats . 161
......
Trunk Pass-through Cover . 166
...........................................
Mirrors .167
Driving Position Memory ........................................
System .170
................
Keyless Access System . 173
...........
Keyless Access Remote . 179
........
Engine Start/Stop Button . 183
..................................
Seat Heaters .202
.....
Seat Heaters and Ventilations . 204
............................
Power Windows .206
.......................................
Moonroof .210
...............................
Parking Brake .212
.........
Interior Convenience Items . 213
.....................
Beverage Holders .214
........
Accessory Power Sockets . 215
..................................
Glove Box .216
.............
Console Compartment . 216
............................
Vanity Mirror .217
...................................
Sun Visor .217
...........................
Center Pocket .218
....................
Sunglasses Holder .218
..................................
Coat Hook .219
...............................
Interior Lights .220
Instruments and Controls
Inst rument s and Cont rols
61
12/07/20 10:37:29 31TK4640_066
2013 TL

ÃŽ
ÃŽ
ÃŽ ÃŽ
ÃŽ
: If equipped
Control L ocations
62
MIRROR CONTROLS
DRIVING POSITION
MEMORY SYSTEM
BUTTONS
POWER DOOR LOCK
MASTER SWITCH
POWER WINDOW
SWITCHES
FUEL FILL DOOR RELEASE
BUTTON
HOOD RELEASE HANDLE HAZARD WARNING
BUTTON
AUDIO
CLIMATE CONTROL
SYSTEM AUTOMATIC
TRANSMISSION
A/T model with navigation system is shown.
MANUAL
TRANSMISSION
CLOCK
COMPASS
USB ADAPTER CABLE AUXILIARY INPUT JACK
ACCESSORY POWER
SOCKET
SEAT HEATER SWITCHES
SEAT HEATER/VENTILATION BUTTONS
( P. 204) BSI ALERT INDICATOR
(P.
522 )
BLIND SPOT INFORMATION SYSTEM
(BSI) ALERT INDICATOR
(
P .522) HOMELINK
BUTTONS
MOONROOF
SWITCH INSTRUMENT PANEL INDICATORS (
P. 63)
GAUGES
MULTI-INFORMATION DISPLAY (
P. 76)
(P. 78)
ACCESSORY POWER
SOCKET
(
P .168)
(P. 170)
(P. 152) (P .206)
TRUNK RELEASE
BUTTON (P. 154)
( P. 472)
(P. 202)
(P. 266 , ,
, ) (
P. 215) (
P .389) (P. 491
)
(
P .494)
(P. 226
)(
P. 397)
(
P .391)
(
P .235)
(
P .145)
(
P .210)
( P .404)
( P. 470)
(P .215)
12/08/03 20:54:39 31TK4640_067
Inst rument s and Cont rols
P.2 75
P .356 P.367
2013 TL

ÃŽÃŽ
ÃŽ
ÃŽ
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
63
CRUISE MAIN INDICATOR CRUISE CONTROL INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
HIGH BEAM INDICATOR
LOW FUEL INDICATOR IMMOBILIZER SYSTEM
INDICATOR
SIDE AIRBAG OFF INDICATOR
SH-AWD INDICATOR
LIGHTS ON INDICATOR LOW TIRE PRESSURE/TPMS INDICATOR
If e q u ip p e d
:
SECURITY SYSTEM INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS) INDICATOR
ELECTRIC POWER STEERING
(EPS) INDICATOR
FOG LIGHT INDICATOR (
P .73)
( P .68)
(P .69) (P.
72)
(P.
72)
(P. 67
)(
P. 73)
(P.
65)
(P. 70
)
(
P. 71)
(
P. 67) (P.
66)
SYSTEM MESSAGE INDICATOR (
P.72)
MULTI-INFORMATION DISPLAY
SEAT BELT REMINDER INDICATOR ( P.64)
CHARGING SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR
MALFUNCTION INDICATOR LAMP (
P. 72)
( P. 71)
A/T model is shown.
(P. 71)
VEHICLE STABILITY
ASSIST (VSA) OFF
INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR BLIND SPOT INFORMATION SYSTEM
(BSI) INDICATOR
DOOR/TRUNK OPEN INDICATOR
(P. 68)
(
P. 71)
KEYLESS ACCESS SYSTEM
INDICATOR (P .74)
(P .75)
(
P. 65, 596)
( P. 64, 595)
( P. 64, 597)
(P. 65, 598)
(
P. 78)
12/07/20 10:37:48 31TK4640_068
P.
P.
P.
P.
2013 TL

ÃŽÃŽ ÃŽ
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.
You will also see a ‘‘FASTEN SEAT
BELT’’ message on the multi-
inf ormation display.
You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display. For
more information, see page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running, and you
will see a ‘‘CHECK ENGINE OIL
LEVEL’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals, and you
will see a ‘‘FASTEN SEAT BELT’’ or
‘‘FASTEN PASSENGER SEAT
BELT’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on. If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
20 597
595
Instrument Panel Indicators
Seat Belt
Reminder Indicator Malf unction
IndicatorLamp
L ow Oil
Pressure Indicator
64
12/07/20 10:37:57 31TK4640_069
Inst rument s and Cont rols
ÃŽ
Mod els eq uip ped wit h th e keyless
a cce ss sy ste m have an en gin e sta rt/
s to p butto n in ste ad of an ignition
s w it c h .O N Mod e is th e eq uiv ale n t of
O N (II) . F or m ore in fo rm atio n ,se e
p ag es
and .
:
184 187
2013 TL

ÃŽ
ÃŽ
CONT INUED
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. Driving with
the parking brake not f ully
released can damage the brakes
and tires.
If you drive without releasing the
parking brake, a beeper will sound,
and you will also see a ‘‘RELEASE
PARKING BRAKE’’ message on
the multi-information display (see
page ).
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key, on models with keyless
access system, if an appropriate
keyless access remote is used. If it is
not a properly coded key or keyless
access remote, the indicator will
blink, and the engine’s f uel system
will be disabled (see page ).
If this indicator comes on when the
engine is running, the battery is not
being charged, and you will also see
a ‘‘CHECK CHARGING SYSTEM’’
message on the multi-inf ormation
display. For more inf ormation, see
page .
1.
212
149
596
Instrument Panel Indicators
Charging System
Indicator
Parking Brake and
Brake System
Indicator
Immobilizer System
Indicator
Inst rument s and Cont rols
65
U.S. Canada
12/08/08 20:02:27 31TK4640_070
ÃŽ
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187 ÃŽModels equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
2013 TL

ÃŽ
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, it can
indicate a problem in the brake
system. You will also see a ‘‘LOW
BRAKE FLUID’’ or ‘‘CHECK
BRAKE SYSTEM’’ message on
the multi-information display. For
more information, see page .This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on at any
other time, there is a problem in the
ABS. If this happens, take the
vehicle to your dealer to have it
checked. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock f unction. You
will also see a ‘‘CHECK ABS
SYSTEM’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
2.
598 508
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator
66
12/07/20 10:38:13 31TK4640_071
ÃŽModels equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
Inst rument s and Cont rols
2013 TL
