To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . To cancel the glare
reduction f unction, set the
brightness to the highest level, then
press the button. You will hear a
beep when it is canceled.
When the brightness reaches the
maximum level, ‘‘BRIGHTNESS
MAXIMUM LEVEL’’ appears on the
display.
The level of brightness is shown on
the multi-information display while
you adjust it. It goes out 5 seconds
af ter you f inish adjusting. If your vehicle is equipped with the
navigation system, the navigation
system screen will also go to f ull
brightness. This can be helpf ul when
using the headlights during daylight
hours.
Instrument Panel Brightness
144
U.S. model is shown.
12/07/20 10:47:42 31TK4640_149

Always make sure the key is f ully
extended when you insert it to the
ignition switch. If the key is not f ully
extended, the immobilizer system
may not operate properly and
prevent the engine f rom starting.
The master key can be retracted into
theremotetransmitter.Tousethe
key, push the release button to
release the key f rom the transmitter.
The key should be f ully extended.
To retract the key, push the release
buttonandatthesametimepushthe
key into the remote transmitter until
it is securely latched. Thekeymaycomeincontactwith
your f inger while being retracted or
extended. Make sure your f ingers do
not touch the pivot of the key when
retracting or extending it.
Each keyless access remote has a
built-in key. This key is used to lock/
unlock the doors when the remote
battery becomes weak and the
power door lock/unlock operation is
disabled. You cannot start the engine
with this key.
The built-in key (see page ) f its
all the locks on your vehicle.201On models with keyless access system
Retractable Master Key
Keys and Locks
148
Push
RELEASE BUTTON
KEY NUMBER TAG
BUILT-IN KEYS
12/07/20 10:48:12 31TK4640_153

Î
Î Î
Î
CONT INUED
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Acura-approved key blanks.The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key or keyless
access remote (or other device) is
used, the engine’s f uel system is
disabled.
When you turn the ignition switch to
the ON (II) position, or select the
ON mode with the engine start/
stop button, the immobilizer system
indicator should come on brief ly,
then go off. If the indicator starts to
blink, it means the system does not
recognizethecodingof thekeyor
keyless access remote.
On models without keyless access
system, turn the ignition switch to
the LOCK (0) position, remove the
key, reinsert it, and turn the ignition
switch to the ON (II) position again.On models with keyless access
system, set the power mode to
VEHICLE OFF (LOCK), then select
theONmodeagain.
The system may not recognize your
key’s or remote’s coding if another
immobilizer key or other metal
object (i.e. key chain) is near the
ignition switch or the keyless access
remote when you insert the key or
set the power mode to ON.
Your vehicle has the engine
start/stop button instead of an
ignition switch. See page f or
a comparison between
conventional power switches
and your engine start/stop
button. For more inf ormation on
selecting the power mode, see
page .
: On models with keyless access
system
184 187
Keys and Locks, Immobilizer System
Immobilizer System
Inst rument s and Cont rols
149
12/07/20 10:48:19 31TK4640_154

µµ
µ
µ
If the system repeatedly does not
recognize the coding of your key or
keyless access remote, contact your
dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If you have lost your key or keyless
access remote and you cannot start
the engine, contact your dealer.
This device complies with the
appropriate requirements or the
required standards. See page f or
more inf ormation.
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
You can insert or
remove the key only in this position.
To turn the key, you must push the
key in slightly. The shif t lever must
also be in Park. If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom the
ACCESSORY (I) to the ON (II)
position.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
628
On models without keyless access
system
Immobilizer System, Ignition Switch
Ignition Switch
LOCK (0) A CCESSORY (I)
ON (II)
ST A RT (III)
150
Always take the ignition key or the
keyless access remote with the built-in
key with you whenever you leave the
vehicle alone.
13/08/08 16:43:07 31TK4650_155

Î
Î
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
You will also see a ‘‘REMOVE KEY’’
message on the multi-inf ormation
display.
TheshiftlevermustbeinPark
bef ore you can remove the key f rom
the ignition switch.
Go to page f or inf ormation on
the engine start/stop button.

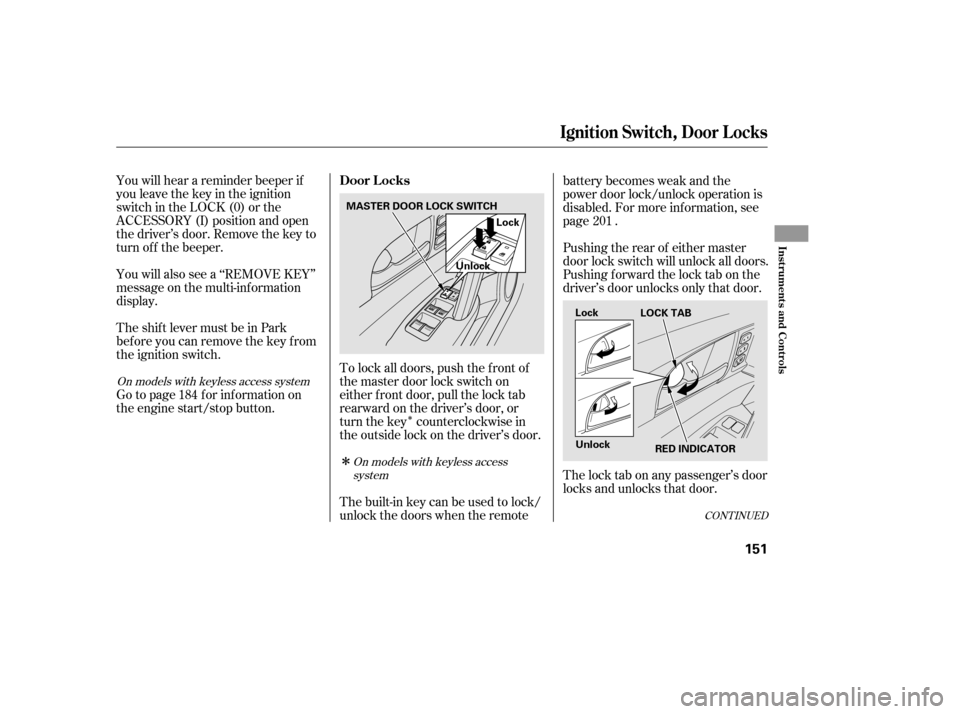

To lock all doors, push the f ront of
the master door lock switch on
either f ront door, pull the lock tab
rearward on the driver’s door, or
turn the key counterclockwise in
the outside lock on the driver’s door.
Thebuilt-inkeycanbeusedtolock/
unlock the doors when the remotebattery becomes weak and the
power door lock/unlock operation is
disabled. For more inf ormation, see
page .
Pushing the rear of either master
door lock switch will unlock all doors.
Pushing f orward the lock tab on the
driver’s door unlocks only that door.
The lock tab on any passenger’s door
locks and unlocks that door.
184 201
CONT INUED
On models with keyless access system
On models with keyless accesssystem
Ignit ion Swit ch, Door L ocks
Door L ocks
Inst rument s and Cont rols
151
MASTER DOOR LOCK SWITCH
Lock
Unlock
Lock
Unlock RED INDICATOR
LOCK TAB
13/08/08 16:43:18 31TK4650_156

Î
ÎÎ
If the doors are unlocked, press
thetrunkreleaseswitchonthe
trunk lid.
If the doors are locked, press the
trunk release switch on the trunk
lid with the remote in keyless
access operating range.
To open the trunk f rom the outside,
push the release switch, then lif t up.Thebuilt-inkeycanbeusedto
lock/unlock the doors and trunk
when the remote battery
becomes weak and the power
door lock/unlock operation is
disabled. For more inf ormation,
see page .
To unlock the trunk, turn the key
twice to unlock the doors, push the
rear of either master door lock
switch, or push UNLOCK twice on
the keyless access remote. The trunk will lock when you lock
the driver’s door with the key , the
keyless access remote, either master
door lock switch, or the lock tab on
the driver’s door.
Youcanopenthetrunkinanyof the
following ways:
Press the trunk release button on
the driver’s door.
Press and hold the trunk release
button on the remote transmitter
or the keyless access remote. :
201
On models with keyless access system
On models with keyless access system
Trunk
154
TRUNK RELEASE SWITCH
TRUNK RELEASE BUTTON On models with keyless access system
12/07/20 10:49:00 31TK4640_159

µ
µ
CONT INUED
Press this button once
to unlock the driver’s door or all the
doors (depending on the keyless
memory setting). Press it twice to
unlock the other doors. Some
exterior lights will f lash twice each
time you press the button.
Press this button once to
lock all doors. Some exterior lights
will f lash. When you push LOCK
twice within 5 seconds, you will hear
a beep to verify that the doors are
locked and the security system has
set. You cannot lock the doors if any
door is not f ully closed or if the key
is in the ignition switch. If you do not open any door within 30
seconds, the doors automatically
relock and the security system sets.
The keyless lock acknowledgment
beep and f lashing of the lights can
be deactivated (see page ).
The door activated map lights come
on when you press the UNLOCK
button if the door activated position
is selected. If you do not open any
door within 30 seconds (or whatever
setting of the interior light dimming
time is set to), the light(s) will f ade
out. If you relock the doors with the
remote transmitter before 30
seconds have elapsed, the light(s)
will go of f immediately. To change the lock/unlock setting
and the relock timer setting, refer to
the customized settings on page .
You can also open all power windows
and the moonroof f rom outside the
vehicle with the remote transmitter
(see page ).
125
131
207
On models without keyless access system
Remote Transmitter
UNL OCK
LOCK
Inst rument s and Cont rols
157
LOCK
BUTTON PANIC
BUTTONTRUNK
BUTTON
LED
UNLOCK
BUTTON
12/07/20 10:49:25 31TK4640_162

µ
µ
Be caref ul when removing
this screw as the head of the screw
can strip out.
Separate the keypad from the
transmitter by pushing any button
f rom outside.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
On models with keyless access
system, see page f or how to
replace the battery on the keyless
access remote.
To replace the battery:
Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Press and hold this
button f or about 1 second to open
the trunk. You cannot open the trunk
if the key is in the ignition switch.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer. Do not immerse the transmitter in
any liquid. Protect the transmitter from
extreme temperatures. Avoid dropping or throwing the
transmitter. Pressthisbuttonfor
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
1.2.
181
Remote Transmitter
Replacing the Transmitter
Battery
TRUNK
PA NIC
Remote Transmitter Care
158
NOTE:
KEYPAD
SCREW
12/07/20 10:49:36 31TK4640_163

Fail to press a memory button
within 5 seconds.
To cancel the storing procedure
af ter pressing the SET button, do
any of the f ollowing:
To select a memorized position, do
this:
Each memory button stores only one
driving position. Storing a new
position erases the previous setting
stored in that button’s memory. If
you want to add a new position while
retaining the current one, use the
other memory button.
Make sure the parking brake is set
and the shif t lever is in Park
(automatic).
Press the desired memory button
(1 or 2) until you hear a beep, then
release the button.
Change the power mode out f rom
ON. Turn the ignition switch out from
the ON (II) position. Readjust the outside mirror
position. Readjust the seat position.
Press the SET button again within
5 seconds.
1.
2.
CONT INUED
On models with keyless access system
On models without keyless access
system
Driving Position Memory System
Selecting a Memorized Position
Inst rument s and Cont rols
171
MEMORY BUTTONS
12/07/20 10:51:20 31TK4640_176

Always keep the remote and the
built-in key away from any magnetic
material.
Youshouldhavereceivedakey
number tag with your built-in key.
You will need this key number if you
ever have to get a lost key replaced.
UseonlyAcura-approvedkeyblanks.
Your vehicle has a keyless access
system. This system allows you to
operate the vehicle without an
ignition key. When you carry the
remote with you, you can lock/
unlock the door(s), unlock the trunk,
and start the engine.
When the vehicle battery is dead. When the remote battery is dead. A vehicle is being operated with a
transmitter nearby. The remote is covered by metal. You carry a cell phone, a laptop
computer, or other electrical
device near the remote. There is strong electrical current
nearby. Thebatteryof theremoteisweak.
The system may not work if: Each keyless access remote has a
built-in key. This key is used to lock/
unlock the doors when the remote
battery becomes weak and the
power door lock/unlock operation is
disabled. You cannot start the engine
with this key.
Make sure the driver always carries
the remote/built-in key set.
Protect the remote and the built-in
key f rom direct sunlight, high
temperature, and high humidity.
Do not drop the remote or the
built-in key, and do not set heavy
objects on them.
Keep the remote and the built-in key
away f rom liquids. If they get wet,
dry them immediately with a sof t
cloth.
The built-in keys do not contain
batteries.On models with navigation system
K eyless A ccess System
Inst rument s and Cont rols
173
12/07/20 10:51:40 31TK4640_178
