Acura TLX 2016 Owners Manual

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind Spot
Information (BSI)
Indicator
*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Stays on while BSI is turned off.
—
●Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.●Comes on while driving - Remove the
obstacle in the vicinity of sensor.
2 Blind Spot Information (BSI) System*
P. 394
●Comes on if there is a problem with
the system.●Comes on while driving - Have your
vehicle checked by a dealer.
* Not available on all models
16 ACURA TLX-31TZ36100.book 90 ページ ２０１５年８月２６日　水曜日　午後１時５４分

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Super Handling-
All Wheel DriveTM
( SH-AWD ®)
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the SH-AWD ® system.
●Blinks when the differential
temperature is too high.
●Stays on constantly - The engine drives
the front wheels only in this state. Have
your vehicle checked by a dealer.
●Blinks while driving - Stop in a safe place,
change to
(P, and idle the engine until the
indicator goes off. If the indicator does not
stop blinking, take your vehicle to a dealer.
2 Super Handling-All Wheel DriveTM (SH-
AWD ®)* P. 396
* Not available on all models
16 ACURA TLX-31TZ36100.book 91 ページ ２０１５年８月２６日　水曜日　午後１時５４分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator (Green)*
●Comes on when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2Auto Idle Stop* P. 344—
Auto Idle Stop
System Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Blinks if there is a problem with the
Auto Idle Stop System.
●Comes on when Auto Idle Stop
System has been turned off by Auto
Idle Stop OFF Button.
●Blinks - Have your vehicle checked by a
dealer.
* Not available on all models
16 ACURA TLX-31TZ36100.book 92 ページ ２０１５年８月２６日　水曜日　午後１時５４分

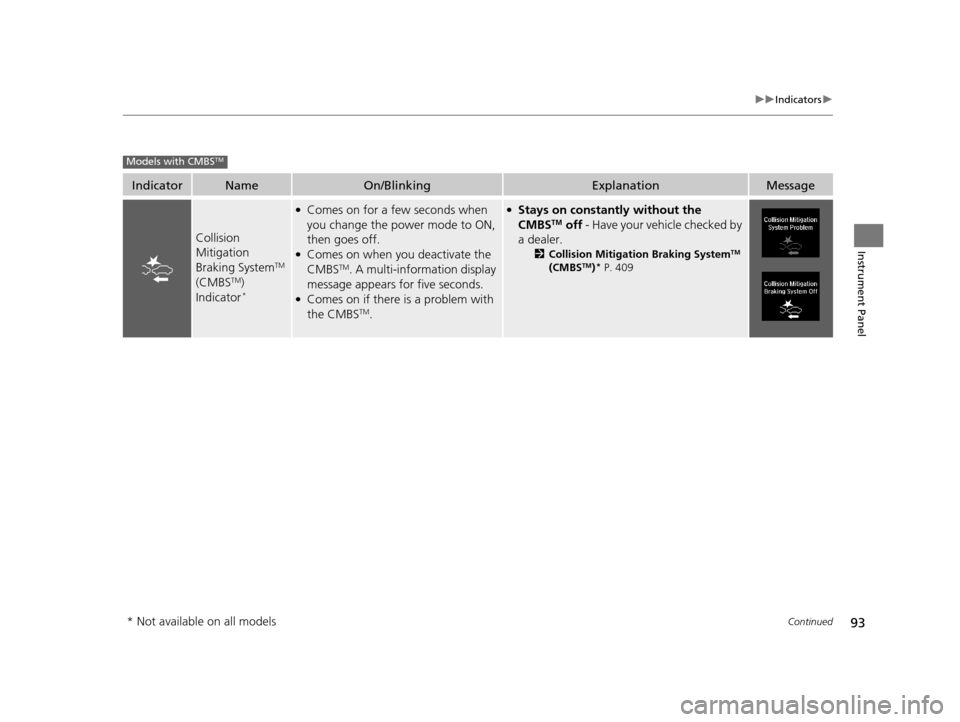

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 409
Models with CMBSTM
* Not available on all models
16 ACURA TLX-31TZ36100.book 93 ページ ２０１５年８月２６日　水曜日　午後１時５４分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator*
●Comes on when the CMBSTM system
shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
2 Front Sensor Camera* P. 353
●When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dealer if the
message does not disa ppear even after you
clean the sensor cover.
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 409
●Stays on - The temperature inside the
camera is too high. Us e the climate control
system to cool down the camera. The
system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 353
Models with CMBSTM
* Not available on all models
16 ACURA TLX-31TZ36100.book 94 ページ ２０１５年８月２６日　水曜日　午後１時５４分

95
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Roll the right selector wheel to see the message again with the
system message indicator on.
*1:On the left: Models with full color display On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the washer fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 452
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now /SERVICE
DUE NOW and Maintenance Past Due /SERVICE
PAST DUE follow.2Maintenance Minder Messages on the Multi-
Information Display P. 437
●Appears when the transmi ssion system temperature
is too high. The vehicle does not operate properly.●You may find it difficult to accelerate, or to start the
vehicle on uphill.
●Stop in a safe place in (P.●Let the engine idle until the message disappears.
Canadian
modelsCanadian
models
16 ACURA TLX-31TZ36100.book 95 ページ ２０１５年８月２６日　水曜日　午後１時５４分

96
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the transmission system temperature
is too high. The vehicle no longer moves.●Immediately stop in a safe place in (P.●Let the engine idle until the message disappears.
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 510
●Appears when there is a pr oblem with the sensor on
the battery.
●Appears along with the battery charging system
indicator when the batte ry is not charging.
●Have your vehicle checked by a dealer.
2Checking the Battery P. 471●Turn off the climate control system and rear
defogger to reduce electricity consumption.
2If the Charging System Indicator Comes On
P. 512
16 ACURA TLX-31TZ36100.book 96 ページ ２０１５年８月２６日　水曜日　午後１時５４分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the starter system has a problem.●Hold the ENGINE START/STOP button up to 15
seconds to start the engine.
Have your vehicle ch ecked by a dealer.
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
2Starting the Engine P. 324
●Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
U.S.
Canada
16 ACURA TLX-31TZ36100.book 97 ページ ２０１５年８月２６日　水曜日　午後１時５４分

98
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you close the door with the power
mode in ON without the keyless access remote
inside the vehicle.●Disappears when you bring the keyless access
remote back inside the vehicle and close the door.
2Keyless Access Remote Reminder P. 163
●Appears when the keyless access remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 473
16 ACURA TLX-31TZ36100.book 98 ページ ２０１５年８月２６日　水曜日　午後１時５４分

99
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if the keyless access remote battery is too
weak to start the engine or the key is not with you
to start the engine.
A beeper sounds six times.●Bring the keyless access remote in front of the
ENGINE START/STOP button to be touched with.
2If the Keyless Access Remote Battery is Weak
P. 503
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appeared sequentially.●Unless you bring the keyless access remote in front
of the ENGINE START/STOP button, this message
does not appear.
2 If the Keyless Access Remote Battery is Weak
P. 503
●Appears when the power m ode is in ACCESSORY or
ON.2 Starting the Engine P. 324
●Appears when the engine does not restart
automatically due to the following reason:
●The hood is open.●There is a problem in the sy stem that disables Auto
Idle Stop.
●Follow the normal procedure to start the engine.
2 Starting the Engine P. 324
Models with Auto Idle StopModels with Auto Idle Stop
16 ACURA TLX-31TZ36100.book 99 ページ ２０１５年８月２６日　水曜日　午後１時５４分
