uuWhen Driving uAutomatic Transmission*
332
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
Automatic Transmission*
The engine runs at a higher id le speed and creeping increases.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unex pectedly increasing vehicle speed. Depress
the accelerator pedal carefully, especi ally on slippery roads and curves.
Dual Clutch Transmission*
As with a conventional automatic tr ansmission, this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unex pectedly increasing vehicle speed. Depress
the accelerator pedal carefully, especi ally on slippery roads and curves.
■Other Precautions
■Creeping
■Kickdown
■Creeping
■Kickdown
1Precautions While Driving
Do not change the gear position to
(N, as you will
lose engine braking (and acceleration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as to not damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
* Not available on all models
16 ACURA TLX-31TZ36100.book 332 ページ ２０１５年８月２６日　水曜日　午後１時５４分

Continued345
uuWhen Driving uAuto Idle Stop*
Driving
The vehicle stops with the gear position in (D and the brake pedal depressed.
■Auto idle stop does not activate when:
• The driver’s seat belt is not fastened.
• The engine coolant temperature is low or high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again befo re the vehicle speed reaches 3 mph (5
km/h) after the engine starts.
• Stopped on a steep incline.
• A gear position other than
(D or in Sport+.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• The battery charge is low.
• The internal temperature of the battery is 14°F (−10°C) or less.
• The climate control system is in use, and the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system temperature is set to the Hi or Lo.
• is ON (indicator on).
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
When ACC with LSF is in operation, the vehicle stops
without depressing the br ake pedal and Auto Idle
Stop may activate.
Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not re start automatically.
In this case, restart the engine with the ENGINE
START/STOP button.
2 Starting the Engine P. 324
Pressing the ENGINE START/STOP button changes
the power mode to ACCESSORY even while Auto Idle
Stop is in operation. Once in ACCESSORY, the engine
no longer restarts automatica lly. Follow the standard
procedure to start the engine. 2 Starting the Engine P. 324
Models with ACC with LSF
16 ACURA TLX-31TZ36100.book 345 ページ ２０１５年８月２６日　水曜日　午後１時５４分

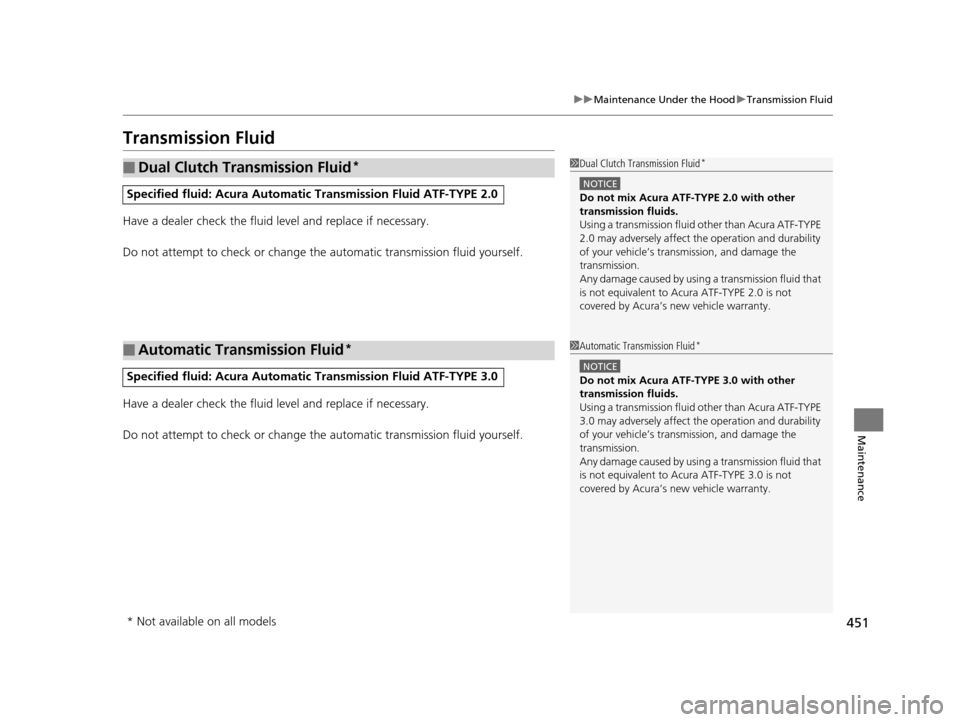

451
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Dual Clutch Transmission Fluid*
Specified fluid: Acura Automatic Transmission Fluid ATF-TYPE 2.0
■Automatic Transmission Fluid*
Specified fluid: Acura Automatic Transmission Fluid ATF-TYPE 3.0
1Dual Clutch Transmission Fluid*
NOTICE
Do not mix Acura ATF-TYPE 2.0 with other
transmission fluids.
Using a transmission fluid ot her than Acura ATF-TYPE
2.0 may adversely affect the operation and durability
of your vehicle’s transm ission, and damage the
transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Ac ura ATF-TYPE 2.0 is not
covered by Acura’s new vehicle warranty.
1 Automatic Transmission Fluid*
NOTICE
Do not mix Acura ATF-TYPE 3.0 with other
transmission fluids.
Using a transmission fluid ot her than Acura ATF-TYPE
3.0 may adversely affect the operation and durability
of your vehicle’s transm ission, and damage the
transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Ac ura ATF-TYPE 3.0 is not
covered by Acura’s new vehicle warranty.
* Not available on all models
16 ACURA TLX-31TZ36100.book 451 ページ ２０１５年８月２６日　水曜日　午後１時５４分

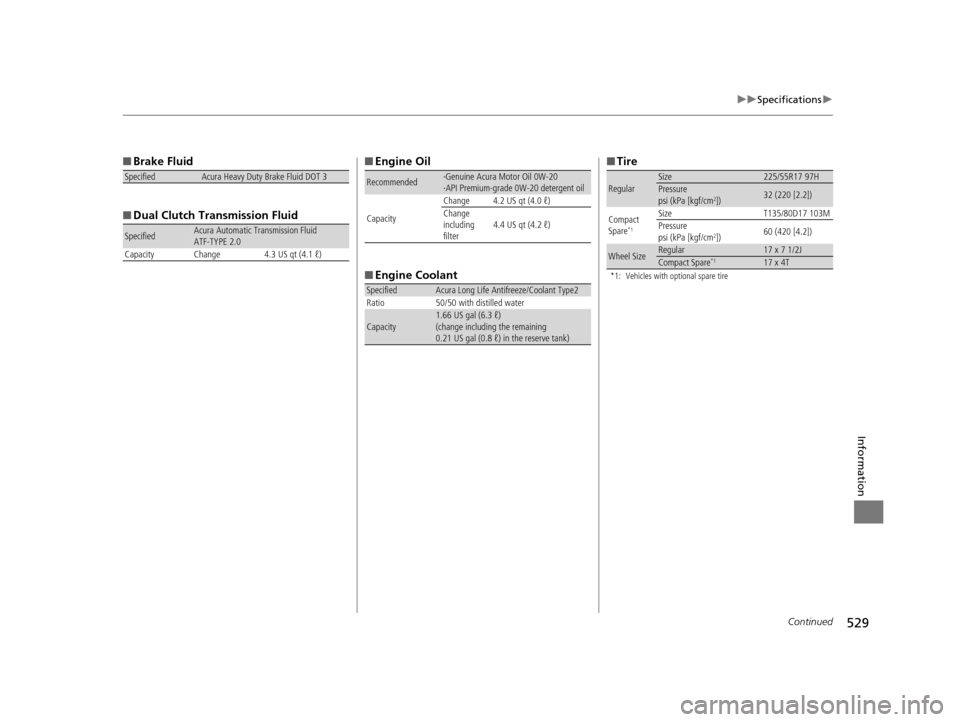

529
uuSpecifications u
Continued
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 2.0
Capacity Change 4.3 US qt (4.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.66 US gal (6.3 ℓ)
(change including the remaining
0.21 US gal (0.8 ℓ) in the reserve tank)
■ Tire
*1: Vehicles with optional spare tire
RegularSize225/55R17 97HPressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare*1
SizeT135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2JCompact Spare*117 x 4T
16 ACURA TLX-31TZ36100.book 529 ページ ２０１５年８月２６日　水曜日　午後１時５４分

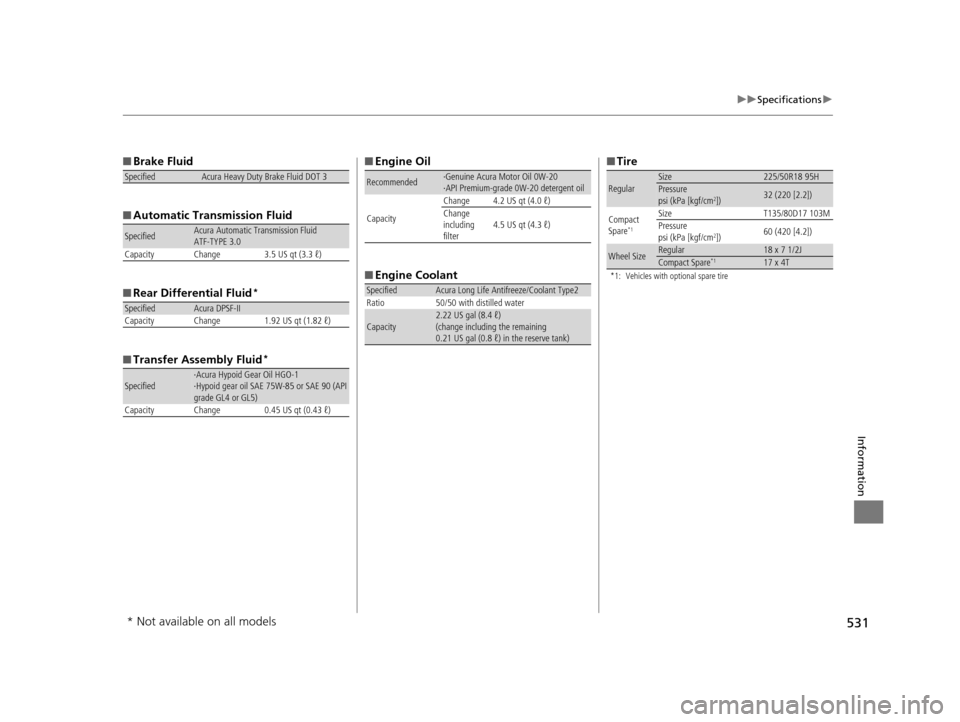

531
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid*
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 3.0
Capacity Change 3.5 US qt (3.3 ℓ)
SpecifiedAcura DPSF-II
Capacity Change 1.92 US qt (1.82 ℓ)
Specified·Acura Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)
Capacity Change 0.45 US qt (0.43 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity2.22 US gal (8.4 ℓ)
(change including the remaining
0.21 US gal (0.8 ℓ) in the reserve tank)
■ Tire
*1: Vehicles with optional spare tire
RegularSize225/50R18 95HPressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare*1
SizeT135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2JCompact Spare*117 x 4T
* Not available on all models
16 ACURA TLX-31TZ36100.book 531 ページ ２０１５年８月２６日　水曜日　午後１時５４分

543
Index
B
BatteryCharging (Battery)........................... 471, 472
Charging System Indicator ................ 74, 512
Jump Starting ......................................... 505
Maintenance (Checking the Battery) ....... 471
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 192
Blind Spot Information (BSI) System ....... 394
Bluetooth ® Audio ..................................... 248
Bluetooth ® HandsFreeLink ®.................... 280
Booster Seats (For Children) ...................... 65
Brake System ............................................ 401
Anti-lock Brake System (ABS) .................. 407
Automatic Brake Hold ............................. 405
Brake Assist System................................. 408
Fluid ....................................................... 452
Foot Brake .............................................. 404
Parking Brake.......................................... 401
Brake System (Amber) Indicator ................................................... 73
Brake System (Red)
Indicator ........................................... 70, 513
Brightness Control (Instrument Panel) ... 172
BSI (Blind Spot Information) System ....... 394
Bulb Replacement .................................... 453
Back-Up Lights ........................................ 458
Brake/Taillights........................................ 457
Brake/Taillights and Rear Side Marker
Lights .................................................... 457
Fog Lights ............................................... 453 Front Side Marker/Parking Lights ............. 453
Front Turn Signal Lights ........................... 454
Headlights ............................................... 453
High-Mount Brake Light .......................... 459
Puddle Lights ........................................... 459
Rear License Plate Lights .......................... 459
Rear Turn Signal Lights ............................ 456
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 453
Bulb Specifications ........................... 528, 530
C
Car Wash Mode........................................ 336
Carbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 319, 321
CD Player ................................................... 235
Center Pocket ........................................... 191
Certification Label .................................... 532
Changing Bulbs ......................................... 453
Charging System Indicator ................. 74, 512
Child Safety ................................................. 54
Childproof Door Locks ............................. 150
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56 Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 150
Cleaning the Exterior ............................... 478
Cleaning the Interior ................................ 476
Client Service Information ....................... 540
Climate Control System ............................ 199
Changing the Mode ................................ 202
Defrosting the Windshield and Windows ............................................... 206
Dust and Pollen Filter............................... 475
Recirculation/Fresh Air Mode ................... 204
Sensors ................................................... 207
Synchronized Mode................................. 203
Using Automatic Climate Control ............ 199
Clock .......................................................... 138
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 409
Coat Hooks ............................................... 194
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 409
Compact Spare Tire
(Optional)................................ 495, 529, 531
Compass .................................................... 314
Console Compartment ............................. 190
Controls ..................................................... 137
Coolant (Engine) ...................................... 449
Adding to the Radiator ............................ 450
Adding to the Reserve Tank..................... 449
Overheating ............................................ 510
Creeping (Automatic Transmission) ........ 332
16 ACURA TLX-31TZ36100.book 543 ページ ２０１５年８月２６日　水曜日　午後１時５４分

544
Index
Creeping (Dual Clutch Transmission)....... 332
Cross Traffic Monitor ................................ 422
Cruise Control ........................................... 350
Indicator .................................................... 84
Cup Holders ............................................... 192
Customized Features ........................ 126, 259
D
Daytime Running Lights ........................... 168
Dead Battery ............................................. 505
Defrosting the Windshield and Windows .................................................. 206
Devices that Emit Radio Waves ................ 533
Dimming Headlights ............................................... 165
Rearview Mirror ....................................... 177
Dipstick (Engine Oil) ................................. 444
Directional Signals (Turn Signal) .............. 164
Door Mirrors ............................................. 178
Doors ......................................................... 139
Auto Door Locking .................................. 151
Auto Door Unlocking ............................... 151
Door Open Indicator ............................ 31, 81
Door Open Message ................................ 102
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside ............................................... 13, 148
Locking/Unlocking the Doors from the Outside .................................................. 142
Lockout Prevention System ...................... 146 DOT Tire Quality Grading
........................ 465
Driver’s Knee Airbag .................................. 46
Driving ...................................................... 317
Automatic Transmission .......................... 332
Braking ................................................... 401
Cruise Control ......................................... 350
Dual Clutch Transmission ........................ 332
Shifting Gear ................................... 333, 340
Starting the Engine.................................. 324
Driving Position Memory System ............ 174
Dual Clutch Transmission ......................... 332
Creeping ................................................. 332
Fluid ........................................................ 451
Kickdown ................................................ 332
Operating the Shift Lever................... 20, 341
Shift Lever Does Not Move ...................... 509
Shifting ................................................... 340
Dust and Pollen Filter ............................... 475
E
ECON (Econ mode) Indicator ..................... 88
Elapsed Time ............................................. 124
Electric Parking Brake
Indicator.................................................... 71
Electric Parking Brake System Indicator............................................ 71, 514
Electric Power Steering (EPS) System Indicator............................................ 80, 514
Electronic Stability Control (ESC) ............. 391
Emergency ................................................ 522 Emissions Testing
(Readiness Codes) ...... 535
Engine ....................................................... 532
Coolant .................................................. 449
Jump Starting ......................................... 505
Oil .......................................................... 443
Remote Engine Start ............................... 327
Starting................................................... 324
Engine Coolant ........................................ 449
Adding to the Radiator ........................... 450
Adding to the Reserve Tank .................... 449
Overheating ............................................ 510
Temperature Gauge ................................ 117
Engine Oil ................................................. 443
Adding ................................................... 446
Checking ................................................ 444
Displaying Oil Life ................................... 436
Low Oil Pressure Indicator ................. 70, 512
Recommended Engine Oil ....................... 443
ENGINE START/STOP Button .................... 161
e-pretensioners .......................................... 34
EPS (Electric Power Steering) System ........ 80
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Expanded View Driver’s Mirror ............... 179
Exterior Care (Cleaning) .......................... 478
Exterior Mirrors ........................................ 178
F
FCW (Forward Collision Warning) .......... 368
Features .................................................... 209
16 ACURA TLX-31TZ36100.book 544 ページ ２０１５年８月２６日　水曜日　午後１時５４分

545
Index
FiltersDust and Pollen....................................... 475
Oil .......................................................... 447
Flat Tire ..................................................... 483
Floor Mats ................................................ 477
Fluids Automatic Transmission .......................... 451
Brake ...................................................... 452
Dual Clutch Transmission ........................ 451
Engine Coolant ....................................... 449
Windshield Washer ................................. 452
Fog Lights ................................................. 168
Foot Brake ................................................ 404
Forward Collision Warning (FCW) with
Pedestrian Detection ............................. 368
Front Airbags (SRS) .................................... 42
Front Seat Heaters and Ventilation ........ 197
Front Seats ................................................ 180
Adjusting ................................................ 180
Front Sensor Camera ............................... 353
Fuel ..................................................... 21, 426
Economy................................................. 429
Gauge .................................................... 117
Instant Fuel Economy .............................. 124
Low Fuel Indicator..................................... 79
Range ..................................................... 124
Recommendation.................... 426, 528, 530
Refueling ................................................ 426
Fuel Economy ........................................... 429
Fuel Fill Door ...................................... 21, 427 Fuses
.......................................................... 517
Inspecting and Changing ......................... 521
Locations ......................... 517, 518, 519, 520
G
Gasoline (Fuel)
Economy ................................................. 429
Gauge ..................................................... 117
Information ............................................. 426
Instant Fuel Economy ............................... 124
Low Fuel Indicator ..................................... 79
Refueling ................................................. 426
Gauges ...................................................... 117
Gear Position Indicator ...................... 75, 334
Gear Shift Lever Positions
Dual Clutch Transmission ......................... 340
Gear Shift Positions
Automatic Transmission ........................... 333
Glass (care) ........................................ 476, 479
Glove Box .................................................. 189
H
Handling the Unexpected ........................ 481
HandsFreeLink ® (HFL) ............................... 280
Auto Answer ........................................... 295
Automatic Import of Cellular Phonebook
and Call History ..................................... 297
Automatic Transferring ............................ 295
Displaying Messages ................................ 310 HFL Buttons............................................. 280
HFL Menus .............................................. 282
HFL Status Display ................................... 281
Limitations for Manual Operation ............ 281
Making a Call .......................................... 301
Options During a Call .............................. 307
Phone Setup............................................ 287
Receiving a Call ....................................... 306
Receiving a Text/E-m
ail Message.............. 308
Ring Tone................................................ 296
Selecting a Mail Account ......................... 309
Speed Dial ............................................... 298
To Create a Security PIN .......................... 294
To Set Up a Text/E-mail Message
Option................................................... 292
Use Contact Photo .................................. 296
Hazard Warning Button .............................. 4
Head Restraints ........................................ 182
Headlight Washers ................................... 171
Headlights ................................................. 165
Aiming .................................................... 453
Automatic Operation............................... 166
Dimming ......................................... 165, 168
Operating................................................ 165
Heated Steering Wheel ............................ 196
Heated Windshield Button ...................... 173
Heaters (Seat) ................................... 197, 198
HFL (HandsFreeLink ®)............................... 280
High Beam Indicator .................................. 83
Hill Start Assist System ............................. 330
HomeLink ® Universal Transceiver ............ 277
16 ACURA TLX-31TZ36100.book 545 ページ ２０１５年８月２６日　水曜日　午後１時５４分

547
Index
L
Lane Departure Warning (LDW)............. 374
Lane Keeping Assist System (LKAS) ........ 383
Language (HFL) ........................................ 281
LATCH (Child Seats) ................................... 59
LDW (Lane Departure Warning) ............. 374
Lights ................................................ 165, 453
Automatic............................................... 166
Bulb Replacement ................................... 453
Daytime Running Lights .......................... 168
Fog Lights ............................................... 168
High Beam Indicator ................................. 83
Interior.................................................... 187
Light Switches......................................... 165
Lights On Indicator.................................... 83
Turn Signals ............................................ 164
Load Limits ............................................... 321
Locking/Unlocking ................................... 139
Auto Door Locking/Unlocking ................. 151
Childproof Door Locks ............................ 150
From Inside ............................................. 148
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 146
Lockout Prevention System ..................... 146
Low Battery Charge ................................. 512
Low Fuel Indicator ..................................... 79
Low Keyless Access Remote Signal
Strength .................................................. 141
Low Oil Pressure Indicator ................. 70, 512
Lower Anchors ........................................... 59 Lubricant Specifications Chart
......... 529, 531
Luggage (Maximum Load Limit) ............. 321
Lumbar Support ........................................ 180
M
Maintenance............................................. 431
Battery .................................................... 471
Brake Fluid .............................................. 452
Cleaning .................................................. 476
Climate Control System ........................... 475
Coolant ................................................... 449
Maintenance Minder
TM............................ 435
Oil ........................................................... 444
Precautions .............................................. 432
Radiator .................................................. 450
Remote Transmitter ......................... 473, 474
Replacing Light Bulbs ............................... 453
Safety ...................................................... 433
Service Items ........................................... 438
Tires ........................................................ 462
Transmission Fluid ................................... 451
Under the Hood .............................. 440, 441
Malfunction Indicator Lamp .............. 74, 513
Map Lights ................................................ 188
Maximum Load Limit ............................... 321
Meters, Gauges ......................................... 117
Mirrors ....................................................... 177
Adjusting ................................................. 177
Door........................................................ 178
Exterior .................................................... 178 Interior Rearview ..................................... 177
Modifications (and Accessories) .............. 430
Moonroof ................................................. 160
MP3 ................................................... 235, 245
Multi-Information Display ....................... 118
Multi-View Rear Camera .......................... 425
N
Numbers (Identification).......................... 532
O
Odometer................................................. 123
Oil (Engine) ............................... 443, 529, 531
Adding .................................................... 446
Checking................................................. 444
Displaying Oil Life .................................... 436
Low Oil Pressure Indicator ................. 70, 512
Recommended Engine Oil ....... 443, 529, 531
Viscosity .................................. 443, 529, 531
On Demand Multi-Use Display
TM............. 216
Opening
Trunk ...................................................... 524
Opening/Closing Hood....................................................... 442
Moonroof ............................................... 160
Power Windows ...................................... 158
Trunk ...................................................... 152
Operating the Switches Around the Steering Wheel ....................................... 161
16 ACURA TLX-31TZ36100.book 547 ページ ２０１５年８月２６日　水曜日　午後１時５４分

549
Index
Sequential Mode...................................... 338
Sequential Mode Operation ................... 339
Sequential Shift Mode ............................. 342
Sequential Shift Mode Operation ........... 343
Setting the Clock ...................................... 138
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 396
SH-AWD ® Torque Distribution
Monitor ................................................... 125
Shift Button ........................................ 18, 333
Shift Lever .......................................... 20, 340
Shift Lever Position Indicator .................. 341
Shifting (Transmission) ........ 18, 20, 333, 340
Shoulder Anchor ........................................ 36
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
SiriusXM ® Radio ....................................... 232
Snow Tires ................................................ 470
Spare Tire (Optional) ............... 495, 529, 531
Spark Plugs ....................................... 528, 530
Specifications ........................................... 528
Specified Fuel ........................... 426, 528, 530
SPORT (Sport mode) Indicator .................. 88
Sport Mode .............................................. 348
Sport+ Mode ............................................ 348
SRS Airbags (Airbags) ................................ 42
Starting Assist Brake Function ................ 347
Starting the Engine .................................. 324
Does Not Start ........................................ 502
Engine Switch Buzzer .............................. 163
Jump Starting ......................................... 505 Remote Engine Start ................................ 327
Steering Wheel ......................................... 176
Adjusting ................................................. 176
Stopping .................................................... 417
Summer Tires ............................................ 470
Super Handling-All Wheel Drive
TM
(SH-AWD ®) .............................................. 396
Indicator .................................................... 91
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering Wheel) ............................................. 4, 5, 161
System Message Indicator .......................... 82
T
Temperature Gauge................................. 117
Temperature Sensor ................................. 207
Temporary Tire Repair Kit ........................ 484
Text Message .................................... 308, 310
Time (Setting) ........................................... 138
Tire Fill Assist .................................... 397, 515
Tire Pressure Monitoring System (TPMS) ..................................................... 397
Indicator ............................................ 82, 515
Tire Fill Assist ................................... 397, 515
Tires ........................................................... 462
Air Pressure ............................. 463, 529, 531
Chains ..................................................... 470
Checking and Maintaining ....................... 462
Flat Tire (Puncture) ................................... 483
Inspection ................................................ 462 Labeling .................................................. 463
Puncture (Flat Tire) .......................... 483, 495
Regulations ............................................. 465
Rotation .................................................. 469
Spare (Optional) ...................... 495, 529, 531
Summer .................................................. 470
Temporary Tire Repair Kit ........................ 484
Wear Indicators ....................................... 467
Winter..................................................... 470
Tools .......................................................... 482
Towing a Trailer ....................................... 323
Towing Your Vehicle ................................ 323
Emergency .............................................. 522
TPMS (Tire Pressure Monitoring
System) .................................................... 397
Transmission ......................... 18, 20, 333, 340
Automatic ................................. 18, 332, 333
Dual Clutch ............................... 20, 332, 340
Fluid ........................................................ 451
Gear Position Indicator ...................... 75, 334
Number................................................... 532
Sequential Mode ..................................... 338
Sequential Shift Mode ............................. 342
Shift Lever Position Indicator.................... 341
TRIP Button ....................................... 121, 122
Trip Meter ................................................. 123
16 ACURA TLX-31TZ36100.book 549 ページ ２０１５年８月２６日　水曜日　午後１時５４分
