INTRODUCTION
This Owner’s Guide is intended to help you quickly get acquainted with your
2017 Acura TLX. It provides basic information and instructions on technology and
convenience features, as well as emergency procedures and how to get assistance.
This guide is for vehicles sold in the United States and Canada. It covers all TLX
models, so you may find descriptions of features and equipment that are not in
your vehicle.
Images throughout this guide are from U.S. vehicles and represent features and
equipment that are available on some, but not all, models. Images shown in this
guide should be considered examples and used for demonstration purposes only.
This guide is not intended to be a substitute for the Owner’s Manual. The Owner
Information CD enclosed in your glove box kit includes the Owner’s Manual,
Navigation Manual, and vehicle and tire warranties in electronic format. This
information can be viewed on a computer (PC

or Mac platform) and sav
ed
or printed for your reference. You can also visit owners.acura.com to view the
complete and most current information.
If you are the first registered owner of your vehicle, you may request a
complimentary printed copy of the Owner’s Manual, Navigation Manual, or Vehicle
Warranty up to the first six months after vehicle purchase. To request a copy, visit
owners.acura.com and create or log in to your account. In Canada, please request a
copy from your Acura dealer.
American Honda Motor Company strives to be proactive in protecting our
environment and natural resources. By using electronic delivery for a considerable
portion of the information typically found in a vehicle owner’s manual, we are
further reducing our impact on the environment.
*if equipped
VISUAL INDEX

.......................................................
1
Steering Wheel and Nearby Controls

.................
1
Dashboard and Ceiling Controls

..........................
2
SAFETY INFORMATION

.......................................
3
Important Safety Information

.............................3
Seat Belts

.................................................................
5
Airbags

.....................................................................
8
Child Safety

...........................................................
14
Safety Label Locations........................................ 20
Reporting Safety Defects

....................................
21
INSTRUMENT PANEL..........................................22 Malfunction Indicators

.......................................
22
Condition Indicators

...........................................
24
On/Off Indicators

................................................
25
Multi-Information Display

.................................
26
VEHICLE CONTROLS

..........................................
27
Using the Remote Transmitter

...........................
27
Keyless Access System

.......................................
28
Door Operation from Inside the Vehicle

.........
29
Power Window Operation

.................................
30
Power Moonroof Operation


..............................
31
Interior and Exterior Lights

................................
32
One-Touch Turn Signal

.......................................
33
Wiper Operation

..................................................
33
Adjusting the Seats

.............................................
35
Driving Position Memory System

.....................
37
Adjusting the Steering Wheel

...........................
38
Adjusting the Mirrors

..........................................
39
Customized Features

..........................................
40
HomeLink® Universal Transceiver

.....................
41
Climate Control System

.....................................
42
Seat Heaters and Ventilation*

..........................
43AUDIO AND CONNECTIVITY

..........................
44
Basic Audio Operation

........................................
44
FM/AM Radio

.......................................................
47
SiriusXM® Radio

..................................................
48
Compact Disc (CD)

.............................................
49
iPod® or USB Flash Drive

...................................
50
Bluetooth® Audio

.................................................
51
Hard Disc Drive (HDD) Audio*

.........................
52
Pandora®*

.............................................................
53
AcuraLink featuring Aha™

.................................
54
BLUETOOTH® HANDSFREELINK®

....................
56
Basic

HFL Operation

...........................................
56
Pairing a Phone

....................................................
58
Making a Call

........................................................
59
SMS Text Messaging and E-Mail

.......................
62
ACURALINK
®* ......................................................63
A
curaLink Messages ............................................ 63
Subscription Features
......................................... 64
NAVIGATION*
..................................................... 65
Basic Navigation Operation
.............................. 65
Entering a Destination
........................................ 68
Routing

.................................................................. 70

12 || 13
S AFETY
S
AFETY

Airbag System Components
1 Two SRS (Supplemental Restraint System) front airbags. The driver’s airbag
is stored in the center of the steering wheel; the front passenger’s airbag is
stored in the dashboard. Both are marked SRS AIRBAG.
2 Driver’s knee airbag. The knee airbag is stored under the steering column. It is marked SRS AIRBAG.
3 Two side airbags, one for the driver and one for the front passenger. The airbags are stored in the outer edges of the seat-backs. Both are marked
SIDE AIRBAG.
4 Two side curtain airbags, one for each side of the vehicle. The airbags are stored in the ceiling, above the side windows. The front and rear pillars are
marked SIDE CURTAIN AIRBAG.
5 An electronic control unit that continually monitors information about the about the various impact sensors, seat and buckle sensors, rollover sensor,
airbag activators, and seat belt tensioners and other vehicle information
when the vehicle is on.
6 Automatic front seat belt tensioners. The driver’s and front passenger’s seat belts incorporate sensors that detect whether or not they are fastened.
On

models with CMBS
TM, the front seat belt tensioners also include the
e-pretensioners.
7 A driver’s seat position sensor. If the seat is too far forward, the airbag will inflate with less force.
8 Weight sensors in the front passenger’s seat. The front passenger’s airbag will be turned off if the weight on the seat is about 65 lbs (29 kg) or less
(the weight of an infant or small child).
Airbag Care
You do not need to, and should not, perform any maintenance on or replace
any airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be
replaced. Similarly, once an automatic seat belt tensioner has been activated, it
must be replaced.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the
driver’s seat position sensor, weight sensors in the passenger’s seat, front seat
belt tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without first consulting a dealer
This would likely disable or affect the driver’s seat position sensor or the weight
sensors in the passenger’s seat. If it is necessary to remove or modify a front seat
to accommodate a person with disabilities, contact an Acura dealer. For U.S.
vehicles, call Acura Client Relations at (800) 382-2238. For Canadian vehicles,
call Acura Client Services at (888) 922-8729.
99 99
911 9194 98 93 94
96
91 910
9129
9
9
9
99 9
6 9
9
9
7
93 9
2
913 9
5
9 Impact sensors that can detect a moderate-to-severe front or side impact.
10 An indicator on the dashboard that alerts you that the front passenger’s front
airbag has been turned off.
11 An indicator on the instrument panel that alerts you to a possible problem with the airbag system or seat belt tensioners.
12 Safing sensor
13 A rollover sensor that detects whether the vehicle is about to roll over.

98 || 99

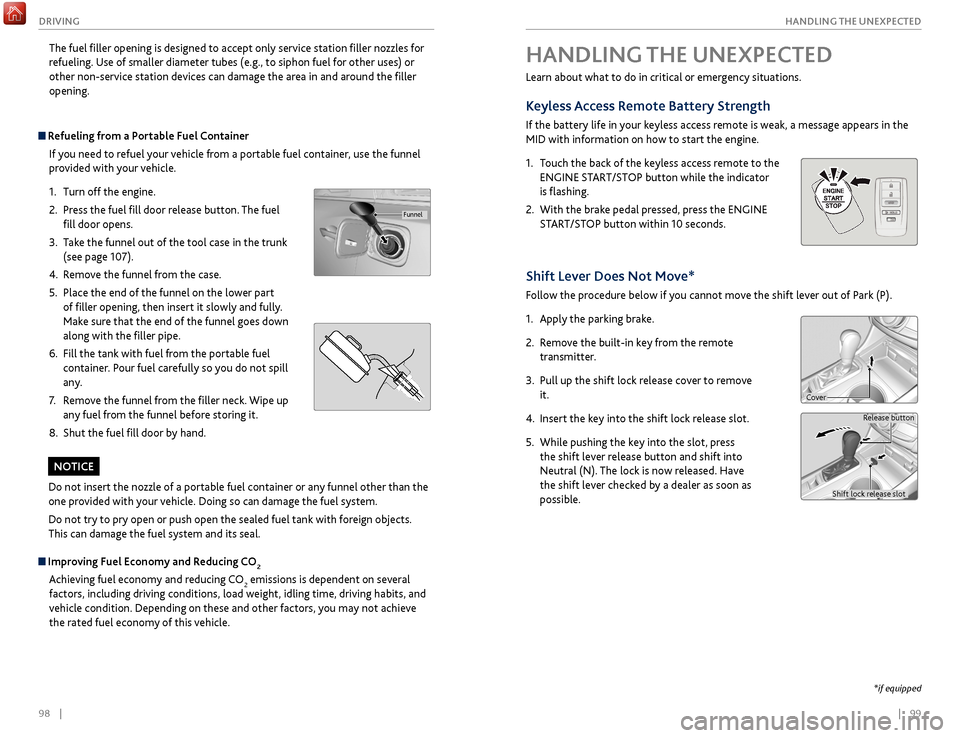

HANDLING THE UNEXPECTED
DRIVING
HANDLING THE UNEXPECTED
Learn about what to do in critical or emergency situations.
Keyless Access Remote Battery Strength
If the battery life in your keyless access remote is weak, a message appears in the
MID with information on how to start the engine.
1.

T
ouch the back of the keyless access remote to the
ENGINE START/STOP button while the indicator
is flashing.
2.

With
the brake pedal pressed, press the ENGINE
START/STOP button within 10 seconds.
Shift Lever Does Not Move*
Follow the procedure below if you cannot move the shift lever out of Park (P).
1.

Appl
y the parking brake.
2.

R
emove the built-in key from the remote
transmitter.
3.

Pull up
the shift lock release cover to remove
it.
4.

Insert
the key into the shift lock release slot.
5.

While pushing
the key into the slot, press
the shift lever release button and shift into
Neutral (N). The lock is now released. Have
the shift lever checked by a dealer as soon as
possible.
Release button
Shift lock release slot
Cover
*if equipped
The fuel filler opening is designed to accept only service station filler nozzles for
refueling. Use of smaller diameter tubes (e.g., to siphon fuel for other uses) or
other non-service station devices can damage the area in and around the filler
opening.
Refueling from a Portable Fuel Container If you need to refuel your vehicle from a portable fuel container, use the funnel
provided with your vehicle.
1.

Turn off the
engine.
2.

Pr
ess the fuel fill door release button. The fuel
fill door opens.
3.

T
ake the funnel out of the tool case in the trunk
(see page 107).
4.

R
emove the funnel from the case.
5.

Place the
end of the funnel on the lower part
of filler opening, then insert it slowly and fully.
Make sure that the end of the funnel goes down
along with the filler pipe.
6.

Fill
the tank with fuel from the portable fuel
container. Pour fuel carefully so you do not spill
any.
7.
R

emove the funnel from the filler neck. Wipe up
any fuel from the funnel before storing it.
8.

Shut
the fuel fill door by hand.
Funnel
Do not insert the nozzle of a portable fuel container or any funnel other than the
one provided with your vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel tank with foreign objects.
This can damage the fuel system and its seal.
NOTICE
Improving Fuel Economy and Reducing CO2
Achieving fuel economy and reducing CO
2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve
the rated fuel economy of this vehicle.

114 || 115
MAINTENANCE
MAINTENANCE
Maintenance Minder message
System message
indicator
Main item
Sub items
Main item
Sub item s*1
*2
*1: Models with full color display
*2: Models without full color display
Maintenance Minder™
When maintenance is due, the system message indicator comes on and the
Maintenance Minder appears on the multi-information display every time you
turn the vehicle on. Roll the right selector wheel on the steering wheel to change
displays.
•

Independent
of the Maintenance Minder information, replace the brake fluid
every 3 years.
•

Inspect idle speed ev
ery 160,000 miles (256,000 km).
•

A
djust the valves during services A, B, 1, 2, or 3 if they are noisy.
U.S. models
Maintenance, replacement, or repair of emissions control devices and systems
may be done by any automotive repair establishment or individuals using
parts that are certified to EPA standards.
According to state and federal regulations, failure to perform maintenance on the
maintenance main items marked with # will not void your emissions warranties.
However, all maintenance services should be performed in accordance with the
intervals indicated by the multi-information display.
Learn about basic maintenance that you can perform on the vehicle yourself, as
well as information about how best to maintain the vehicle.
Safety Precautions
Some of the most important safety precautions are listed below; however,
we cannot warn you of every conceivable hazard that can arise in performing
maintenance. Only you can decide whether or not you should perform a given task.
Maintenance Safety
•
T
o reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames
away from the battery and all fuel-related parts.
•

Nev
er leave rags, towels, or other flammable objects under the hood. Heat
from the engine and exhaust can ignite them, causing a fire.
•

T
o clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.
•

W
ear eye protection and protective clothing when working with the battery or
compressed air.
•

Do not run
the engine in confined spaces where carbon monoxide gas can
accumulate.
Vehicle Safety
•
The
vehicle must be in a stationary condition, and parked on level ground with
the parking brake set and the engine off.
•

Be awar
e that hot parts can burn you.
•

Be awar
e that moving parts can injure you.
•

Do not
open the hood during auto idle stop operation* (see page 83).
MAINTENANCE
Improperly maintaining this vehicle or failing to correct a problem before
driving can cause a crash in which you can be seriously hurt or killed.
Always follow the inspection and maintenance recommendations according to
the schedules in this guide.
WARNING
Failure to properly follow maintenance instructions and precautions can cause
you to be seriously hurt or killed.
Always follow the procedures and precautions in this guide.
WARNING
*if equipped

126 || 127
MAINTENANCE
MAINTENANCE
Tire Labeling
The tires that came on your vehicle have a number of markings. Those you
should be aware of are described below.
Tire Identification Number (TIN)
The tire identification number (TIN)
is a group of numbers and letters that
look like the example below. TIN is
located on the sidewall of the tire.
Glossary of Tire Terminology
Cold Tire Pressure – The tire air pressure when the vehicle has been
parked for at least three hours or driven less than 1 mile (1.6 km).
Load Rating – The maximum load that a tire is rated to carry for a given
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the
tire can hold.
Maximum Load Rating – The load rating for a tire at the maximum
permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure
recommended by the manufacturer.
Treadwear Indicators (TWI) – The projections within the principal
grooves designed to give a visual indication of the degrees of wear of the
tread.
Tire size Tire
Identication
Number (TIN)
Maximum
tire load
Maximum
tire pressure
Tire size
DOT B97R FW6X 2209
DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer’s identication mark.
FW6X: Tire type code.
22 09: Date of manufacture.
Year
Week
Here is an example of what each
marking means:
P215/70R16 100S
•

P: tir
e type (passenger vehicle)
•

215:
tire width in millimeters
•

7
0: aspect ratio (tire section height as
a percentage of its width)
•

R:
tire construction code (radial)
•

16: rim
diameter in inches
•

100: load index (code indicating
maximum load

tire can carry)
•

S: speed symbol (code indicating
maximum speed rating)
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach
five years old. All tires, including the spare*, should be removed from service after
10 years from the date of manufacture, regardless of their condition or state of
wear.
Winter Tires
If driving on snowy or frozen roads, mount all season tires marked “M+S”, snow
tires, or tire chains; reduce speed; and maintain sufficient distance between
vehicles when driving. For winter tires, select the size and load ranges that are the
same as the original tires, and mount them to all four wheels.
Tire Chains
Install tire chains on the front tires only. Because your vehicle has limited tire
clearance, we strongly recommend using the following chains:
Cable type: QCC Premium Cobra 1042P with tensioner.
Mount chains as tightly as you can, and make sure that they do not touch the
brake lines or suspension.
Using the wrong chains, or not properly installing chains, can damage the
brake lines and cause a crash in which you can be seriously injured or killed.
Follow all instructions in this guide regarding the selection and use of tire
chains.
WARNING
Traction devices that are the wrong size or improperly installed can damage your
vehicle’s brake lines, suspension, body, and wheels. Stop driving if they are hitting
any part of the vehicle.
NOTICE
*if equipped

140 || 141
INDEX
INDEX
Parking Sensor System ......................................... 94
P assenger Airbag Off Indicator .............................11
Phone
........................................................................\
58
Phonebook
.............................................................. 60
Phone Commands
................................................ 136
Place Name..............................................................69
Power Door Mirrors................................................39
Power Mode............................................................. 76
Power Moonroof
..................................................... 31
Power Window
....................................................... 30
Power Window Lock
............................................. 30
Precision All Wheel Steer System indicator
......23
Rain-Sensing Wipers
............................................. 34
Readiness Codes
...................................................130
Rear Camera
............................................................ 95
Refueling
.................................................................. 97
Remote Battery Strength
......................................99
Remote Engine Start
.............................................. 75
Remote Transmitter
............................................... 27
Reporting Safety Defects
......................................21
Reserve Tank
.......................................................... 121
Reverse Tilt Door Mirrors
......................................39
Road Departure Mitigation indicator
.................23
Road Departure Mitigation (RDM) System
.......92
Roadside Assistance
............................................. 135
Routing
..................................................................... 70
Safety Information
................................................... 3
Carbon Monoxide Gas
..........................................4
Child Safety ........................................................... 14
Reporting Safety Defects
...................................21
Safety Label Locations

........................................20
Safety Messages

.................................................... 3
Seat Belts
................................................................... 5
Adjusting the Shoulder Anchor
...........................7
Fastening a Seat Belt
............................................. 7
Lap/Shoulder Seat Belts
.......................................5
Proper Use of Seat Belts

.......................................5
Seat Belt Inspection

.............................................. 6
Seat belt reminder indicator

.............................24
Seat Heaters and

Ventilation
..............................43
Seats

........................................................................\
.. 35
Front Seats
............................................................ 35
Head Restraints
.................................................... 36
Sequential Mode
................................................... 80
Sequential Shift Mode
........................................... 78
Service Codes
........................................................ 116
Setting
..................................................................... 40
Setting the Clock
................................................... 40
Shifting
..................................................................... 77
Electronic Gear Selector
.....................................79
Sequential Mode
.......................................... 80, 94
Sequential Shift Mode
........................................78
Shift Lever
............................................................. 77
Shift Lever
................................................................ 77
Shift Lever Does Not Move
..................................99Shoulder Anchor
.......................................................7
Side Airbags ...............................................................9
Side Curtain Airbags
.................................................9
Siri Eyes Free
............................................................55
SiriusXM Radio
.......................................................48
SiriusXM Radio Commands

................................1

37
SMS Text Messaging
..............................................62
Song By Voice Commands

..................................1

37
Sound
........................................................................\
45
Specifications
........................................................131
Engine and Fuel
..................................................131
Fluids
....................................................................131
Light Bulbs........................................................... 131
Tires
......................................................................131
Vehicle
.................................................................131
Speed Dial
.........................................................60, 61
SPORT mode indicator
..........................................25
SRS indicator
....................................................10, 23
Steering Wheel ....................................................... 38
Steering Wheel and Nearby Controls
...................1
Steering Wheel Controls

................................45

, 65
Street Address
........................................................68
Super Handling-All Wheel Drive (SH-AWD)
...94
Supplemental Restraint System indicator.........23
System Guidance Volume ..................................... 67
System message indicator
....................................24
Tire Chains
.............................................................126
Tire Information
....................................................124
DOT Tire Quality Grading

................................128
Tir

e and Loading Information Label ...............125
Tire and Wheel Replacement
..........................125
Tire Labeling........................................................ 127
Tire Service Life
..................................................126
Tire Terminology
................................................127
Wear Indicators
..................................................124
Tire Pressure Monitoring System indicator
.......23
Tire Pressure Monitoring System (TPMS)
.......104
Tires
........................................................................\
.131
TPMS indicator
........................................................23
Traffic
........................................................................\
71
Troubleshooting
....................................................133
Trunk
........................................................................\
.28
Trunk Release Button
.............................................29
Turn Signal
...............................................................33
Turn signal indicator
..............................................25
Under the Hood
....................................................117
Unlocking the Doors
..............................................28
USB Commands
....................................................137
USB Flash Drive
.......................................................50
USB Port
..................................................................44
Vehicle Controls ...................................................... 27
Vehicle Stability Assist system indicator
...........23
Vehicle Stability Assist (VSA)

..............................84
Visual Index

................................................................1
Voice Command Index
........................................136
Frequently Asked Questions
.............................. 133
F
ront Airbags (SRS)

.................................................. 8
Front Door Inner Handle

....................................... 29
Front Seats

............................................................... 35
Fuel Information

.............................................. 83, 97
Fuse Locations

....................................................... 110
Changing Fuses

.................................................. 113
Driver’s Side Interior Fuse Boxes..................... 112
Engine Compartment Fuse Boxes

.................. 110
Garage Opener ........................................................ 41
Hard Disc Drive (HDD) Audio

.............................. 52
Har

d Disc Drive (HDD) Commands

.................. 137
Headlight Washers

................................................ 34
Headlight-Wiper Integration

............................... 33
Head R

estraints

...................................................... 36
Heated Steering Wheel

........................................ 38
Heated Windshield

Button

.................................. 34
High beams indicator

............................................ 25
Home Address

........................................................ 68
HomeLink

................................................................. 41
Immobilizer indicator
............................................ 24
Instrument P anel .................................................... 22
Condition Indicators
........................................... 24
Malfunction Indicators
.......................................22
On/Off Indicators
................................................ 25
Integrated Dynamics System (IDS)
...................84
Interior Lights
.......................................................... 32
Intermittent Wipers
............................................... 33
iPod........................................................................\
....50
iPod Commands
.................................................... 137
Jump Starting
....................................................... 100
Keyless Access System

.......................................... 28
K

eyless Access system indicator .........................23
Lane Departure Warning indicator......................23
Lane Departure Warning (LDW)
.........................89
Lane Keeping Assist System indicator
................23
Lane Keeping Assist System (LKAS)
...................90
Lap/Shoulder Seat Belts
..........................................5
LATCH-Compatible Child Seat
............................17
LDW indicator
......................................................... 23
Light Bulbs
............................................................. 131
Lights
........................................................................\
. 32
Brightness Control
............................................... 32
Exterior Lights
...................................................... 32
Interior Lights
....................................................... 32
Lights indicator
....................................................... 25
LINK button
............................................................ 64
LKAS indicator
.................................................. 23, 25
Locking the Doors
.................................................. 28
Lock Tab
.................................................................... 29
Low fuel indicator
................................................... 24
Low oil pressure indicator
.....................................22
Low tire pressure indicator
...................................24Maintenance
..........................................................
114
Battery .................................................................
122
Brake Fluid ...........................................................
122
Engine Coolant ...................................................
121
Engine Oil ............................................................
119
Maintenance Minder .........................................
115
Opening the Hood ............................................. 118
Safety Precautions............................................. 114 Service Codes .....................................................
116
Under the Hood .................................................
117
Window Washer Fluid
.......................................
122
Wiper Blades
.......................................................
123
Maintenance Minder ............................................
115
Making a Call ...........................................................
59
Malfunction indicator lamp
.................................
22
Malfunction Indicators
..........................................
22
Map Legend .............................................................
70
Master Door Lock Switch ......................................
29
Maximum Load Limit .............................................
73
Mirrors ......................................................................
39
Automatic Dimming Rearview Mirror .............39
Power Door Mirrors .............................................39
Reverse Tilt Door Mirrors
...................................39
Moonroof
.................................................................31
Multi-Information Display
....................................26
Multi-View Rear Camera

.......................................95
Navigation

...............................................................65
AcuraLink Real-Time Traffic

...............................71
Detour

....................................................................71
Display and Controls
...........................................66
Entering a Destination
.......................................68
Find Nearest Place
...............................................69
Home Address
.....................................................68
Map Legend
..........................................................70
ODMD Shortcuts
.................................................69
Place Name
...........................................................69
Routing
..................................................................70
Steering Wheel Controls

....................................65
Str

eet Address .....................................................68
System Guidance Volume

..................................67
T

alk Button Tips ...................................................65
Traffic
.....................................................................71
Voice Prompt
........................................................67
Navigation Commands
.......................................136
On-Demand Multi-Use Display (ODMD)
........46
One-Touch Turn Signal
..........................................33
On/Off Indicators
...................................................25
Opening the Hood
...............................................118
Opening the Trunk
..................................................28
Operator Assistance
.............................................64
Overheating
...........................................................102
Pairing a Phone
.......................................................58
Pandora
....................................................................53
Pandora® Commands
..........................................137
Parking Brake
...........................................................81
