Information
Specifications
■Vehicle Specifications
*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD
■Air Conditioning
ModelAcura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,442 lbs (2,015 kg)*1
U.S.: 4,586 lbs (2,080 kg)*2
U.S.: 4,751 lbs (2,155 kg)*3
Canada: 2,055 kg*1
Canada: 2,095 kg*2
Canada: 2,170 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,370 lbs (1,075 kg)*1
U.S.: 2,535 lbs (1,150 kg)*2
U.S.: 2,579 lbs (1,170 kg)*3
Canada: 1,105 kg*1
Canada: 1,165 kg*2
Canada: 1,180 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,094 lbs (950 kg)*1
U.S.: 2,072 lbs (940 kg)*2
U.S.: 2,194 lbs (995 kg)*3
Canada: 965 kg*1
Canada: 945 kg*2
Canada: 1,005 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.7 US qt (5.4 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LED
Front Turn Signal Lights24 W
(PWY 24W Amber/Silver)
Front Side Marker/Parking Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Pocket LightLEDDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
17 ACURA TLX-31TZ36200.book 530 ページ ２０１６年６月１０日　金曜日　午後６時３９分

531
uuSpecifications u
Information

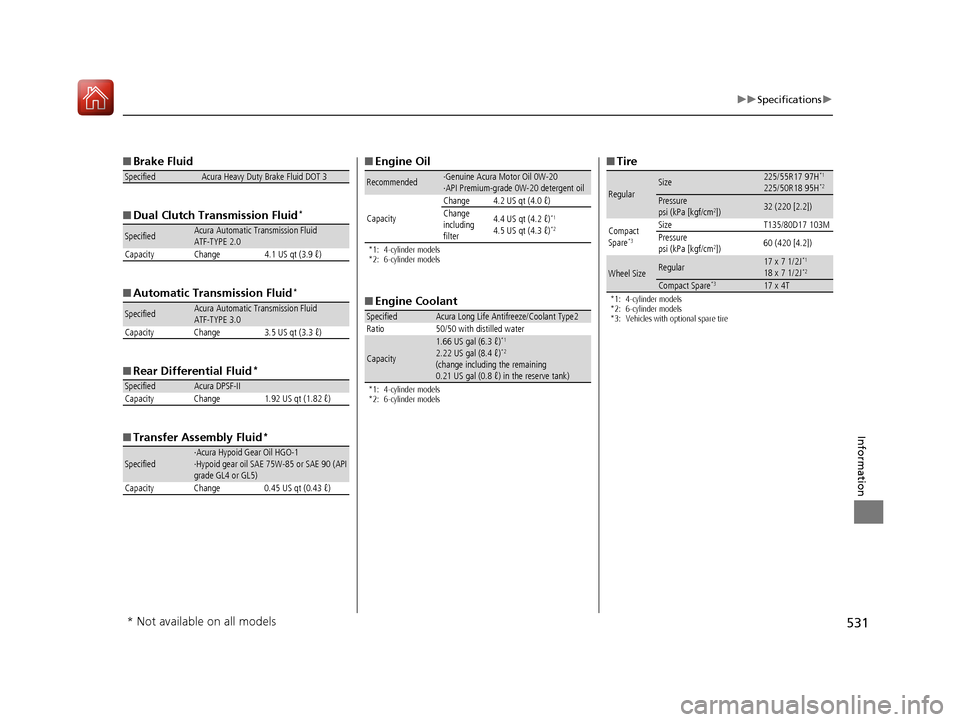

■Brake Fluid
■ Dual Clutch Transmission Fluid
*
■Automatic Transmission Fluid*
■Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 2.0
Capacity Change 4.1 US qt (3.9 ℓ)
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 3.0
Capacity Change 3.5 US qt (3.3 ℓ)
SpecifiedAcura DPSF-II
Capacity Change 1.92 US qt (1.82 ℓ)
Specified·Acura Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)
Capacity Change 0.45 US qt (0.43 ℓ)
■ Engine Oil
*1: 4-cylinder models
*2: 6-cylinder models
■Engine Coolant
*1: 4-cylinder models
*2: 6-cylinder models
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
*1
4.5 US qt (4.3 ℓ)*2
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 ℓ)*1
2.22 US gal (8.4 ℓ)*2
(change including the remaining
0.21 US gal (0.8 ℓ) in the reserve tank)
■ Tire
*1: 4-cylinder models
*2: 6-cylinder models
*3: Vehicles with optional spare tire
RegularSize225/55R17 97H*1
225/50R18 95H*2
Pressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare*3
SizeT135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
Compact Spare*317 x 4T
* Not available on all models
17 ACURA TLX-31TZ36200.book 531 ページ ２０１６年６月１０日　金曜日　午後６時３９分

532
Information

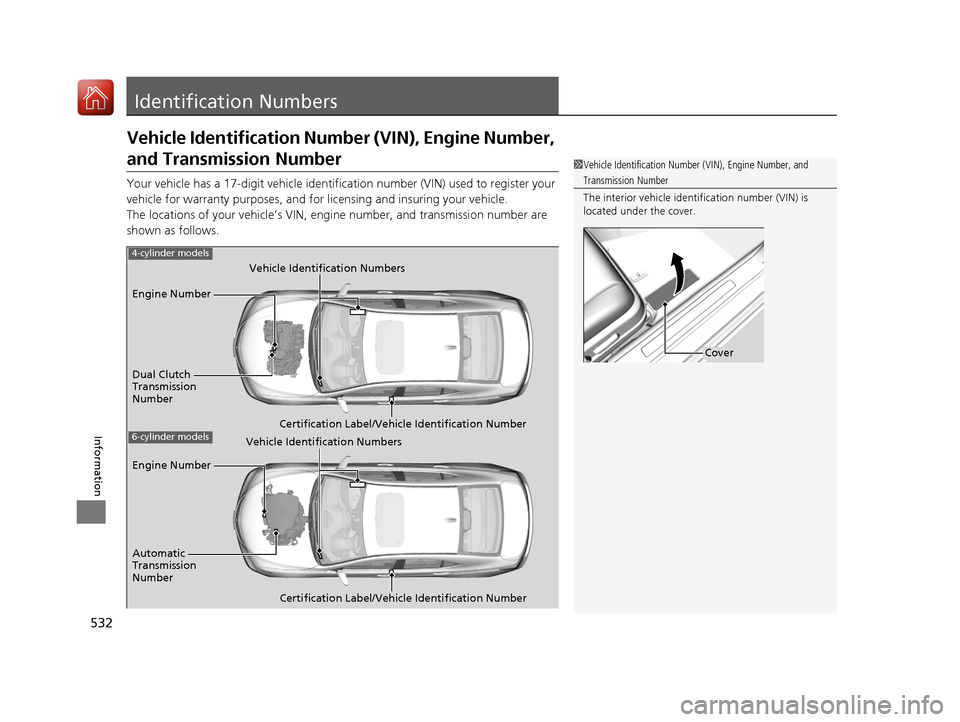

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Numbers
Engine Number
Dual Clutch
Transmission
Number Certification Label/Vehicle Identification Number
Vehicle Identification Numbers
Engine Number
Automatic
Transmission
Number Certification Label/Vehicle Identification Number
4-cylinder models
6-cylinder models
17 ACURA TLX-31TZ36200.book 532 ページ ２０１６年６月１０日　金曜日　午後６時３９分

533
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
AcuraLink*
Audio System
Blind Spot Information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigati on Braking SystemTM *
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
* Not available on all models
17 ACURA TLX-31TZ36200.book 533 ページ ２０１６年６月１０日　金曜日　午後６時３９分

535Continued
Information

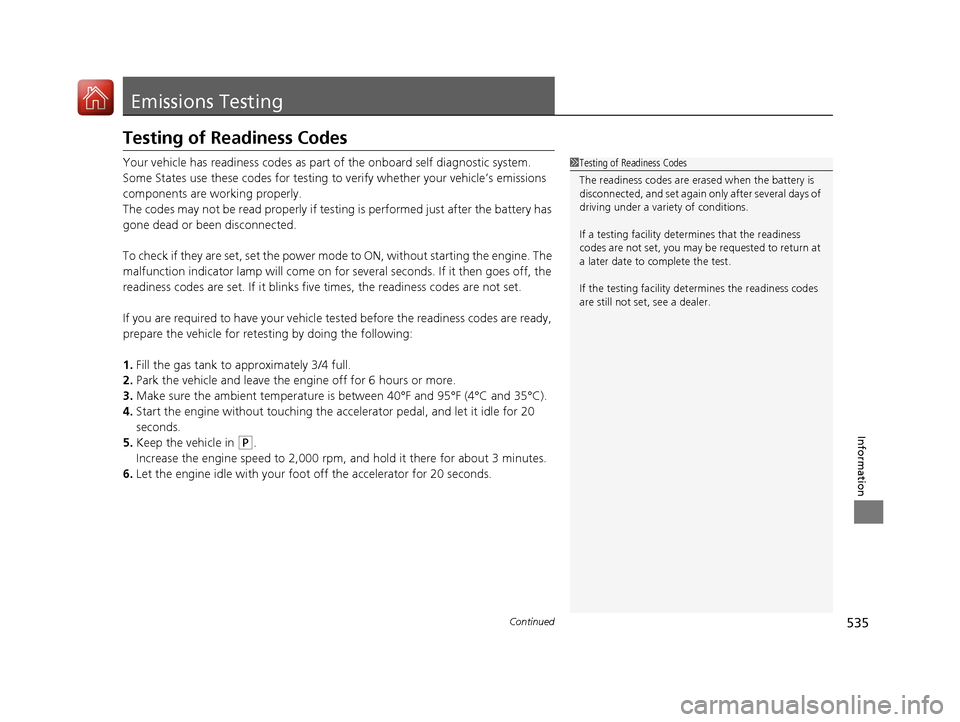

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P.
Increase the engine speed to 2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
17 ACURA TLX-31TZ36200.book 535 ページ ２０１６年６月１０日　金曜日　午後６時３９分

536

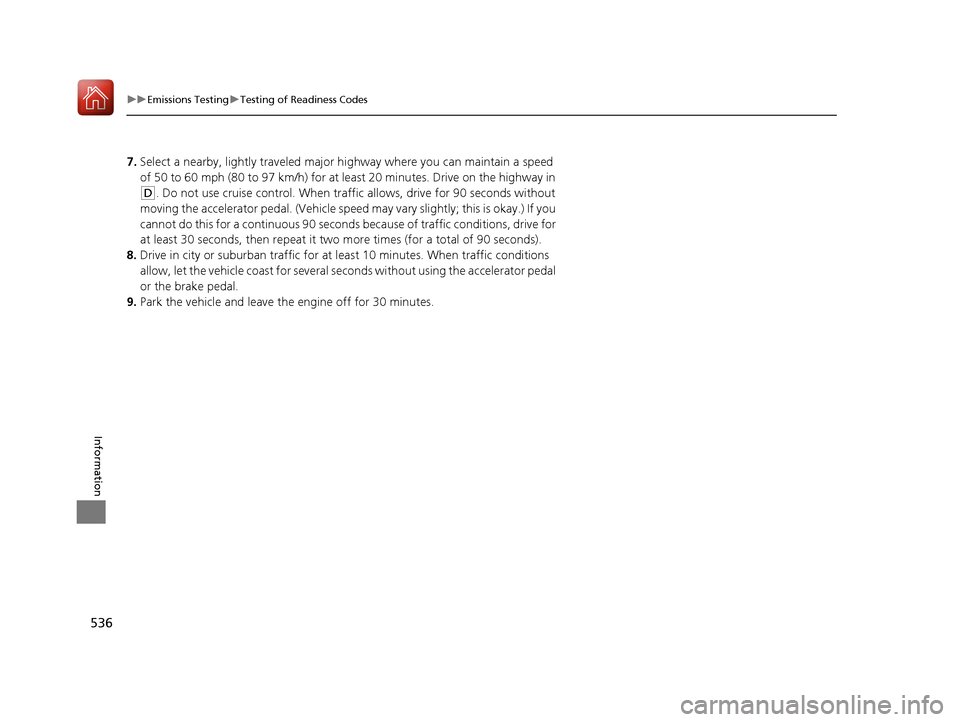

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
17 ACURA TLX-31TZ36200.book 536 ページ ２０１６年６月１０日　金曜日　午後６時３９分

540
Information

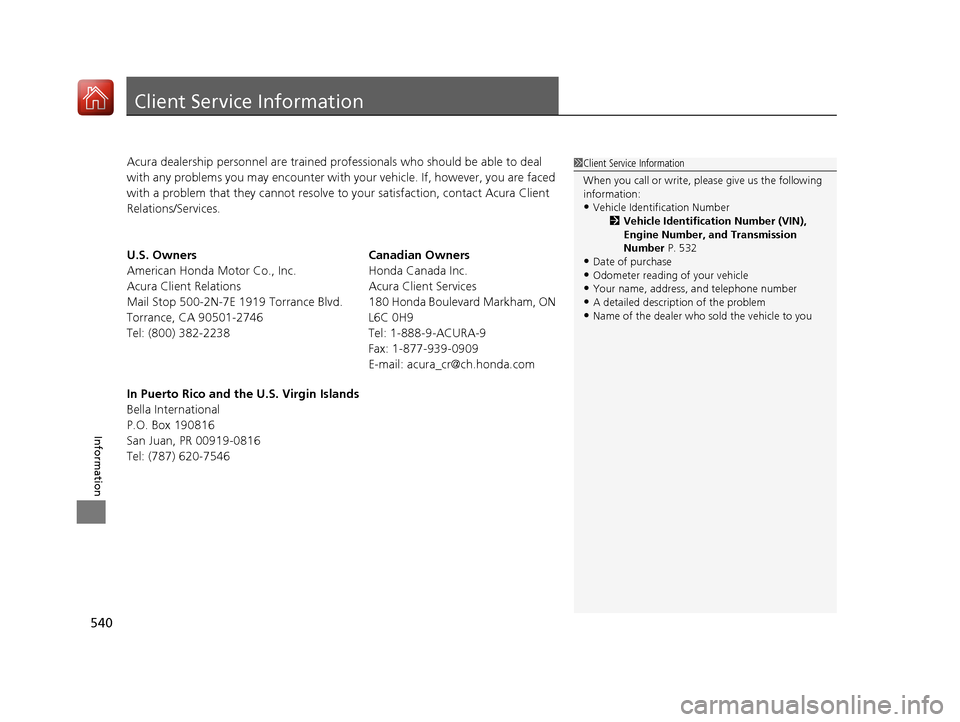

Client Service Information
Acura dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Acura Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 500-2N-7E 1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238 Canadian Owners
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: acura_c
[email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Client Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 532
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
17 ACURA TLX-31TZ36200.book 540 ページ ２０１６年６月１０日　金曜日　午後６時３９分

Index
542

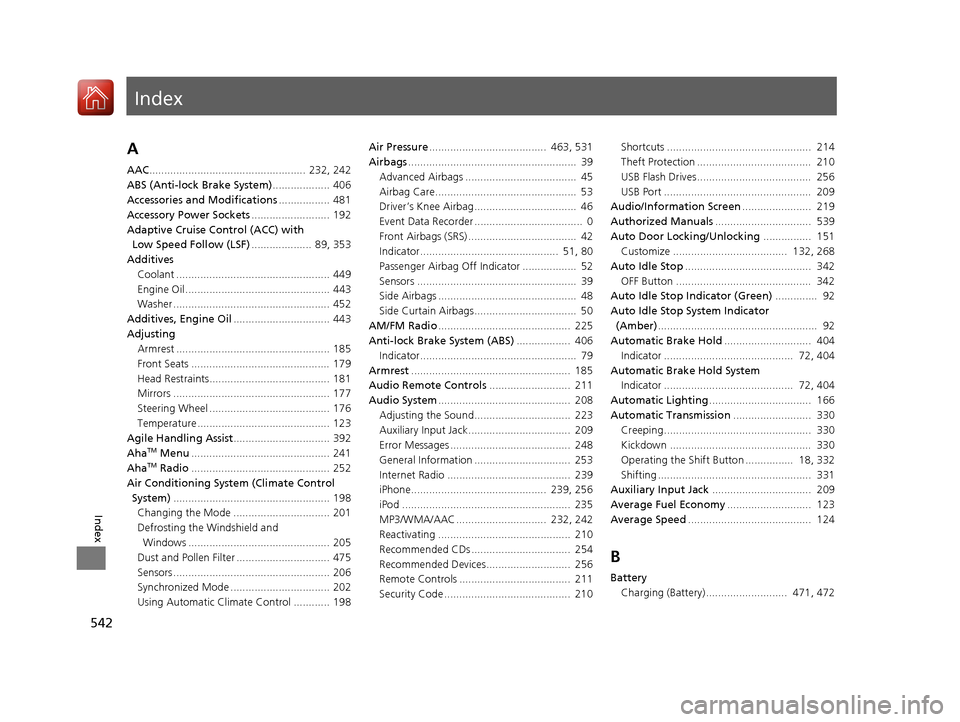

Index
Index
A
AAC.................................................... 232, 242
ABS (Anti-lock Brake System) ................... 406
Accessories and Modifications ................. 481
Accessory Power Sockets .......................... 192
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 89, 353
Additives
Coolant ................................................... 449
Engine Oil ................................................ 443
Washer .................................................... 452
Additives, Engine Oil ................................ 443
Adjusting Armrest ................................................... 185
Front Seats .............................................. 179
Head Restraints........................................ 181
Mirrors .................................................... 177
Steering Wheel ........................................ 176
Temperature ............................................ 123
Agile Handling Assist ................................ 392
Aha
TM Menu .............................................. 241
AhaTM Radio .............................................. 252
Air Conditioning System (Climate Control System) .................................................... 198
Changing the Mode ................................ 201
Defrosting the Windshield and Windows ............................................... 205
Dust and Pollen Filter ............................... 475
Sensors .................................................... 206
Synchronized Mode ................................. 202
Using Automatic Climate Control ............ 198 Air Pressure
....................................... 463, 531
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care............................................... 53
Driver’s Knee Airbag.................................. 46
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 51, 80
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 39
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
AM/FM Radio ............................................ 225
Anti-lock Brake System (ABS) .................. 406
Indicator.................................................... 79
Armrest ..................................................... 185
Audio Remote Controls ........................... 211
Audio System ............................................ 208
Adjusting the Sound................................ 223
Auxiliary Input Jack.................................. 209
Error Messages ........................................ 248
General Information ................................ 253
Internet Radio ......................................... 239
iPhone............................................. 239, 256
iPod ........................................................ 235
MP3/WMA/AAC .............................. 232, 242
Reactivating ............................................ 210
Recommended CDs ................................. 254
Recommended Devices............................ 256
Remote Controls ..................................... 211
Security Code .......................................... 210 Shortcuts ................................................ 214
Theft Protection ...................................... 210
USB Flash Drives...................................... 256
USB Port ................................................. 209
Audio/Information Screen ....................... 219
Authorized Manuals ................................ 539
Auto Door Locking/Unlocking ................ 151
Customize ...................................... 132, 268
Auto Idle Stop .......................................... 342
OFF Button ............................................. 342
Auto Idle Stop Indicator (Green) .............. 92
Auto Idle Stop System Indicator (Amber) ..................................................... 92
Automatic Brake Hold ............................. 404
Indicator ........................................... 72, 404
Automatic Brake Hold System Indicator ........................................... 72, 404
Automatic Lighting .................................. 166
Automatic Transmission .......................... 330
Creeping................................................. 330
Kickdown ............................................... 330
Operating the Shift Button ................ 18, 332
Shifting ................................................... 331
Auxiliary Input Jack ................................. 209
Average Fuel Economy ............................ 123
Average Speed ......................................... 124
B
Battery
Charging (Battery)........................... 471, 472
17 ACURA TLX-31TZ36200.book 542 ページ ２０１６年６月１０日　金曜日　午後６時３９分

543
Index
Charging System Indicator ................ 74, 514
Jump Starting ......................................... 507
Maintenance (Checking the Battery) ....... 471
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 191
Blind Spot Information (BSI) System ....... 393
Bluetooth ® Audio ..................................... 245
Bluetooth ® HandsFreeLink ®.................... 278
Booster Seats (For Children) ...................... 65
Brake System ............................................ 400
Anti-lock Brake System (ABS) .................. 406
Automatic Brake Hold ............................. 404
Brake Assist System................................. 407
Fluid ....................................................... 452
Foot Brake .............................................. 403
Parking Brake.......................................... 400
Brake System (Amber)
Indicator ................................................... 73
Brake System (Red)
Indicator ........................................... 70, 515
Brightness Control (Instrument Panel) ... 172
BSI (Blind Spot Information) System ....... 393
Bulb Replacement .................................... 453
Back-Up Lights ........................................ 458
Brake/Taillights........................................ 457
Brake/Taillights and Rear Side Marker
Lights .................................................... 457
Fog Lights ............................................... 453
Front Side Marker/Parking Lights ............. 453
Front Turn Signal Lights .......................... 454
Headlights .............................................. 453 High-Mount Brake Light .......................... 459
Puddle Lights ........................................... 459
Rear License Plate Lights .......................... 459
Rear Turn Signal Lights ............................ 456
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 453
Bulb Specifications ................................... 530
C
Car Wash Mode........................................ 334
Carbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 317, 319
CD Player ................................................... 232
Center Pocket ........................................... 190
Certification Label .................................... 532
Changing Bulbs ......................................... 453
Charging System Indicator ................. 74, 514
Child Safety ................................................. 54
Childproof Door Locks ............................. 150
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 150 Cleaning the Exterior
............................... 478
Cleaning the Interior ................................ 476
Client Service Information ....................... 540
Climate Control System ............................ 198
Changing the Mode ................................ 201
Defrosting the Windshield and Windows ............................................... 205
Dust and Pollen Filter............................... 475
Sensors ................................................... 206
Synchronized Mode................................. 202
Using Automatic Climate Control ............ 198
Clock .......................................................... 138
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 408
Coat Hooks ............................................... 193
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 408
Compact Spare Tire (Optional) ........ 497, 531
Compass .................................................... 312
Console Compartment ............................. 189
Controls ..................................................... 137
Coolant (Engine) ...................................... 449
Adding to the Radiator ............................ 450
Adding to the Reserve Tank..................... 449
Overheating ............................................ 512
Creeping (Automatic Transmission) ........ 330
Creeping (Dual Clutch Transmission) ...... 330
Cross Traffic Monitor ............................... 423
Cruise Control ........................................... 348
Indicator.................................................... 84
Cup Holders .............................................. 191
17 ACURA TLX-31TZ36200.book 543 ページ ２０１６年６月１０日　金曜日　午後６時３９分

544
Index
Customized Features........................ 126, 257
D
Daytime Running Lights ........................... 168
Dead Battery ............................................. 507
Defrosting the Windshield and
Windows .................................................. 205
Devices that Emit Radio Waves ................ 533
Dimming
Headlights ............................................... 165
Rearview Mirror ....................................... 177
Dipstick (Engine Oil) ................................. 444
Directional Signals (Turn Signal) .............. 164
Door Mirrors ............................................. 178
Doors ......................................................... 139
Auto Door Locking .................................. 151
Auto Door Unlocking ............................... 151
Door Open Indicator ............................ 31, 81
Door Open Message ................................ 102
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside ............................................... 13, 148
Locking/Unlocking the Doors from the
Outside .................................................. 142
Lockout Prevention System ...................... 146
DOT Tire Quality Grading ........................ 465
Driver’s Knee Airbag .................................. 46
Driving ....................................................... 315
Automatic Transmission ........................... 330
Braking .................................................... 400 Cruise Control ......................................... 348
Dual Clutch Transmission ........................ 330
Shifting Gear ................................... 331, 338
Starting the Engine.................................. 322
Driving Position Memory System ............ 174
Dual Clutch Transmission ......................... 330
Creeping ................................................. 330
Fluid ........................................................ 451
Kickdown ................................................ 330
Operating the Shift Lever................... 20, 339
Shift Lever Does Not Move ...................... 511
Shifting ................................................... 338
Dust and Pollen Filter ............................... 475
E
ECON (Econ mode) Indicator ..................... 88
Elapsed Time ............................................. 124
Electric Parking Brake Indicator.................................................... 71
Electric Parking Brake System
Indicator............................................ 71, 517
Electric Power Steering (EPS) System Indicator............................................ 80, 516
Electronic Stability Control (ESC) ............. 390
Emergency ................................................ 525
Emissions Testing (Readiness Codes) ....... 535
Engine ....................................................... 532
Coolant ................................................... 449
Jump Starting .......................................... 507
Oil ........................................................... 443 Remote Engine Start ............................... 325
Starting................................................... 322
Engine Coolant ........................................ 449
Adding to the Radiator ........................... 450
Adding to the Reserve Tank .................... 449
Overheating ............................................ 512
Temperature Gauge ................................ 117
Engine Oil ................................................. 443
Adding ................................................... 446
Checking ................................................ 444
Displaying Oil Life ................................... 436
Low Oil Pressure Indicator ................. 70, 514
Recommended Engine Oil ....................... 443
ENGINE START/STOP Button .................... 161
e-pretensioners .......................................... 34
EPS (Electric Power Steering) System ........ 80
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) .......................... 478
Exterior Mirrors ........................................ 178
F
FCW (Forward Collision Warning) .......... 367
Features .................................................... 207
Filters Dust and Pollen....................................... 475
Oil .......................................................... 447
Flat Tire ..................................................... 485
Floor Mats ................................................ 477
Fluids
Automatic Transmission .......................... 451
17 ACURA TLX-31TZ36200.book 544 ページ ２０１６年６月１０日　金曜日　午後６時３９分
