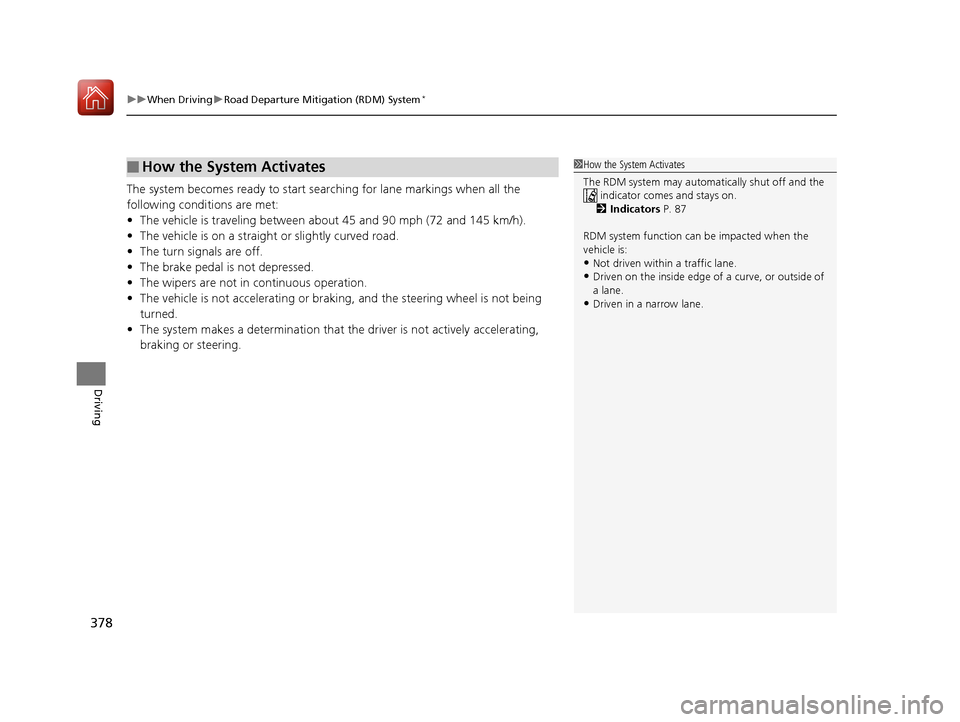

uuWhen Driving uRoad Departure Mitigation (RDM) System*
378
Driving
The system becomes ready to start sear ching for lane markings when all the
following conditions are met:
• The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
• The vehicle is not accelerating or braking, and the steering wheel is not being
turned.
• The system makes a determination that the driver is not actively accelerating,
braking or steering.
■How the System Activates1How the System Activates
The RDM system may automa tically shut off and the
indicator comes and stays on.
2 Indicators P. 87
RDM system function can be impacted when the
vehicle is:
•Not driven within a traffic lane.
•Driven on the inside edge of a curve, or outside of
a lane.
•Driven in a narrow lane.
17 ACURA TLX-31TZ36200.book 378 ページ ２０１６年６月１０日　金曜日　午後６時３９分

382

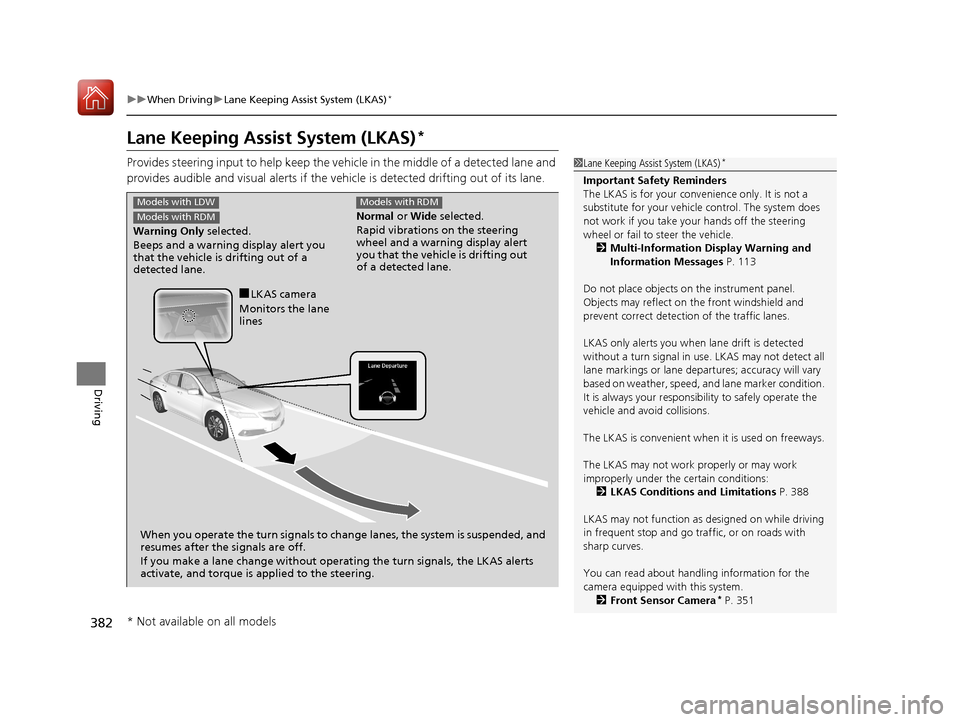

uuWhen Driving uLane Keeping Assist System (LKAS)*
Driving
Lane Keeping Assist System (LKAS)*
Provides steering input to help keep the vehicle in the middle of a detected lane and
provides audible and visual alerts if the vehicle is detected drifting out of its lane.1Lane Keeping Assist System (LKAS)*
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicl e control. The system does
not work if you take y our hands off the steering
wheel or fail to steer the vehicle.
2 Multi-Information Display Warning and
Information Messages P. 113
Do not place objects on the instrument panel.
Objects may reflect on th e front windshield and
prevent correct detectio n of the traffic lanes.
LKAS only alerts you when lane drift is detected
without a turn signal in use. LKAS may not detect all
lane markings or lane departures; a ccuracy will vary
based on weather, speed, an d lane marker condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.
The LKAS is convenient when it is used on freeways.
The LKAS may not work properly or may work
improperly under the certain conditions: 2 LKAS Conditions and Limitations P. 388
LKAS may not function as designed on while driving
in frequent stop and go traf fic, or on roads with
sharp curves.
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera
* P. 351
Normal or Wide selected.
Rapid vibrations on the steering
wheel and a warning display alert
you that the vehicle is drifting out
of a detected lane.
Models with RDM
Warning Only selected.
Beeps and a warning display alert you
that the vehicle is drifting out of a
detected lane.
Models with LDW
Models with RDM
When you operate the turn signals to chan ge lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operat ing the turn signals, the LKAS alerts
activate, and torque is applied to the steering.
■LKAS camera
Monitors the lane
lines
* Not available on all models
17 ACURA TLX-31TZ36200.book 382 ページ ２０１６年６月１０日　金曜日　午後６時３９分

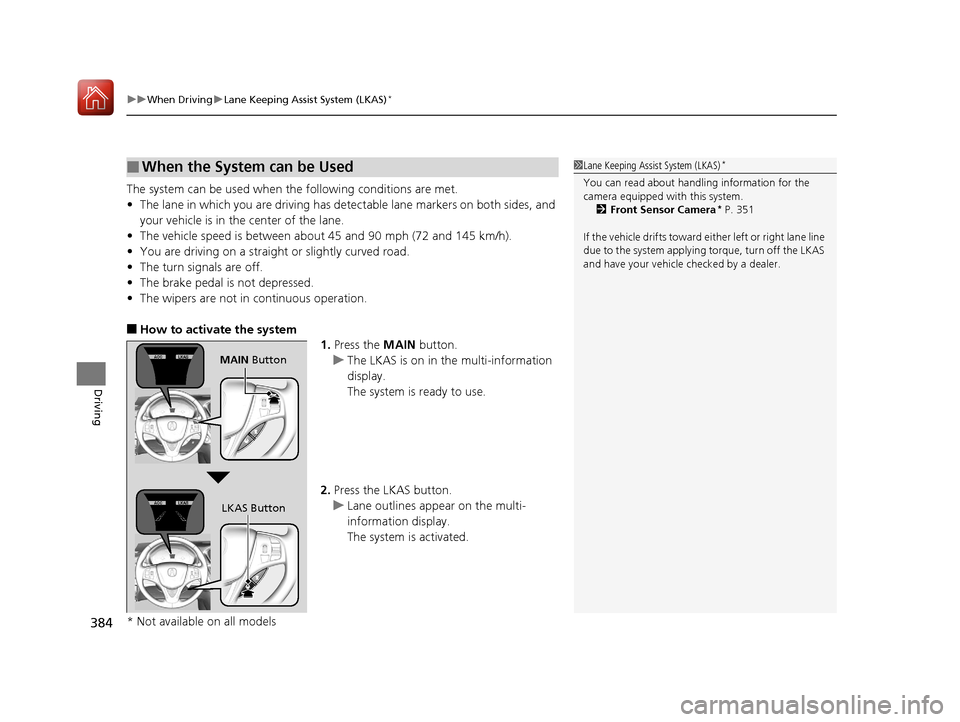

uuWhen Driving uLane Keeping Assist System (LKAS)*
384
Driving
The system can be used when the following conditions are met.
• The lane in which you are driving has dete ctable lane markers on both sides, and
your vehicle is in the center of the lane.
• The vehicle speed is be tween about 45 and 90 mph (72 and 145 km/h).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
■How to activate the system
1.Press the MAIN button.
u The LKAS is on in the multi-information
display.
The system is ready to use.
2. Press the LKAS button.
u Lane outlines appear on the multi-
information display.
The system is activated.
■When the System can be Used1Lane Keeping Assist System (LKAS)*
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera
* P. 351
If the vehicle drifts toward ei th e r l ef t o r r ight lane line
due to the system applying torque, turn off the LKAS
and have your vehicle checked by a dealer.
MAIN Button
LKAS Button
* Not available on all models
17 ACURA TLX-31TZ36200.book 384 ページ ２０１６年６月１０日　金曜日　午後６時３９分

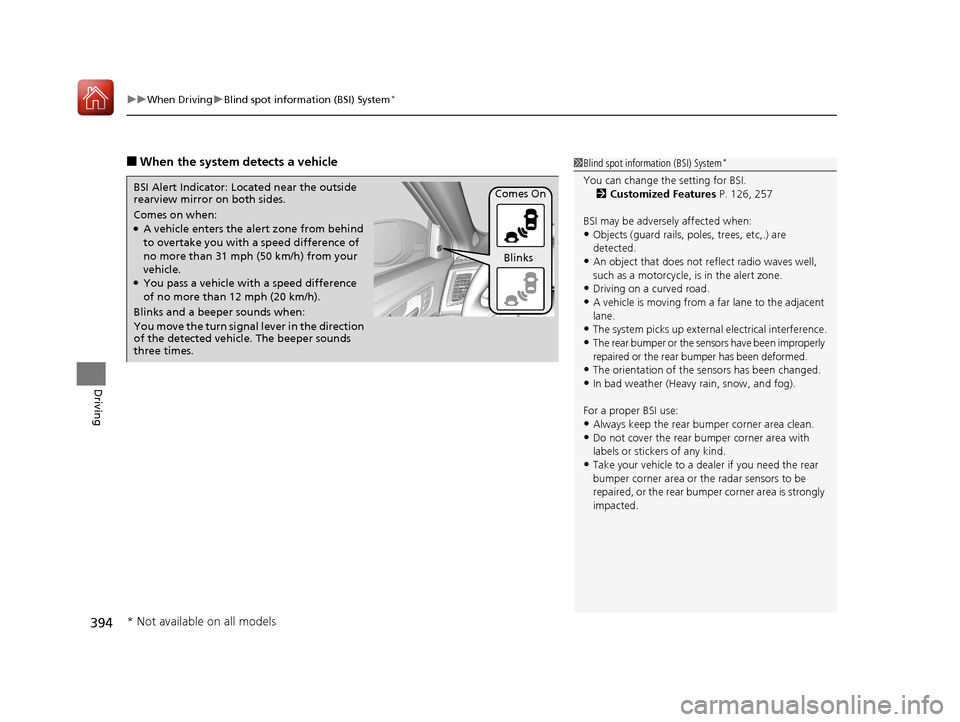

uuWhen Driving uBlind spot information (BSI) System*
394
Driving
■When the system detects a vehicle1Blind spot inform ation (BSI) System*
You can change the setting for BSI.
2 Customized Features P. 126, 257
BSI may be adversel y affected when:
•Objects (guard rails, poles, trees, etc,.) are
detected.
•An object that does not re flect radio waves well,
such as a motorcycle, is in the alert zone.
•Driving on a curved road.
•A vehicle is moving from a far lane to the adjacent
lane.
•The system picks up external electrical interference.
•The rear bumper or the sens ors have been improperly
repaired or the rear bu mper has been deformed.
•The orientation of the sensors has been changed.
•In bad weather (Heavy rain, snow, and fog).
For a proper BSI use:
•Always keep the rear bumper corner area clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
•Take your vehicle to a dealer if you need the rear
bumper corner area or th e radar sensors to be
repaired, or the rear bumper corner area is strongly
impacted.
Comes on when:●A vehicle enters the ale rt zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
●You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
BSI Alert Indicator: Located near the outside
rearview mirror on both sides.
Blinks and a beeper sounds when:
You move the turn signal
lever in the direction
of the detected vehicle. The beeper sounds
three times. Comes On
Blinks
* Not available on all models
17 ACURA TLX-31TZ36200.book 394 ページ ２０１６年６月１０日　金曜日　午後６時３９分

453
Maintenance

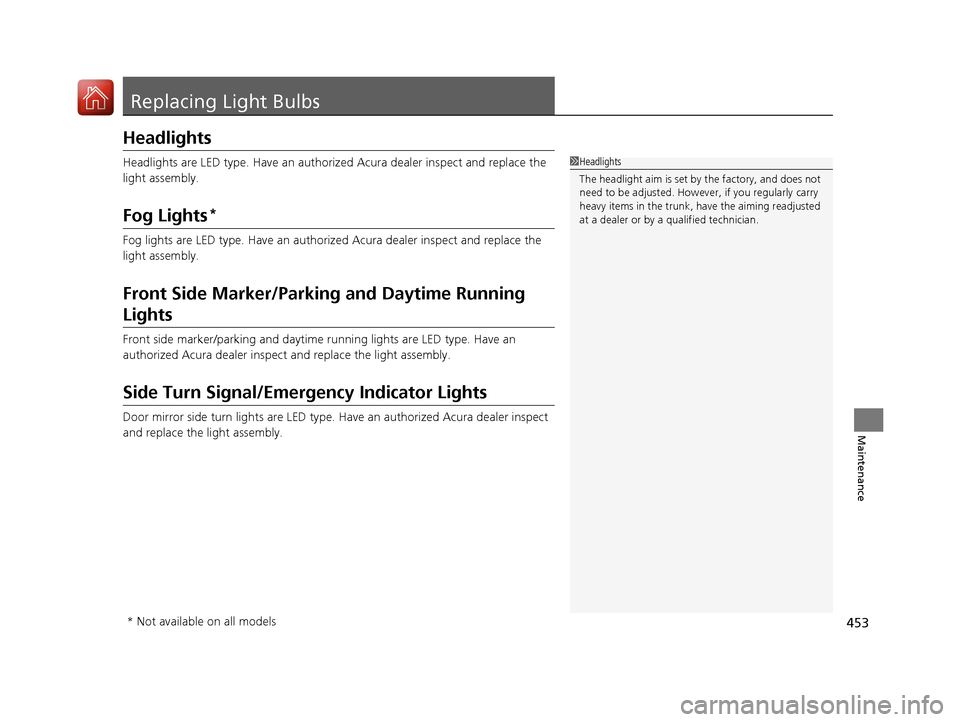

Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Front Side Marker/Parking and Daytime Running
Lights
Front side marker/parking and daytime running lights are LED type. Have an
authorized Acura deal er inspect and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
17 ACURA TLX-31TZ36200.book 453 ページ ２０１６年６月１０日　金曜日　午後６時３９分

454
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance

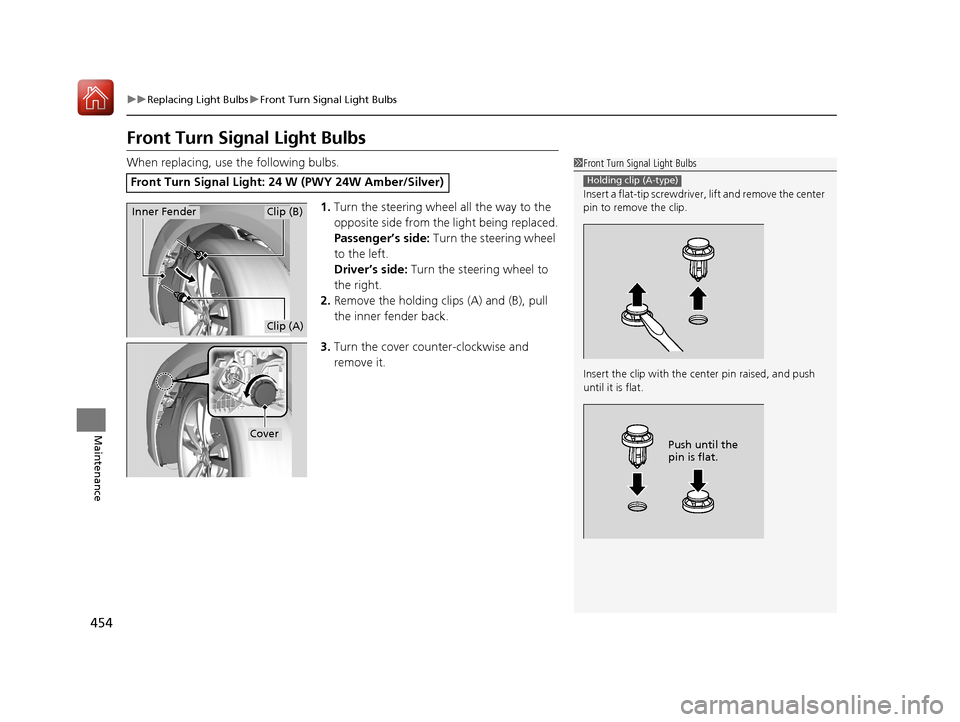

Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger’s side: Turn the steering wheel
to the left.
Driver’s side: Turn the steering wheel to
the right.
2. Remove the holding clips (A) and (B), pull
the inner fender back.
3. Turn the cover counter-clockwise and
remove it.
Front Turn Signal Light: 24 W (PWY 24W Amber/Silver)
1Front Turn Signal Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Holding clip (A-type)
Push until the
pin is flat.
Inner FenderClip (B)
Clip (A)
Cover
17 ACURA TLX-31TZ36200.book 454 ページ ２０１６年６月１０日　金曜日　午後６時３９分

455
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance

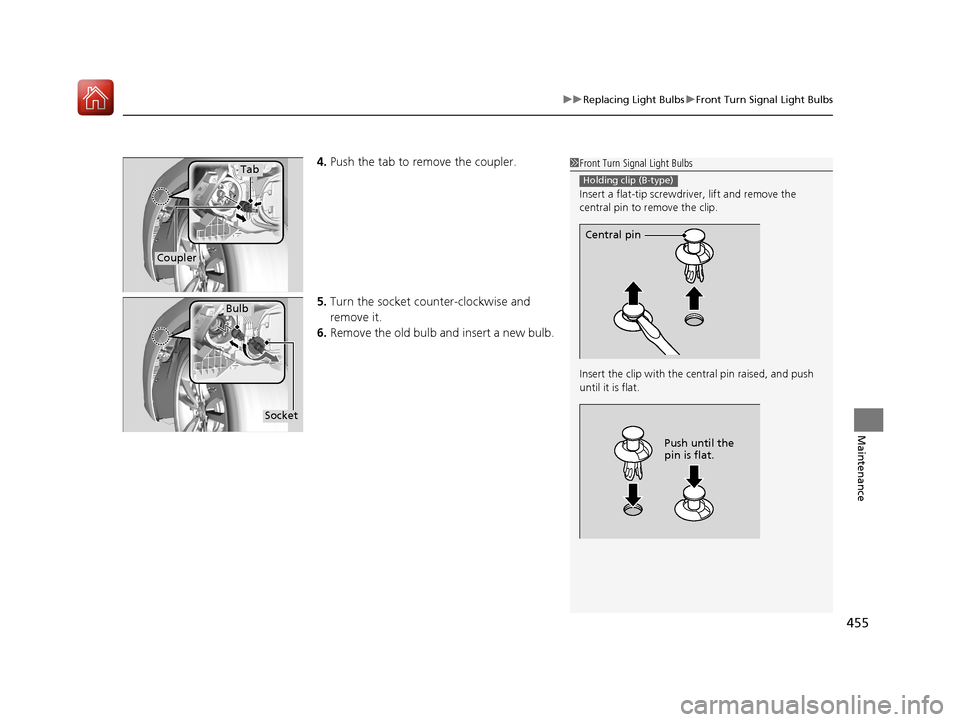

4. Push the tab to remove the coupler.
5. Turn the socket counter-clockwise and
remove it.
6. Remove the old bulb and insert a new bulb.1Front Turn Signal Light Bulbs
Insert a flat-tip screwdriver, lift and remove the
central pin to remove the clip.
Insert the clip with the central pin raised, and push
until it is flat.
Holding clip (B-type)
Central pin
Push until the
pin is flat.
Tab
Coupler
Bulb
Socket
17 ACURA TLX-31TZ36200.book 455 ページ ２０１６年６月１０日　金曜日　午後６時３９分

456
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the covers.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Remove the mounting bolts.
3. Pull the light assembly out of the rear pillar.
Rear Turn Signal Light: 21 W
Cover
Bolt
17 ACURA TLX-31TZ36200.book 456 ページ ２０１６年６月１０日　金曜日　午後６時３９分

530
Information

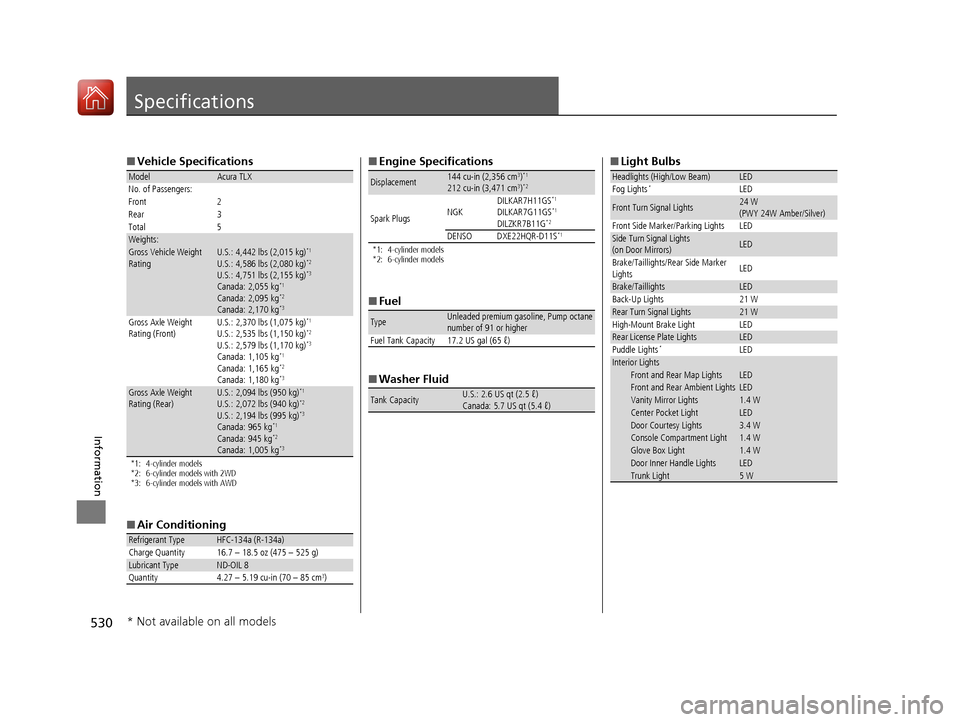

Specifications
■Vehicle Specifications
*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD
■Air Conditioning
ModelAcura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,442 lbs (2,015 kg)*1
U.S.: 4,586 lbs (2,080 kg)*2
U.S.: 4,751 lbs (2,155 kg)*3
Canada: 2,055 kg*1
Canada: 2,095 kg*2
Canada: 2,170 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,370 lbs (1,075 kg)*1
U.S.: 2,535 lbs (1,150 kg)*2
U.S.: 2,579 lbs (1,170 kg)*3
Canada: 1,105 kg*1
Canada: 1,165 kg*2
Canada: 1,180 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,094 lbs (950 kg)*1
U.S.: 2,072 lbs (940 kg)*2
U.S.: 2,194 lbs (995 kg)*3
Canada: 965 kg*1
Canada: 945 kg*2
Canada: 1,005 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.7 US qt (5.4 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LED
Front Turn Signal Lights24 W
(PWY 24W Amber/Silver)
Front Side Marker/Parking Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Pocket LightLEDDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
17 ACURA TLX-31TZ36200.book 530 ページ ２０１６年６月１０日　金曜日　午後６時３９分

543
Index
Charging System Indicator ................ 74, 514
Jump Starting ......................................... 507
Maintenance (Checking the Battery) ....... 471
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 191
Blind Spot Information (BSI) System ....... 393
Bluetooth ® Audio ..................................... 245
Bluetooth ® HandsFreeLink ®.................... 278
Booster Seats (For Children) ...................... 65
Brake System ............................................ 400
Anti-lock Brake System (ABS) .................. 406
Automatic Brake Hold ............................. 404
Brake Assist System................................. 407
Fluid ....................................................... 452
Foot Brake .............................................. 403
Parking Brake.......................................... 400
Brake System (Amber)
Indicator ................................................... 73
Brake System (Red)
Indicator ........................................... 70, 515
Brightness Control (Instrument Panel) ... 172
BSI (Blind Spot Information) System ....... 393
Bulb Replacement .................................... 453
Back-Up Lights ........................................ 458
Brake/Taillights........................................ 457
Brake/Taillights and Rear Side Marker
Lights .................................................... 457
Fog Lights ............................................... 453
Front Side Marker/Parking Lights ............. 453
Front Turn Signal Lights .......................... 454
Headlights .............................................. 453 High-Mount Brake Light .......................... 459
Puddle Lights ........................................... 459
Rear License Plate Lights .......................... 459
Rear Turn Signal Lights ............................ 456
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 453
Bulb Specifications ................................... 530
C
Car Wash Mode........................................ 334
Carbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 317, 319
CD Player ................................................... 232
Center Pocket ........................................... 190
Certification Label .................................... 532
Changing Bulbs ......................................... 453
Charging System Indicator ................. 74, 514
Child Safety ................................................. 54
Childproof Door Locks ............................. 150
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 150 Cleaning the Exterior
............................... 478
Cleaning the Interior ................................ 476
Client Service Information ....................... 540
Climate Control System ............................ 198
Changing the Mode ................................ 201
Defrosting the Windshield and Windows ............................................... 205
Dust and Pollen Filter............................... 475
Sensors ................................................... 206
Synchronized Mode................................. 202
Using Automatic Climate Control ............ 198
Clock .......................................................... 138
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 408
Coat Hooks ............................................... 193
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 408
Compact Spare Tire (Optional) ........ 497, 531
Compass .................................................... 312
Console Compartment ............................. 189
Controls ..................................................... 137
Coolant (Engine) ...................................... 449
Adding to the Radiator ............................ 450
Adding to the Reserve Tank..................... 449
Overheating ............................................ 512
Creeping (Automatic Transmission) ........ 330
Creeping (Dual Clutch Transmission) ...... 330
Cross Traffic Monitor ............................... 423
Cruise Control ........................................... 348
Indicator.................................................... 84
Cup Holders .............................................. 191
17 ACURA TLX-31TZ36200.book 543 ページ ２０１６年６月１０日　金曜日　午後６時３９分
