Page 24 of 553

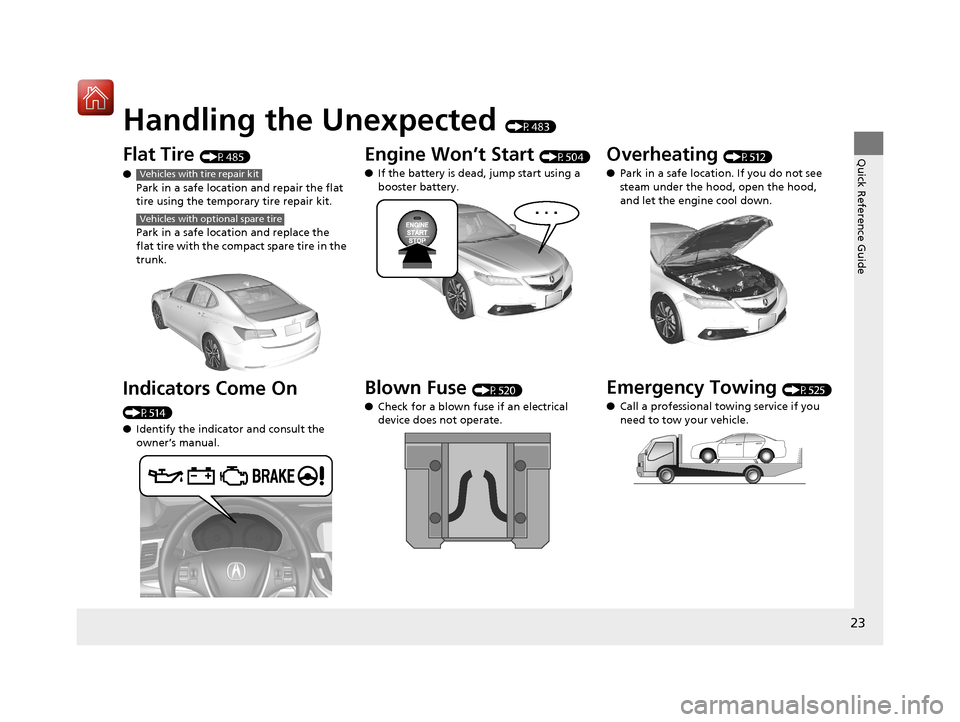

Quick Reference Guide
23
Handling the Unexpected (P483)
Flat Tire (P485)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P514)
● Identify the indica tor and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with optional spare tire
Engine Won’t Start (P504)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P520)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P512)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P525)
● Call a professional towing service if you
need to tow your vehicle.
17 ACURA TLX-31TZ36200.book 23 ページ 2016年6月10日 金曜日 午後6時39分
Page 97 of 553

96

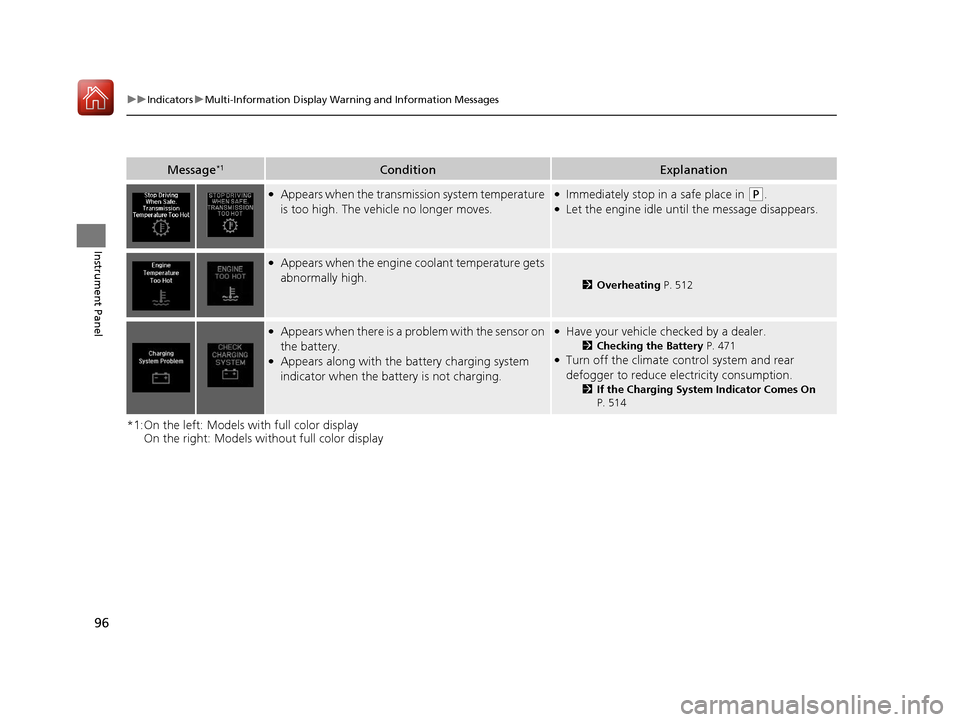

uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the transmission system temperature
is too high. The vehicle no longer moves.●Immediately stop in a safe place in (P.●Let the engine idle until the message disappears.
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 512
●Appears when there is a pr oblem with the sensor on
the battery.
●Appears along with the battery charging system
indicator when the batte ry is not charging.
●Have your vehicle checked by a dealer.
2Checking the Battery P. 471●Turn off the climate control system and rear
defogger to reduce electricity consumption.
2If the Charging System Indicator Comes On
P. 514
17 ACURA TLX-31TZ36200.book 96 ページ 2016年6月10日 金曜日 午後6時39分
Page 118 of 553

117

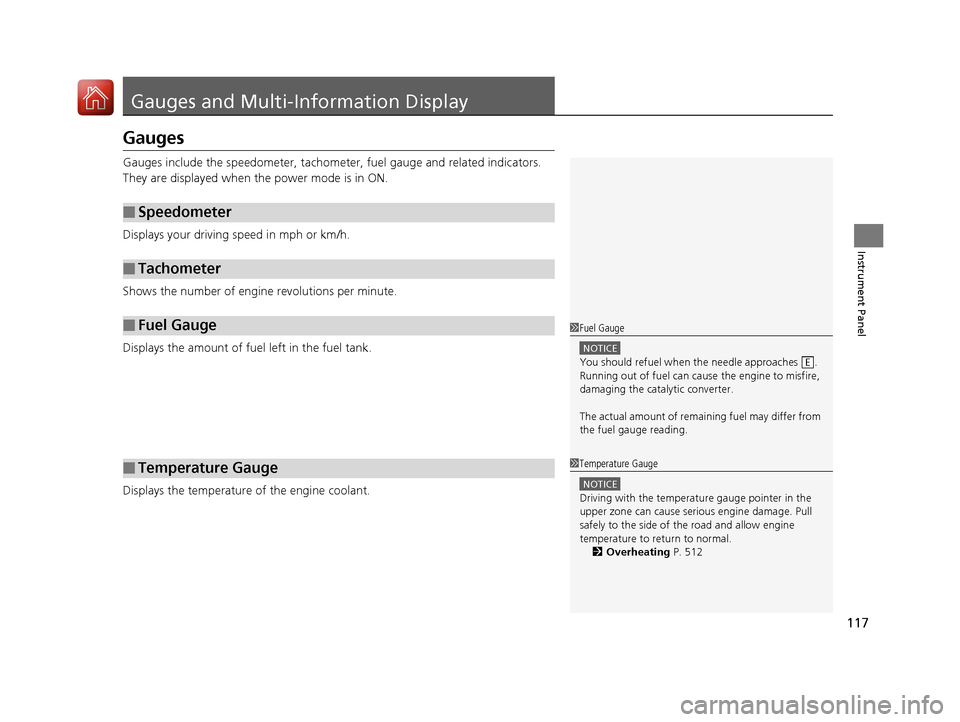

Instrument Panel
Gauges and Multi-Information Display
Gauges
Gauges include the speedometer, tachometer, fuel gauge and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 512
17 ACURA TLX-31TZ36200.book 117 ページ 2016年6月10日 金曜日 午後6時39分
Page 193 of 553

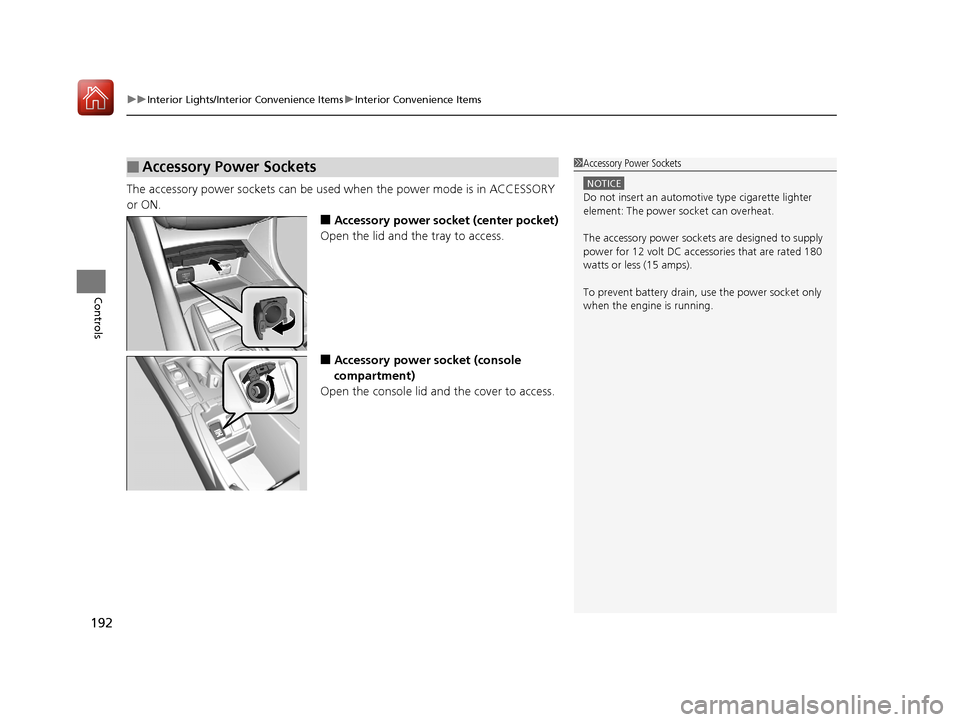

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
192
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (center pocket)
Open the lid and the tray to access.
■Accessory power socket (console
compartment)
Open the console lid and the cover to access.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element: The power socket can overheat.
The accessory power socket s are designed to supply
power for 12 volt DC access ories that are rated 180
watts or less (15 amps).
To prevent battery drain, use the power socket only
when the engine is running.
17 ACURA TLX-31TZ36200.book 192 ページ 2016年6月10日 金曜日 午後6時39分
Page 484 of 553

483

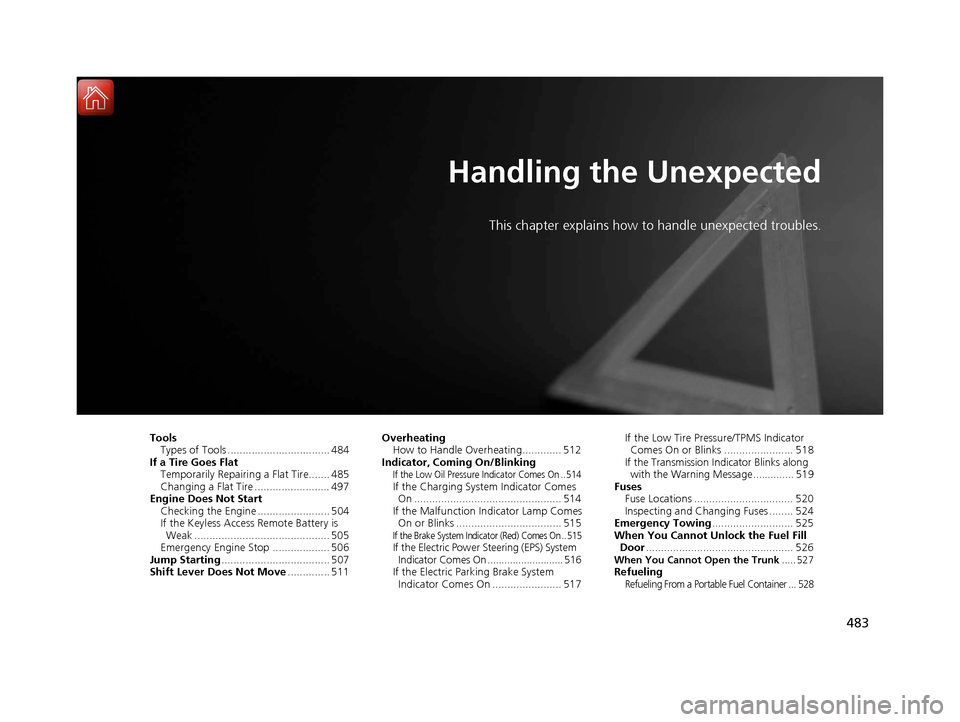

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 484
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 485
Changing a Flat Tire ......................... 497
Engine Does Not Start Checking the Engine ........................ 504
If the Keyless Access Remote Battery is Weak ............................................. 505
Emergency Engine Stop ................... 506
Jump Starting .................................... 507
Shift Lever Does Not Move .............. 511Overheating
How to Handle Overheating............. 512
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On .. 514If the Charging System Indicator Comes On ................................................. 514
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 515
If the Brake System Indicator (Red) Comes On .. 515If the Electric Power Steering (EPS) System Indicator Comes On ........................... 516
If the Electric Parking Brake System Indicator Comes On ....................... 517 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 518
If the Transmission Indicator Blinks along with the Warning Message.............. 519
Fuses Fuse Locations ................................. 520
Inspecting and Changing Fuses ........ 524
Emergency Towing ........................... 525
When You Cannot Unlock the Fuel Fill Door ................................................. 526When You Cannot Open the Trunk ..... 527RefuelingRefueling From a Portable Fuel Container ... 528
17 ACURA TLX-31TZ36200.book 483 ページ 2016年6月10日 金曜日 午後6時39分
Page 490 of 553

Continued489

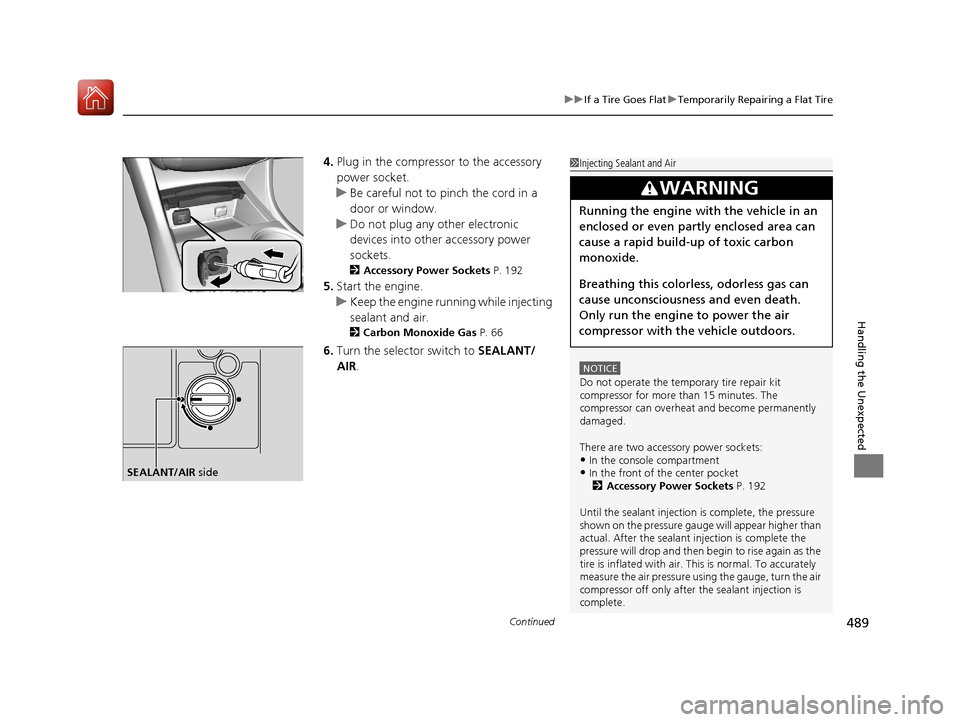

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 192
5.Start the engine.
u Keep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 66
6.Turn the selector switch to SEALANT/
AIR .
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
•In the console compartment•In the front of the center pocket 2 Accessory Power Sockets P. 192
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usi ng the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
SEALANT/AIR side
17 ACURA TLX-31TZ36200.book 489 ページ 2016年6月10日 金曜日 午後6時39分
Page 513 of 553

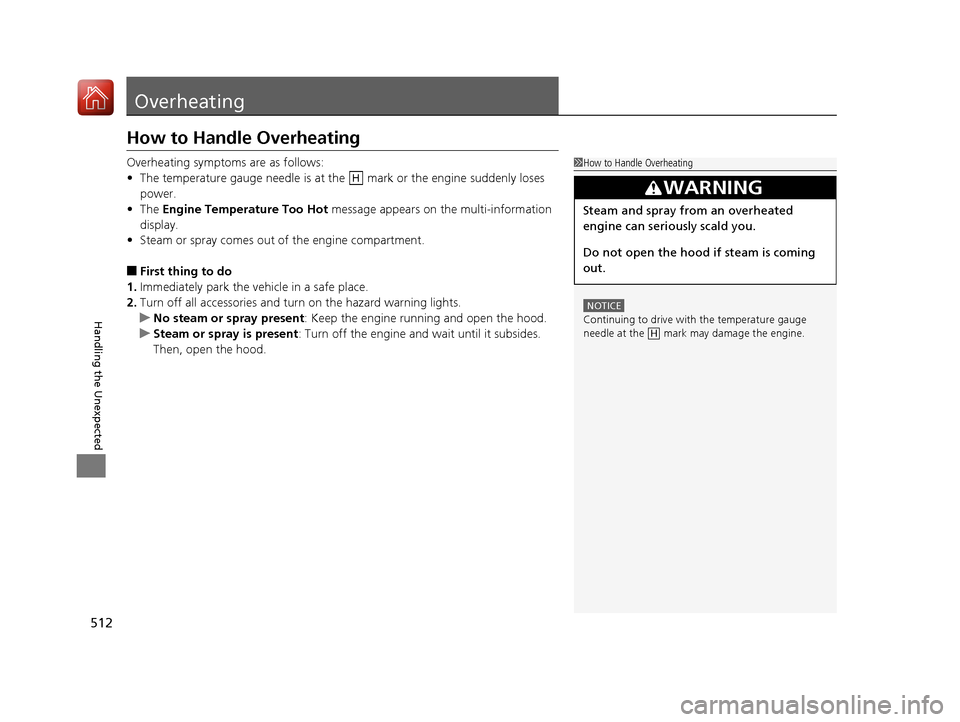

512
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge needle is at the mark or the engine suddenly loses
power.
• The Engine Temperature Too Hot message appears on the multi-information
display.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present : Keep the engine running and open the hood.
u Steam or spray is present : Turn off the engine and wait until it subsides.
Then, open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
needle at the mark may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H
17 ACURA TLX-31TZ36200.book 512 ページ 2016年6月10日 金曜日 午後6時39分
Page 514 of 553

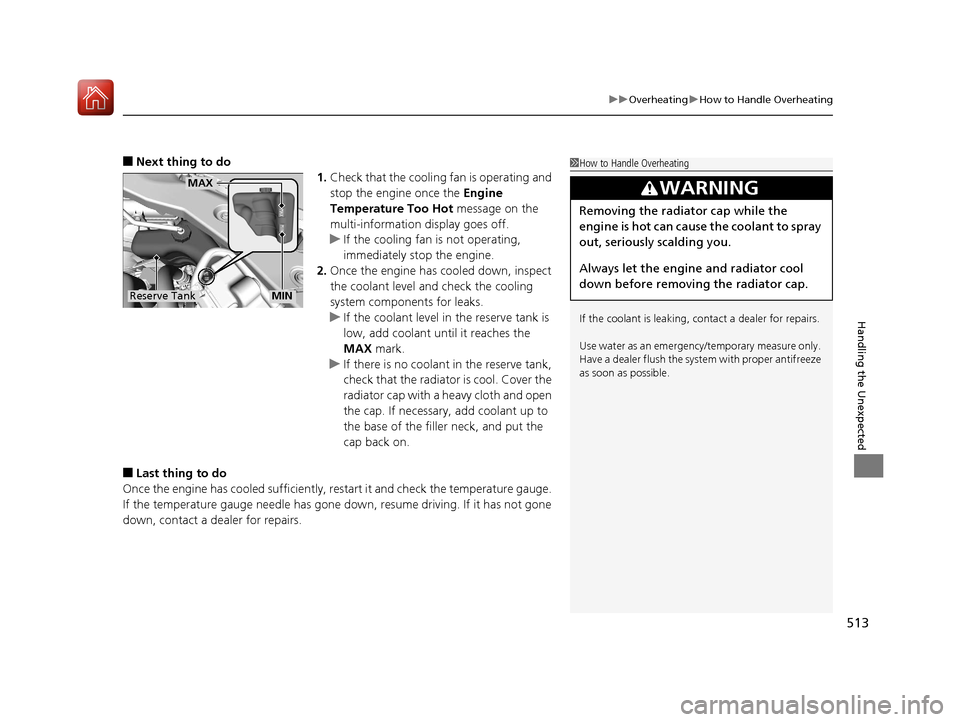

513
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the Engine
Temperature Too Hot message on the
multi-information display goes off.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge needle has gone dow n, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank
MAX
MIN
17 ACURA TLX-31TZ36200.book 513 ページ 2016年6月10日 金曜日 午後6時39分
Page 544 of 553

543

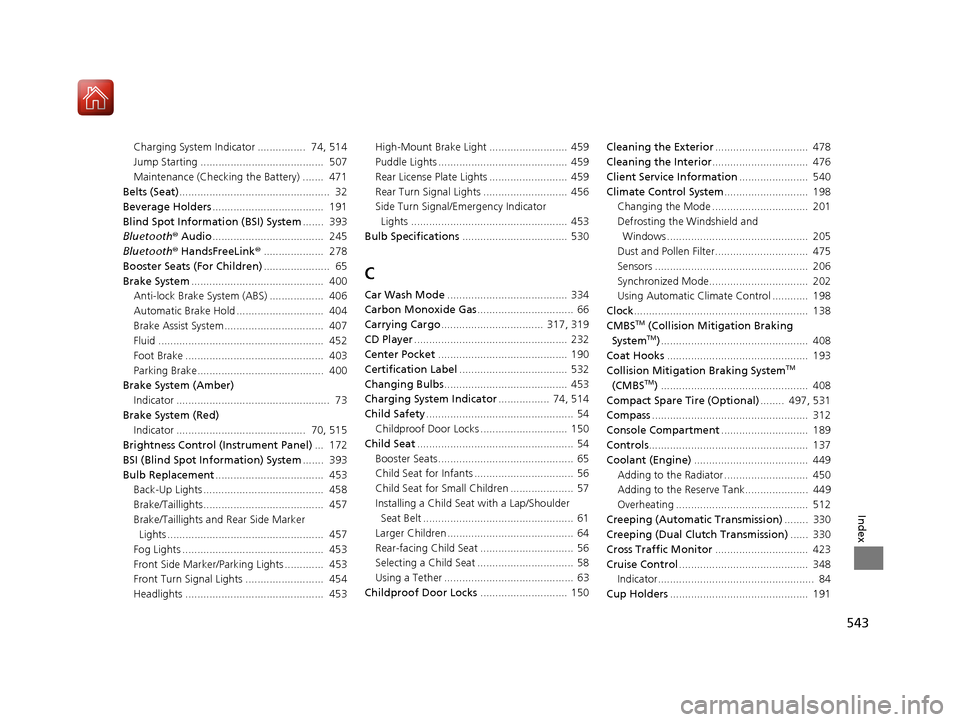

Index
Charging System Indicator ................ 74, 514
Jump Starting ......................................... 507
Maintenance (Checking the Battery) ....... 471
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 191
Blind Spot Information (BSI) System ....... 393
Bluetooth ® Audio ..................................... 245
Bluetooth ® HandsFreeLink ®.................... 278
Booster Seats (For Children) ...................... 65
Brake System ............................................ 400
Anti-lock Brake System (ABS) .................. 406
Automatic Brake Hold ............................. 404
Brake Assist System................................. 407
Fluid ....................................................... 452
Foot Brake .............................................. 403
Parking Brake.......................................... 400
Brake System (Amber)
Indicator ................................................... 73
Brake System (Red)
Indicator ........................................... 70, 515
Brightness Control (Instrument Panel) ... 172
BSI (Blind Spot Information) System ....... 393
Bulb Replacement .................................... 453
Back-Up Lights ........................................ 458
Brake/Taillights........................................ 457
Brake/Taillights and Rear Side Marker
Lights .................................................... 457
Fog Lights ............................................... 453
Front Side Marker/Parking Lights ............. 453
Front Turn Signal Lights .......................... 454
Headlights .............................................. 453 High-Mount Brake Light .......................... 459
Puddle Lights ........................................... 459
Rear License Plate Lights .......................... 459
Rear Turn Signal Lights ............................ 456
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 453
Bulb Specifications ................................... 530
C
Car Wash Mode........................................ 334
Carbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 317, 319
CD Player ................................................... 232
Center Pocket ........................................... 190
Certification Label .................................... 532
Changing Bulbs ......................................... 453
Charging System Indicator ................. 74, 514
Child Safety ................................................. 54
Childproof Door Locks ............................. 150
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 150 Cleaning the Exterior
............................... 478
Cleaning the Interior ................................ 476
Client Service Information ....................... 540
Climate Control System ............................ 198
Changing the Mode ................................ 201
Defrosting the Windshield and Windows ............................................... 205
Dust and Pollen Filter............................... 475
Sensors ................................................... 206
Synchronized Mode................................. 202
Using Automatic Climate Control ............ 198
Clock .......................................................... 138
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 408
Coat Hooks ............................................... 193
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 408
Compact Spare Tire (Optional) ........ 497, 531
Compass .................................................... 312
Console Compartment ............................. 189
Controls ..................................................... 137
Coolant (Engine) ...................................... 449
Adding to the Radiator ............................ 450
Adding to the Reserve Tank..................... 449
Overheating ............................................ 512
Creeping (Automatic Transmission) ........ 330
Creeping (Dual Clutch Transmission) ...... 330
Cross Traffic Monitor ............................... 423
Cruise Control ........................................... 348
Indicator.................................................... 84
Cup Holders .............................................. 191
17 ACURA TLX-31TZ36200.book 543 ページ 2016年6月10日 金曜日 午後6時39分
Page 545 of 553

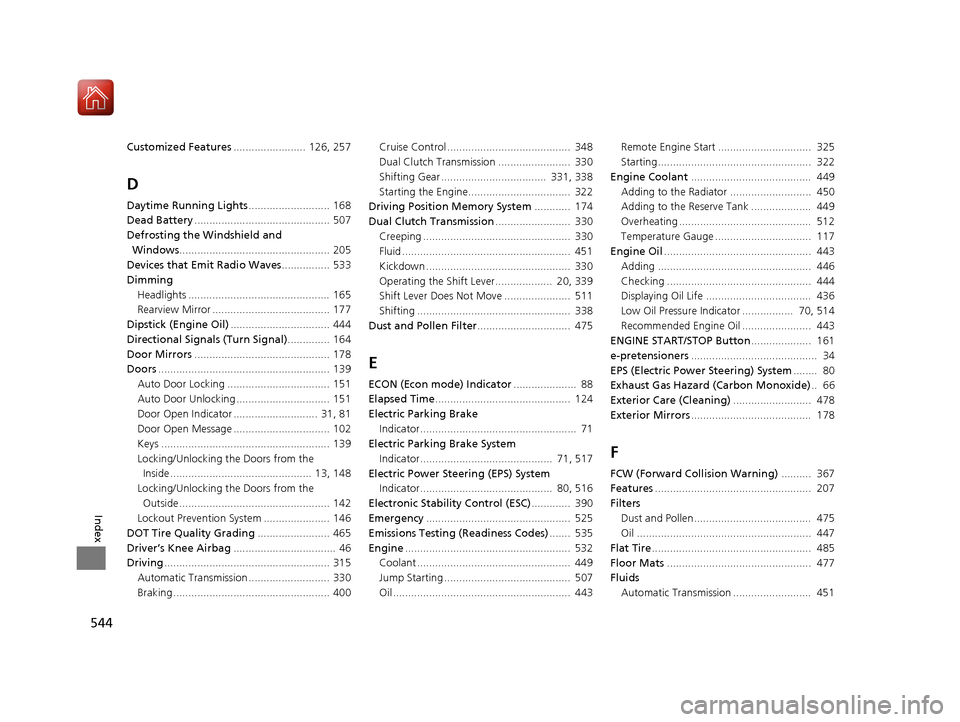

544
Index
Customized Features........................ 126, 257
D
Daytime Running Lights ........................... 168
Dead Battery ............................................. 507
Defrosting the Windshield and
Windows .................................................. 205
Devices that Emit Radio Waves ................ 533
Dimming
Headlights ............................................... 165
Rearview Mirror ....................................... 177
Dipstick (Engine Oil) ................................. 444
Directional Signals (Turn Signal) .............. 164
Door Mirrors ............................................. 178
Doors ......................................................... 139
Auto Door Locking .................................. 151
Auto Door Unlocking ............................... 151
Door Open Indicator ............................ 31, 81
Door Open Message ................................ 102
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside ............................................... 13, 148
Locking/Unlocking the Doors from the
Outside .................................................. 142
Lockout Prevention System ...................... 146
DOT Tire Quality Grading ........................ 465
Driver’s Knee Airbag .................................. 46
Driving ....................................................... 315
Automatic Transmission ........................... 330
Braking .................................................... 400 Cruise Control ......................................... 348
Dual Clutch Transmission ........................ 330
Shifting Gear ................................... 331, 338
Starting the Engine.................................. 322
Driving Position Memory System ............ 174
Dual Clutch Transmission ......................... 330
Creeping ................................................. 330
Fluid ........................................................ 451
Kickdown ................................................ 330
Operating the Shift Lever................... 20, 339
Shift Lever Does Not Move ...................... 511
Shifting ................................................... 338
Dust and Pollen Filter ............................... 475
E
ECON (Econ mode) Indicator ..................... 88
Elapsed Time ............................................. 124
Electric Parking Brake Indicator.................................................... 71
Electric Parking Brake System
Indicator............................................ 71, 517
Electric Power Steering (EPS) System Indicator............................................ 80, 516
Electronic Stability Control (ESC) ............. 390
Emergency ................................................ 525
Emissions Testing (Readiness Codes) ....... 535
Engine ....................................................... 532
Coolant ................................................... 449
Jump Starting .......................................... 507
Oil ........................................................... 443 Remote Engine Start ............................... 325
Starting................................................... 322
Engine Coolant ........................................ 449
Adding to the Radiator ........................... 450
Adding to the Reserve Tank .................... 449
Overheating ............................................ 512
Temperature Gauge ................................ 117
Engine Oil ................................................. 443
Adding ................................................... 446
Checking ................................................ 444
Displaying Oil Life ................................... 436
Low Oil Pressure Indicator ................. 70, 514
Recommended Engine Oil ....................... 443
ENGINE START/STOP Button .................... 161
e-pretensioners .......................................... 34
EPS (Electric Power Steering) System ........ 80
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) .......................... 478
Exterior Mirrors ........................................ 178
F
FCW (Forward Collision Warning) .......... 367
Features .................................................... 207
Filters Dust and Pollen....................................... 475
Oil .......................................................... 447
Flat Tire ..................................................... 485
Floor Mats ................................................ 477
Fluids
Automatic Transmission .......................... 451
17 ACURA TLX-31TZ36200.book 544 ページ 2016年6月10日 金曜日 午後6時39分
