Visual Index
6
Quick Reference Guide❙Power Window Switches (P158)
❙Driver’s Front Airbag (P42)
❙Driver’s Knee Airbag (P46)
❙Door Mirror Controls (P178)
❙Power Door Lock Master Switch (P150)
❙Accessory Power Socket (P192)
❙Auxiliary Input Jack (P209)
❙Accessory Power Socket (P192)
❙USB Port (P209)
❙Rearview Mirror (P177)
❙Hood Release Handle (P442)
❙Memory Buttons (P175)
❙SET Button (P175)
❙Glove Box (P188)
❙Passenger’s Front Airbag (P42)
❙Driver’s Side Interior Fuse Boxes (P522)
❙Electric Parking Brake Switch (P400)
❙Integrated Dynamics System Button
(P346)
❙Shift Button*
Electronic Gear Selector (P331)
❙Automatic Brake Hold Button
(P404)
❙Shift Lever*
Dual Clutch Transmission (P338)
❙Auto Idle Stop OFF Button* (P342)
17 ACURA TLX-31TZ36200.book 6 ページ ２０１６年６月１０日　金曜日　午後６時３９分

154

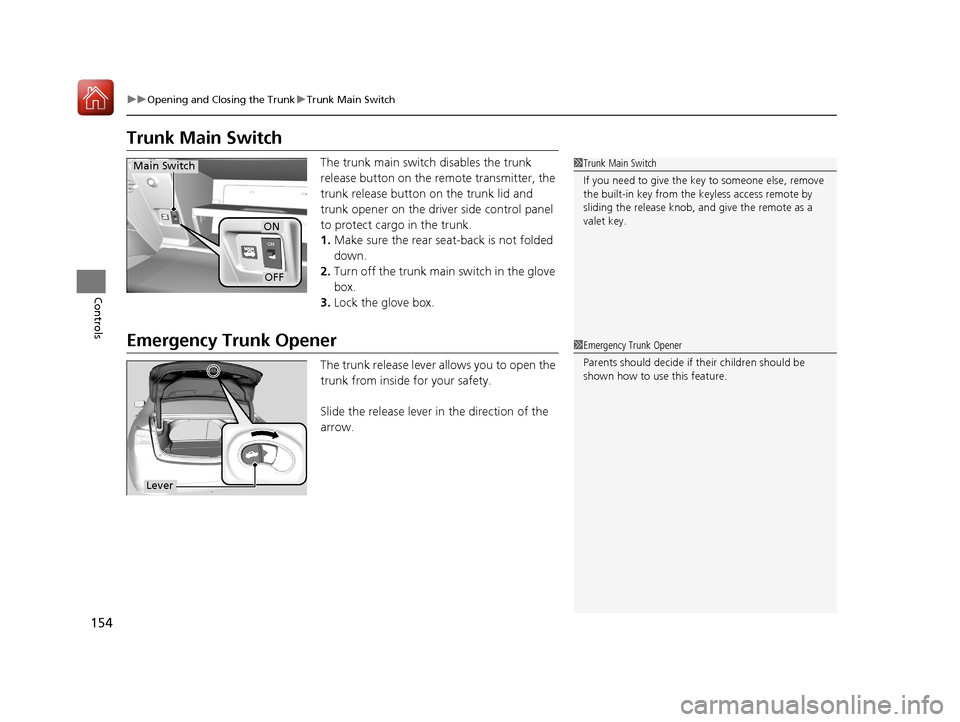

uuOpening and Closing the Trunk uTrunk Main Switch
Controls
Trunk Main Switch
The trunk main switch disables the trunk
release button on the remote transmitter, the
trunk release button on the trunk lid and
trunk opener on the driver side control panel
to protect cargo in the trunk.
1. Make sure the rear seat-back is not folded
down.
2. Turn off the trunk main switch in the glove
box.
3. Lock the glove box.
Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Trunk Main Switch
If you need to give the ke y to someone else, remove
the built-in key from the keyless access remote by
sliding the release knob, and give the remote as a
valet key.Main Switch
OFF
ON
1 Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
17 ACURA TLX-31TZ36200.book 154 ページ ２０１６年６月１０日　金曜日　午後６時３９分

163
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
keyless access remote is out of the vehicle. If
the buzzer continues even after the remote is
put back inside, place it to be within its
operational range.
■When the power mode is in ON
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from both inside and
outside the vehicle. A warning message on
the multi-information display notifies the
driver inside that the remote outside of the
vehicle.
■When the power mode is in
ACCESSORY
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from outside the
vehicle.
■Keyless Access Remote Reminder1 Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational range, and the driver’s door is
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the keyless access remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go of f. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational
range.
Models with full color display
Models without full color display
17 ACURA TLX-31TZ36200.book 163 ページ ２０１６年６月１０日　金曜日　午後６時３９分

188
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Press the button to open the glove box. You
can lock the glove box with the built-in key.
■Removable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
The removable shelf can be stored upside
down in the glove box.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
Release Button
To Lock
Tabs
Shelf
17 ACURA TLX-31TZ36200.book 188 ページ ２０１６年６月１０日　金曜日　午後６時３９分

530
Information
Specifications
■Vehicle Specifications
*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD
■Air Conditioning
ModelAcura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,442 lbs (2,015 kg)*1
U.S.: 4,586 lbs (2,080 kg)*2
U.S.: 4,751 lbs (2,155 kg)*3
Canada: 2,055 kg*1
Canada: 2,095 kg*2
Canada: 2,170 kg*3
Gross Axle Weight
Rating (Front)U.S.: 2,370 lbs (1,075 kg)*1
U.S.: 2,535 lbs (1,150 kg)*2
U.S.: 2,579 lbs (1,170 kg)*3
Canada: 1,105 kg*1
Canada: 1,165 kg*2
Canada: 1,180 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 2,094 lbs (950 kg)*1
U.S.: 2,072 lbs (940 kg)*2
U.S.: 2,194 lbs (995 kg)*3
Canada: 965 kg*1
Canada: 945 kg*2
Canada: 1,005 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.7 US qt (5.4 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LED
Front Turn Signal Lights24 W
(PWY 24W Amber/Silver)
Front Side Marker/Parking Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Pocket LightLEDDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
17 ACURA TLX-31TZ36200.book 530 ページ ２０１６年６月１０日　金曜日　午後６時３９分

545

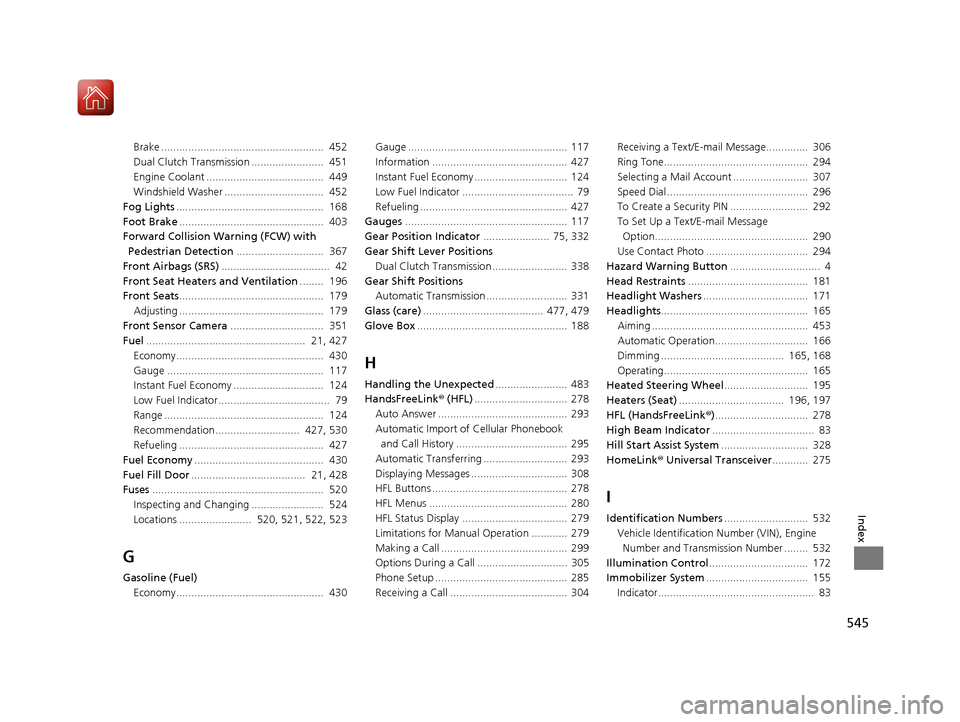

Index
Brake ...................................................... 452
Dual Clutch Transmission ........................ 451
Engine Coolant ....................................... 449
Windshield Washer ................................. 452
Fog Lights ................................................. 168
Foot Brake ................................................ 403
Forward Collision Warning (FCW) with Pedestrian Detection ............................. 367
Front Airbags (SRS) .................................... 42
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................................ 179
Adjusting ................................................ 179
Front Sensor Camera ............................... 351
Fuel ..................................................... 21, 427
Economy................................................. 430
Gauge .................................................... 117
Instant Fuel Economy .............................. 124
Low Fuel Indicator..................................... 79
Range ..................................................... 124
Recommendation............................ 427, 530
Refueling ................................................ 427
Fuel Economy ........................................... 430
Fuel Fill Door ...................................... 21, 428
Fuses ......................................................... 520
Inspecting and Changing ........................ 524
Locations ........................ 520, 521, 522, 523
G
Gasoline (Fuel)
Economy................................................. 430 Gauge ..................................................... 117
Information ............................................. 427
Instant Fuel Economy ............................... 124
Low Fuel Indicator ..................................... 79
Refueling ................................................. 427
Gauges ...................................................... 117
Gear Position Indicator ...................... 75, 332
Gear Shift Lever Positions
Dual Clutch Transmission ......................... 338
Gear Shift Positions Automatic Transmission ........................... 331
Glass (care) ........................................ 477, 479
Glove Box .................................................. 188
H
Handling the Unexpected ........................ 483
HandsFreeLink ® (HFL) ............................... 278
Auto Answer ........................................... 293
Automatic Import of Cellular Phonebook
and Call History ..................................... 295
Automatic Transferring ............................ 293
Displaying Messages ................................ 308
HFL Buttons ............................................. 278
HFL Menus .............................................. 280
HFL Status Display ................................... 279
Limitations for Manua l Operation ............ 279
Making a Call .......................................... 299
Options During a Call .............................. 305
Phone Setup ............................................ 285
Receiving a Call ....................................... 304 Receiving a Text/E-mail Message.............. 306
Ring Tone................................................ 294
Selecting a Mail Account ......................... 307
Speed Dial ............................................... 296
To Create a Security PIN .......................... 292
To Set Up a Text/E-mail Message
Option................................................... 290
Use Contact Photo .................................. 294
Hazard Warning Button .............................. 4
Head Restraints ........................................ 181
Headlight Washers ................................... 171
Headlights ................................................. 165
Aiming .................................................... 453
Automatic Operation............................... 166
Dimming ......................................... 165, 168
Operating................................................ 165
Heated Steering Wheel ............................ 195
Heaters (Seat) ................................... 196, 197
HFL (HandsFreeLink ®)............................... 278
High Beam Indicator .................................. 83
Hill Start Assist System ............................. 328
HomeLink ® Universal Transceiver ............ 275
I
Identification Numbers ............................ 532
Vehicle Identification Number (VIN), Engine
Number and Transmission Number ........ 532
Illumination Control ................................. 172
Immobilizer System .................................. 155
Indicator.................................................... 83
