lane assist Acura TLX 2017 Owner's Manual

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙System Indicators
(P70)
❙Gauges (P117)
❙Multi-Information
Display
(P118)
❙Steering Wheel Adjustments (P176)
❙ENGINE START/STOP Button (P161)
❙Hazard Warning Button
❙Rear Window Defogger/Heated Door
Mirror Button
(P173)
Canadian models
❙ (Vehicle Stability Assist (VSA®) System
OFF) Button
(P391)
❙Lane Departure Warning (LDW) Button* (P374)
❙Parking Sensor System Button* (P420)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button* (P411)
❙Headlight Washer Button* (P171)
❙Heated Windshield Button* (P173)
❙Road Departure Mitigation (RDM) Button*
(P379)
❙On Demand Multi-Use DisplayTM (P213)
❙Audio System (P208)
❙Climate Control System (P198)
❙Trunk Opener (P152)
❙Fuel Fill Door Release Button (P428)
Canadian models
❙Navigation System*
() See the Navigation System Manual
❙Audio/Information Screen (P219)
17 ACURA TLX-31TZ36200.book 4 ページ ２０１６年６月１０日　金曜日　午後６時３９分

5
Quick Reference Guide
❙Wipers/Washers (P169)
❙Headlights/Turn Signals (P164, 165)
❙Paddle Shifter (Shift down) (P337)
❙Paddle Shifter (Shift up) (P337)
❙Horn (Press an area around .)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 278)
❙Brightness Control (P172)
❙Cruise Control Buttons* (P348)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P353)
❙TRIP Button (P121, 123)
❙Distance Button* (P361)
❙Lane Keeping Assist System (LKAS)
Button* (P384)
❙Right Selector Wheel (P120, 126)
❙Heated Steering Wheel Button* (P195)
Canadian models
❙Audio Remote Controls (P211)
❙Fog Lights* (P168)
* Not available on all models
17 ACURA TLX-31TZ36200.book 5 ページ ２０１６年６月１０日　金曜日　午後６時３９分

11
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator Vehicle Stability Assist
(VSA®) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
System Indicators
System Message
Indicator
Gauges (P117)/Display (P118)/System Indicators (P70)
Low Tire Pressure/
TPMS Indicator
Keyless Access System
Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator SPORT
(Sport mode)
Indicator Blind Spot Information
(BSI) Indicator
*
Forward Collision Warning
Indicator*/Collision Mitigation
Braking SystemTM (CMBSTM)
Indicator*
Lane Departure Warning
Indicator*/Road Departure
Mitigation (RDM) Indicator*
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
Fog Light Indicator*
Temperature
Gauge Security
System Alarm
IndicatorFuel Gauge
Tachometer
Multi-Information Display
Speedometer
Gear Position Indicator
*/
Shift Lever Position
Indicator
*M (sequential mode)
Indicator/Sequential
Mode Gear Selection
IndicatorSystem Indicators
Lane Keeping Assist
System ( LKAS) Indicator*Adaptive Cruise Control
(ACC ) with Low Speed
Follow (LSF) Indicator
*
Models without
full color display
Anti-lock Brake System
( ABS ) Indicator
Seat Belt Reminder
Indicator CRUISE CONTROL
Indicator
*
Brake System
Indicator (Red) Supplemental Restraint
System Indicator
CRUISE MAIN
Indicator
*
Low Fuel Indicator Turn Signal and Hazard
Warning Indicators
Brake System
Indicator (Amber)
U.S.
Canada
U.S.
Canada
Door and Trunk Open
Indicator*
Precision All-Wheel
SteerTM (P-AWS ®)
Indicator*
ECONECON (Econ mode)
Indicator SH-AWD Indicator
*
Auto Idle Stop System
Indicator (Amber)*
Auto Idle Stop
Indicator (Green)*
* Not available on all models
17 ACURA TLX-31TZ36200.book 11 ページ ２０１６年６月１０日　金曜日　午後６時３９分

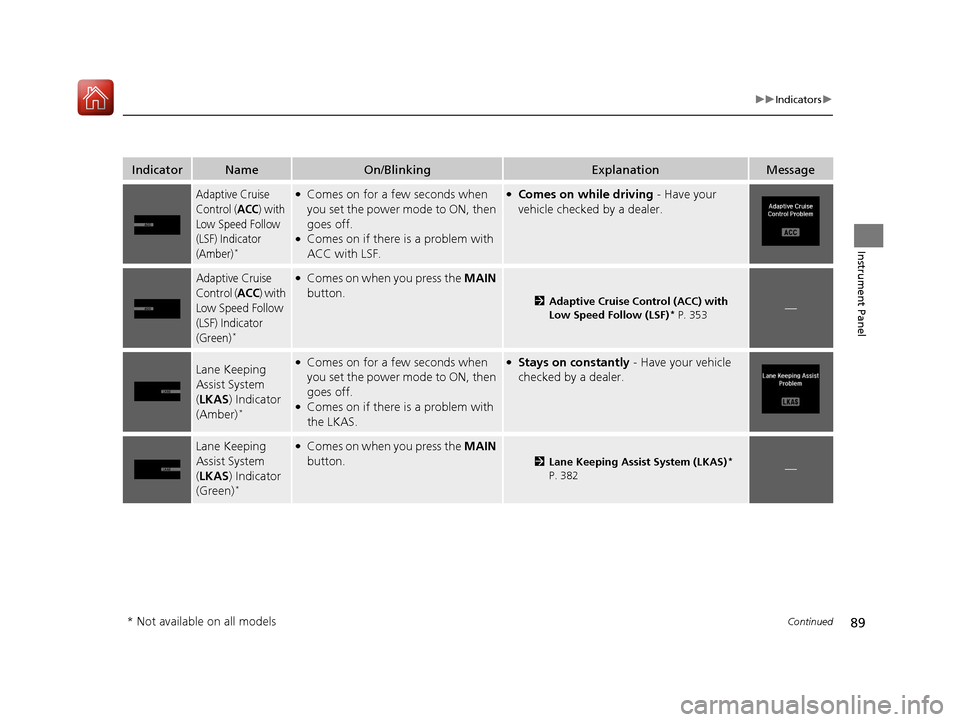

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
ACC with LSF.
●Comes on while driving - Have your
vehicle checked by a dealer.
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Green)
*
●Comes on when you press the MAIN
button.
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)* P. 353—
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)
*
●Comes on when you press the MAIN
button.
2 Lane Keeping Assist System (LKAS)*
P. 382—
* Not available on all models
17 ACURA TLX-31TZ36200.book 89 ページ ２０１６年６月１０日　金曜日　午後６時３９分

127
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Customization flow
Roll the right selector wheel to select Vehicle Settings and push the right selector wheel.
Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
Memory Position Link
Door Unlock Mode
Keyless Access Light Flash
Driver Assist System Setup
Meter Setup
Driving Position Setup
Keyless Access Setup
“Trip B” Reset Timing
Turn by Turn Display*
Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*
Push
Push
Push
Lane Keeping Assist Suspend Beep*
Blind Spot Info*
Seat Position Movement At Entry/Exit
Auto Seat Belt Tension*
Roll
Keyless Access Beep
Push
Roll
Push
Push
Roll
Roll
Roll
Roll
Roll
Roll
ACC Display Speed Unit*
Road Departure Mitigation Setting*
Remote Start System On/Off*
Keyless Access Beep Volume
Auto Idle Stop Guidance Screens*
Roll
* Not available on all models
17 ACURA TLX-31TZ36200.book 127 ページ ２０１６年６月１０日　金曜日　午後６時３９分

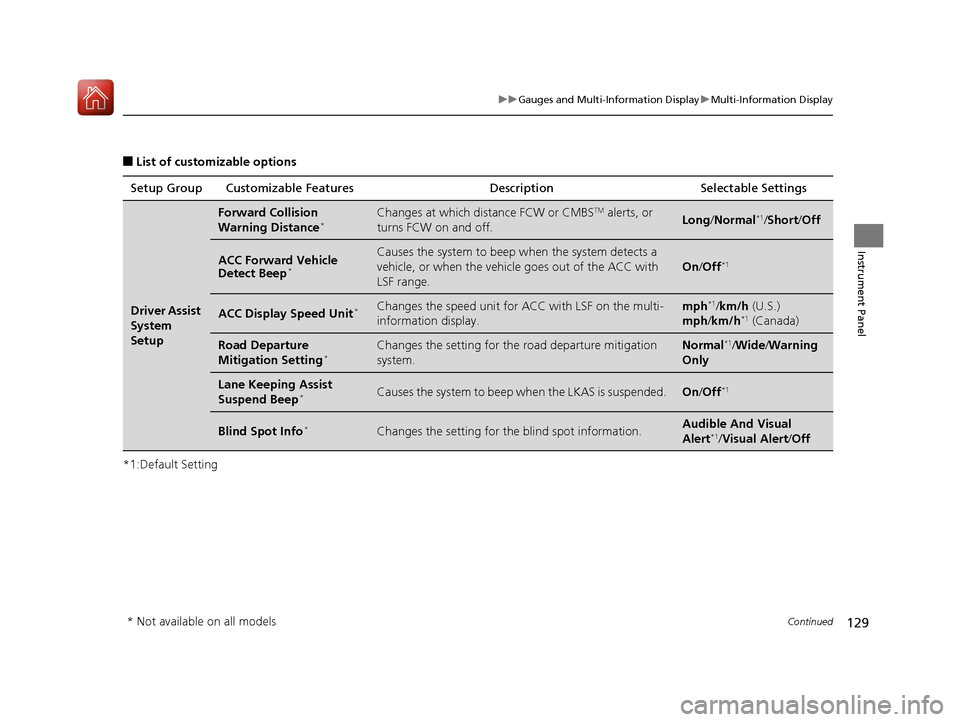

129
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Driver Assist
System
Setup
Forward Collision
Warning Distance*Changes at which distance FCW or CMBSTM alerts, or
turns FCW on and off.Long /Normal*1/Short /Off
ACC Forward Vehicle
Detect Beep*
Causes the system to beep when the system detects a
vehicle, or when the vehicl e goes out of the ACC with
LSF range.
On /Off*1
ACC Display Speed Unit*Changes the speed unit for ACC with LSF on the multi-
information display.mph*1/km/h (U.S.)
mph /km/h*1 (Canada)
Road Departure
Mitigation Setting*Changes the setting for the road departure mitigation
system.Normal*1/ Wide /Warning
Only
Lane Keeping Assist
Suspend Beep*Causes the system to beep when the LKAS is suspended.On/Off*1
Blind Spot Info*Changes the setting for th e blind spot information.Audible And Visual
Alert*1/Visual Alert /Off
* Not available on all models
17 ACURA TLX-31TZ36200.book 129 ページ ２０１６年６月１０日　金曜日　午後６時３９分

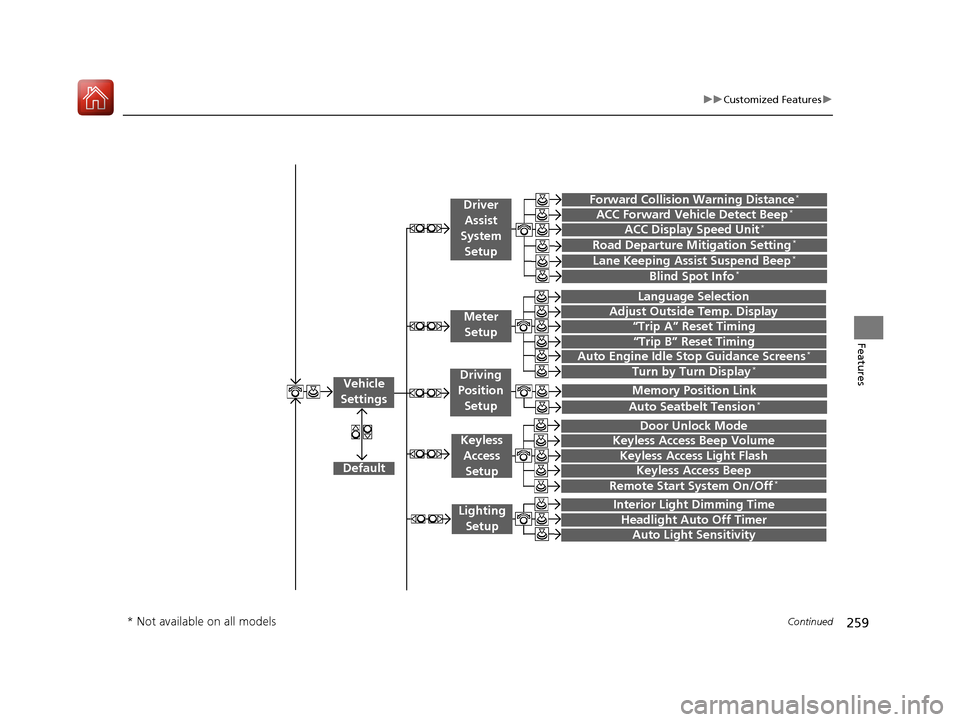

259
uuCustomized Features u
Continued
Features“Trip A” Reset Timing
“Trip B” Reset Timing

Language Selection
Adjust Outside Temp. Display




Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*

Turn by Turn Display*
Default
Door Unlock Mode
Keyless Access Light Flash

Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Vehicle
Settings
Meter Setup
Driver Assist
System
Setup
Keyless Access
Setup
Lighting Setup
Keyless Access Beep
Lane Keeping Assist Suspend Beep*
Blind Spot Info*
Auto Seatbelt Tension*
Driving
Position Setup
Road Departure Mitigation Setting*ACC Display Speed Unit*
Remote Start System On/Off*
Memory Position Link
Keyless Access Beep Volume
Auto Engine Idle Stop Guidance Screens*
* Not available on all models
17 ACURA TLX-31TZ36200.book 259 ページ ２０１６年６月１０日　金曜日　午後６時３９分

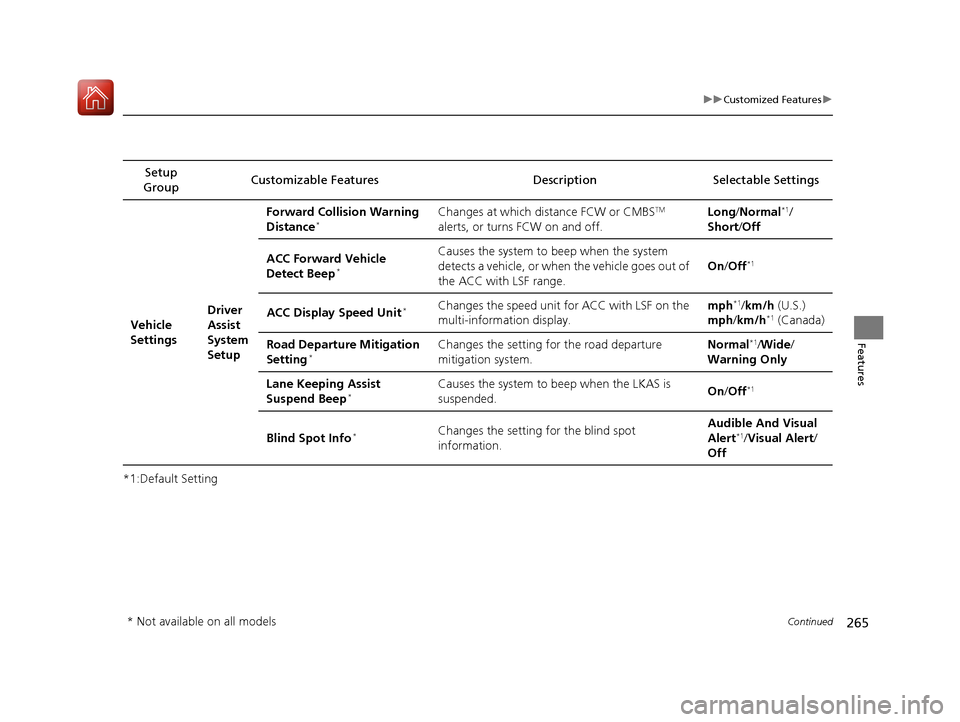

265
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Driver
Assist
System
SetupForward Collision Warning
Distance
*Changes at which distance FCW or CMBSTM
alerts, or turns FCW on and off. Long
/Normal*1/
Short/ Off
ACC Forward Vehicle
Detect Beep
*
Causes the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC with LSF range. On
/Off*1
ACC Display Speed Unit*Changes the speed unit for ACC with LSF on the
multi-information display. mph*1/
km/h (U.S.)
mph /km/h*1 (Canada)
Road Departure Mitigation
Setting
*Changes the setting for the road departure
mitigation system. Normal*1/
Wide /
Warning Only
Lane Keeping Assist
Suspend Beep
*Causes the system to be ep when the LKAS is
suspended. On
/Off*1
Blind Spot Info*Changes the setting for the blind spot
information. Audible And Visual
Alert*1/
Visual Alert /
Off
* Not available on all models
17 ACURA TLX-31TZ36200.book 265 ページ ２０１６年６月１０日　金曜日　午後６時３９分

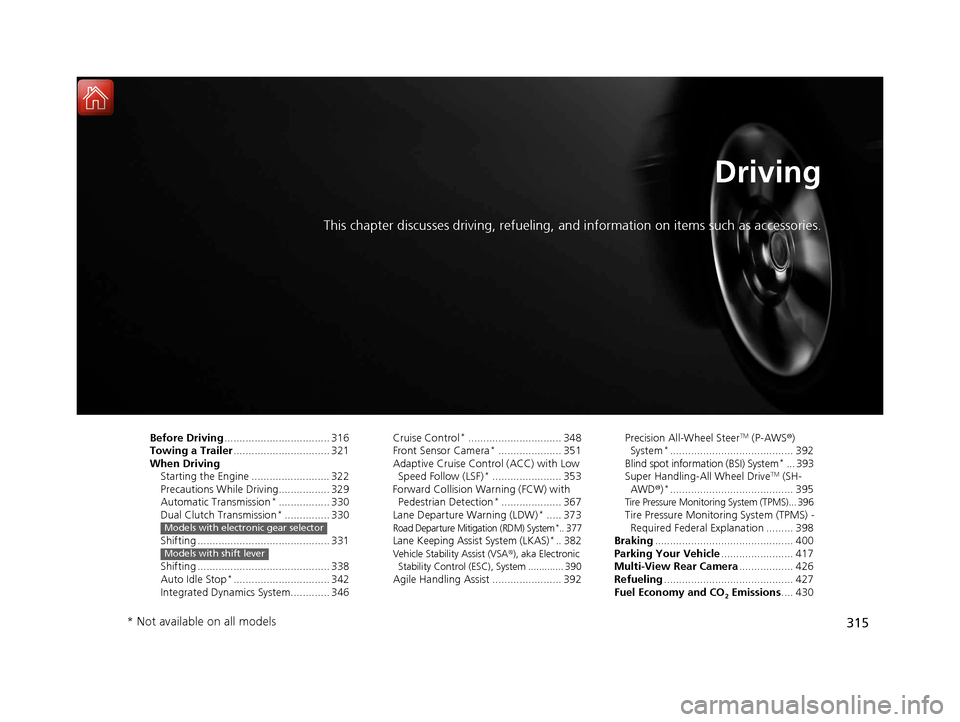

315
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving................................... 316
Towing a Trailer ................................ 321
When Driving
Starting the Engine .......................... 322
Precautions While Driving................. 329
Automatic Transmission
*................. 330
Dual Clutch Transmission*............... 330
Shifting ............................................ 331
Shifting ............................................ 338
Auto Idle Stop
*................................ 342
Integrated Dynamics System............. 346
Models with electronic gear selector
Models with shift lever
Cruise Control*............................... 348
Front Sensor Camera*..................... 351
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)
*....................... 353
Forward Collision Warning (FCW) with Pedestrian Detection
*.................... 367
Lane Departure Warning (LDW)*..... 373Road Departure Mitigation (RDM) System*.. 377Lane Keeping Assist System (LKAS)*.. 382Vehicle Stability Assist (VSA ®), aka Electronic
Stability Control (ESC), System ............. 390
Agile Handling Assist ....................... 392 Precision All-Wheel Steer
TM (P-AWS
®)
System*......................................... 392
Blind spot information (BSI) System*... 393
Super Handling-All Wheel DriveTM (SH-
AWD® )*......................................... 395Tire Pressure Monitoring System (TPMS)... 396Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 398
Braking .............................................. 400
Parking Your Vehicle ........................ 417
Multi-View Rear Camera .................. 426
Refueling ........................................... 427
Fuel Economy and CO
2 Emissions .... 430
* Not available on all models
17 ACURA TLX-31TZ36200.book 315 ページ ２０１６年６月１０日　金曜日　午後６時３９分

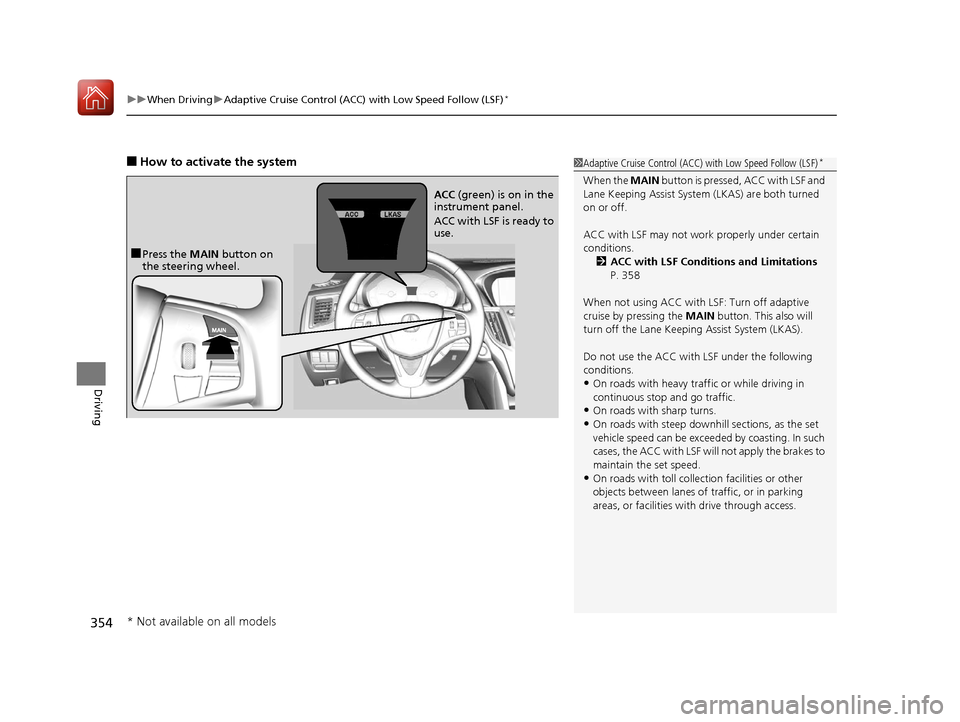

uuWhen Driving uAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
354
Driving
■How to activate the system1Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
When the MAIN button is pressed, ACC with LSF and
Lane Keeping Assist System (LKAS) are both turned
on or off.
ACC with LSF may not work properly under certain
conditions. 2 ACC with LSF Conditions and Limitations
P. 358
When not using ACC with LSF: Turn off adaptive
cruise by pressing the MAIN button. This also will
turn off the Lane Keeping Assist System (LKAS).
Do not use the ACC with LSF under the following
conditions.
•On roads with heavy traf fic or while driving in
continuous stop and go traffic.
•On roads with sharp turns.
•On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, the ACC with LSF will not apply the brakes to
maintain the set speed.
•On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or faci lities with driv e through access.
■Press the MAIN button on
the steering wheel. ACC
(green) is on in the
instrument panel.
ACC with LSF is ready to
use.
* Not available on all models
17 ACURA TLX-31TZ36200.book 354 ページ ２０１６年６月１０日　金曜日　午後６時３９分
