start stop button Acura TLX 2017 Owner's Manual

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙System Indicators
(P70)
❙Gauges (P117)
❙Multi-Information
Display
(P118)
❙Steering Wheel Adjustments (P176)
❙ENGINE START/STOP Button (P161)
❙Hazard Warning Button
❙Rear Window Defogger/Heated Door
Mirror Button
(P173)
Canadian models
❙ (Vehicle Stability Assist (VSA®) System
OFF) Button
(P391)
❙Lane Departure Warning (LDW) Button* (P374)
❙Parking Sensor System Button* (P420)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button* (P411)
❙Headlight Washer Button* (P171)
❙Heated Windshield Button* (P173)
❙Road Departure Mitigation (RDM) Button*
(P379)
❙On Demand Multi-Use DisplayTM (P213)
❙Audio System (P208)
❙Climate Control System (P198)
❙Trunk Opener (P152)
❙Fuel Fill Door Release Button (P428)
Canadian models
❙Navigation System*
() See the Navigation System Manual
❙Audio/Information Screen (P219)
17 ACURA TLX-31TZ36200.book 4 ページ ２０１６年６月１０日　金曜日　午後６時３９分

12
Quick Reference Guide
Controls (P 137)
Clock (P138)
You can also adjust the time manually.
aEnter the Clock Adjustment screen.
2 Clock (P138)
bRotate to change hour, then press
.
cRotate to change minute, then
press .
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models with navigation system
ENGINE START/STOP
Button
(P161)
Press the button to change the vehicle’s
power mode.
Turn Signals (P164)
Lights (P165)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
17 ACURA TLX-31TZ36200.book 12 ページ ２０１６年６月１０日　金曜日　午後６時３９分

24
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
while pressing the ENGINE START/STOP
button.
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Canadian models
Models with shift lever
17 ACURA TLX-31TZ36200.book 24 ページ ２０１６年６月１０日　金曜日　午後６時３９分

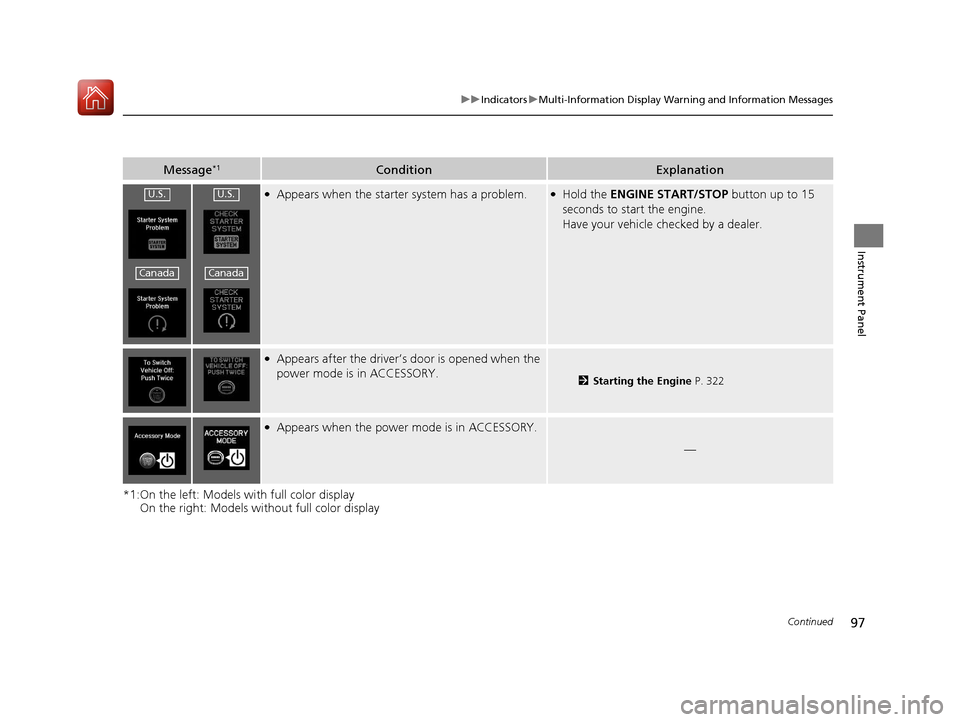

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the starter system has a problem.●Hold the ENGINE START/STOP button up to 15
seconds to start the engine.
Have your vehicle ch ecked by a dealer.
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
2Starting the Engine P. 322
●Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
U.S.
Canada
17 ACURA TLX-31TZ36200.book 97 ページ ２０１６年６月１０日　金曜日　午後６時３９分

99
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if the keyless access remote’s battery is too
weak to start the engine or the key is not with you
to start the engine.
A beeper sounds six times.●Bring the keyless access remote in front of the
ENGINE START/STOP button to be touched with.
2If the Keyless Access Remote Battery is Weak
P. 505
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appeared sequentially.●Unless you bring the keyless access remote in front
of the ENGINE START/STOP button, this message
does not appear.
2 If the Keyless Access Remote Battery is Weak
P. 505
●Appears when the power m ode is in ACCESSORY or
ON.2 Starting the Engine P. 322
●Appears when the engine does not restart
automatically due to the following reason:
• The hood is open.
• There is a problem in the system that disables
Auto Idle Stop.●Follow the normal procedure to start the engine.
2 Starting the Engine P. 322
Models with Auto Idle StopModels with Auto Idle Stop
17 ACURA TLX-31TZ36200.book 99 ページ ２０１６年６月１０日　金曜日　午後６時３９分

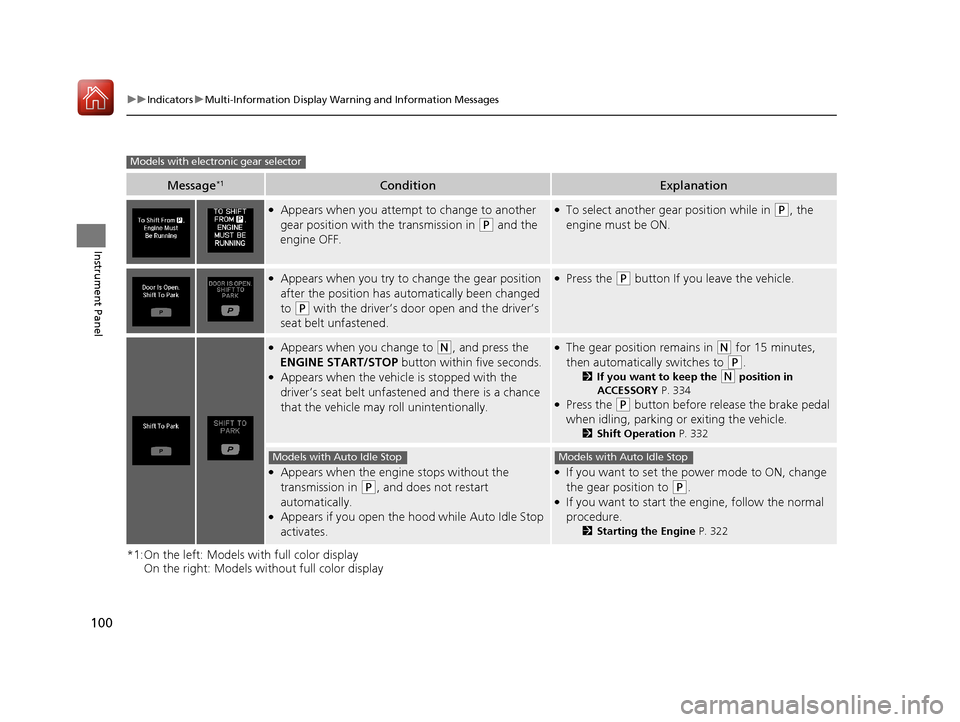

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you attempt to change to another
gear position with the transmission in
(P and the
engine OFF.
●To select another gear position while in (P, the
engine must be ON.
●Appears when you try to change the gear position
after the position has au tomatically been changed
to
(P with the driver’s door open and the driver’s
seat belt unfastened.
●Press the (P button If you leave the vehicle.
●Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.
●Appears when the vehicle is stopped with the
driver’s seat belt unfastened and there is a chance
that the vehicle may roll unintentionally.
●The gear position remains in (N for 15 minutes,
then automatically switches to
(P.
2 If you want to keep the (N position in
ACCESSORY P. 334
●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 332
●Appears when the engine stops without the
transmission in
(P, and does not restart
automatically.
●Appears if you open the ho od while Auto Idle Stop
activates.
●If you want to set the power mode to ON, change
the gear position to
(P.●If you want to start the engine, follow the normal
procedure.
2 Starting the Engine P. 322
Models with electronic gear selector
Models with Auto Idle StopModels with Auto Idle Stop
17 ACURA TLX-31TZ36200.book 100 ページ ２０１６年６月１０日　金曜日　午後６時３９分

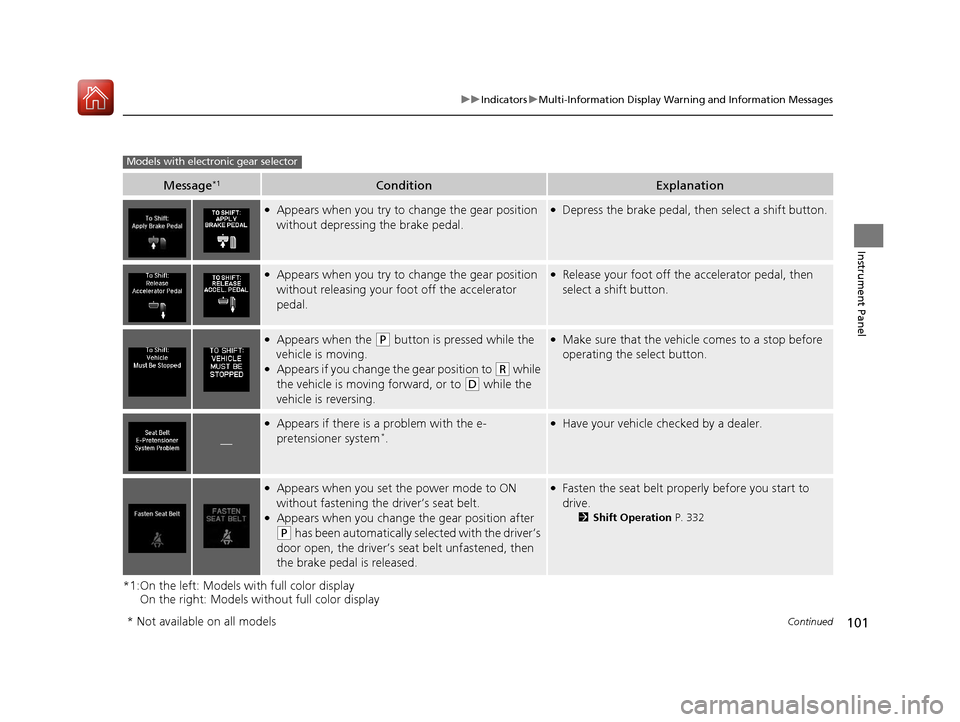

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you try to change the gear position
without depressing the brake pedal.●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator
pedal.●Release your foot off the accelerator pedal, then
select a shift button.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you change the gear position to (R while
the vehicle is moving forward, or to
(D while the
vehicle is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
—
●Appears if there is a problem with the e-
pretensioner system*.
●Have your vehicle ch ecked by a dealer.
●Appears when you set the power mode to ON
without fastening the driver’s seat belt.
●Appears when you change the gear position after
(P has been automatically selected with the driver’s
door open, the driver’s s eat belt unfastened, then
the brake pedal is released.
●Fasten the seat belt properly before you start to
drive.
2 Shift Operation P. 332
Models with electronic gear selector
* Not available on all models
17 ACURA TLX-31TZ36200.book 101 ページ ２０１６年６月１０日　金曜日　午後６時３９分

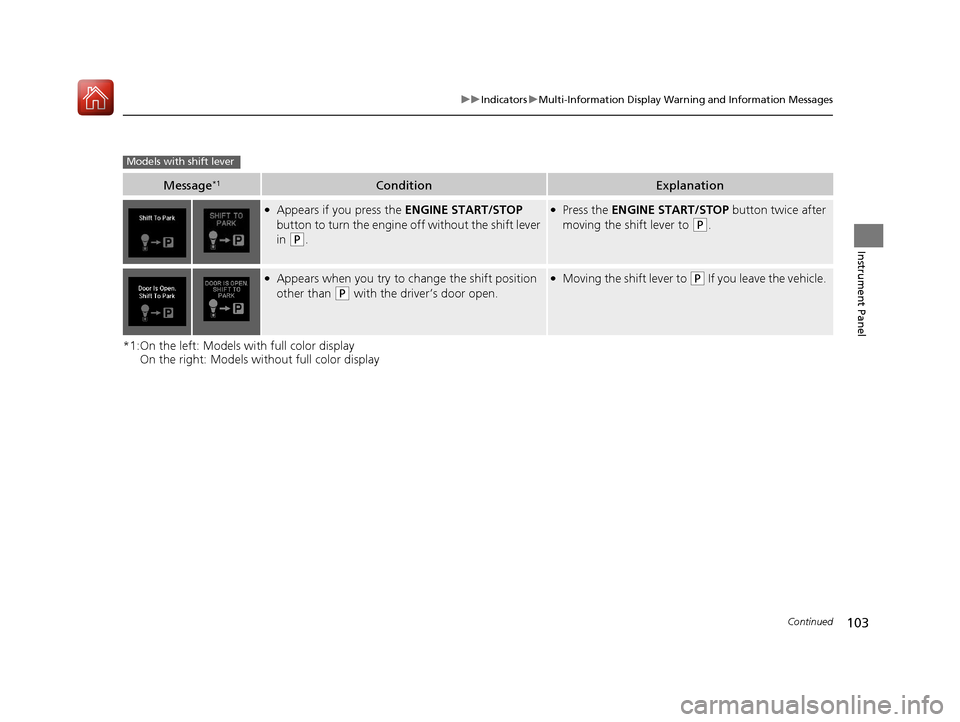

103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if you press the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears when you try to ch ange the shift position
other than
(P with the driver’s door open.
●Moving the shift lever to (P If you leave the vehicle.
Models with shift lever
17 ACURA TLX-31TZ36200.book 103 ページ ２０１６年６月１０日　金曜日　午後６時３９分

137
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 138
Locking and Unlocking the Doors
Key Types and Functions .................. 139
Low Keyless Access Remote Signal Strength ......................................... 141
Locking/Unlocking the Doors from the Outside .......................................... 142
Locking/Unlocking the Doors from the
Inside ............................................. 148
Childproof Door Locks ..................... 150
Auto Door Locking/Unlocking .......... 151
Opening and Closing the Trunk ....... 152
Security System ................................ 155
Immobilizer System .......................... 155 Security System Alarm...................... 155Opening and Closing the Windows
.... 158Opening and Closing the Moonroof....... 160Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 161
Turn Signals ..................................... 164
Light Switches.................................. 165
Fog Lights
*...................................... 168
Daytime Running Lights ................... 168
Wipers and Washers ........................ 169
Brightness Control ........................... 172
Rear Defogger/Heated Door Mirror Button........................................ 173
Driving Position Memory System ...... 174
Adjusting the Steering Wheel .......... 176
Adjusting the Mirrors ....................... 177
Interior Rearview Mirror ................... 177
Power Door Mirrors ......................... 178
Adjusting the Seats .......................... 179
Front Seats ...................................... 179
Interior Lights/Interior Convenience
Items ................................................ 186
Interior Lights .................................. 186
Interior Convenience Items .............. 188
Climate Control System ................... 198
Using Automatic Climate Control .... 198
Automatic Climate Control Sensors......206
* Not available on all models
17 ACURA TLX-31TZ36200.book 137 ページ ２０１６年６月１０日　金曜日　午後６時３９分

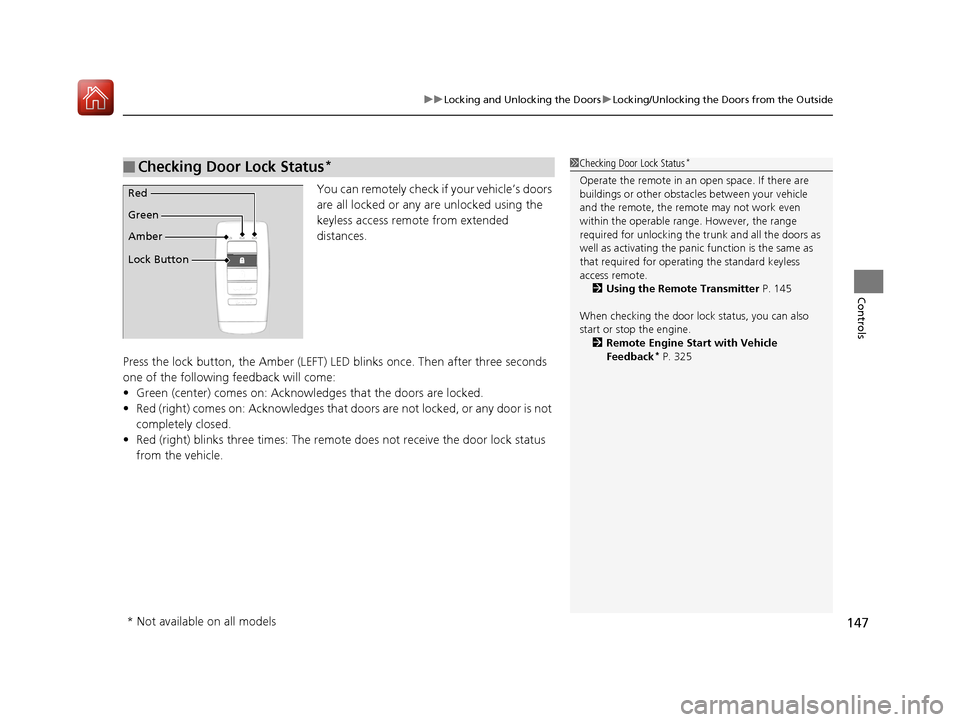

147
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless access remote from extended
distances.
Press the lock button, the Am ber (LEFT) LED blinks once. Then after three seconds
one of the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range
required for unlocking the tr unk and all the doors as
well as activating the pani c function is the same as
that required for operating the standard keyless
access remote. 2 Using the Remote Transmitter P. 145
When checking the door lock status, you can also
start or stop the engine. 2 Remote Engine Start with Vehicle
Feedback
* P. 325
Red
Green
Amber
Lock Button
* Not available on all models
17 ACURA TLX-31TZ36200.book 147 ページ ２０１６年６月１０日　金曜日　午後６時３９分
