13
Quick Reference Guide
Wipers and Washers
(P169)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
(-: Low Sensitivity*1
: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
: Higher speed, more sweeps*2
Steering Wheel (P176)
● To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P149)
●Pull either front door inner handle to
unlock and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk (P152)
● To unlock and open the trunk:
•Press the trunk opener on the driver side
control panel.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Trunk Opener
17 ACURA TLX-31TZ36200.book 13 ページ ２０１６年６月１０日　金曜日　午後６時３９分

22
Quick Reference Guide
Maintenance (P431)
Under the Hood (P440)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, slide the lever and lift the
hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P453)
● Inspect all lights regularly.
Wiper Blades (P460)
● Replace blades if they leave streaks
across the windshield.
Tires (P462)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
17 ACURA TLX-31TZ36200.book 22 ページ ２０１６年６月１０日　金曜日　午後６時３９分

169
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■AUTO*
2 Automatic Intermittent Wipers* P. 170
■Adjusting wiper operation
Turn the adjustment ring to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defrost er or heated windshield
*
to warm the windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Models with intermittent time adjustment ring
MIST
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
INT
*: Low speed with
intermittent
AUTO
*: Automatic
intermittent operation
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
17 ACURA TLX-31TZ36200.book 169 ページ ２０１６年６月１０日　金曜日　午後６時３９分

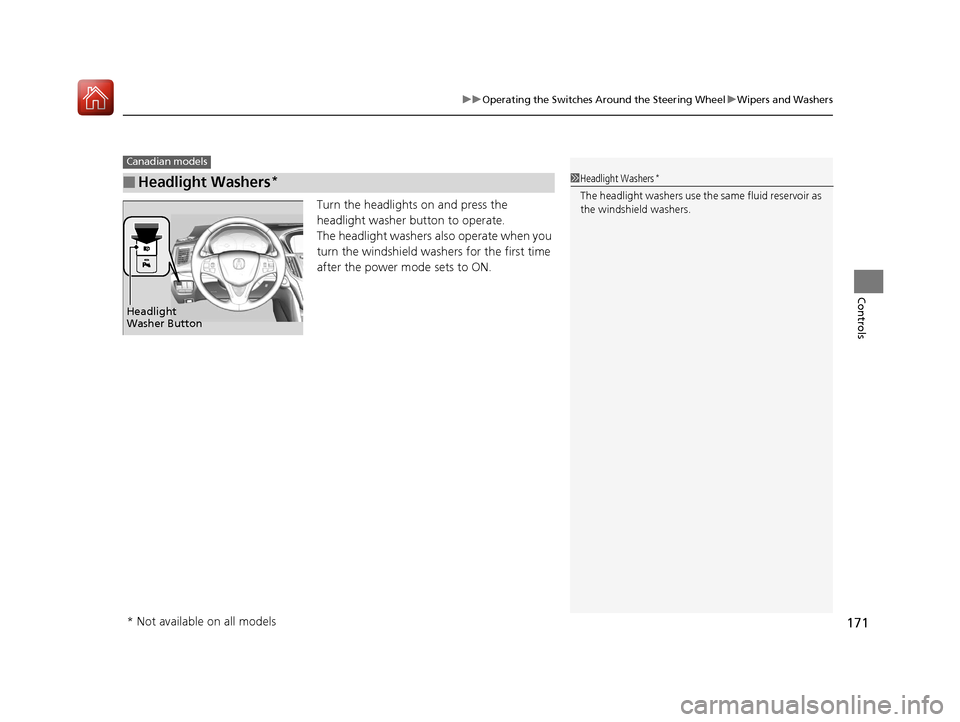

171
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Turn the headlights on and press the
headlight washer button to operate.
The headlight washers also operate when you
turn the windshield washers for the first time
after the power mode sets to ON.
■Headlight Washers*
Canadian models
1Headlight Washers*
The headlight washers use th e same fluid reservoir as
the windshield washers.
Headlight
Washer Button
* Not available on all models
17 ACURA TLX-31TZ36200.book 171 ページ ２０１６年６月１０日　金曜日　午後６時３９分

431
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 432
Safety When Performing Maintenance..... 433Parts and Fluids Used in Maintenance Service ........................................... 434
Maintenance Minder
TM..................... 435
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 440Opening the Hood ........................... 442
Recommended Engine Oil ................ 443
Oil Check ......................................... 444
Adding Engine Oil ............................ 446
Changing the Engine Oil and Oil Filter .. 447
Engine Coolant ................................ 449
Transmission Fluid ............................ 451
Brake Fluid ....................................... 452
Refilling Window Washer Fluid......... 452
Replacing Light Bulbs ....................... 453
Checking and Maintaining Wiper
Blades .......................................... 460
Checking and Maintaining Tires
Checking Tires ................................. 462
Tire and Loading Information Label ...... 463Tire Labeling .................................... 463DOT Tire Quality Grading (U.S. Vehicles) .. 465Wear Indicators................................ 467 Tire Service Life ................................ 467
Tire and Wheel Replacement ........... 468
Tire Rotation .................................... 469
Winter Tires ..................................... 470
Battery ............................................... 471
Remote Transmitter Care
Replacing the Button Battery ........... 473
Climate Control System Maintenance.... 475Cleaning
Interior Care .................................... 476
Exterior Care.................................... 478
Accessories and Modifications................ 481
17 ACURA TLX-31TZ36200.book 431 ページ ２０１６年６月１０日　金曜日　午後６時３９分

432
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 452
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 462
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 453
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 460
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the multi-information display (MID).
2 Maintenance Service Items P. 438
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 539
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
17 ACURA TLX-31TZ36200.book 432 ページ ２０１６年６月１０日　金曜日　午後６時３９分

520
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Sub Fuse Box60 A
ABS/VSA Motor40 A
ABS/VSA FSR20 A
Main Fan*2, *330 A
Main Fuse125 A
2
IG Main30 A
F/B Main60 A
F/B Main 260 A
Headlight Main30 A
IG Main 230 A
Starter Cut 140 A
Injector*2, *320 ASub Fan*1
Rear Defroster40 A
Main Fan*130 ASub Fan*2, *3
Wiper30 A
Heater Motor40 A*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
3
Headlight Washer*2, *3(30 A)
Left Electric Parking Brake30 A
Right Electric Parking Brake30 A
SH-AWD*320 A
4− −
5−−
6− −
7−−
8STRLD*1, *27.5 A
9Interior Lights*1, *25 A
10 Headlight Low/High Main 20 A
11Oil Level7.5 A
12 Front Fog Lights*(7.5 A)
13Passenger’s Power Seat Reclining20 A
14 Hazard 15 A
15IGP215 A
16 IG Coil 15 A
17Stop*1, *210 A
Circuit ProtectedAmps
* Not available on all models
17 ACURA TLX-31TZ36200.book 520 ページ ２０１６年６月１０日　金曜日　午後６時３９分

550
Index
Trunk......................................................... 152
Lid ........................................................... 152
Light Bulbs............................................... 530
Main Switch ............................................ 154
Open Indicator........................................... 81
Open Message......................................... 102
Unable to Open ....................................... 527
Turn Signals ............................................... 164
Indicators (Instrum ent Panel) ...................... 83
Turn-by-Turn Directions ........................... 124
Two-way Keyless Access Remote ..... 147, 325
U
Under-Floor Storage Area........................ 194
Unlocking the Doors ................................. 142
Unlocking the Fron t Doors from the
Inside ................................................. 13, 148
USB Flash Drives ........................................ 256
USB Port .................................................... 209
Using the Keyless Access System .............. 142
V
Valet Mode............................................... 154
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................. 532
Vehicle Stability Assist (VSA ®).................. 390
Off Button ............................................... 391
Off Indicator ...................................... 81, 391
System Indicator ................................ 81, 390 Viscosity (Oil)
.................................... 443, 531
VSA ® (Vehicle Stability Assist) .................. 390
W
Wallpaper................................................. 221
Warning and Information Messages ......... 95
Warning Indicator On/Blinking ............... 514
Warning Labels ........................................... 67
Warranties (Warranty Manual provided
separately) .............................................. 537
Watts ......................................................... 530
Wear Indicators (Tire) .............................. 467
Wheel Nut Wrench (Jack Handle) ........... 500
Window Washers ..................................... 169
Adding/Refilling Fluid .............................. 452
Switch ..................................................... 169
Windows (Opening and Closing) ............ 158
Windshield Cleaning ......................................... 477, 479
Defrosting/Defogging .............................. 205
Washer Fluid ........................................... 452
Wiper Blades ........................................... 460
Wipers and Washers................................ 169
Winter Tires .............................................. 470
Snow Tires .............................................. 470
Tire Chains .............................................. 470
Wipers and Washers ................................. 169
Checking and Replacing Wiper Blades ..... 460
WMA ................................................. 232, 242
Worn Tires ................................................ 462
17 ACURA TLX-31TZ36200.book 550 ページ ２０１６年６月１０日　金曜日　午後６時３９分
