Acura TLX 2018 Owner's Manual

110
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears for a few seconds if you have not pressed the
(N button long enough to initiate Neutral-Hold mode.2If you want to keep the transmission in (N
position [car wash mode] P. 374
●Appears when you press and hold (N button for more
than 2 seconds.●Disappears when you set the g ear position to other than
(N.
2If you want to keep the transmission in (N
position [car wash mode] P. 374
●Appears when you press the (P button but it is not
engaged due to low ATF temperature.●Depress the brake pedal until this message disappear.
18 ACURA TLX-31TZ36300.book 110 ページ ２０１７年２月２１日　火曜日　午後２時３２分

111
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if you press the ENGINE START/STOP button
to turn the engine off wi thout the shift lever in
(P.●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears if the driver’s door is open and you try to shift
to a position other than
(P.
●Moving the shift lever to (P If you leave the vehicle.
●Appears when the transmission system temperature is
too high. The vehicle no longer moves.●Immediately stop in a safe place and shift to (P.●Let the engine idle until the message disappears.
Models with shift lever
U.S. models
Canadian models
18 ACURA TLX-31TZ36300.book 111 ページ ２０１７年２月２１日　火曜日　午後２時３２分

112
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the parking sensor
system.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
MessageConditionExplanation
●Appears when you unlock and open the driver’s door
while the engine is running by two-way keyless access
remote.
2 Remote Engine Start with Vehicle Feedback* P. 365
Models with parking sensor system
Models with two-way keyless access remote
* Not available on all models
18 ACURA TLX-31TZ36300.book 112 ページ ２０１７年２月２１日　火曜日　午後２時３２分

113
Instrument Panel
Gauges and Multi-Information Display
Gauges
Gauges include the speedometer, tachometer, fuel gauge and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 547
18 ACURA TLX-31TZ36300.book 113 ページ ２０１７年２月２１日　火曜日　午後２時３２分

114
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

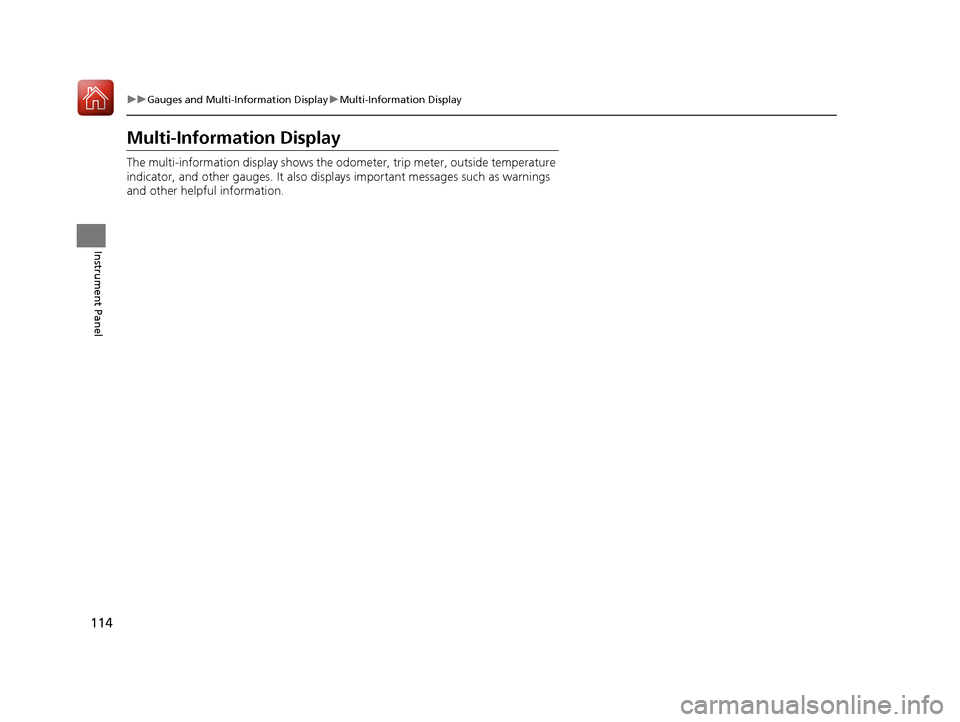

Multi-Information Display
The multi-information display shows the od ometer, trip meter, outside temperature
indicator, and other gauges. It also disp lays important messages such as warnings
and other helpful information.
18 ACURA TLX-31TZ36300.book 114 ページ ２０１７年２月２１日　火曜日　午後２時３２分

115
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Main displays
Roll the right selector wheel to change the display.
■Switching the Display
QTRight Selector Wheel
Engine Oil Life
Vehicle Settings Elapsed Time
OFF
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass
Tire Pressure for
Each Tire Turn-by-Turn
Directions
*Integrated
Dynamics System
Integrated
Dynamics System/
SH-AWD®
*
* Not available on all models
18 ACURA TLX-31TZ36300.book 115 ページ ２０１７年２月２１日　火曜日　午後２時３２分

116
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Lower displays
Press the TRIP button to change the display.
Odometer Trip ATrip B
Outside temperature
TRIP Button
TRIP
TRIPTRIP
18 ACURA TLX-31TZ36300.book 116 ページ ２０１７年２月２１日　火曜日　午後２時３２分

Continued117
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F (U.S.) or ± 3°C (Canada) if the
temperature reading seems incorrect.
Shows the estimated average fuel econom y of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display’s customized
features to correct the temperature.
2 Customized Features P. 120, 292
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 120, 292
18 ACURA TLX-31TZ36300.book 117 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuGauges and Multi-Information Display uMulti-Information Display
118
Instrument Panel
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since the Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km /h (Canada) since the Trip A or Trip B
was reset.
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Turn-by-Turn Directions*
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 120, 292
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 120, 292
1Turn-by-Turn Directions*
The multi-information disp lay shows a compass when
the route guidance is not used.
You can select whether the turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 120, 292
* Not available on all models
18 ACURA TLX-31TZ36300.book 118 ページ ２０１７年２月２１日　火曜日　午後２時３２分

119
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 469
Shows each tire’s pressure.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 425
Shows the current mode for Integrated dynamics system.
2Integrated Dynamics System P. 388
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2Super Handling-All Wheel DriveTM (SH-
AWD ®)* P. 424
■Engine Oil Life and Maintenance Items
■Tire Pressure Monitor
■Current Mode for Integrated Dynamics System
■SH-AWD ® Torque Distribution Monitor*
* Not available on all models
18 ACURA TLX-31TZ36300.book 119 ページ ２０１７年２月２１日　火曜日　午後２時３２分
