Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Radiator Cap Dashboard
Sun Visors
U.S. models Canadian models
U.S. models only
18 ACURA TLX-31TZ36300.book 70 ページ ２０１７年２月２１日　火曜日　午後２時３２分

71
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 72
Multi-Information Display Warning and Information Messages ...................... 92
Gauges and Multi-Information Display .. 113
Gauges ............................................ 113
Multi-Information Display ................ 114
18 ACURA TLX-31TZ36300.book 71 ページ ２０１７年２月２１日　火曜日　午後２時３２分

72
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the brake fluid level
is low.
●Comes on if there is a problem with
the brake system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 550
●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 550
Brake System
Indicator (Amber)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with a
system related to braking other than
the conventional brake system.
●Comes on if there is a problem with
the automatic brake hold system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●With this indicator on, your vehicle still has
normal braking ability.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
U.S.
Canada
18 ACURA TLX-31TZ36300.book 72 ページ ２０１７年２月２１日　火曜日　午後２時３２分

73
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

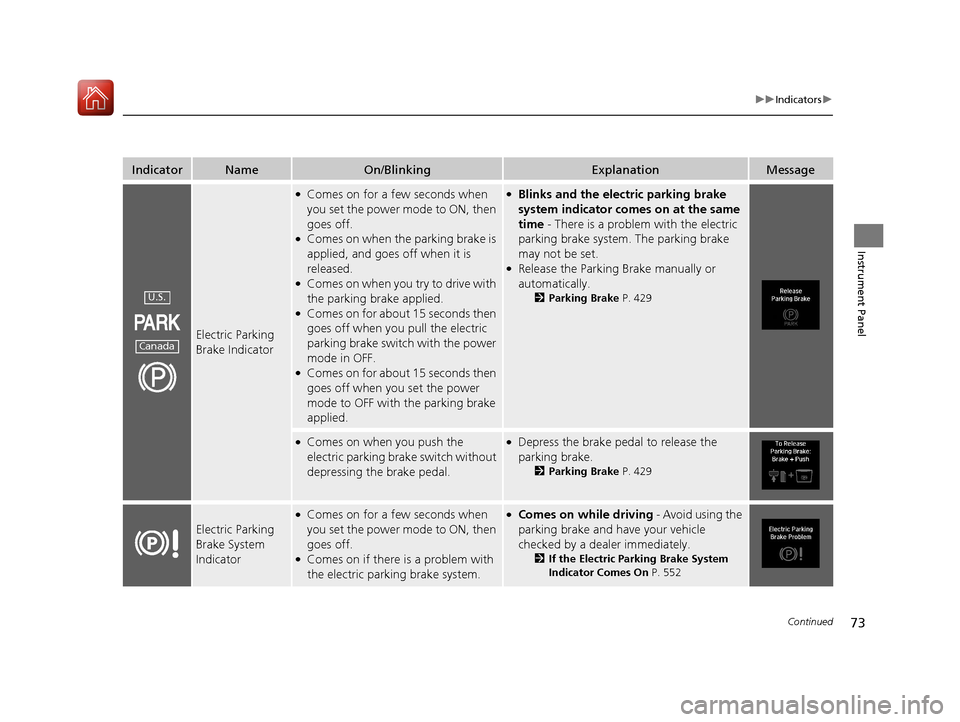

Electric Parking
Brake Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the parking brake is
applied, and goes off when it is
released.
●Comes on when you try to drive with
the parking brake applied.
●Comes on for about 15 seconds then
goes off when you pull the electric
parking brake switch with the power
mode in OFF.
●Comes on for about 15 seconds then
goes off when you set the power
mode to OFF with the parking brake
applied.
●Blinks and the elec tric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake
may not be set.
●Release the Parking Brake manually or
automatically.
2 Parking Brake P. 429
●Comes on when you push the
electric parking brake switch without
depressing the brake pedal.●Depress the brake pedal to release the
parking brake.
2Parking Brake P. 429
Electric Parking
Brake System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the electric parking brake system.
●Comes on while driving - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 552
U.S.
Canada
18 ACURA TLX-31TZ36300.book 73 ページ ２０１７年２月２１日　火曜日　午後２時３２分

74
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold system is on.
2Automatic Brake Hold P. 433
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold is activated.2Automatic Brake Hold P. 433—
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 549
U.S.
Canada
18 ACURA TLX-31TZ36300.book 74 ページ ２０１７年２月２１日　火曜日　午後２時３２分

75
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
●Comes on when you set the power
mode to ON, and goes off either
when the engine starts or after
several seconds if the engine did not
start. If “readiness codes” have not
been set, it blinks five times before it
goes off.
●Comes on if there is a problem with
the emissions control system.
●Blinks when a misfire in the engine’s
cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 572●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the engine for 10 minutes or more, and
wait for it to cool down. Then, take the
vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 550
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.
●Comes on when the battery is not
charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce elec tricity consumption.
2If the Charging System Indicator
Comes On P. 549
Gear Position
Indicator*/Shift
Lever Position
Indicator
*
●Indicates the current gear selection.
2 Shifting P. 371, 378—
* Not available on all models
18 ACURA TLX-31TZ36300.book 75 ページ ２０１７年２月２１日　火曜日　午後２時３２分

76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
●The indicated current gear selection
blinks if there is a problem with the
transmission system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light for
several seconds, and go off.●When all the gear positions light,
immediately stop your vehicle in a safe
place.
●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
●The indicated current gear selection
or all the gear positions blink if there
is a problem with the transmission
system, and the vehicle no longer
moves.●Immediately stop in a safe place.
2Emergency Towing P. 560●Have your vehicle checked by a dealer.
●The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
●The engine can be activated as a temporary
measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 554
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Models with electronic gear selector
18 ACURA TLX-31TZ36300.book 76 ページ ２０１７年２月２１日　火曜日　午後２時３２分

77
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
●Blinks if the transmission system has
a problem.●Blinks while driving - Avoid sudden starts
and acceleration and have your vehicle
checked by a dealer immediately.
Models with shift lever
18 ACURA TLX-31TZ36300.book 77 ページ ２０１７年２月２１日　火曜日　午後２時３２分

78
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
M (sequential
mode) Indicator/
Sequential Mode
Gear Selection
Indicator●Comes on when the manual
sequential mode is applied.
2 Sequential Shift Mode Operation
P. 381—
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds if
you are not wearing a seat belt when
you set the power mode to ON.
●If the front passenger is not wearing
a seat belt, the indicator comes on
about a few seconds later.
●Blinks while driving if either you or
the front passenger has not fastened
a seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes off
when you and the front passenger fasten
their seat belts.
●Stays on after you or the front
passenger has fastened the seat belt -
A detection error may have occurred in the
sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 35
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 2.6 U.S.
gal/9.7 Liter left on 2WD models, and
2.2 U.S. gal/8.2 Liter left on AWD
models).
●Blinks if there is a problem with the
fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.
●Blinks - Have your vehicle checked by a
dealer.
18 ACURA TLX-31TZ36300.book 78 ページ ２０１７年２月２１日　火曜日　午後２時３２分

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●If it comes on at any other time, there
is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. Wi th this indicator on,
your vehicle still has normal braking ability
but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 435
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioners
●Stays on constantly or does not come
on at all - Have your vehicle checked by a
dealer.
Electric Power
Steering (EPS)
System Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.
●Comes on if there is a problem with
the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by a
dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 551
