TPMS Acura TLX 2019 User Guide

499
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance

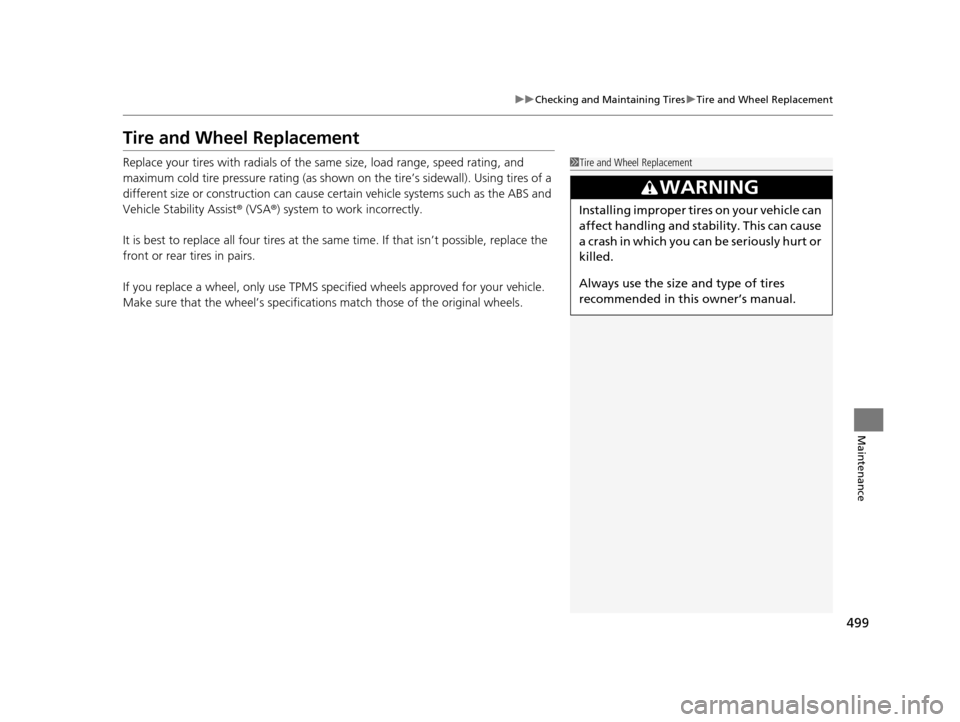

Tire and Wheel Replacement
Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist ® (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
If you replace a wheel, only use TPMS spec ified wheels approved for your vehicle.
Make sure that the wheel’s specifications match those of the original wheels.1 Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
19 ACURA TLX-31TZ36400.book 499 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

515
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 516
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 517
Changing a Flat Tire ......................... 530
Engine Does Not Start Checking the Engine ........................ 537
If the Keyless Access Remote Battery is Weak ............................................. 538
Emergency Engine Stop ................... 539
Jump Starting .................................... 540
Shift Lever Does Not Move .............. 544Overheating
How to Handle Overheating............. 545
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On .. 547If the Charging System Indicator Comes On ................................................. 547
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 548
If the Brake System Indicator (Red) Comes On .. 548If the Electric Power Steering (EPS) System Indicator Comes On ........................... 549
If the Electric Parking Brake System Indicator Comes On ....................... 550 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 551
If the Transmission System Indicator Blinks along with the Warning Message ...... 552
Fuses Fuse Locations ................................. 553
Inspecting and Changing Fuses ........ 557
Emergency Towing ........................... 558
When You Cannot Unlock the Fuel Fill Door ................................................. 559When You Cannot Open the Trunk ..... 560RefuelingRefueling From a Portable Fuel Container ... 561
19 ACURA TLX-31TZ36400.book 515 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

uuIf a Tire Goes Flat uChanging a Flat Tire
536
Handling the Unexpected
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack , wheel nut wrench
and jack handle bar back in the tool case.
Store the case in the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informati on display, but this is normal.
If you replace the tire with a full-siz e tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
Spacer
Cone Wing Bolt
For
compact
spare tire
For
full-size
tire
■TPMS and the Spare Tire1
TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
19 ACURA TLX-31TZ36400.book 536 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

551
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

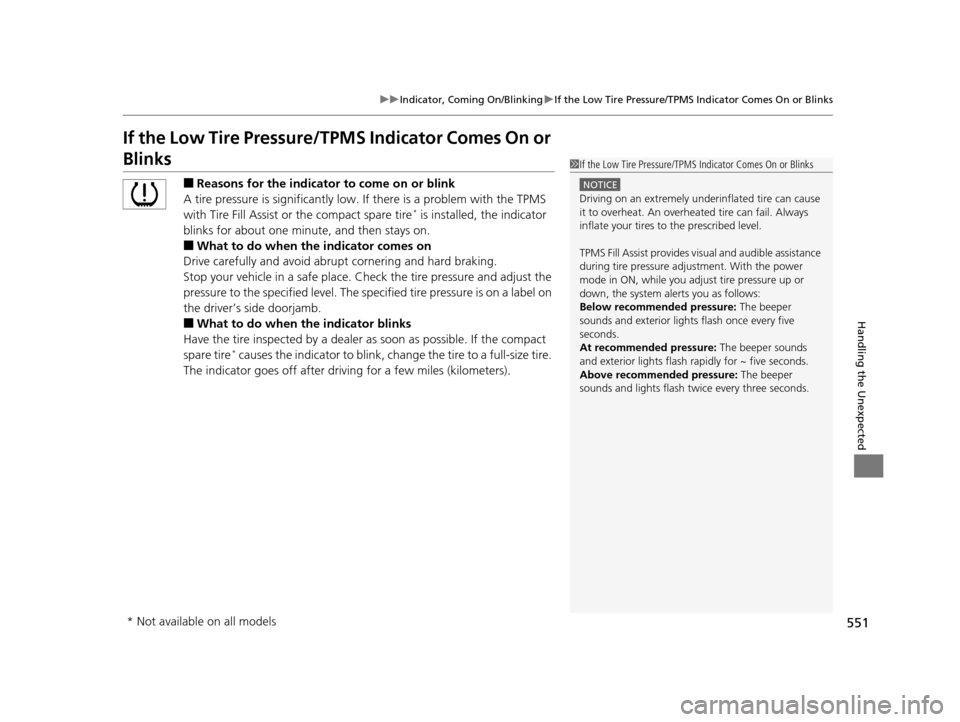

If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire
* is installed, the indicator
blinks for about one minu te, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, ch ange the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
* Not available on all models
19 ACURA TLX-31TZ36400.book 551 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

567Continued
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
AcuraLink*
Audio System
Blind Spot Information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigation Braking SystemTM
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
Wireless charger*
* Not available on all models
19 ACURA TLX-31TZ36400.book 567 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

581
Index
Illumination Control................................ 172
Immobilizer System .................................. 152
Indicator ................................................... 83
Indicators .................................................... 72
Adaptive Cruise Control (ACC)
with Low Speed Follow (LSF) ..... 85, 86, 390
Anti-lock Brake System (ABS) .................... 79
Auto High-Beam ....................................... 82
Auto Idle Stop (Green) .............................. 89
Auto Idle Stop System (Amber) ................. 89
Automatic Brake Hold ....................... 74, 432
Automatic Brake Hold System ........... 74, 432
Blind spot information (BSI) ....................... 88
Brake System (Amber) ............................... 72
Brake System (Red) ........................... 72, 548
Charging System............................... 75, 547
Collision Mitigati on Braking System
TM
(CMBSTM) .......................................... 90, 91
Door and Trunk Open ............................... 33
ECON (Econ mode) ................................... 85
Electric Parking Brake ................................ 73
Electric Parking Brake System ............ 73, 550
Electric Power Steering (EPS) System ............................................ 79, 549
Fog Lights ................................................. 82
Gear Position ............................................ 75
High Beam ................................................ 82
Immobilizer System ................................... 83
Keyless Access System............................... 83
Lane Keeping Assist System (LKAS) ... 87, 411
Lights On .................................................. 82 Low Fuel .................................................... 78
Low Oil Pressure ................................ 74, 547
Low Tire Pressure/TPMS ............. 81, 424, 426
M (sequential mode)
Indicator/Sequential
Mode Gear Selection ............................... 78
Malfunction Indicator Lamp ............... 75, 548
Precision All-Wheel Steer
TM (P-AWS ®)
System..................................................... 85
Road Departure Mitigation (RDM) .............. 84
Seat Belt Reminder .............................. 35, 78
Security System Alarm ............................... 83
Shift Lever Position .................................... 75
SPORT (Sport mode) .................................. 85
Super Handling-All Wheel Drive
TM
(SH-AWD® ) .............................................. 88
Supplemental Restraint System ............ 53, 79
System Message ........................................ 81
Transmission System ............................ 76, 77
Turn Signal ................................................ 82
Vehicle Stability Assist ® (VSA ®)
System............................................. 80, 417
VSA ® OFF .......................................... 80, 418
Information ............................................... 563
Information Screen ................................... 223
Instant Fuel Economy ............................... 118
Instrument Panel ........................................ 71
Brightness Control ................................... 172
Integrated Dynamics System .................... 387
Dynamic Mode Button ............................. 387
Interface Dial ............................................ 219
Interior Lights ........................................... 189 Interior Rearview Mirror
.......................... 177
Internet Radio .......................................... 250
iPhone ............................................... 250, 276
iPod ................................................... 247, 276
J
Jack (Wheel Nut Wrench) ........................ 533
Jump Starting ........................................... 540
K
Key Number Tag ....................................... 135
Keyless Access System .............................. 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 133
Lockout Prevention.................................. 143
Number Tag ............................................ 135
Rear Door Won’t Open............................ 147
Remote Transmitter ................................. 141
Two-way Keyless Access Remote ..... 144, 365
Types and Functions ................................ 133
Kickdown (Automatic Transmission) ....... 370
Kickdown (Dual Clutch Transmission) ..... 370
L
Lane Keeping Assist System (LKAS)......... 409
Language (HFL) ........................................ 318
LATCH (Child Seats) .................................... 61
Legal Information on Apple CarPlay/
Android Auto .......................................... 289
19 ACURA TLX-31TZ36400.book 581 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

584
Index
SH-AWD® (Super Handling-All Wheel
DriveTM) .................................................... 423
SH-AWD ® Torque Distribution Monitor .. 119
Shift Button......................................... 18, 371
Shift Lever ........................................... 20, 378
Shift Lever Position Indicator ................... 379
Shifting (Transmission) ......... 18, 20, 371, 378
Shoulder Anchor ......................................... 38
Side Airbags ................................................ 50
Side Curtain Airbags ................................... 52
SiriusXM ® Radio ........................................ 233
Snow Tires ................................................. 501
Spare Tire (Optional) ........................ 530, 565
Spark Plugs ................................................ 564
Specifications ............................................ 564
Specified Fuel .................................... 459, 564
SPORT (Sport mode) Indicator ................... 85
Sport Mode ............................................... 387
Sport+ Mode ............................................. 387
SRS Airbags (Airbags) ................................. 44
Starting Assist Brake Function ................. 386
Starting the Engine .................................. 362
Does Not Start ......................................... 537
Engine Switch Buzzer............................... 160
Jump Starting .......................................... 540
Remote Engine Start ................................ 365
Steering Wheel ......................................... 176
Adjusting ................................................. 176
Stopping .................................................... 445
Summer Tires ............................................ 501 Super Handling-All Wheel Drive
TM
(SH-AWD® ).............................................. 423
Indicator.................................................... 88
Supplemental Restraint System (SRS) ........ 44
Surround View Camera System ............... 458
Switches (Around the Steering Wheel) ............................................. 4, 5, 158
System Message Indicator .......................... 81
T
Temperature Gauge................................. 113
Temperature Sensor ................................. 212
Temporary Tire Repair Kit ....................... 518
Text Message .................................... 346, 348
Time (Setting) ........................................... 132
Tire Fill Assist ............................................ 424
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist .................................. 424
Indicator............................................ 81, 551
Tire Fill Assist ........................................... 424
Tire Repair Kit ........................................... 517
Tires ........................................................... 493
Air Pressure ..................................... 494, 565
Chains..................................................... 501
Checking and Maintaining ...................... 493
Flat Tire (Puncture) .......................... 517, 530
Inspection ............................................... 493
Labeling .................................................. 494
Puncture (Flat Tire) .......................... 517, 530
Regulations ............................................. 496 Rotation.................................................. 500
Spare (Optional) .............................. 530, 565
Summer .................................................. 501
Temporary Tire Repair Kit ........................ 518
Wear Indicators....................................... 498
Winter .................................................... 501
Tools ......................................................... 516
Towing a Trailer ....................................... 361
Towing Your Vehicle ............................... 361
Emergency .............................................. 558
TPMS (Tire Pressure Monitoring System)
with Tire Fill Assist ................................. 424
Indicator ........................................... 81, 551
Tire Fill Assist .......................................... 424
Transmission ......................... 18, 20, 371, 378
Automatic................................. 18, 370, 371
Dual Clutch............................... 20, 370, 378
Fluid ....................................................... 484
Gear Position Indicator ...................... 75, 372
Number .................................................. 566
Sequential Mode..................................... 376
Sequential Shift Mode............................. 380
Shift Lever Position Indicator ................... 379
TRIP Button .............................................. 116
Trip Meter ................................................ 117
Troubleshooting ...................................... 515
Blown Fuse ..................... 553, 554, 555, 556
Brake Pedal Vibrates ................................. 25
Buzzer Sounds When Opening Door ......... 26
Emergency Towing ................................. 558
Engine Won’t Start ................................. 537
19 ACURA TLX-31TZ36400.book 584 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
