Acura TLX 2019 Owner's Manual

189Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 120, 292
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, the interior lights go off after about 15
minutes.
Door Activated Position
Off
On
19 ACURA TLX-31TZ36400.book 189 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

uuInterior Lights/Interior Convenience Items uInterior Lights
190
Controls
The map lights can be turned on and off by
pressing the (map light) button.
■Map Lights1Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press th e (map light) button.
Front
Rear
19 ACURA TLX-31TZ36400.book 190 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

191
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

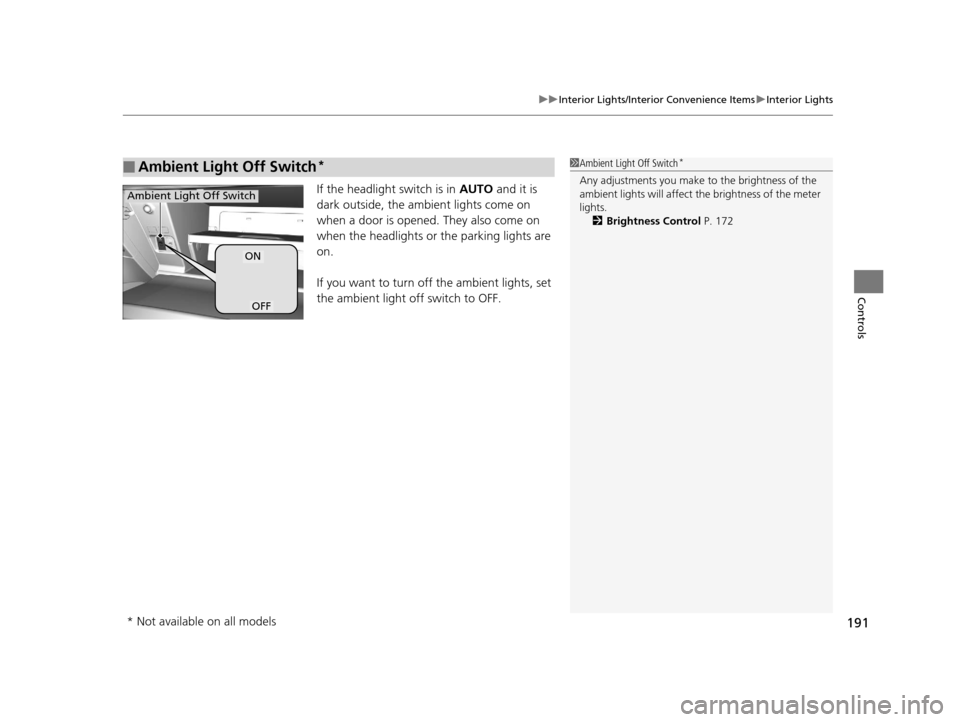

If the headlight switch is in AUTO and it is
dark outside, the ambient lights come on
when a door is opened. They also come on
when the headlights or the parking lights are
on.
If you want to turn off the ambient lights, set
the ambient light off switch to OFF.
■Ambient Light Off Switch*1 Ambient Light Off Switch*
Any adjustments you make to the brightness of the
ambient lights will affect the brightness of the meter
lights.
2 Brightness Control P. 172
ON
OFF
Ambient Light Off Switch
* Not available on all models
19 ACURA TLX-31TZ36400.book 191 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

192
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Press the button to open the glove box. You
can lock the glove box with the built-in key.
■Removable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
The removable shelf can be stored upside
down in the glove box.
■Glove Box1 Glove Box
The glove box light comes on when the parking lights
are on.
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
Release Button
To Lock
Tabs
Shelf
19 ACURA TLX-31TZ36400.book 192 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Continued193
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Pull the handle to open the console
compartment.
■Console Compartment1Console Compartment
The console compartment light comes on when the
parking lights are on.
19 ACURA TLX-31TZ36400.book 193 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

194
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

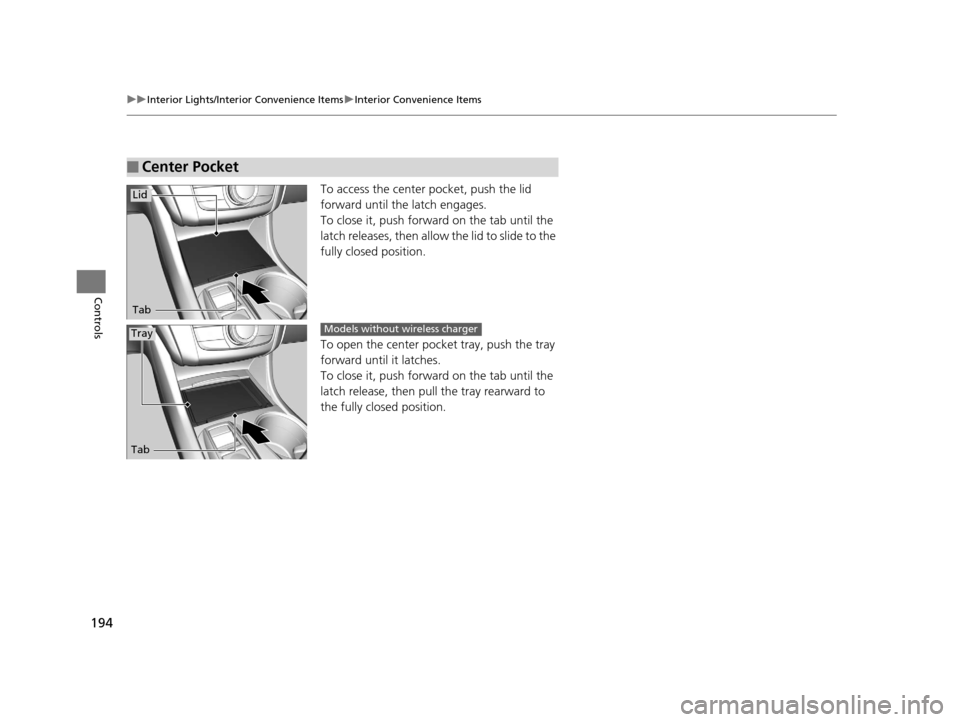

To access the center pocket, push the lid
forward until the latch engages.
To close it, push forward on the tab until the
latch releases, then allow the lid to slide to the
fully closed position.
To open the center pocket tray, push the tray
forward until it latches.
To close it, push forward on the tab until the
latch release, then pul l the tray rearward to
the fully closed position.
■Center Pocket
Tab
Lid
Tab
TrayModels without wireless charger
19 ACURA TLX-31TZ36400.book 194 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Continued195
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

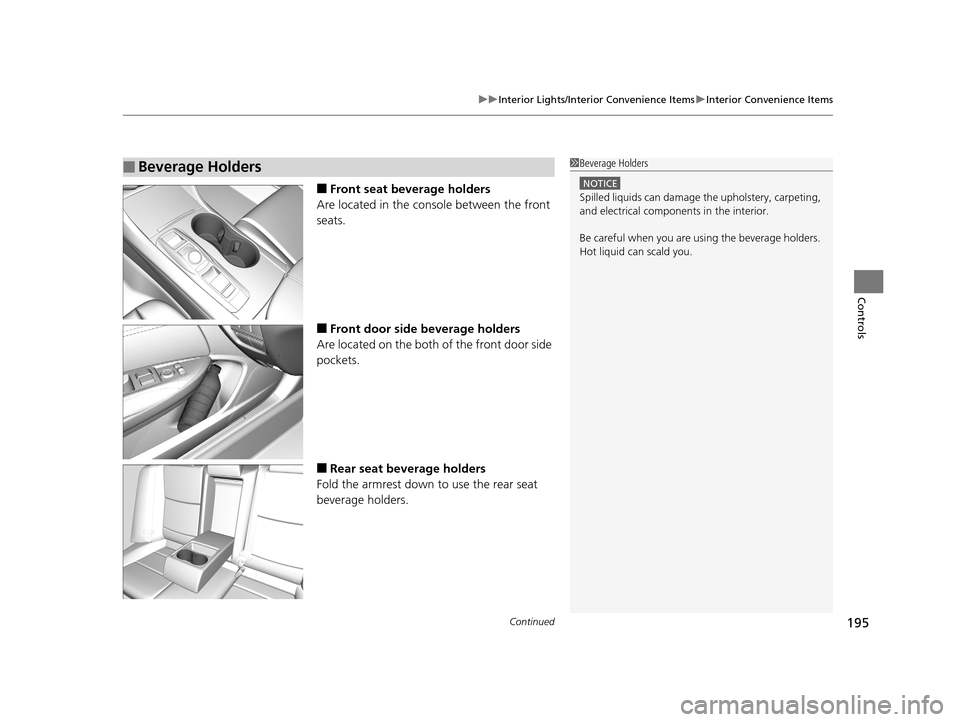

■Front seat beverage holders
Are located in the console between the front
seats.
■Front door side beverage holders
Are located on the both of the front door side
pockets.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
19 ACURA TLX-31TZ36400.book 195 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
196
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (center pocket)
Open the lid and the tray* to access.
■Accessory power socket (console
compartment)
Open the console lid and the cover to access.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
* Not available on all models
19 ACURA TLX-31TZ36400.book 196 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. Open the center pocket.
2 Center Pocket P. 194
2.Place the device you want to charge on the
charging area.
u The system will au tomatically start
charging the device, and the green
indicator light will come on.
u Make sure that the device is compatible
with the system, and placed with the
chargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will go off.
u If the device is not located on the charge
area correctly, the green indicator light
will blink.
■Wireless Charger*1Wireless Charger*
Using the information scr een or multi-information
display, you can disable th e wireless charger function.
2 Customized Features P. 120, 292
3CAUTION
Metal objects between the charge pad and
the device to be charged will get hot and
can burn you.
•Always remove foreign objects from the
charge pad before charging the device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine
or thinner for cleaning the charge pad.
• Do not cover the system with towels,
clothing, or other objects while charging
etc.
• Avoid spraying aerosols which may come
in contact with the change pad surface.
Charging Area
Green Indicator
* Not available on all models
19 ACURA TLX-31TZ36400.book 197 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
198
Controls
■When charging does not start
Perform one of the solution s in the following table.
IndicatorCauseSolution
Slow Blink
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
Fast BlinkThe wireless charger is faulty.
Turn the vehicle off
and back on. If the
indicator still blinks,
contact a dealer.
1
Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s
manual that came with th e compatible device you
want to charge.
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches can go wrong.
“Qi” and marks are the registered trademarks
owned by Wire less Power Consortium (WPC).
mark is the registered trademark owned by Power
Matters Alliance (PMA).
* Not available on all models
19 ACURA TLX-31TZ36400.book 198 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
