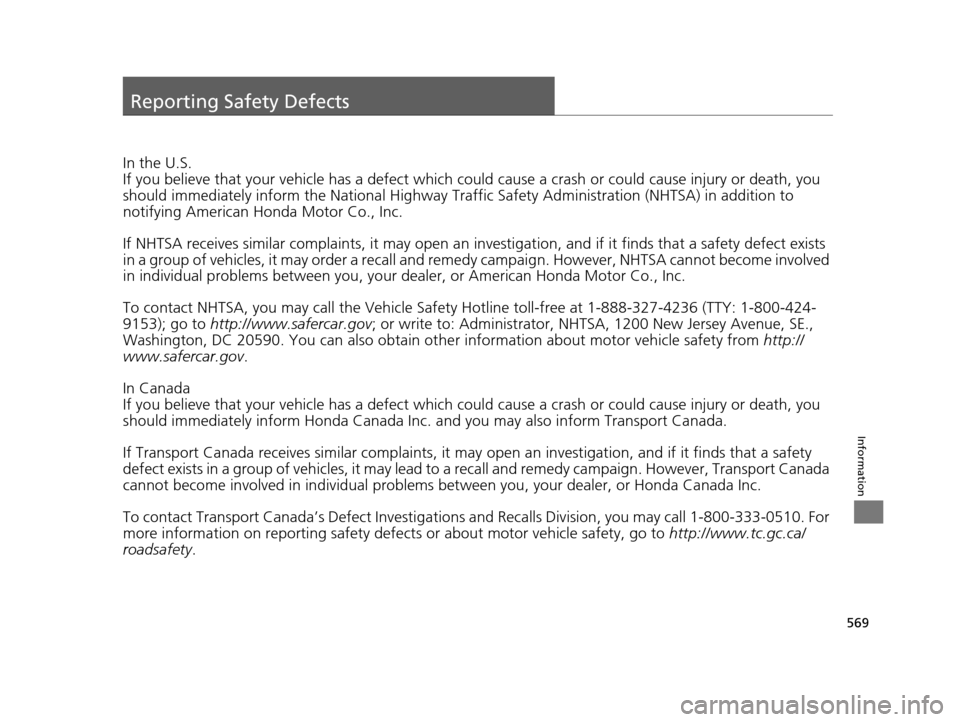

Acura TLX 2019 Owner's Manual

569
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
19 ACURA TLX-31TZ36400.book 569 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

570
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testi ng is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P.
Increase the engine speed to 2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 ACURA TLX-31TZ36400.book 570 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

571
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
19 ACURA TLX-31TZ36400.book 571 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

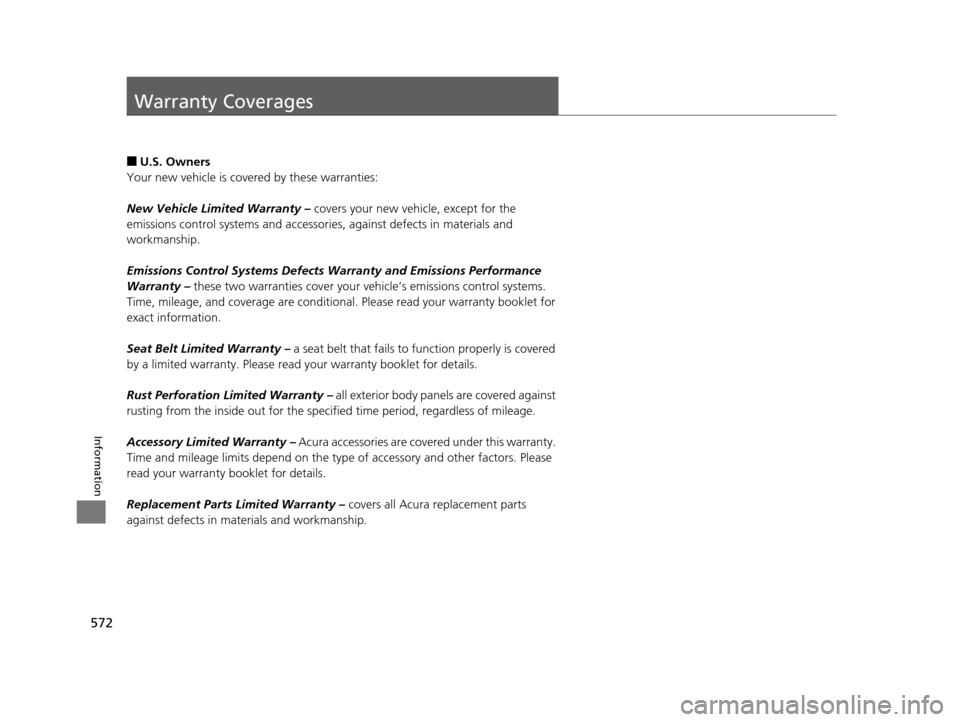

572
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Acura accessories are covered under this warranty.
Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement parts
against defects in materials and workmanship.
19 ACURA TLX-31TZ36400.book 572 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

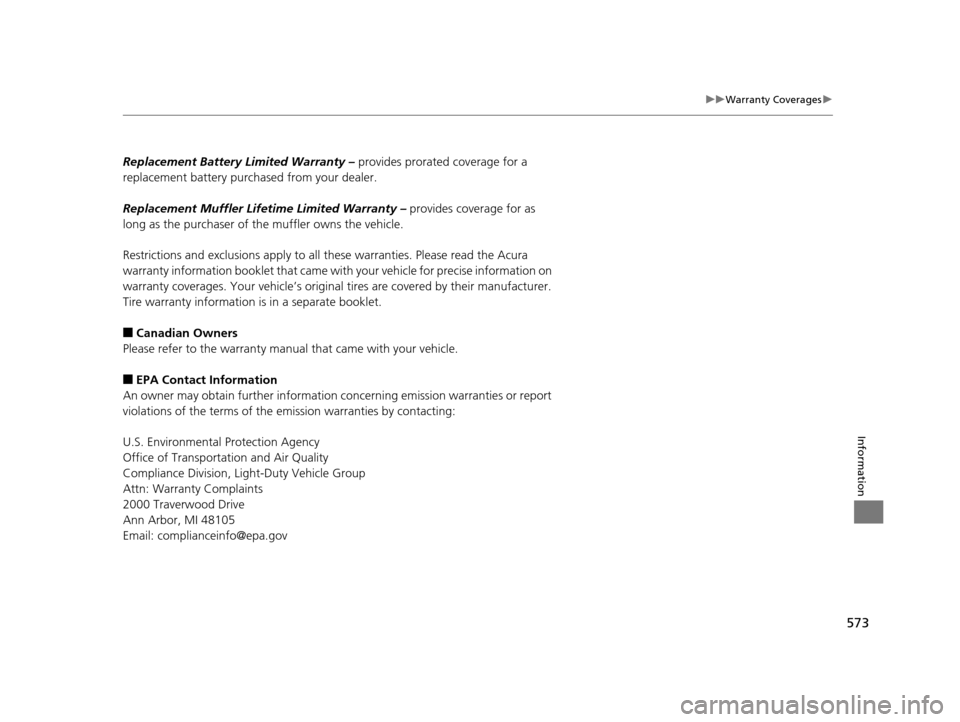

573
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purch ased from your dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Acura
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information conc erning emission warranties or report
violations of the terms of the emission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Light-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: complianc [email protected]
19 ACURA TLX-31TZ36400.book 573 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

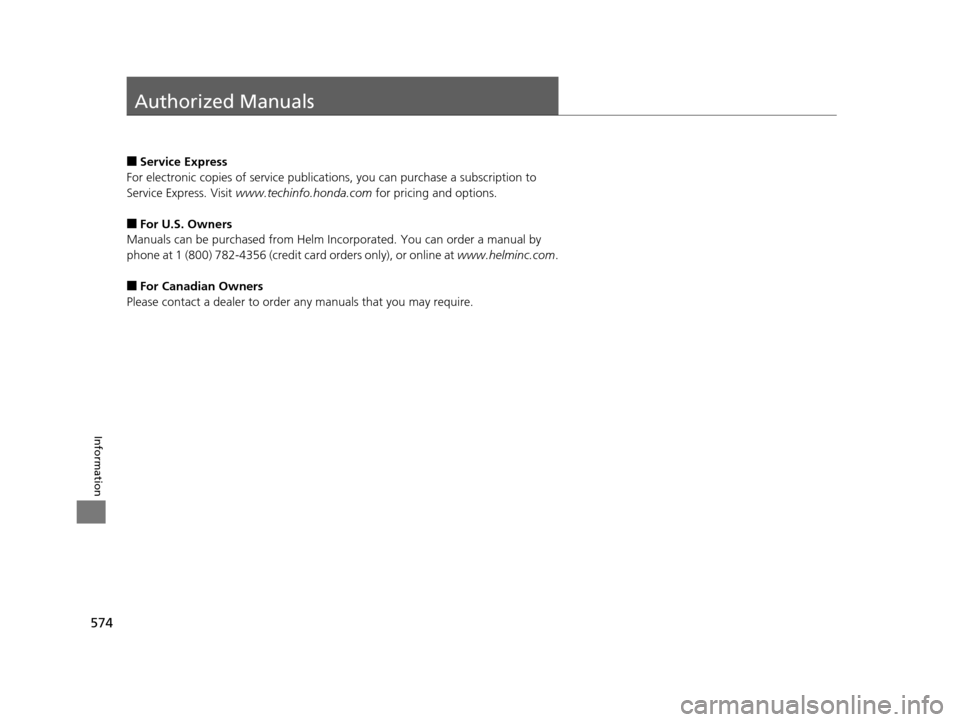

574
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
19 ACURA TLX-31TZ36400.book 574 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

575Continued
Information
Client Service Information
Acura dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Acura Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Acura Client Relations
1919 Torrance Blvd.
Mail Stop 100-5E-8F
Torrance, CA. 90501-2746
Tel: 1 (800) 382-2238 Canadian Owners
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Client Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 566
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
19 ACURA TLX-31TZ36400.book 575 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

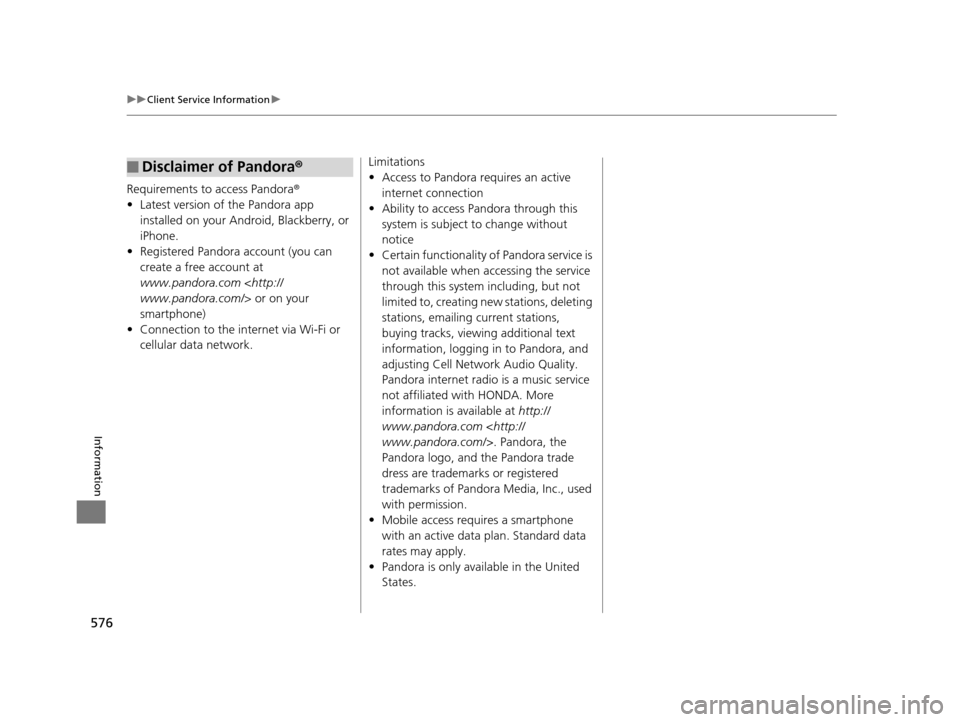

576
uuClient Service Information u
Information
Requirements to access Pandora ®
• Latest version of the Pandora app
installed on your Android, Blackberry, or
iPhone.
• Registered Pandora account (you can
create a free account at
www.pandora.com www.pandora.com/ > or on your
smartphone)
• Connection to the internet via Wi-Fi or
cellular data network.
■Disclaimer of Pandora ®Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating new stations, deleting
stations, emailing current stations,
buying tracks, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com www.pandora.com/ >. Pandora, the
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only available in the United
States.
19 ACURA TLX-31TZ36400.book 576 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Index
577
Index
Index
A
AAC................................................... 244, 252
ABS (Anti-lock Brake System) .................. 434
Accessories and Modifications ................ 512
Accessory Power Sockets ......................... 196
AcuraWatch
TM............................................ 22
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 390
Additives Coolant .................................................. 482
Engine Oil ............................................... 475
Washer ................................................... 485
Additives, Engine Oil ............................... 475
Adjusting
Armrest .................................................. 188
Front Seats.............................................. 180
Head Restraints ....................................... 183
Mirrors.................................................... 177
Steering Wheel ....................................... 176
Temperature ........................................... 117
Agile Handling Assist ............................... 419
Air Conditioning System (Climate Control
System) .................................................... 205
Changing the Mode................................ 208
Defrosting the Windshield and
Windows .............................................. 211
Dust and Pollen Filter .............................. 506
Sensors ................................................... 212
Synchronized Mode ................................ 209
Using Automatic Climate Control............ 205
Air Pressure ...................................... 494, 565 Airbags
........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care ............................................... 55
Driver’s Knee Airbag .................................. 48
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 53, 79
Passenger Airbag Off Indicator .................. 54
Sensors ...................................................... 41
Side Airbags .............................................. 50
Side Curtain Airbags .................................. 52
AM/FM Radio ............................................ 230
Ambient Light Off Switch ........................ 191
Android Auto ............................................ 262
Anti-lock Brake System (ABS) .................. 434
Indicator .................................................... 79
Apple CarPlay ........................................... 258
Armrest ..................................................... 188
Audio Remote Controls ............................ 217
Audio System ............................................ 214
Adjusting the Sound ................................ 228
Auxiliary Input Jack .................................. 216
Error Messages ........................................ 267
General Information ................................ 274
Internet Radio .......................................... 250
iPhone ............................................. 250, 276
iPod ......................................................... 247
MP3/WMA/AAC .............................. 244, 252
Reactivating ............................................. 216
Recommended CDs ................................. 275
Recommended Devices ............................ 276 Remote Controls ..................................... 217
Security Code .......................................... 216
Theft Protection ...................................... 216
USB Flash Drives ...................................... 276
USB Port.................................................. 215
Authorized Manuals ................................ 574
Auto Door Locking/Unlocking ................. 148
Customize ....................................... 126, 304
Auto High-Beam ....................................... 166
Auto Idle Stop .......................................... 382
OFF Button .............................................. 383
Auto Idle Stop Indicator (Green) ............... 89
Auto Idle Stop System Indicator (Amber) ..................................................... 89
Automatic Brake Hold ............................. 432
Indicator............................................ 74, 432
Automatic Brake Hold System
Indicator............................................ 74, 432
Automatic Folding Door Mirror .............. 179
Automatic Lighting .................................. 163
Automatic Transmission ........................... 370
Creeping ................................................. 370
Kickdown ................................................ 370
Operating the Shift Button ................ 18, 372
Shifting ................................................... 371
Auxiliary Input Jack .................................. 216
Average Fuel Economy ............................ 117
Average Speed ......................................... 118
19 ACURA TLX-31TZ36400.book 577 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

578
Index
B
BatteryCharging (Battery) ................................... 503
Charging System Indicator ................. 75, 547
Jump Starting .......................................... 540
Maintenance (Checking the Battery) ........ 502
Belts (Seat) .................................................. 34
Beverage Holders ...................................... 195
Blind spot information (BSI) System ........ 420
Bluetooth ® Audio ..................................... 255
Bluetooth ® HandsFreeLink ®..................... 317
Booster Seats (For Children) ....................... 68
Brake System ............................................. 428
Anti-lock Brake System (ABS) ................... 434
Automatic Brake Hold.............................. 432
Brake Assist System ................................. 435
Fluid ........................................................ 485
Foot Brake ............................................... 431
Parking Brake .......................................... 428
Brake System (Amber) Indicator .................................................... 72
Brake System (Red)
Indicator ............................................ 72, 548
Brightness Control (Instrument Panel) .... 172
BSI (Blind spot information) System ........ 420
Built-in Key ................................................ 134
Bulb Replacement ..................................... 486
Back-Up Lights......................................... 489
Brake/Taillights ........................................ 488
Brake/Taillights and Rear Side Marker
Lights..................................................... 488 Fog Lights ............................................... 486
Front Side Marker/Parking Lights ............. 486
Headlights ............................................... 486
High-Mount Brake Light .......................... 490
Puddle Lights........................................... 490
Rear License Plate Lights .......................... 490
Rear Turn Signal Lights ............................ 487
Side Turn Signal/Emergency Indicator
Lights .................................................... 486
Bulb Specifications ................................... 564
C
Carbon Monoxide Gas ............................... 69
Carrying Cargo ................................. 357, 359
CD Player ................................................... 244
Center Pocket ........................................... 194
Certification Label .................................... 566
Changing Bulbs ........................................ 486
Charging System Indicator ................. 75, 547
Child Safety ................................................. 56
Childproof Door Locks............................. 147
Child Seat .................................................... 56
Booster Seats ............................................ 68
Child Seat for Infants................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 63
Larger Children ......................................... 67
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60 Using a Tether .......................................... 65
Childproof Door Locks ............................. 147
Cleaning the Exterior ............................... 509
Cleaning the Interior ............................... 507
Client Service Information ....................... 575
Climate Control System ........................... 205
Changing the Mode................................ 208
Defrosting the Windshield and
Windows .............................................. 211
Dust and Pollen Filter .............................. 506
Sensors ................................................... 212
Synchronized Mode ................................ 209
Using Automatic Climate Control............ 205
Clock ......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 436
Coat Hooks ............................................... 200
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 436
Compact Spare Tire (Optional) ....... 530, 565
Compass .................................................... 352
Console Compartment ............................. 193
Controls .................................................... 131
Coolant (Engine) ...................................... 482
Adding to the Radiator ........................... 483
Adding to the Reserve Tank .................... 482
Overheating ............................................ 545
Creeping (Automatic Transmission) ........ 370
Creeping (Dual Clutch Transmission) ...... 370
Cross Traffic Monitor ............................... 451
Cup Holders .............................................. 195
19 ACURA TLX-31TZ36400.book 578 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
