Page 4 of 591
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 29
For Safe Driving P. 30 Seat Belts P. 34 Airbags P. 41
2Instrument Panel P. 71
Indicators P. 72 Gauges and Multi-Information Display P. 113
2Controls P. 131
Clock P. 132 Locking and Unlocking the Doors P. 133
Moonroof P. 157
Adjusting the Seats P. 180
2 Features P. 213
Audio System P. 214 Audio System Basic Operation P. 219
Customized Features P. 292 HomeLink® Universal Transceiver P. 314
2 Driving P. 355
Before Driving P. 356 Towing a Trailer P. 361
Multi-View Rear Camera* P. 456 Surround View Camera System* P. 458
2 Maintenance P. 463
Before Performing Maintenance P. 464 Maintenance MinderTM P. 467
Checking and Maintaining Wiper Blades P. 491
Climate Control System Maintenance P. 506
2Handling the Unexpected P. 515
Tools P. 516 If a Tire Goes Flat P. 517
Overheating P. 545 Indicator, Coming On/Blinking P. 547
When You Cannot Open the Trunk P. 560
2 Information P. 563
Specifications P. 564 Identification Numbers P. 566
Emissions Testing P. 570 Warranty Coverages P. 572
19 ACURA TLX-31TZ36400.book 2 ページ 2018年2月16日 金曜日 午後12時22分
Page 5 of 591
Contents
Child Safety P. 56Exhaust Gas Hazard P. 69Safety Labels P. 70
Opening and Closing the Trunk P. 149 Security System P. 152 Opening and Closing the Windows P. 155
Operating the Switches Around the Steering Wheel P. 158 Adjusting the Mirrors P. 177
Interior Lights/Interior Convenience Items P. 189 Climate Control System P. 205
Audio Error Messages P. 267General Information on the Audio System P. 274
Bluetooth ® HandsFreeLink ® P. 317 Compass* P. 352
When Driving P. 362 Braking P. 428Parking Your Vehicle P. 445
Refueling P. 459 Fuel Economy and CO
2 Emissions P. 462
Maintenance Under the Hood P. 472 Replacing Light Bulbs P. 486
Checking and Maintaining Tires P. 493 Battery P. 502 Remote Transmitter Care P. 504
Cleaning P. 507 Accessories and Modifications P. 512
Engine Does Not Start P. 537Jump Starting P. 540 Shift Lever Does Not Move P. 544
Fuses P. 553 Emergency Towing P. 558 When You Cannot Unlock the Fuel Fill Door P. 559
Refueling P. 561
Devices that Emit Radio Waves P. 567 Reporting Safety Defects P. 569
Authorized Manuals P. 574 Client Service Information P. 575
Quick Reference GuideP. 4
Safe DrivingP. 29
Instrument PanelP. 71
ControlsP. 131
FeaturesP. 213
DrivingP. 355
MaintenanceP. 463
Handling the UnexpectedP. 515
InformationP. 563
IndexP. 577
19 ACURA TLX-31TZ36400.book 3 ページ 2018年2月16日 金曜日 午後12時22分
Page 6 of 591
4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙System Indicators
(P72)
❙Gauges (P113)
❙Multi-Information
Display
(P114)
❙Steering Wheel Adjustments (P176)
❙ENGINE START/STOP Button (P158)
❙Hazard Warning Button
❙Rear Window Defogger/Heated Door
Mirror Button
(P173)
Canadian models
❙ (Vehicle Stability Assist® (VSA ®) System
OFF) Button
(P418)
❙Parking Sensor System Button* (P448)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P439)
❙Headlight Washer Button* (P171)
❙Heated Windshield Button* (P173)
❙Road Departure Mitigation (RDM) Button
(P406)
❙On Demand Multi-Use DisplayTM (P220)
❙Audio System (P214)
❙Climate Control System (P205)
❙Trunk Opener (P149)
❙Fuel Fill Door Release Button (P460)
❙Navigation System*
() See the Navigation System Manual
❙Information Screen (P223)
❙ (Surround View Camera) Button*
() See the Navigation System Manual
19 ACURA TLX-31TZ36400.book 4 ページ 2018年2月16日 金曜日 午後12時22分
Page 10 of 591
Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P472)
❙Windshield Wipers (P169, 491)
❙Tires (P493, 517)
❙Door Lock/Unlock Control (P136)
❙Power Door Mirrors (P178)
❙Headlights (P162, 486)
❙How to Refuel (P460)
❙High-Mount Brake Light (P490)
❙Emergency Trunk Release Lever (P151)
❙Opening/Closing the Trunk (P150)
❙Multi-View Rear Camera* (P456)
❙Taillights/Rear Side Marker Lights
(P488)
❙Brake Lights (P488)
❙Rear Turn Signal Lights (P487)
❙Back-Up Lights (P489)
❙Rear License Plate Lights (P490)
❙Fog Lights* (P165, 486)
❙Trunk Release Button (P149)
❙Front Turn Signal/Parking Lights (P161, 162, 486)
❙Side Turn Signal Lights (P161, 486)
❙Daytime Running Lights (P165, 486)
❙Front Side Marker Lights (P162, 486)
❙Taillights (P488)
❙Brake Lights (P488)
19 ACURA TLX-31TZ36400.book 8 ページ 2018年2月16日 金曜日 午後12時22分
Page 16 of 591
14
Quick Reference Guide

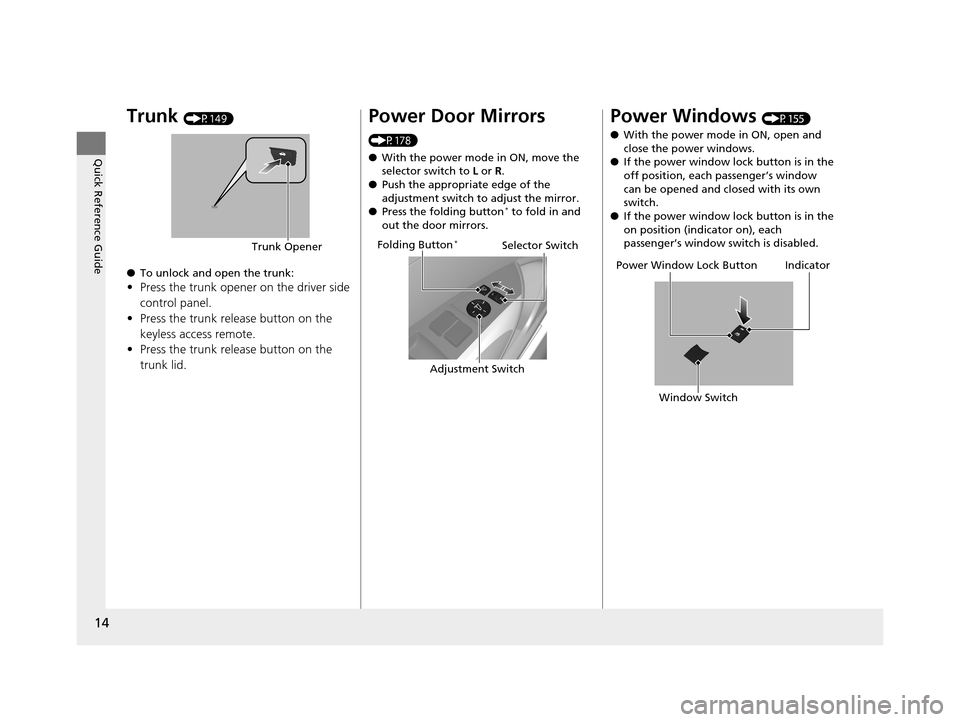

Trunk (P149)
● To unlock and open the trunk:
•Press the trunk opener on the driver side
control panel.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Trunk Opener
Power Door Mirrors
(P178)
● With the power mode in ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
● Press the folding button
* to fold in and
out the door mirrors.
Selector Switch
Adjustment Switch
Folding Button*
Power Windows (P155)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
19 ACURA TLX-31TZ36400.book 14 ページ 2018年2月16日 金曜日 午後12時22分
Page 26 of 591
24
Quick Reference Guide
Handling the Unexpected (P515)
Flat Tire (P517)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P547)
●Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with optional spare tire
Engine Won’t Start (P537)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P553)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P545)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P558)
● Call a professional towing service if you
need to tow your vehicle.
19 ACURA TLX-31TZ36400.book 24 ページ 2018年2月16日 金曜日 午後12時22分
Page 28 of 591
26
Quick Reference Guide

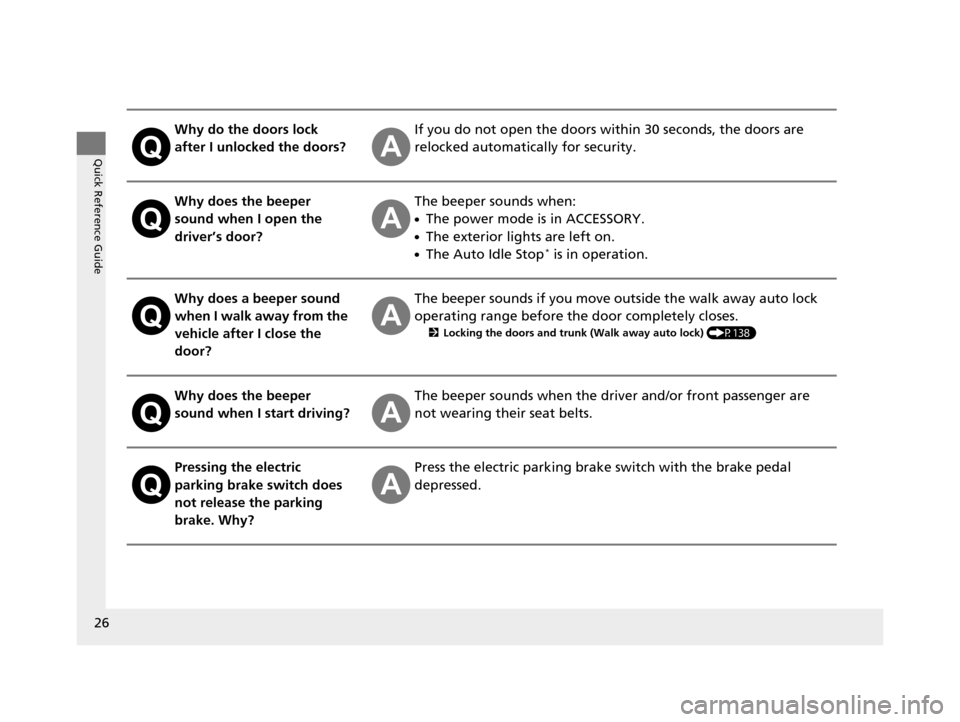

Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop* is in operation.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock) (P138)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
19 ACURA TLX-31TZ36400.book 26 ページ 2018年2月16日 金曜日 午後12時22分
Page 35 of 591
33
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 145
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 180
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint aligns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front and Rear Ou ter Head Restraint Positions P. 183
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 37
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 56
1Safety Checklist
If the door and/or trunk open message appears on
the multi-information display (MID), a door and/or
the trunk is not complete ly closed. Close all doors
and the trunk tightly unt il the message disappears.
2 Multi-Information Display Warning and
Information Messages P. 92
19 ACURA TLX-31TZ36400.book 33 ページ 2018年2月16日 金曜日 午後12時22分
Page 71 of 591
69
Safe Driving

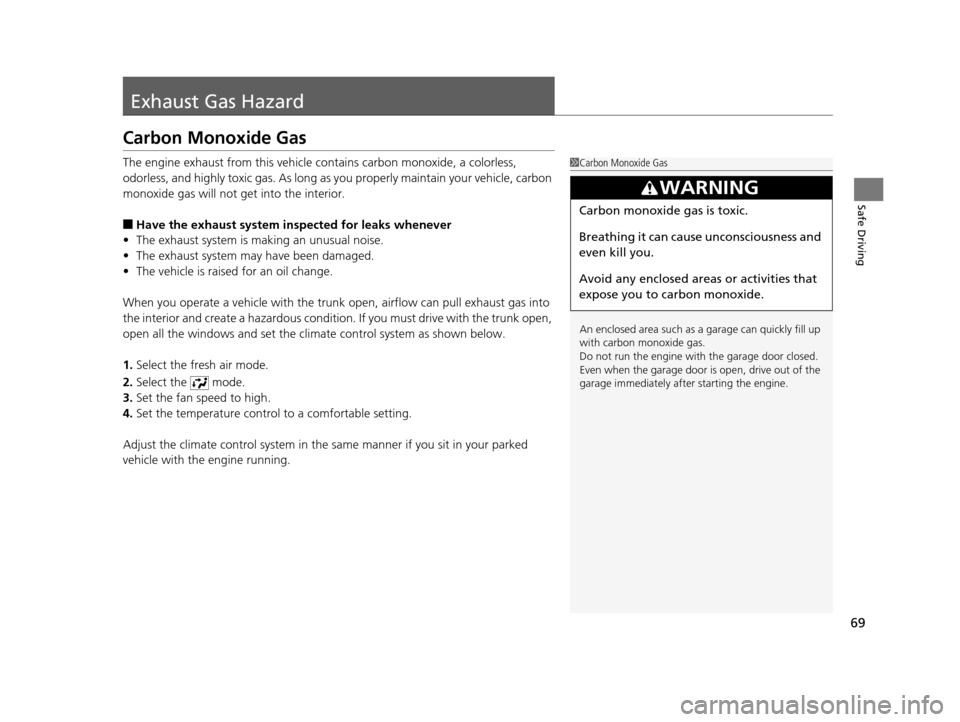

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
19 ACURA TLX-31TZ36400.book 69 ページ 2018年2月16日 金曜日 午後12時22分
Page 99 of 591
97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●The beeper sounds and the message appears if any door
or the trunk is opened while driving.
●Goes off when all doors and the trunk are closed.
●Appears when the hood is opened.●Close the hood.
19 ACURA TLX-31TZ36400.book 97 ページ 2018年2月16日 金曜日 午後12時22分
