mirror controls Acura TLX 2019 Owner's Manual

Contents
Child Safety P. 56Exhaust Gas Hazard P. 69Safety Labels P. 70
Opening and Closing the Trunk P. 149 Security System P. 152 Opening and Closing the Windows P. 155
Operating the Switches Around the Steering Wheel P. 158 Adjusting the Mirrors P. 177
Interior Lights/Interior Convenience Items P. 189 Climate Control System P. 205
Audio Error Messages P. 267General Information on the Audio System P. 274
Bluetooth ® HandsFreeLink ® P. 317 Compass* P. 352
When Driving P. 362 Braking P. 428Parking Your Vehicle P. 445
Refueling P. 459 Fuel Economy and CO
2 Emissions P. 462
Maintenance Under the Hood P. 472 Replacing Light Bulbs P. 486
Checking and Maintaining Tires P. 493 Battery P. 502 Remote Transmitter Care P. 504
Cleaning P. 507 Accessories and Modifications P. 512
Engine Does Not Start P. 537Jump Starting P. 540 Shift Lever Does Not Move P. 544
Fuses P. 553 Emergency Towing P. 558 When You Cannot Unlock the Fuel Fill Door P. 559
Refueling P. 561
Devices that Emit Radio Waves P. 567 Reporting Safety Defects P. 569
Authorized Manuals P. 574 Client Service Information P. 575
Quick Reference GuideP. 4
Safe DrivingP. 29
Instrument PanelP. 71
ControlsP. 131
FeaturesP. 213
DrivingP. 355
MaintenanceP. 463
Handling the UnexpectedP. 515
InformationP. 563
IndexP. 577
19 ACURA TLX-31TZ36400.book 3 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Visual Index
6
Quick Reference Guide❙Power Window Switches (P155)
❙Driver’s Front Airbag (P44)
❙Driver’s Knee Airbag (P48)
❙Door Mirror Controls (P178)
❙Power Door Lock Master Switch (P147)
❙Accessory Power Socket (P196)
❙Auxiliary Input Jack (P216)
❙Accessory Power Socket (P196)
❙Rearview Mirror (P177)
❙Hood Release Handle (P474)
❙Memory Buttons (P175)
❙SET Button (P175)
❙Glove Box (P192)
❙Passenger’s Front Airbag (P44)
❙Driver’s Side Interior Fuse Boxes (P555)
❙Electric Parking Brake Switch (P428)
❙Dynamic Mode Button (P387)
❙Shift Button*
Electronic Gear Selector (P371)
❙Automatic Brake Hold Button
(P432)
❙Shift Lever*
Dual Clutch Transmission (P378)
❙Auto Idle Stop OFF Button* (P383)
❙Wireless Charger* (P197)
❙USB Port (P215)
19 ACURA TLX-31TZ36400.book 6 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

131
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 132
Locking and Unlocking the Doors
Key Types and Functions .................. 133
Low Keyless Access Remote Signal Strength .. 135Locking/Unlocking the Doors from the Outside .......................................... 136
Locking/Unlocking the Doors from the Inside ............................................. 145
Childproof Door Locks ..................... 147
Auto Door Locking/Unlocking .......... 148
Opening and Closing the Trunk ....... 149
Security System ................................ 152
Immobilizer System .......................... 152
Security System Alarm ...................... 152
Opening and Closing the Windows .... 155Moonroof.................................................. 157Operating the Switches Around the
Steering Wheel ENGINE START/STOP Button............. 158
Turn Signals ..................................... 161
Light Switches.................................. 162
Fog Lights
*...................................... 165
Daytime Running Lights ................... 165
Auto High-Beam .............................. 166
Wipers and Washers ........................ 169
Brightness Control ........................... 172
Rear Defogger/Heated Door Mirror Button........................................ 173
Driving Position Memory System ...... 174
Adjusting the Steering Wheel .......... 176
Adjusting the Mirrors ....................... 177
Interior Rearview Mirror ................... 177
Power Door Mirrors ......................... 178
Adjusting the Seats .......................... 180
Front Seats ...................................... 180
Interior Lights/Interior Convenience
Items ................................................ 189
Interior Lights .................................. 189
Interior Convenience Items .............. 192
Climate Control System ................... 205
Using Automatic Climate Control .... 205
Automatic Climate Control Sensors......212
* Not available on all models
19 ACURA TLX-31TZ36400.book 131 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

173
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror Button
Controls
Rear Defogger/Heated Door Mirror Button
Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the power mode is in ON.
The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.
Heated Windshield Button*
Press the heated windshield button to deice
the windshield when the power mode is in
ON.
1 Rear Defogger/Heated Door Mirror Button
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long time while the
engine is idling. This may weaken the battery, making
it difficult to start the engine.
When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you set the power mode to ON.
1 Heated Windshield Button*
This system consumes a lot of power, so turn it off
when the window has been deiced.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
When the outside temperature is below 39°F (4°C),
the heated windshield may automatically activate.
The system deactivates itself once the outside
temperature reaches 43°F (6°C).
* Not available on all models
19 ACURA TLX-31TZ36400.book 173 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

174
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System
Controls
Driving Position Memory System
You can store two driver’s seat (except for power lumbar and thigh support*) and
door mirror positions with the driving position memory system.
When you unlock and open the driver’s doo r with a remote transmitter, or keyless
access system, door mirrors adjust to one of the two preset positions and the seat
adjusts to retracted positions of one of the two preset positions automatically.
The seat will move to th e stored position when you set the power mode to
ACCESSORY.
When you enter the vehicle, the multi-in formation display briefly shows you which
remote transmitter you used to unlock the vehicle.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.
The driver’s seat moves rearward depending
on the set seating position once you
•Stop the vehicle.
• Put the transmission in
(P.
• Turn the engine off.
• Then open the driver’s door.
Once the power mode is in the ACCESSORY
position, the driver’s seat moves forward to
the DRIVER 1 or 2 preset position.
1 Driving Position Memory System
Using the information scr een or multi-information
display, you can disable th e automatic seat and door
mirror adjustment function. 2 Customized Features P. 120, 292
The driver’s seat easy exit feature can be turned ON/
OFF. 2 Customized Features P. 120, 292
System Operation
The system will not operate if:
•The vehicle speed is above 3 mph (5 km/h).
•Either memory position button is pressed while the
seat is in motion.
•The seat position is adju sted while in operation.
•The memory 1 or 2 position is set fully to the rear.DRIVER 1 DRIVER 2
* Not available on all models
19 ACURA TLX-31TZ36400.book 174 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

175
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System
Controls

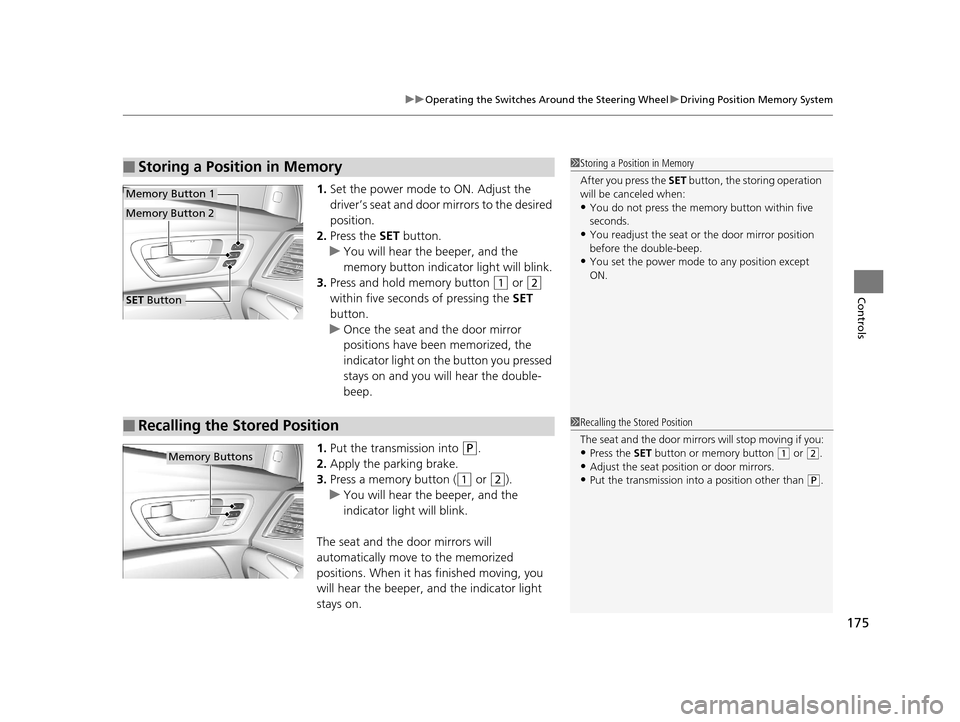

1. Set the power mode to ON. Adjust the
driver’s seat and door mirrors to the desired
position.
2. Press the SET button.
u You will hear the beeper, and the
memory button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u Once the seat and the door mirror
positions have been memorized, the
indicator light on the button you pressed
stays on and you will hear the double-
beep.
1. Put the transmission into
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear the beeper, and the
indicator light will blink.
The seat and the door mirrors will
automatically move to the memorized
positions. When it has finished moving, you
will hear the beeper, and the indicator light
stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat or the door mirror position
before the double-beep.
•You set the power mode to any position except
ON.
SET Button
Memory Button 1
Memory Button 2
■Recalling the Stored Position1 Recalling the Stored Position
The seat and the door mirrors will stop moving if you:
•Press the SET button or memory button (1 or (2.•Adjust the seat position or door mirrors.
•Put the transmission into a position other than (P.
Memory Buttons
19 ACURA TLX-31TZ36400.book 175 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

177
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When you are driving after dark, the
automatic dimming rearview mirror and
power door mirrors
* reduce the glare from
headlights behind you, based on inputs from
the mirror sensor. This feature is always active.
■Automatic Dimming Rearview Mirror and Power Door Mirrors*
1 Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 180
1Automatic Dimming Rearview Mirror and Power Door Mirrors*
The auto dimming function cancels when the
transmission is in (R.
* Not available on all models
19 ACURA TLX-31TZ36400.book 177 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

178
uuAdjusting the Mirrors uPower Door Mirrors
Controls

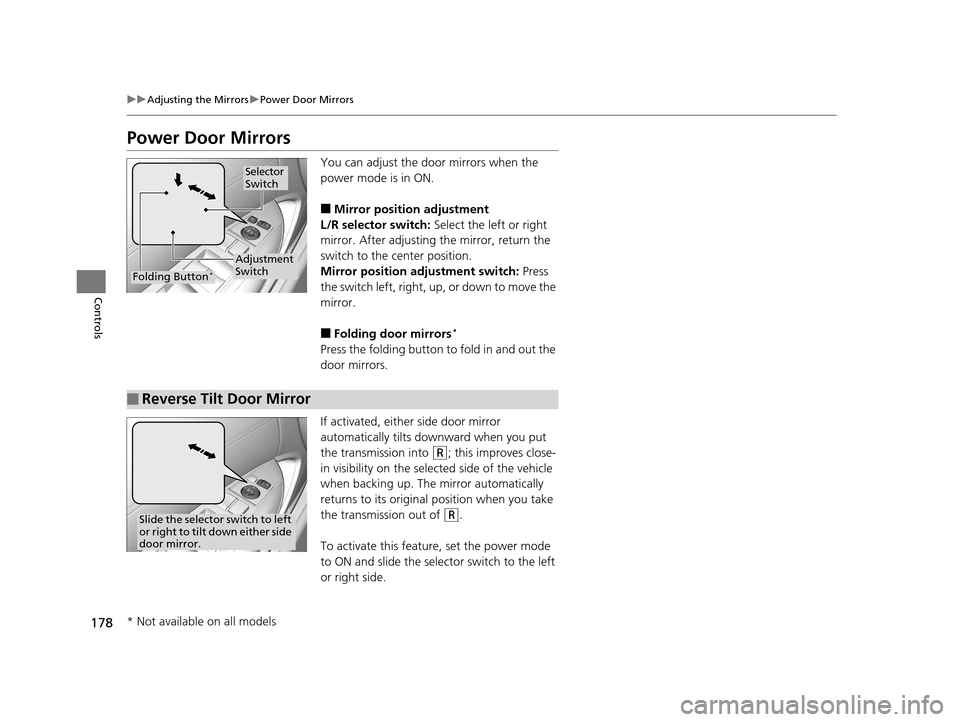

Power Door Mirrors
You can adjust the door mirrors when the
power mode is in ON.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
■Folding door mirrors*
Press the folding button to fold in and out the
door mirrors.
If activated, either side door mirror
automatically tilts do wnward when you put
the transmission into
(R; this improves close-
in visibility on the selected side of the vehicle
when backing up. The mirror automatically
returns to its original position when you take
the transmission out of
(R.
To activate this feature, set the power mode
to ON and slide the selector switch to the left
or right side.
Selector
Switch
Folding Button*
Adjustment
Switch
■Reverse Tilt Door Mirror
Slide the selector switch to left
or right to tilt down either side
door mirror.
* Not available on all models
19 ACURA TLX-31TZ36400.book 178 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

179
uuAdjusting the Mirrors uPower Door Mirrors
Controls
■Folding in th e door mirrors
Press the lock button on the remote transm itter, or press the door lock button on
any door. u The mirrors start folding in automatically.
■Folding out the door mirrors
Unlock the driver’s door using the re mote transmitter or keyless access system.
u The mirrors start folding out automatically.
■Automatic Folding Door Mirror Function*1Automatic Folding Door Mirror Function*
You cannot turn the automatic folding out
automatically if they have been folded in using the
folding button.
You can turn the automa tic folding door mirror
function on and off. 2 Customized Features P. 120, 292
Door mirrors will not fold automatically when locking
from inside the vehicle usi ng lock tab or master door
lock switch.
* Not available on all models
19 ACURA TLX-31TZ36400.book 179 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Index
577
Index
Index
A
AAC................................................... 244, 252
ABS (Anti-lock Brake System) .................. 434
Accessories and Modifications ................ 512
Accessory Power Sockets ......................... 196
AcuraWatch
TM............................................ 22
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 390
Additives Coolant .................................................. 482
Engine Oil ............................................... 475
Washer ................................................... 485
Additives, Engine Oil ............................... 475
Adjusting
Armrest .................................................. 188
Front Seats.............................................. 180
Head Restraints ....................................... 183
Mirrors.................................................... 177
Steering Wheel ....................................... 176
Temperature ........................................... 117
Agile Handling Assist ............................... 419
Air Conditioning System (Climate Control
System) .................................................... 205
Changing the Mode................................ 208
Defrosting the Windshield and
Windows .............................................. 211
Dust and Pollen Filter .............................. 506
Sensors ................................................... 212
Synchronized Mode ................................ 209
Using Automatic Climate Control............ 205
Air Pressure ...................................... 494, 565 Airbags
........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care ............................................... 55
Driver’s Knee Airbag .................................. 48
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 53, 79
Passenger Airbag Off Indicator .................. 54
Sensors ...................................................... 41
Side Airbags .............................................. 50
Side Curtain Airbags .................................. 52
AM/FM Radio ............................................ 230
Ambient Light Off Switch ........................ 191
Android Auto ............................................ 262
Anti-lock Brake System (ABS) .................. 434
Indicator .................................................... 79
Apple CarPlay ........................................... 258
Armrest ..................................................... 188
Audio Remote Controls ............................ 217
Audio System ............................................ 214
Adjusting the Sound ................................ 228
Auxiliary Input Jack .................................. 216
Error Messages ........................................ 267
General Information ................................ 274
Internet Radio .......................................... 250
iPhone ............................................. 250, 276
iPod ......................................................... 247
MP3/WMA/AAC .............................. 244, 252
Reactivating ............................................. 216
Recommended CDs ................................. 275
Recommended Devices ............................ 276 Remote Controls ..................................... 217
Security Code .......................................... 216
Theft Protection ...................................... 216
USB Flash Drives ...................................... 276
USB Port.................................................. 215
Authorized Manuals ................................ 574
Auto Door Locking/Unlocking ................. 148
Customize ....................................... 126, 304
Auto High-Beam ....................................... 166
Auto Idle Stop .......................................... 382
OFF Button .............................................. 383
Auto Idle Stop Indicator (Green) ............... 89
Auto Idle Stop System Indicator (Amber) ..................................................... 89
Automatic Brake Hold ............................. 432
Indicator............................................ 74, 432
Automatic Brake Hold System
Indicator............................................ 74, 432
Automatic Folding Door Mirror .............. 179
Automatic Lighting .................................. 163
Automatic Transmission ........................... 370
Creeping ................................................. 370
Kickdown ................................................ 370
Operating the Shift Button ................ 18, 372
Shifting ................................................... 371
Auxiliary Input Jack .................................. 216
Average Fuel Economy ............................ 117
Average Speed ......................................... 118
19 ACURA TLX-31TZ36400.book 577 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
