open hood Acura TLX 2019 Owner's Manual

Contents
Child Safety P. 56Exhaust Gas Hazard P. 69Safety Labels P. 70
Opening and Closing the Trunk P. 149 Security System P. 152 Opening and Closing the Windows P. 155
Operating the Switches Around the Steering Wheel P. 158 Adjusting the Mirrors P. 177
Interior Lights/Interior Convenience Items P. 189 Climate Control System P. 205
Audio Error Messages P. 267General Information on the Audio System P. 274
Bluetooth ® HandsFreeLink ® P. 317 Compass* P. 352
When Driving P. 362 Braking P. 428Parking Your Vehicle P. 445
Refueling P. 459 Fuel Economy and CO
2 Emissions P. 462
Maintenance Under the Hood P. 472 Replacing Light Bulbs P. 486
Checking and Maintaining Tires P. 493 Battery P. 502 Remote Transmitter Care P. 504
Cleaning P. 507 Accessories and Modifications P. 512
Engine Does Not Start P. 537Jump Starting P. 540 Shift Lever Does Not Move P. 544
Fuses P. 553 Emergency Towing P. 558 When You Cannot Unlock the Fuel Fill Door P. 559
Refueling P. 561
Devices that Emit Radio Waves P. 567 Reporting Safety Defects P. 569
Authorized Manuals P. 574 Client Service Information P. 575
Quick Reference GuideP. 4
Safe DrivingP. 29
Instrument PanelP. 71
ControlsP. 131
FeaturesP. 213
DrivingP. 355
MaintenanceP. 463
Handling the UnexpectedP. 515
InformationP. 563
IndexP. 577
19 ACURA TLX-31TZ36400.book 3 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P472)
❙Windshield Wipers (P169, 491)
❙Tires (P493, 517)
❙Door Lock/Unlock Control (P136)
❙Power Door Mirrors (P178)
❙Headlights (P162, 486)
❙How to Refuel (P460)
❙High-Mount Brake Light (P490)
❙Emergency Trunk Release Lever (P151)
❙Opening/Closing the Trunk (P150)
❙Multi-View Rear Camera* (P456)
❙Taillights/Rear Side Marker Lights
(P488)
❙Brake Lights (P488)
❙Rear Turn Signal Lights (P487)
❙Back-Up Lights (P489)
❙Rear License Plate Lights (P490)
❙Fog Lights* (P165, 486)
❙Trunk Release Button (P149)
❙Front Turn Signal/Parking Lights (P161, 162, 486)
❙Side Turn Signal Lights (P161, 486)
❙Daytime Running Lights (P165, 486)
❙Front Side Marker Lights (P162, 486)
❙Taillights (P488)
❙Brake Lights (P488)
19 ACURA TLX-31TZ36400.book 8 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

24
Quick Reference Guide
Handling the Unexpected (P515)
Flat Tire (P517)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P547)
●Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with optional spare tire
Engine Won’t Start (P537)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P553)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P545)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P558)
● Call a professional towing service if you
need to tow your vehicle.
19 ACURA TLX-31TZ36400.book 24 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

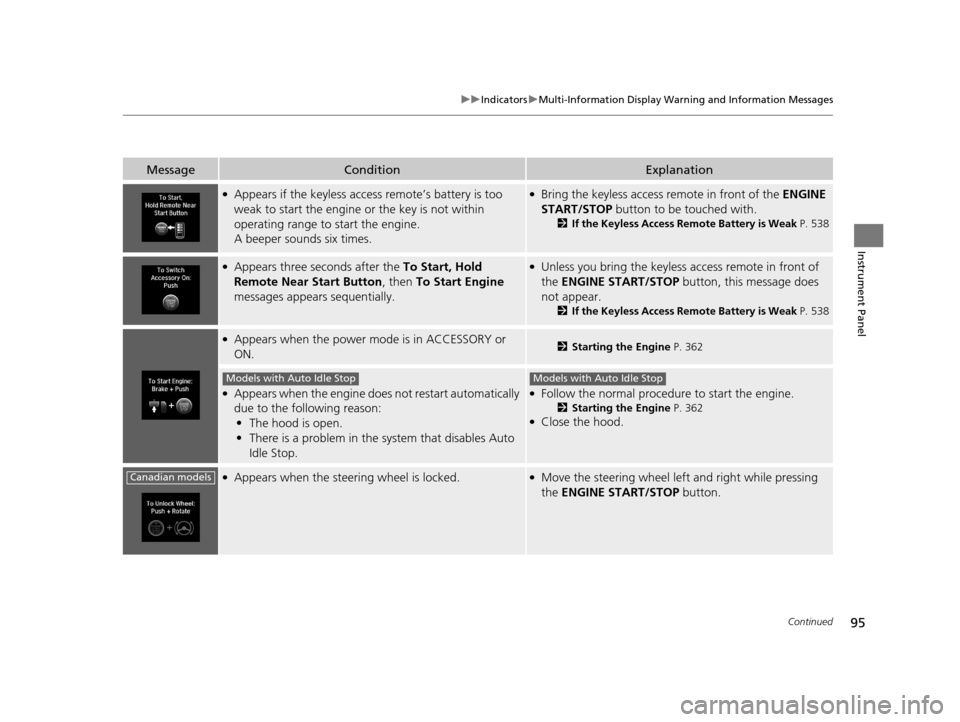

95
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the keyless access remote’s battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 538
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appears sequentially.●Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.
2 If the Keyless Access Remote Battery is Weak P. 538
●Appears when the power mode is in ACCESSORY or
ON.2Starting the Engine P. 362
●Appears when the engine does not restart automatically
due to the following reason:
• The hood is open.
• There is a problem in the sy stem that disables Auto
Idle Stop.●Follow the normal procedure to start the engine.
2 Starting the Engine P. 362●Close the hood.
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
Models with Auto Idle StopModels with Auto Idle Stop
Canadian models
19 ACURA TLX-31TZ36400.book 95 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●The beeper sounds and the message appears if any door
or the trunk is opened while driving.
●Goes off when all doors and the trunk are closed.
●Appears when the hood is opened.●Close the hood.
19 ACURA TLX-31TZ36400.book 97 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

109
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you attempt to put the transmission into
another gear position wi th the transmission in
(P and
the engine OFF.
●To select another gear position while in (P, the engine
must be ON.
●Appears when you try to chan ge the gear position after
the position has automatically been changed to
(P with
the driver’s door open and the driver’s seat belt
unfastened.
●Press the (P button If you leave the vehicle.
●Appears if you press the ENGINE START/STOP button
to turn the engine off wi thout the transmission in
(P.●Put the transmission into (P. The power mode changes
to VEHICLE OFF.
●Press the ENGINE START/STOP button twice after
putting the transmission into
(P.
●Appears when the engine stops without the
transmission in
(P, and does not restart automatically.●Appears if you open the hood while Auto Idle Stop
activates.
●If you want to set the power mode to ON, put the
transmission into
(P.●If you want to start the engine, follow the normal
procedure.
2 Starting the Engine P. 362
Models with electronic gear selector
U.S. models
Canadian models
Models with Auto Idle StopModels with Auto Idle Stop
19 ACURA TLX-31TZ36400.book 109 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Continued139
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds an d the function is
deactivated.
To restore the function (any step below):
• Set the power mode to ON.
• Lock the vehicle without using the auto lock
function.
• With the keyless acce ss remote on you,
move out of the au to lock function
operation range.
• Open any door.1Locking the doors and trunk (Walk away auto lock)
The auto lock function does not operate when any of
the following conditions are met.
•The keyless access remote is inside the vehicle.
•A door or the hood is not closed.
•The power mode is set to any mode other than
OFF.
•The keyless access remote is not located within a
radius of about 5 feet (1 .5 m) from the vehicle
when you get out of the vehicle and close the
doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The keyless access remote is put inside the vehicle
through a window.
•You are located too close to the vehicle.•The keyless access remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the keyless access remote. Then, open/close
a door and confirm the auto lock activation beeper
sounds once.
19 ACURA TLX-31TZ36400.book 139 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

152
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains el ectronic transmitters that use electronic
signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehi cle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates wh en the trunk, hood or doors are forcibly
opened. The alarm does not activate if th e trunk or doors are opened with the key,
remote transmitter or keyless access system.
However, the alarm activates if a door is opened with the key and then the
transmission is taken out of
(P or the hood is opened before the power mode is set
to ON.
However, the alarm activates if a door is opened with the key and then the hood is
opened before the power mode is set to ON.
■When the security sy stem alarm activates
The horn sounds intermittently and some exterior lights flash.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
Models with shift lever
Models with electronic gear selector
19 ACURA TLX-31TZ36400.book 152 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Continued153
uuSecurity System uSecurity System Alarm
Controls
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or keyless access system. The
system, along with the horn and flashing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood is closed.
• All doors and the trunk are locked from ou tside with the key, remote transmitter
or keyless access system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or keyless access system, or the power mode is set to ON. The security
system alarm indicator goes off at the same time.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk opener or the
emergency trunk opener.
•Opening the hood with the hood release.
•Taking the transmission out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter or
keyless access system.
Models with shift lever
19 ACURA TLX-31TZ36400.book 153 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

356
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 493
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
19 ACURA TLX-31TZ36400.book 356 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
