tow Acura TLX 2020 Owner's Guide

531
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
20 ACURA TLX-31TZ36500.book 531 ページ ２０１９年２月７日　木曜日　午後２時２分

532
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possibl e to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slippe ry surface, and apply the parking brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Models with optional spare tire
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairing agent other than the
Tire Repair Ki t provided with your vehicle, as some
tire repair agents can caus e damage to the pressure
sensors.
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
20 ACURA TLX-31TZ36500.book 532 ページ ２０１９年２月７日　木曜日　午後２時２分

539
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 540
uMake sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 158
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 504●If the interior lights come on normally 2 Fuses P. 555
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 362
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 152
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 113
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 559
If the problem continues:
2Emergency Towing P. 560
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 542
20 ACURA TLX-31TZ36500.book 539 ページ ２０１９年２月７日　木曜日　午後２時２分

554
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioned.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 362
Models with electronic gear selector
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 560
20 ACURA TLX-31TZ36500.book 554 ページ ２０１９年２月７日　木曜日　午後２時２分

558
uuFuses uFuse Locations
Handling the Unexpected
*1:2WD models
*2:AWD models
*3:Have a dealer replace the fuse.
Circuit ProtectedAmps
A−−
B− −
CMeter*27.5 A
D Back Up*210 A
EStop*27.5 A
F Parking Lights*215 A
GAudio ACC*27.5 A
Rear Seat Heater*, *1, *2, *3(15 A)
AABS/VSA*27.5 A
BMICU*27.5 A
C−−
D− −
ESTRLD*27.5 A
F Audio*220 A
GACM*27.5 A
Heated Steering Wheel
*, *1, *2, *3(10 A)
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Grasp the bottom edge of the outer
panel.
2. Pull the panel towards you, then remove
it.
Fuse locations are shown on the outer
panel.
■Driver’s Side Interior Fuse Box
Type B
Outer Panel
Fuse Box
Fuse Label
■Circuit protected and fuse rating
*1:AWD models
Circuit ProtectedAmps
1P-AWS L(40 A)
2−−
3−−
4ACC Radar(10 A)
5Idle Stop*1(30 A)
6P-AWS R(40 A)
7FR DE-ICE*(15 A)
8Idle Stop*1(30 A)
* Not available on all models
20 ACURA TLX-31TZ36500.book 558 ページ ２０１９年２月７日　木曜日　午後２時２分

560
Handling the Unexpected

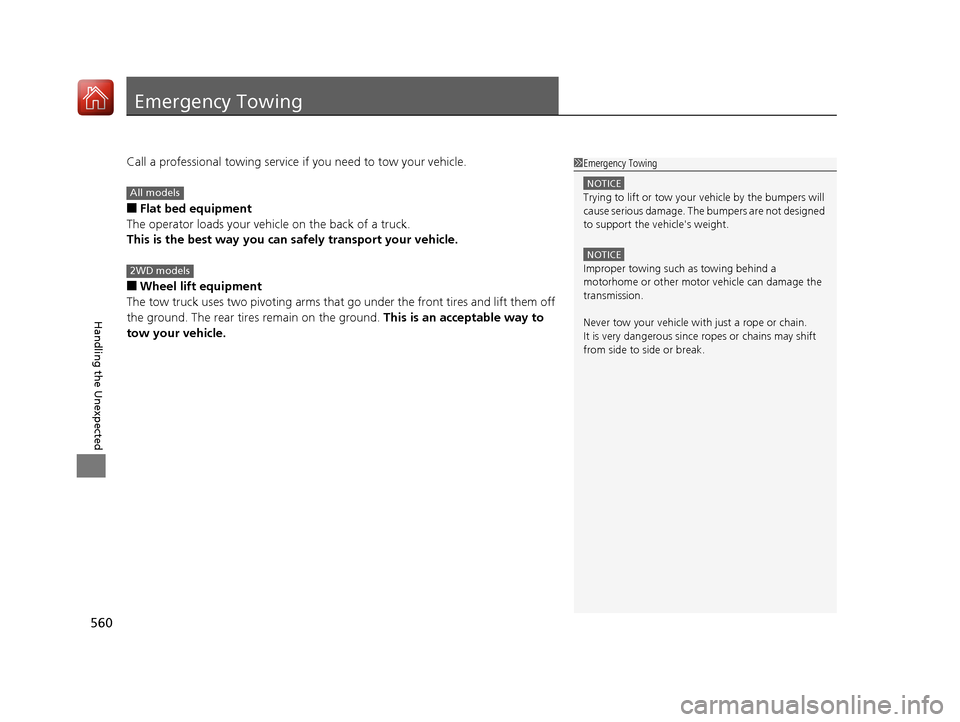

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way you can safely transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
All models
2WD models
20 ACURA TLX-31TZ36500.book 560 ページ ２０１９年２月７日　木曜日　午後２時２分

561
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
20 ACURA TLX-31TZ36500.book 561 ページ ２０１９年２月７日　木曜日　午後２時２分

585
Index
Shift Lever Position Indicator.................. 379
Shifting (Transmission) ........ 18, 20, 371, 378
Shoulder Anchor ........................................ 38
Side Airbags ............................................... 50
Side Curtain Airbags .................................. 52
SiriusXM ® Radio ....................................... 233
Snow Tires ................................................ 503
Spare Tire (Optional) ....................... 532, 567
Spark Plugs ............................................... 566
Specifications ........................................... 566
Specified Fuel ................................... 460, 566
SPORT (Sport mode) Indicator .................. 85
Sport Mode .............................................. 387
Sport+ Mode ............................................ 387
SRS Airbags (Airbags) ................................ 44
Starting Assist Brake Function ................ 386
Starting the Engine .................................. 362
Does Not Start ........................................ 539
Engine Switch Buzzer .............................. 160
Jump Starting ......................................... 542
Remote Engine Start ............................... 365
Steering Wheel ........................................ 176
Adjusting ................................................ 176
Stopping ................................................... 446
Summer Tires ............................................ 503
Super Handling-All Wheel Drive
TM
(SH-AWD ®).............................................. 424
Indicator ................................................... 88
Supplemental Restraint System (SRS) ....... 44
Surround View Camera System ............... 459Switches (Around the Steering
Wheel) ............................................. 4, 5, 158
System Message Indicator .......................... 81
T
Temperature Gauge................................. 113
Temperature Sensor ................................. 212
Temporary Tire Repair Kit ........................ 520
Text Message .................................... 346, 348
Time (Setting) ........................................... 132
Tire Fill Assist ............................................ 425
Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist .................................. 425
Indicator ............................................ 81, 553
Tire Fill Assist ........................................... 425
Tire Repair Kit ........................................... 519
Tires ........................................................... 495
Air Pressure ..................................... 496, 567
Chains ..................................................... 503
Checking and Maintaining ....................... 495
Flat Tire (Puncture) ........................... 519, 532
Inspection ................................................ 495
Labeling .................................................. 496
Puncture (Flat Tire) ........................... 519, 532
Regulations ............................................. 498
Rotation .................................................. 502
Spare (Optional) .............................. 532, 567
Summer .................................................. 503
Temporary Tire Repair Kit ........................ 520
Wear Indicators ....................................... 500 Winter..................................................... 503
Tools .......................................................... 518
Towing a Trailer ....................................... 361
Towing Your Vehicle ................................ 361
Emergency .............................................. 560
TPMS (Tire Pressure Monitoring System) with Tire Fill Assist .................................. 425
Indicator............................................ 81, 553
Tire Fill Assist ........................................... 425
Transmission ......................... 18, 20, 371, 378
Automatic ................................. 18, 370, 371
Dual Clutch ............................... 20, 370, 378
Fluid ........................................................ 486
Gear Position Indicator ...................... 75, 372
Number................................................... 568
Sequential Mode ..................................... 376
Sequential Shift Mode ............................. 380
Shift Lever Position Indicator.................... 379
TRIP Button ............................................... 116
Trip Meter ................................................. 117
20 ACURA TLX-31TZ36500.book 585 ページ ２０１９年２月７日　木曜日　午後２時２分

586
Index
Troubleshooting....................................... 517
Blown Fuse ...................... 555, 556, 557, 558
Brake Pedal Vibrates .................................. 25
Buzzer Sounds When Opening Door .......... 26
Emergency Towing .................................. 560
Engine Won’t Start .................................. 539
Flat Tire/Puncture ..................................... 519
Noise When Braking .................................. 27
Overheating............................................. 547
Premium Gasoline............................ 460, 566
Puncture/Flat Tire ............................. 519, 532
Rear Door Won’t Open ...................... 25, 147
Select Lever Won’t Move ......................... 546
Warning Indicators .................................... 72
Trunk ......................................................... 149
Lid ........................................................... 149
Light Bulbs............................................... 566
Main Switch ............................................ 151
Open Message........................................... 97
Unable to Open ....................................... 562
Turn Signals ............................................... 161
Indicators (Instrum ent Panel) ...................... 82
Turn-by-Turn Directions ........................... 118
Two-way Keyless Access Remote ..... 144, 365
U
Under-Floor Storage Area........................ 201
Unlocking the Doors ................................. 136
Unlocking the Fron t Doors from the
Inside ................................................. 13, 145 USB Flash Drives
....................................... 276
USB Port .................................................... 215
Using the Keyless Access System ............. 136
V
Valet Mode............................................... 151
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 568
Vehicle Stability Assist ® (VSA ®)................ 418
Off Button............................................... 419
Off Indicator...................................... 80, 419
System Indicator ................................ 80, 418
Viscosity (Oil) .................................... 477, 567
VSA ® (Vehicle Stability Assist ®)................ 418
W
Wallpaper ................................................. 226
Warning and Information Messages ......... 92
Warning Indicator On/Blinking ............... 549
Warning Labels ........................................... 70
Warranties (Warranty Manual provided
separately) .............................................. 573
Watts ......................................................... 566
Wear Indicators (Tire) .............................. 500
Wheel Nut Wrench (Jack Handle) ........... 535
Window Washers ..................................... 169
Adding/Refilling Fluid .............................. 487
Switch ..................................................... 169
Windows (Opening and Closing) ............ 155Windshield
Cleaning ......................................... 510, 512
Defrosting/Defogging ............................. 211
Washer Fluid ........................................... 487
Wiper Blades........................................... 493
Wipers and Washers ............................... 169
Winter Tires .............................................. 503
Snow Tires .............................................. 503
Tire Chains.............................................. 503
Wipers and Washers ................................ 169
Checking and Replacing Wiper Blades..... 493
Wireless Charger ...................................... 197
WMA ................................................. 244, 252
Worn Tires ................................................ 495
20 ACURA TLX-31TZ36500.book 586 ページ ２０１９年２月７日　木曜日　午後２時２分
