Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. Open the center pocket.
2 Center Pocket P. 194
2.Place the device you want to charge on the
charging area.
u The system will au tomatically start
charging the device, and the green
indicator light will come on.
u Make sure that the device is compatible
with the system, and placed with the
chargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will go off.
u If the device is not located on the charge
area correctly, the green indicator light
will blink.
■Wireless Charger*1Wireless Charger*
Using the information scr een or multi-information
display, you can disable th e wireless charger function.
2 Customized Features P. 120, 292
3CAUTION
Metal objects between the charge pad and
the device to be charged will get hot and
can burn you.
•Always remove foreign objects from the
charge pad before charging the device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine
or thinner for cleaning the charge pad.
• Do not cover the system with towels,
clothing, or other objects while charging
etc.
• Avoid spraying aerosols which may come
in contact with the charge pad surface.
Charging Area
Green Indicator
* Not available on all models
20 ACURA TLX-31TZ36500.book 197 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
198
Controls
■When charging does not start
Perform one of the solution s in the following table.
IndicatorCauseSolution
Slow Blink
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
Fast BlinkThe wireless charger is faulty.
Turn the vehicle off
and back on. If the
indicator still blinks,
contact a dealer.
1
Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s
manual that came with th e compatible device you
want to charge.
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches can go wrong.

Continued199
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
1Wireless Charger*
In the following cases, ch arging may stop or not start:•The device is already fully charged.
•The temperature of the device is extremely high
while charging.
•You are at a place that emits strong
electromagnetic waves or noises, such as TV
station, electric power plant, or gas station.
A device may not charge if the size or shape of its
chargeable side is not appropriate for use with the
charging area.
Not all devices are compatible with the system.
During the charging phase, it is normal for the
charging area and de vice to heat up.
Charging may be briefl y interrupted when:
•All the doors or the trunk are closed
- to avoid interference with the proper functioning
of the keyless access system.
•The position of the device is altered.
•The radio is scanning for AM stations.
Do not charge more than one device at a time on a
charging area.
* Not available on all models
20 ACURA TLX-31TZ36500.book 199 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
200
Controls
There are coat hooks on the rear grab handle
of both sides. Pull it down to use it.
There are coat hooks on the door pillar of
both sides.
■Coat Hooks1 Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
20 ACURA TLX-31TZ36500.book 200 ページ ２０１９年２月７日　木曜日　午後２時２分

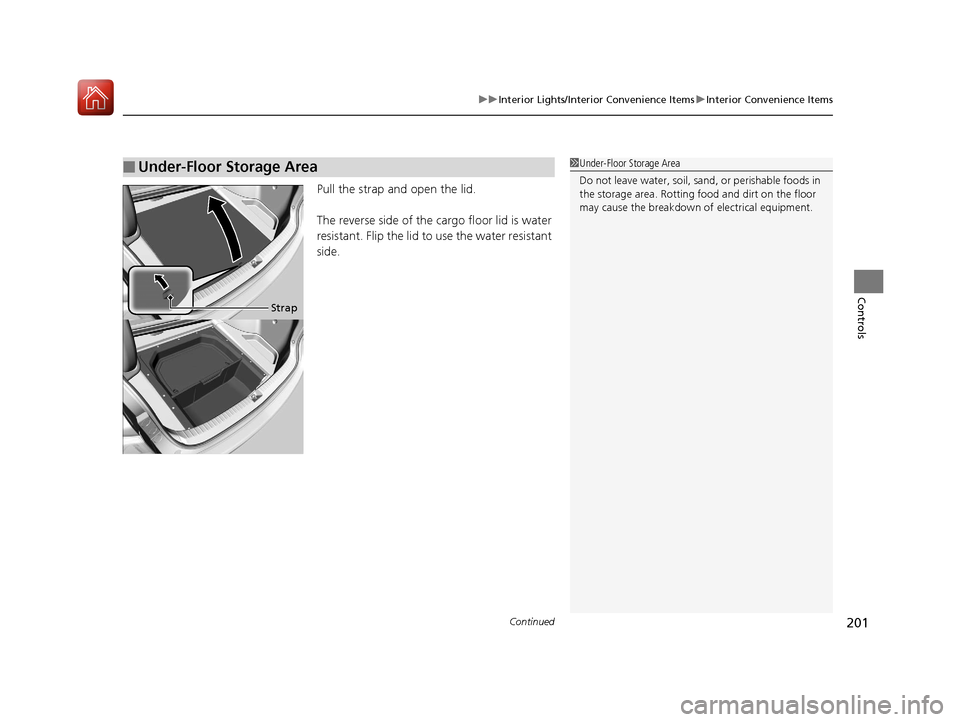

Continued201
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Pull the strap and open the lid.
The reverse side of the cargo floor lid is water
resistant. Flip the lid to use the water resistant
side.
■Under-Floor Storage Area1 Under-Floor Storage Area
Do not leave water, soil, sand, or perishable foods in
the storage area. Rotting f ood and dirt on the floor
may cause the breakdown of electrical equipment.
Strap
20 ACURA TLX-31TZ36500.book 201 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
202
Controls
The power mode must be in ON to use the
heated steering wheel.
Press the button on the left side of the
steering wheel.
When a comfortable temperature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you start the engine, even if you turned it
on the last time you drove the vehicle.
■Heated Steering Wheel*1Heated Steering Wheel*
Do not use the heated steering wheel continuously
when the engine is off. Under such conditions, the
battery may be weaken ed, making the engine
difficult to start.
* Not available on all models
20 ACURA TLX-31TZ36500.book 202 ページ ２０１９年２月７日　木曜日　午後２時２分

Continued203
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The power mode must be in ON to use the
seat heaters and ventilators*.
1. Select .
2. Change the setting with one of the
following:
The Low icon: The LO setting (one indicator
on)
The Mid icon: The MID setting (two
indicators on)
The High icon: The HI setting (three
indicators on)
Auto: The system automatically selects the
setting most suitable to the ambient
environment.
Off: Turn off the system.
When the power mode is turned on after it is
turned off, the previous setting of front seat
heaters and ventilators is maintained.
■Front Seat Heaters and Seat Ventilation*1 Front Seat Heaters and Seat Ventilation*
Do not use the seat heater s and the seat ventilation
even in LO when the engine is off. Under such
conditions, the battery ma y be weakened, making
the engine difficult to start.
After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a time unt il the front seat heaters
shuts off. The elapsed time varies according to the
interior environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
Models without seat ventilation
Models with seat ventilation
* Not available on all models
20 ACURA TLX-31TZ36500.book 203 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
204
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Rear Seat Heaters*1 Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
■Sunglasses Holder1Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
* Not available on all models
20 ACURA TLX-31TZ36500.book 204 ページ ２０１９年２月７日　木曜日　午後２時２分

uuClimate Control System uUsing Automatic Climate Control
208
Controls
■Switching the vent mode
Select a desired vent mode icon, or Mode
Auto : The system automatically selects the
vent mode most suitable to the ambient
environment.
Vent mode : Dashboard vents and back of the center
console
: Dashboard and floor vents, and back of
the center console : Floor vents
: Floor and defroster vents
■A/C on and off
1.Select A/C.
2. Select On or Off .
1Switching the vent mode
While the climate control system is in auto, Mode
Auto is highlighted.
20 ACURA TLX-31TZ36500.book 208 ページ ２０１９年２月７日　木曜日　午後２時２分

Continued209
uuClimate Control System uUsing Automatic Climate Control
Controls
■SYNC on and off
1.Select SYNC.
2. Select On for synchronization mode, and
Off for dual mode.
u When in synchronization mode, the
passenger’s side temperature becomes
the same as the driv er’s side settings.
3. Adjust the temperature from the driver’s
side.
■Changing the fan speed
1.Select .
u When the left or right side of the
is selected, the fan speed level goes up or
down one level at a time.
2. Change the fan speed with one of the
following:
The fan speed level indicators: Select your
desired speed level. The smaller indicator is
for a slower speed, and the larger for a
faster speed.
(+/(-: To go up or down one level at a
time.
Fan Auto : The system automatically selects
the fan speed most suitable to the ambient
environment.
1 SYNC on and off
When the system is not in SYNC mode, the driver’s
side temperature and th e front passenger’s side
temperature can be set separately.
You can also turn off SYNC mode by changing the
front passenger’s si de temperature.
1Changing the fan speed
While the climate control system is in auto, Fan Auto
is highlighted.
Fan Speed Level Indicators
