remote start ACURA TLX 2023 Owner's Manual

606
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the ENGINE START/STOP button flashes,
and the engine won’t start, start the engine as follows:
1.Press the ENGINE START/STOP button.
u The beeper sounds and the ENGINE
START/STOP button flashes for about
30 seconds.
2. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
remote while the ENGINE START/STOP
button is flashing.
The buttons on the keyless remote should
be facing you.
u The beeper sounds, and the ENGINE
START/STOP button stays on for about
10 seconds.
3. Depress the brake pedal and press the
ENGINE START/STOP button while the
ENGINE START/STOP button is on.
u The engine starts.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 ACURA TLX-31TGV6200.book 606 ページ ２０２２年８月４日　木曜日　午後１時５９分

620
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS,
the indicator blinks for about one minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for abou t one minute, then stay on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
If the compact spare tire
* causes the indicator to come on, change the
tire to a full-size tire.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after driving for a few
miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON and transmission in
( P, while you
adjust tire pressure up or down, the system alerts you
as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
When a certain amount of time has passed since
activation, Tire Fill Assist w ill be canceled until you set
the power mode to OFF.
You cannot use Tire Fill Assist if the engine was
started by the remote engine start, or if there is a
malfunction in the system.
If Tire Fill Assist does not work, use a tire pressure
gauge.
* Not available on all models
23 ACURA TLX-31TGV6200.book 620 ページ ２０２２年８月４日　木曜日　午後１時５９分

649
Index
Defrosting the Windshield and Windows ................................................. 199
Devices that Emit Radio Waves ............... 637
Dimming Headlights .............................................. 150
Rearview Mirror ...................................... 165
Dipstick (Engine Oil) ................................ 537
Directional Signals (Turn Signal) ............. 149
Door Mirrors ............................................. 166
Doors ........................................................ 120
Auto Door Locking.................................. 135
Auto Door Unlocking .............................. 135
Door Open Indicator ................................. 35
Keys........................................................ 120
Locking/Unlocking the Doors from the Inside .............................................. 15, 132
Locking/Unlocking the Doors from the
Outside ................................................. 123
Lockout Prevention System ..................... 130
DOT Tire Quality Grading ........................ 558
Driver Attention Monitor ........................ 108
Driving ...................................................... 367
Automatic Transmission .......................... 380
Braking ................................................... 484
Shifting Gear .......................................... 381
Starting the Engine ................................. 374
Driving Position Memory System ............ 162
Dust and Pollen Filter .............................. 570
Dynamic Mode Switch ............................. 391E
Electric Power Steering (EPS) System
Indicator ............................................ 88, 618
Electronic Stability Control (ESC) ............. 404
Emergency ................................................ 629
Emissions Testing (Readiness Codes) ....... 639
Engine ....................................................... 636
Coolant ........................................... 544, 546
If the Battery Is Dead ............................... 608
Oil ........................................................... 536
Remote Engine Start ................................ 376
Starting ................................................... 374
Engine Coolant ................................. 544, 546
Adding the Coolant ................................. 547
Adding to the Radiator ............................ 545
Adding to the Reserve Tank ..................... 544
Overheating ............................................ 611
Temperature Gauge .................................. 97
Engine Oil ................................................. 536
Adding .................................................... 539
Checking ................................................. 537
Displaying Oil Life .................................... 525
Engine Oil Pressure Low Warning ............ 614
Recommended Engine Oil ........................ 536
Engine Oil Pressure Low Warning ........... 614
ENGINE START/STOP Button .................... 146
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 574
Exterior Mirrors ........................................ 166
F
Features.................................................... 203
Filters Dust and Pollen ....................................... 570
Oil ........................................................... 540
Flat Tire ..................................................... 583
Floor Mats ................................................. 572
Fluids
Automatic Transmission .......................... 548
Brake ...................................................... 549
Engine Coolant ............................... 544, 546
Windshield Washer ................................. 549
FM/AM Radio ............................................ 238
Fog Lights ................................................. 153
Indicator.................................................... 90
Foot Brake ................................................ 488
Front Airbags (SRS) ..................................... 46
Front Seats ................................................ 168
Adjusting ................................................ 168
Front Sensor Camera ................................ 481
Fuel ...................................................... 22, 515
Economy ................................................. 518
Gauge ....................................................... 97
Instant Fuel Economy .............................. 103
Low Fuel Indicator ..................................... 87
Range ..................................................... 103
Recommendation ............................ 515, 634
Refueling................................................. 515
Fuel Economy ........................................... 518
Fuel Fill Door ...................................... 22, 516
23 ACURA TLX-31TGV6200.book 649 ページ ２０２２年８月４日　木曜日　午後１時５９分

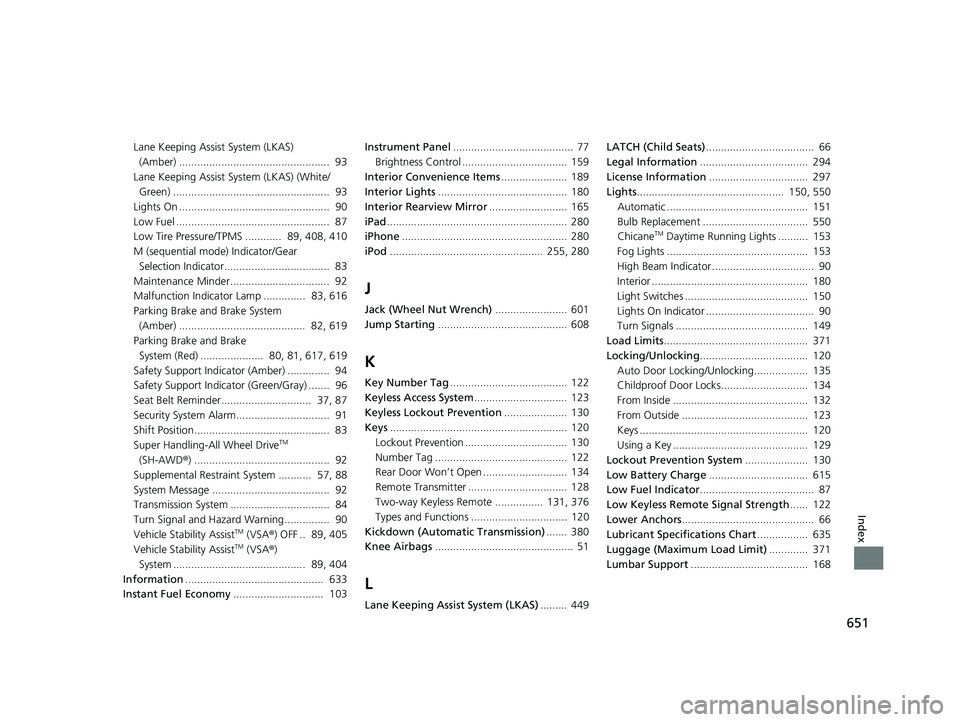

651
Index
Lane Keeping Assist System (LKAS) (Amber) .................................................. 93
Lane Keeping Assist System (LKAS) (White/ Green) .................................................... 93
Lights On .................................................. 90
Low Fuel ................................................... 87
Low Tire Pressure/TPMS ............ 89, 408, 410
M (sequential mode) Indicator/Gear
Selection Indicator................................... 83
Maintenance Minder................................. 92
Malfunction Indicator Lamp .............. 83, 616
Parking Brake and Brake System (Amber) .......................................... 82, 619
Parking Brake and Brake
System (Red) ..................... 80, 81, 617, 619
Safety Support Indicator (Amber) .............. 94
Safety Support Indicator (Green/Gray) ....... 96
Seat Belt Reminder.............................. 37, 87
Security System Alarm............................... 91
Shift Position............................................. 83
Super Handling-All Wheel Drive
TM
(SH-AWD ®) ............................................. 92
Supplemental Restraint System ........... 57, 88
System Message ....................................... 92
Transmission System ................................. 84
Turn Signal and Hazard Warning............... 90
Vehicle Stability Assist
TM (VSA ®) OFF .. 89, 405
Vehicle Stability AssistTM (VSA ®)
System ............................................ 89, 404
Information .............................................. 633
Instant Fuel Economy .............................. 103 Instrument Panel
........................................ 77
Brightness Control ................................... 159
Interior Convenience Items ...................... 189
Interior Lights ........................................... 180
Interior Rearview Mirror .......................... 165
iPad ............................................................ 280
iPhone ....................................................... 280
iPod ................................................... 255, 280
J
Jack (Wheel Nut Wrench) ........................ 601
Jump Starting ........................................... 608
K
Key Number Tag ....................................... 122
Keyless Access System ............................... 123
Keyless Lockout Prevention ..................... 130
Keys ........................................................... 120
Lockout Prevention .................................. 130
Number Tag ............................................ 122
Rear Door Won’t Open ............................ 134
Remote Transmitter ................................. 128
Two-way Keyless Remote ................ 131, 376
Types and Functions ................................ 120
Kickdown (Automatic Transmission) ....... 380
Knee Airbags .............................................. 51
L
Lane Keeping Assist System (LKAS) ......... 449LATCH (Child Seats)
.................................... 66
Legal Information .................................... 294
License Information ................................. 297
Lights ................................................. 150, 550
Automatic ............................................... 151
Bulb Replacement ................................... 550
Chicane
TM Daytime Running Lights .......... 153
Fog Lights ............................................... 153
High Beam Indicator .................................. 90
Interior .................................................... 180
Light Switches ......................................... 150
Lights On Indicator .................................... 90
Turn Signals ............................................ 149
Load Limits ................................................ 371
Locking/Unlocking .................................... 120
Auto Door Locking/Unlocking.................. 135
Childproof Door Locks............................. 134
From Inside ............................................. 132
From Outside .......................................... 123
Keys ........................................................ 120
Using a Key ............................................. 129
Lockout Prevention System ..................... 130
Low Battery Charge ................................. 615
Low Fuel Indicator ...................................... 87
Low Keyless Remote Signal Strength ...... 122
Lower Anchors ............................................ 66
Lubricant Specifications Chart ................. 635
Luggage (Maximum Load Limit) ............. 371
Lumbar Support ....................................... 168
23 ACURA TLX-31TGV6200.book 651 ページ ２０２２年８月４日　木曜日　午後１時５９分

653
Index
Readiness Codes (Emissions Testing)...... 639
Rear Defogger/Heated Door Mirror
Button ..................................................... 161
Rear Seats ................................................. 178
Seat Heaters ........................................... 195
Rearview Mirror ....................................... 165
Refueling .................................................. 515
Fuel Gauge ............................................... 97
Gasoline ......................................... 515, 634
Low Fuel Indicator..................................... 87
Regulations .............................. 410, 558, 637
Remote Engine Start with Vehicle Feedback ................................................. 376
Remote Transmitter ................................. 128
Maintenance (Replacing) ......................... 568
Replacement Battery ............................................ 568, 569
Bulbs ...................................................... 550
Fuses ...................................... 622, 624, 625
Tires........................................................ 561
Wiper Blade Rubber ................................ 552
Reporting Safety Defects ......................... 638
Resetting a Trip Meter ............................. 102
Reverse Tilt Door Mirror .......................... 167
Road Departure Mitigation (RDM) ......... 470
On and Off ............................................. 472
S
Safe Driving ................................................ 31
Safety Labels .............................................. 76 Safety Message
............................................. 3
Safety Support .......................................... 111
Seat Belts ..................................................... 36
Adjusting the Shoulder Anchor .................. 40
Automatic Seat Belt Tensioners .................. 38
Checking ................................................... 42
Fastening ................................................... 39
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 69
Pregnant Women ...................................... 41
Reminder ................................................... 37
Warning Indicator ................................ 37, 87
Seat Heaters ...................................... 194, 195
Seat Ventilators ........................................ 194
Seats .......................................................... 168
Adjusting ................................................. 168
Front Seats .............................................. 168
Lumbar Support ...................................... 168
Rear Seats ............................................... 178
Seat Control Interface .............................. 170
Seat Heaters .................................... 194, 195
Ventilators ............................................... 194
Security System ......................................... 139
Immobilizer System Indicator ..................... 91
Security System Alarm Indicator ................. 91
Select Button ............................................ 381
Operation ................................................ 383
Selecting a Child Seat ................................. 65
Sequential Mode ...................................... 388
Sequential Mode Operation .................... 389
Setting the Clock ...................................... 118 SH-AWD
® (Super Handling-All Wheel
Drive
TM) ................................................... 407
Shift Button ........................................ 20, 381
Shift Position Indicator ...................... 83, 383
Shift Positions
Automatic Transmission .......................... 381
Shifting (Transmission) ....................... 20, 381
Shoulder Anchor ........................................ 40
Side Airbags ................................................ 54
Side Curtain Airbags .................................. 56
Siri Eyes Free ............................................. 267
SiriusXM ® Radio ........................................ 242
Snow Tires ................................................. 563
Spare Tire (Optional) ........................ 598, 635
Spark Plugs ............................................... 634
Specifications ............................................ 634
Specified Fuel ................................... 515, 634
Speed Limit Information ............................ 99
Speed/Distance Units ................................ 104
Speedometer .............................................. 97
Sport Gauge Settings ............................... 105
SRS Airbags (Airbags) ................................. 46
Starting Assist Brake Function ................. 403
Starting the Engine .................................. 374
Does Not Start......................................... 605
Engine Switch Buzzer .............................. 148
If the Battery Is Dead ............................... 608
Remote Engine Start................................ 376
Steering Wheel ......................................... 164
Adjusting ................................................ 164
Stopping ................................................... 494
23 ACURA TLX-31TGV6200.book 653 ページ ２０２２年８月４日　木曜日　午後１時５９分

654
Index
Storage Items............................................ 182
Summer Tires ............................................ 563
Super Handling-All Wheel Drive
TM
(SH-AWD® )............................................... 407
Supplemental Restraint System (SRS) ........ 46
Surround View Camera System ................ 507
Switches (Around the Steering Wheel) ............................................. 6, 7, 146
Synchronized Mode .................................. 200
System Message Indicator .......................... 92
System Updates ......................................... 227
T
Tachometer............................................... 104
Temperature
Gauge ....................................................... 97
Outside Temperature Display ..................... 99
Temperature Sensor ........................... 99, 201
Temporary Tire Repair Kit ........................ 584
Time (Setting) ........................................... 118
Tire Fill Assist ............................................. 408
Tire Pressure Monitoring System (TPMS) Indicator .................................................... 89
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .................................. 408
Indicator .................................................. 620
Tire Fill Assist ........................................... 408
Tire Repair Kit ........................................... 583
Tires ........................................................... 555
Air Pressure ..................................... 556, 635 Chains..................................................... 563
Checking and Maintaining ...................... 555
Flat Tire (Puncture) .......................... 583, 598
Inspection ............................................... 555
Labeling .................................................. 556
Puncture (Flat Tire) .......................... 583, 598
Regulations ............................................. 558
Rotation .................................................. 562
Spare (Optional) .............................. 598, 635
Summer .................................................. 563
Temporary Tire Re
pair Kit ........................ 584
Wear Indicators ....................................... 560
Winter..................................................... 563
Tools .......................................................... 582
Towing a Trailer ....................................... 373
Towing Behind a Motorhome ................. 373
Emergency .............................................. 629
TPMS (Tire Pressure Monitoring System) Indicator.................................................... 89
TPMS (Tire Pressure Monitoring System) with Tire Fill Assist .................................. 408
Indicator.................................................. 620
Tire Fill Assist ........................................... 408
Traffic Jam Assist ...................................... 458
Traffic Sign Recognition System .............. 475
Transmission ....................................... 20, 381
Automatic ......................................... 20, 381
Gear Position Indicator ...................... 83, 383
Number................................................... 636
Sequential Mode ..................................... 388 Transmission System
Indicator ................................................... 84
Trip Computer .......................................... 102
Trip Meter ................................................ 102
Troubleshooting ...................................... 581
Blown Fuse ............................. 622, 624, 625
Brake Pedal Vibrates ................................. 27
Buzzer Sounds When Opening Door ......... 27
Emergency Towing ................................. 629
Engine Won’t Start ................................. 605
Flat Tire/Puncture .................................... 583
Noise When Braking ................................. 29
Overheating ............................................ 611
Premium Gasoline ........................... 515, 634
Puncture/Flat Tire ............................ 583, 598
Rear Door Won’t Open ..................... 27, 134
Warning Indicators.................................... 78
True Touchpad Interface ......................... 211
Trunk ........................................................ 136
Lid .......................................................... 136
Light Bulbs .............................................. 634
Main Switch............................................ 138
Unable to Open ...................................... 631
Turbo Engine Vehicle .............................. 519
Turn Signals .............................................. 149
Indicators (Instru ment Panel) ..................... 90
Turn-by-Turn Directions .......................... 115
Two-way Keyless Remote ................ 131, 376
23 ACURA TLX-31TGV6200.book 654 ページ ２０２２年８月４日　木曜日　午後１時５９分
