ACURA TLX 2023 Owners Manual

589
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
11. Press the pressure relief button until the
gauge returns 0 psi (0 kPa).
12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
Pressure Relief Button
Repair Notification Label
U.S.
Canada
23 ACURA TLX-31TGV6200.book 589 ページ ２０２２年８月４日　木曜日　午後１時５９分

590
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.
4. Recheck the air pressure using the sealant/
air hose on the compressor.
■Distributing the Sealant in the Tire
Speed Restriction Label U.S.
Canada
Sealant/Air Hose
23 ACURA TLX-31TGV6200.book 590 ページ ２０２２年８月４日　木曜日　午後１時５９分

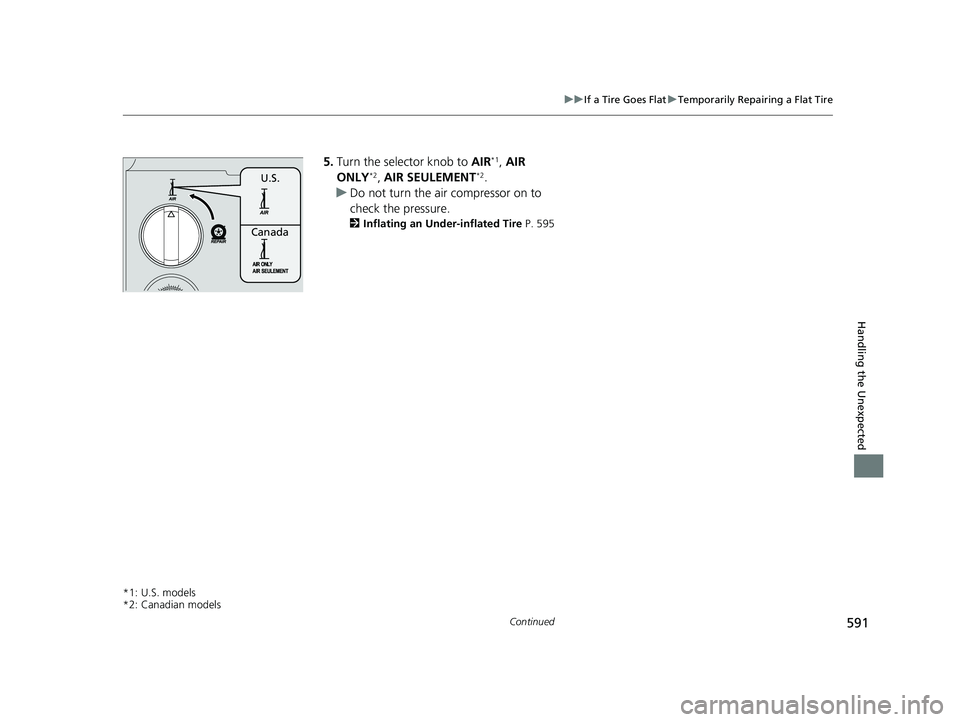

591
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
5. Turn the selector knob to AIR*1, AIR
ONLY*2, AIR SEULEMENT*2.
u Do not turn the air compressor on to
check the pressure.
2 Inflating an Under-inflated Tire P. 595
*1: U.S. models
*2: Canadian models
U.S.
Canada
23 ACURA TLX-31TGV6200.book 591 ページ ２０２２年８月４日　木曜日　午後１時５９分

592
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
6. If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 629
•Front: 32 psi (220 kPa)/rear: 30 psi (210
kPa) or more:
• 32 psi (220 kPa) or more:
• Front: 36 psi (250 kPa)/rear: 33 psi (230
kPa) or more:
Continue driving for another 10 minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check
the tire pressure.
u If the air pressure does not go down
after the 10 minute driving, you do not
need to check the pressure any more.
Models with 235/50R18 97V tires
Models with 255/40R19 96W tires
Models with 255/35R20 97Y tires
23 ACURA TLX-31TGV6200.book 592 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued593
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than front: 32 psi (220 kPa)/rear: 30 psi
(210 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches front: 32
psi (220 kPa)/rear: 30 psi (210 kPa).
• Greater than 25 psi (175 kPa), but less
than 32 psi (220 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 32 psi
(220 kPa).
• Greater than 25 psi (175 kPa), but less
than front: 36 psi (250 kPa)/rear: 33 psi
(230 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches front: 36
psi (250 kPa)/rear: 33 psi (230 kPa).
2 Inflating an Under-inflated Tire P. 595
1Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Models with 235/50R18 97V tires
Models with 255/40R19 96W tires
Models with 255/35R20 97Y tires
23 ACURA TLX-31TGV6200.book 593 ページ ２０２２年８月４日　木曜日　午後１時５９分

594
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
Then, drive carefully for 10 more minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check
the tire pressure.
u You should repeat this procedure as
long as the air pressure is within this
range.
7. Unplug the kit from the accessory power
socket.
8. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
9. Press the pressure relief button until the
gauge returns 0 psi (0 kPa).
10. Repackage and properly stow the kit.
Pressure Relief Button
23 ACURA TLX-31TGV6200.book 594 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued595
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the trunk floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 584
2.Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the tire to be inflated, away from traffic.
Do not place the kit on its side.
4. Remove the sealant/air hose from the kit.
5. Remove the valve cap.
6. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.Sealant/Air Hose
Valve Cap
Tire Valve Stem
Sealant/Air Hose
23 ACURA TLX-31TGV6200.book 595 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
596
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 189
8.Start the engine.
2 Starting the Engine P. 374
uKeep the engine runn ing while injecting
air.
2 Carbon Monoxide Gas P. 75
9.Turn the selector knob to AIR*1, AIR
ONLY*2, AIR SEULEMENT*2.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
*1: U.S. models
*2: Canadian models
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
23 ACURA TLX-31TGV6200.book 596 ページ ２０２２年８月４日　木曜日　午後１時５９分

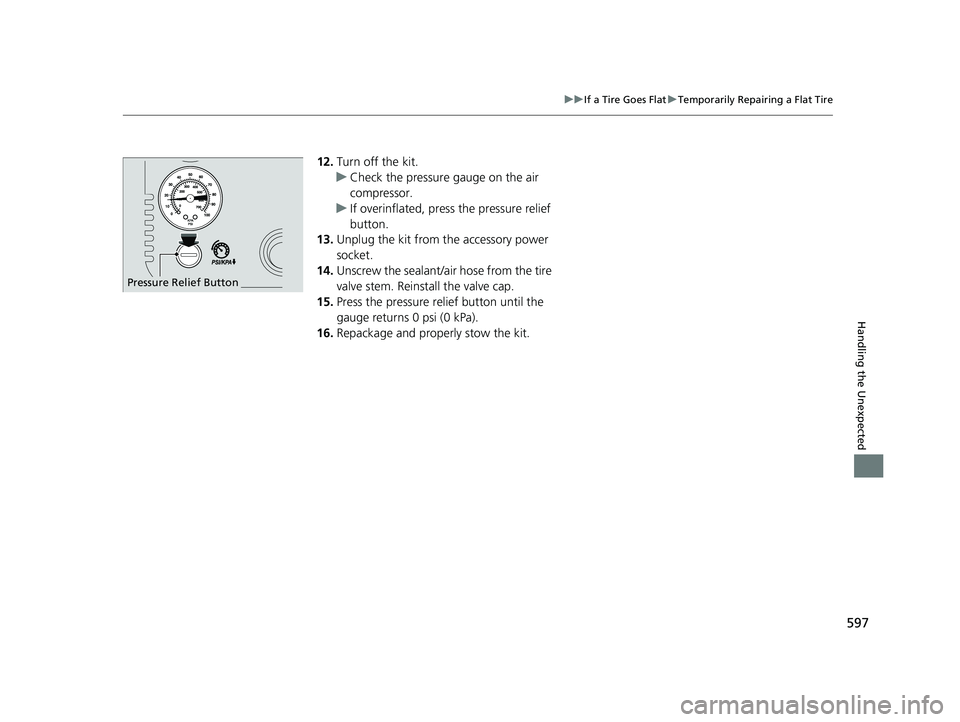

597
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
23 ACURA TLX-31TGV6200.book 597 ページ ２０２２年８月４日　木曜日　午後１時５９分

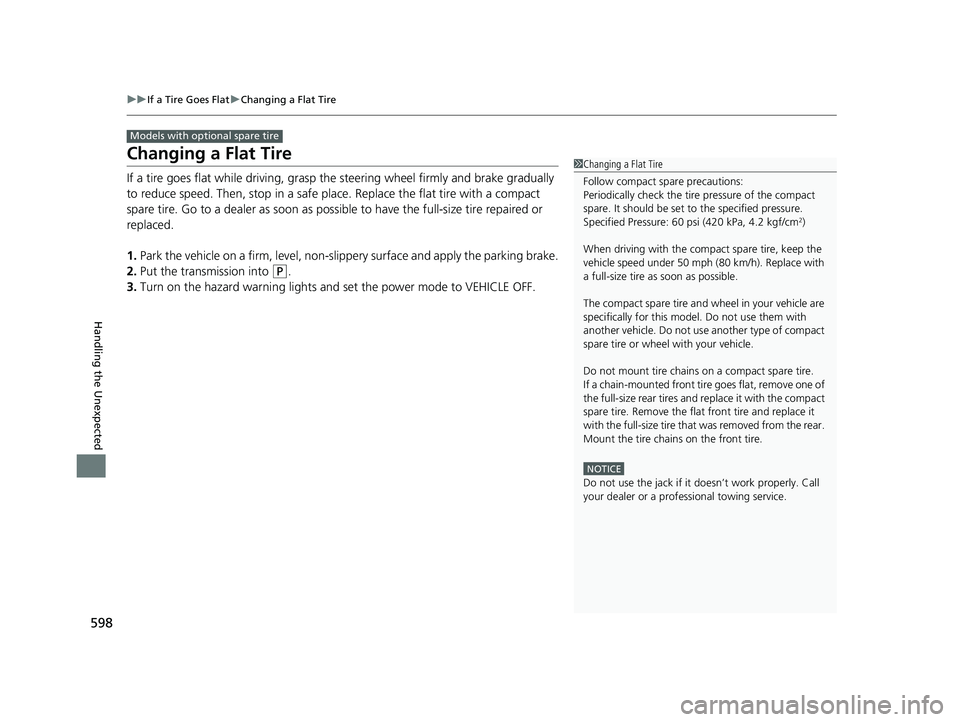

598
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have th e full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Models with optional spare tire
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn
