ACURA TLX 2023 Owners Manual

619
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected

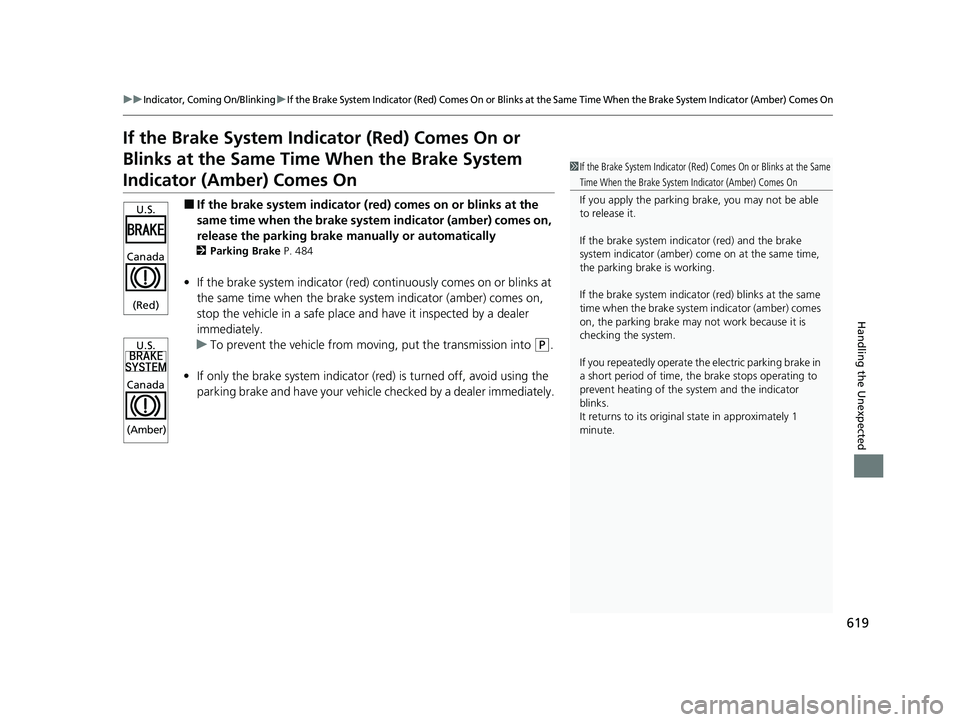

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake ma nually or automatically
2Parking Brake P. 484
•If the brake system indicator (red) co ntinuously comes on or blinks at
the same time when the brake sy stem indicator (amber) comes on,
stop the vehicle in a safe place an d have it inspected by a dealer
immediately.
u To prevent the vehicle from movi ng, put the transmission into
(P.
• If only the brake system indicator (red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.U.S.
Canada
(Red)
U.S.
Canada
(Amber)
23 ACURA TLX-31TGV6200.book 619 ページ ２０２２年８月４日　木曜日　午後１時５９分

620
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS,
the indicator blinks for about one minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for abou t one minute, then stay on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
If the compact spare tire
* causes the indicator to come on, change the
tire to a full-size tire.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after driving for a few
miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON and transmission in
( P, while you
adjust tire pressure up or down, the system alerts you
as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
When a certain amount of time has passed since
activation, Tire Fill Assist w ill be canceled until you set
the power mode to OFF.
You cannot use Tire Fill Assist if the engine was
started by the remote engine start, or if there is a
malfunction in the system.
If Tire Fill Assist does not work, use a tire pressure
gauge.
* Not available on all models
23 ACURA TLX-31TGV6200.book 620 ページ ２０２２年８月４日　木曜日　午後１時５９分

621
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Put the transmission into
(N after starting
the engine.
u Check if the
(N position in the
instrument panel and the indicator on
the
(N button light/blink.
u The engine cannot be turned on unless
the parking brake is set.
2 Starting the Engine P. 374
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 629
23 ACURA TLX-31TGV6200.book 621 ページ ２０２２年８月４日　木曜日　午後１時５９分

622
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located at the engine compartment on the
left side. Push the tabs to open the box.■Engine Compartment Fuse
Box Type A
Tab
2.0 L engine models
3.0 L engine models
Tab
■Circuit protected and fuse rating
*1:2.0 L engine models
*2:3.0 L engine models
Circuit ProtectedAmps
1
FUSE BOX MAIN60 A
PREMIUM AMP*(40 A)
BASE AMP*(30 A)
FET MODULE 130 A
ST MAGNET SW30 A
WIPER MOTOR30 A
−−
2
−(70 A)
FUSE BOX OPTION 130 A
−(40 A)
DR SEAT60 A
IG MAIN30 A
FET MODULE 230 A
3
−(40 A)
−*1
RFC 2*2(30 A)*1
30 A*2
ABS/VSA MOTER40 A
−(40 A)
−(40 A)
BLOWER MOTER40 A
* Not available on all models
23 ACURA TLX-31TGV6200.book 622 ページ ２０２２年８月４日　木曜日　午後１時５９分

623
uuFuses uFuse Locations
Continued
Handling the Unexpected
Circuit ProtectedAmps
4 FET MODULE 3 60 A
VST 1 (30 A)
VST 2 (30 A)
SUB FAN
*1
RFC 1*230 A
5R H/L LO10 A
6 IG COIL 15 A
7DBW*115 A*1
8 DR P/SEAT 2 30 A
9INJECTOR20 A*1
15 A*2
10 TCU 3 10 A
11L H/L LO10 A
12 TCU 2 10 A
13TCU15 A
14 MAIN RLY 15 A*1
20 A*2
15VBS/VBU10 A
16 BRAKE LT 5 A
17BACK UP10 A
18 WASHER 15 A
19−−
20 − −
21RR H/SEAT*1(20 A)*1
22− −
23RFC RLY*210 A*2
24AVC*2 20 A*2
25−−
26 − −
27−−
28 − −
29−−
30 − −
31FUEL PUMP15 A
32 STARTER CUT 10 A
33VSA/ABS10 A
34 DR P/SEAT 1 30 A
35DR P/SEAT 330 A
36 FR DEICER*(15 A)
37STRLD7.5 A
38 − −
39MISS SOL 2*1
IG FI-ECU*210 A
40 IGPS (LAF)
*1
IGPS (PCS)*210 A
Circuit ProtectedAmps
*1:2.0 L engine models
*2:3.0 L engine models
41IGPS SUB*1
IGPS (ABV)*210 A
42 VBACT
*110 A*1
46ACC (VST)10 A
47 METER (VST) 10 A
48BACK UP (VST)10 A
49 IDAS (VST) 10 A
50BCM (VST)10 A
51 − −
52−−
53 − −
54−−
55 − −
56−−
57 − −
Circuit ProtectedAmps
* Not available on all models
23 ACURA TLX-31TGV6200.book 623 ページ ２０２２年８月４日　木曜日　午後１時５９分

624
uuFuses uFuse Locations
Handling the Unexpected
Located near the fuse box type A.
Push the tabs to open the box.
Locate the fuse in question by the fuse
number and box cover number.
■Engine Compartment Fuse
Box Type B
Tab
2.0 L engine models
3.0 L engine models
Tab
■Circuit protected and fuse rating
*1:2.0 L engine models
*2:3.0 L engine models
Circuit ProtectedAmps
1MAIN FUSE150 A*1
250 A*2
2R/B ACG125 A*1
200 A*2
3EPS80 A
4 VSA 40 A
5ESB40 A
6− (30 A)*1
(60 A)*2
7FAN1*1
−*230 A*1
(60 A)*2
23 ACURA TLX-31TGV6200.book 624 ページ ２０２２年８月４日　木曜日　午後１時５９分

625
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Driver’s Side Interior Fuse Box
Fuse Label
Fuse Box
Circuit ProtectedAmps
1−−
2L SIDE DOOR UNLOCK10 A
3R SIDE DOOR UNLOCK10 A
4ACC10 A
5−−
6SRS10 A
7−−
8R H/L HI10 A
9SMART10 A
10POWER DISTRIBUTION
MODULE10 A
11L SIDE DOOR LOCK10 A
12DR DOOR LOCK(10 A)
13R SIDE DOOR LOCK10 A
14A/C10 A
15DRL10 A
16CTR ACC SOCKET20 A
17HAZARD10 A
18L H/L HI10 A
19HORN15 A
20IMG10 A
21DR DOOR UNLOCK(10 A)
22−−
23−−
24−−
25−−
26−−
27−−
28−−
29FUSE BOX ENGINE COMPARTMENT20 A
30−−
Circuit ProtectedAmps
31−−
32RADIO15 A
33−−
34−−
35ACG10 A
36METER10 A
37OPTION10 A
38MOONROOF20 A
39−−
40−−
41−−
42HEATED STEERING WHEEL*(10 A)
43−−
44−−
45TCU10 A
46SRS10 A
47−−
48SBW10 A
49DOOR LOCK20 A
50FRONT ACC SOCKET20 A
51REAR R P/W20 A
52RR L P/W20 A
53AS P/W20 A
54DRIVER P/W20 A
55−−
Circuit ProtectedAmps
* Not available on all models
23 ACURA TLX-31TGV6200.book 625 ページ ２０２２年８月４日　木曜日　午後１時５９分

626
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by pushing on the tab.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box
Fuse BoxCover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1PASSENGER P/SEAT 230 A
2BMS10 A
3ACTIVE EXHAUST VALVE*(15 A)
44WD*(10 A)
5PASSENGER P/SEAT 130 A
6PASSENGER P/SEAT 330 A
7ACTIVE DAMPER SYSTEM*(15 A)
8−−
9−−
10−−
11−−
12FUEL PUMP30 A
13−−
14REAR DEFROSTER40 A
154WD*(30 A)
16−−
17IG MAIN 230 A
18−−
19−−
* Not available on all models
23 ACURA TLX-31TGV6200.book 626 ページ ２０２２年８月４日　木曜日　午後１時５９分

627
uuFuses uFuse Locations
Handling the Unexpected
Located under the trunk room near the +
terminal on the battery.
■Trunk Room Fuse Box
Positive Battery
Terminal Cover
Pull up on the trunk floor lid strap, and
remove the tool case.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 584
Pull up on the trunk floor lid strap, unscrew
the wing bolt, and remove the tool case.
Then, remove the compact spare tire and
battery cover.
2Checking the Battery P. 564
Remove the cover on the + terminal (as
shown).
Replacement of this fuse should be done by
a dealer.
Models without optional spare tire
Models with optional spare tire
All models
■Circuit protected and fuse rating
Circuit ProtectedAmps
aBattery450 A
b−150 A
cJump Start Box200 A
d−80 A
eRear Box 170 A
fFuse Box 260 A
gRear Box 270 A
23 ACURA TLX-31TGV6200.book 627 ページ ２０２２年８月４日　木曜日　午後１時５９分

628
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the fuses on the battery in the trunk
room.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified ampe rage on the fuse label.
2 Fuse Locations P. 622
Replace a fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the engine
compartment fuse box cover type A.
Combined Fuse Blown Fuse
Fuse Puller
Blown Fuse
23 ACURA TLX-31TGV6200.book 628 ページ ２０２２年８月４日　木曜日　午後１時５９分
