odometer Acura TSX 2007 Owner's Manual

The multi-inf ormation display
consists of two segments; an upper
segment and a lower segment.
In normal display mode, the upper
segment displays trip computer. The
lower segment displays the
odometer, Trip A/B, outside
temperature, and engine oil lif e and
maintenance message.
Multi-Inf ormation Display
70

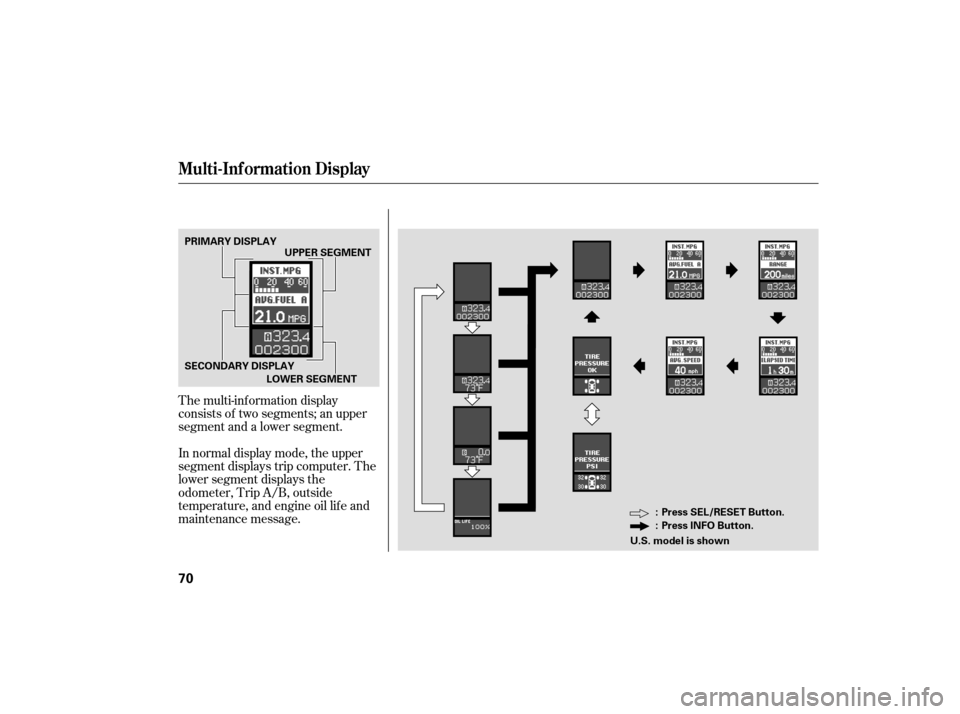

SECONDARY DISPLAYLOWER SEGMENT
PRIMARY DISPLAY
UPPER SEGMENT
: Press SEL/RESET Button.
: Press INFO Button.
U.S. model is shown

You can also change the display by
pushing the select/reset knob in the
instrument panel.
When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed. While
a trip meter is displayed, you
can change the display between
‘‘Trip A’’ and ‘‘Trip B’’ by pressing
the SEL/RESET button on the
steering wheel, or the select/reset
knob in the instrument panel.
To reset a trip meter, display it, and
press and hold the SEL/RESET
button or select/reset knob until the
number resets to ‘‘0.0.’’ When you
reset ‘‘Trip B’’ , ‘‘AVG. FUEL B’’ is
also reset. If you reset ‘‘Trip A’’,
‘‘AVG. FUEL A’’ and ‘‘AVG. SPEED’’
willberesetatthesametime.
In
the lower segment, each time you
press the SEL/RESET button on the
steering wheel, the display changes
from ‘‘Trip A/Odome ter’’ to ‘‘Trip A/
Outside Temperature’’ to ‘‘Trip B/
Outside Temperature’’ to ‘‘Engine
OilLife,’’andthenbacktothe
‘‘Trip A/Odometer’’ as shown on
page . 70
Multi-Inf ormation Display
Trip Meter
72
U.S.model is shown
SELECT/RESET
KNOB
SEL/RESET
BUTTON
LOWER SEGMENT

CONT INUED
..................................
