However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see on page ).
You will also see a ‘‘CHECK BRAKE
SYSTEM’’ message on the multi-
inf ormation display when this
indicator comes on. If the ABS indicator and the VSA
system indicator come on with the
brake system indicator, have your
vehicle inspected by your dealer
immediately.
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads.
If the brake system indicator comes
on while driving, the brake f luid level
is probably low. You will see a
‘‘BRAKE FLUID LOW’’ message on
the multi-information display. Press
lightly on the brake pedal to see if it
f eels normal. If it does, check the
brake f luid level the next time you
stop at a service station (see page ).
The brake system indicator normally
comes on when you turn the ignition
switch to the ON (II) position, and as
a reminder to check the parking
brake. It will stay on if you do not
f ully release the parking brake.
300 345
Emergency
Towing
Brake System Indicator
338
U.S. Canada
\f—\f—
y
\fy
(\fy\fy
2008 TSX

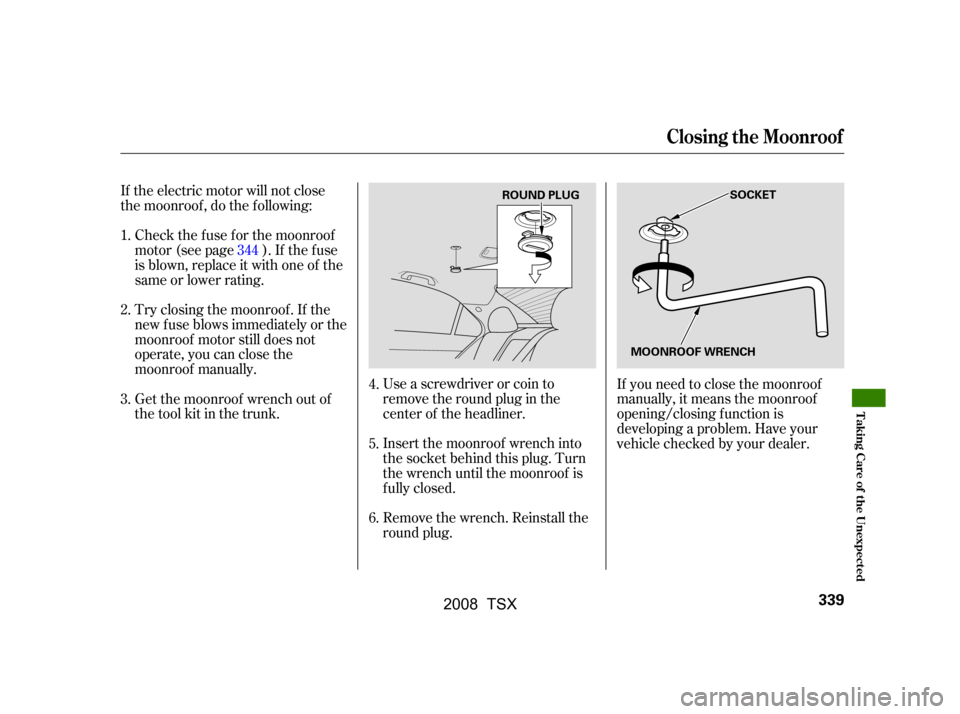

Use a screwdriver or coin to
remove the round plug in the
center of the headliner.
Insert the moonroof wrench into
the socket behind this plug. Turn
the wrench until the moonroof is
f ully closed.
Remove the wrench. Reinstall the
round plug.If you need to close the moonroof
manually, it means the moonroof
opening/closing f unction is
developing a problem. Have your
vehicle checked by your dealer.
If the electric motor will not close
the moonroof , do the f ollowing:
Check the f use f or the moonroof
motor (see page ). If the f use
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof . If the
new f use blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.
Get the moonroof wrench out of
the tool kit in the trunk. 5.
6.4.
3.
1.
2. 344
Closing t he Moonroof
T aking Care of t he Unexpect ed
339
SOCKET
ROUND PLUG
MOONROOF WRENCH
\f—\f—
y

\fy
(\fy\fy
2008 TSX

The interior f use box is on the
driver’s lower lef t side. To remove
the f use box lid, pull it toward you
and take it out of its hinges.The under-hood f use box is located
near the back of the engine compart-
ment on the driver’s side. To open it,
pushthetabsasshown. Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that device. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
the cause. Replace any blown fuses,
andcheckif thedeviceworks.
1.
2. 343344
Checking and Replacing Fuses
Fuses
340
INTERIOR
UNDER-HOOD
NOTCH TAB
\f—\f—
y


y
(\fy\fy
2008 TSX

CONT INUED
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the under-hood
fuse box.
Check each of the large f uses in
the under-hood f use box by
looking through the side window
atthewireinside.Removethe
screws with a Phillips-head
screwdriver. Look f or a blown wire inside the
fuse.If itisblown,replacethefuse
withoneof thesparefusesof the
same rating or lower.
3.
4.5.
Fuses
T aking Care of t he Unexpect ed
341
BLOWN
BLOWN BLOWN
\f—\f—
y

y
(\fy\fy
2008 TSX

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits with
the f use puller provided in the under-
hood f use box. Make sure you can
do without that circuit temporarily
(such as the accessory power socket
or radio).If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician. If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘CODE’’ in the f requency
display. Use the preset buttons to
enter the f ive-digit code (see page
).
If the driver’s power window f use is
removed, the AUTO function of the
driver’s window may be disabled.
You should reset the AUTO f eature,
(see page ).
6. 148
203
Fuses
342
FUSE PULLER
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
\f—\f—
y

y
(\fy\fy
2008 TSX

µ
µ
´No.No.No. Amps. Circuits Protected
CONT INUED
Amps. Circuits Protected
Amps. Circuits Protected
1
2
3
4
5 6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
21
22
23
20 A
20 A
40 A
40 A
15 A
30 A
40 A
40 A
40 A
40 A
100 A
50 A
50 A Cooling Fan
Not Used
Horn, Stop
Rear Defroster
Back Up, ACC
Hazard
VSA Motor
VSA
OP 1
OP 2
Heater Motor
Battery
Not Used
BIG1Main
Power Window Main
15 A
30 A
10 A
15 A
10 A Left Headlight Low
Rear Defroster Coil
Left Headlight Hi
Small Light
Right Headlight Hi 15 A
7.5 A 15 A
20 A
20 A Right Headlight Low
Back Up
FI ECU (ECM/PCM)
Condenser fan
FR Fog Light
Fuse Locations
T aking Care of t he Unexpect ed
343
UNDER-HOOD FUSE/RELAY BOX
\f—\f—
y

y
(\fy\fy
2008 TSX

ε
µ
µ
ÃŽ
No.No.
Circuits Protected No.
Amps. Amps. Circuits ProtectedAmps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
DBW
Ignition Coil
Daytime Running Light
LAF
Audio Amp
Interior Light 13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
15 A
15 A
(10 A) 10 A
20 A
10 A 10 A
20 A
15 A
7.5 A 30 A
7.5 A Back-Up Lights
Door Lock
Front Accessory Sockets
OPDS
Wiper
TPMS 20 A
20 A
20 A
20 A
20 A
15 A
15 A
10 A
7.5 A 10 A
7.5 A 20 A
20 A
20 A
20 A
20 A
7.5 A
7.5 A Passenger’s Power Seat
Reclining
Driver’s Power Seat Sliding
Heated Seat
Driver’s Power Seat Reclining
Passenger’s Power Seat Sliding
ACG
Fuel Pump
Washer
Meter
SRS
Left Rear Power Window
Right Rear Power Window
Passenger’s Power Window
Driver’s Power Window
Moonroof
Not Used
A/C
Not Used
ACC
Not Used
: On Canadian models
IGP (PGM-FI ECU) (ECM/PCM)
Fuse Locations
344
INTERIOR FUSE BOX
\f—\f—
y

y
(\fy\fy
2008 TSX

µµ
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your vehicle on the back of a
truck.
Therearetwowaystotowyour
vehicle: If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
Release the parking brake.
Shif t the transmission to neutral.
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
The tow
truck uses two pivoting arms that go
under the tires (f ront) and lif t them
of f the ground. The other two tires
remain on the ground. Turn of f the engine.
ShifttoD,thentoN.
Start the engine.
Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Manual transmission:
Automatic transmission:
CONT INUED
Flat -bed EquipmentWheel-lif t Equipment
T his is the best way to
transport your vehicle.
T his is an
acceptable way to tow your
vehicle.
Emergency Towing
T aking Care of t he Unexpect ed
345
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
\f—\f—
y

y
(\fy\f\fy
2008 TSX

Emergency Towing
346
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
\f—\f—
y
\fy
(\fy\f
y
2008 TSX

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers .348
................................
Specif ications .350
DOT Tire Quality Grading .....................
(U.S.Vehicles) .353
Unif orm Tire Quality ..................................
Grading .353
.................................
Treadwear .353
......................................
Traction .353
.............................
Temperature .354
.................................
Tire Labeling .355
Tire Pressure Monitoring System (TPMS) Required Federal ............................
Explanation .357
.......................
Emissions Controls .359
.....................
The Clean Air Act .359
Crankcase Emissions Control ....................................
System .359
Evaporative Emissions Control ....................................
System .359
Onboard Ref ueling Vapor ................................
Recovery .359
...
Exhaust Emissions Controls .360
....................
PGM-FI System .360
Ignition Timing Control ................................
System .360Three Way Catalytic
...........................
Converter .360
....................
Replacement Parts .360
..
Three Way Catalytic Converter .361
........................
Emissions Testing .362
T echnical Inf ormation
Technical Inf ormation
347
\f—\f—
y
y
(\fy\fy
2008 TSX
