Acura TSX 2009 Navigation Manual

Navigation System161
Voice Command Index

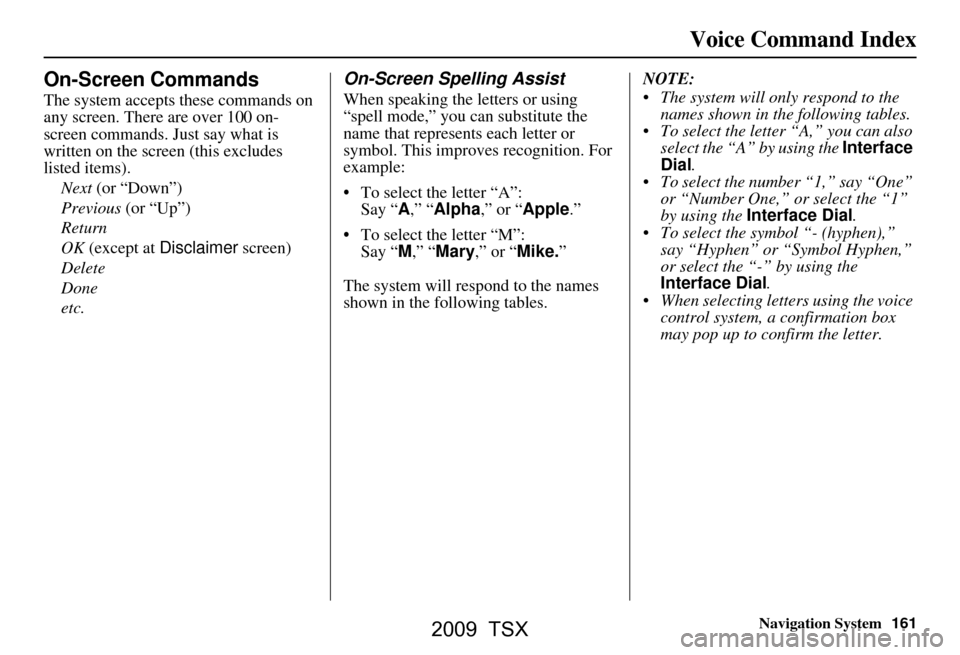

On-Screen Commands
The system accepts these commands on
any screen. There are over 100 on-
screen commands. Just say what is
written on the screen (this excludes
listed items).
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
Done
etc.
On-Screen Spelling Assist
When speaking the letters or using
“spell mode,” you can substitute the
name that represents each letter or
symbol. This improves recognition. For
example:
 To select the letter “A”: Say “ A,” “ Alpha ,” or “Apple .”
 To select the letter “M”: Say “ M,” “Mary,” or “Mike. ”
The system will respond to the names
shown in the following tables. NOTE:
 The system will only respond to the
names shown in the following tables.
 To select the letter “A,” you can also select the “A” by using the Interface
Dial .
 To select the number “1,” say “One” or “Number One,” or select the “1”
by using the Interface Dial .
 To select the symbol “- (hyphen),” say “Hyphen” or “Symbol Hyphen,”
or select the “-” by using the
Interface Dial .
 When selecting letters using the voice control system, a confirmation box
may pop up to confirm the letter.
2009 TSX

162Navigation System
Voice Command Index

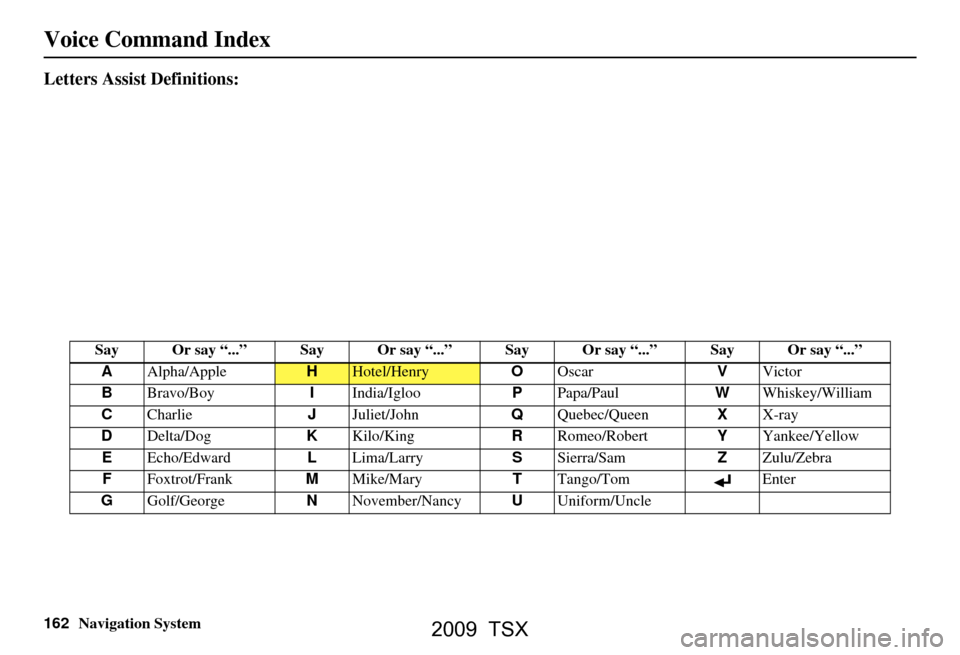

Letters Assist Definitions:
Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”
A Alpha/Apple
HHotel/Henry OOscar VVictor
B Bravo/Boy IIndia/Igloo PPapa/Paul WWhiskey/William
C Charlie JJuliet/John QQuebec/Queen XX-ray
D Delta/Dog KKilo/King RRomeo/Robert YYankee/Yellow
E Echo/Edward LLima/Larry SSierra/Sam ZZulu/Zebra
F Foxtrot/Frank MMike/Mary TTango/Tom Enter
G Golf/George NNovember/Nancy UUniform/Uncle
2009 TSX

Navigation System163
Voice Command Index
Symbol Assist Definitions:
NOTE:
The term “grave” (used for symbols À, È , Ì, and Ù ) is pronounced like “save.”
Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
À A grave îI circumflex _Underscore
 A circumflex ïI umlaut `Back quote
Ä A umlaut ÔO circumflex ,Comma
Ç C cedilla ÙU grave .Dot
È E grave ÛU circumflex ?Question mark
É E acute ÜU umlaut :Colon
Ê E circumflex @At sign ;Semicolon
ËE umlaut ^Caret +Plus
ì I grave *Asterisk Enter
2009 TSX

164Navigation System
Voice Command Index

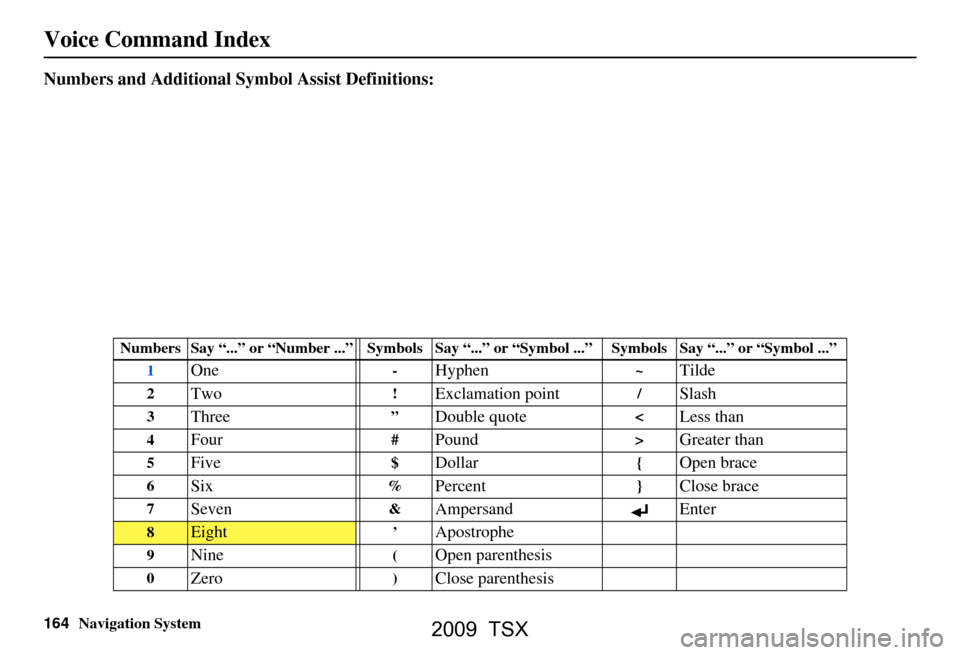

Numbers and Additional Symbol Assist Definitions:
Numbers Say “...” or “Number ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
1
One-Hyphen~Tilde
2Two!Exclamation point/Slash
3Three”Double quote 4Four#Pound>Greater than
5Five$Dollar{Open brace
6Six%Percent}Close brace
7Seven&Ampersand Enter
8Eight’Apostrophe
9Nine(Open parenthesis
0Zero)Close parenthesis
2009 TSX

Navigation System165
Index
A
Accessing the Address Book List
..... 94
Acura Automobile Client
Services
.....................................123
AcuraLink/Messages......... 78, 79, 115
ADD TO Today’s
Destinations
........................... 49, 51
Adding Destinations to the List........49
Address..............................27, 28, 95
Address Book.....................27, 32, 93
Address Book PIN.......................... 97
Advanced............................ ...........36
Alaska (Operation)........................138
Auto Daylight............................... 109
Auto Service...................................34
Auto Time Zone............................ 110
Auto Volume for Speed...................99
AUX Voice Commands................. 159
Avoid Street................................... 75
B
Back to Route
................................. 75
Banking.......................................... 34
Basic Settings.................................99
Black Level.................................... 91
Bluetooth® HandsFreeLink®..........18
Breadcrumbs.............................19, 69
Brightness..................................... 91
By Address....................................28
By Address Book...........................32
By Go Home.................................. 50
By Intersection...............................40
By Map Input................................. 45
By Places....................................... 33
By Previous Destinations................44
By Today’s Destinations................. 48
C
Calculator
.... .................................. 86
Calendar.................................. 17, 84
CALL...................................... 18, 51
CANCEL button............................10
Cancel Route................................. 73
Category............................33, 34, 96
CD Voice Commands...................158
Cellular Phonebook........................ 84
Change Method.............................. 73
Change State............................ 28, 40
Changing the DVD.......................125
Changing the Route........................ 73
Changing the Routing Method........52
Changing Your Destination............. 76
City................................... 28, 40, 46
City Vicinity.................................. 38
Client Assistance..........................123
Climate Control Commands..........156
Clock Adjustment........................ 109
Color........................................... 112
Community....................................34
Continental USA............................48
Contrast......................................... 91
Convert (Unit)................................ 86
Correct Vehicle Position...............111
Coverage Areas............................ 126
Current Location...................... 20, 70
Current Position....................... 45, 95
Current Street................................... 6
D
Database Limitations
.................... 121
Daylight Savings Time (DST)
Selection
................................... 110
Delete Previous Destinations...........98
Delete Waypoints........................... 75
Destination........................ 27, 51, 76
Destination Icon............................. 63
Destination Map............................. 54
Detailed Coverage Areas......126, 131
Detour........................................... 75
Direct Route..................................52
Direction List.................................58
Display Mode button......................11
Driving to Your Destination............51
2009 TSX

166Navigation System
Index
DVD Voice Commands.................159
E
Easy Route
.......................... ...........52
Edit Avoid Area............................ 105
Edit Waypoint Search Area............107
Edit/Delete Address........................ 96
Editing Today’s De stinations List....49
Emergency..................................... 34
Entering a Destination.....................27
Entering Address............................. 94
Entering Schedule...........................85
Entering Security Code.................. 117
Entering the Street Number..............32
Entering Your Schedule...................85
Error Message............................... 149
Exit Info......................................... 59
F
Find Place Commands
................... 155
Frequently Asked Questions..........141
G
Getting Started
..................... ...........10
Global Commands........................ 153
Glossary....................................... 150
Go Home.................................27, 50
Go Home PIN................................98
Going Off the Route....................... 69
GPS Initialization.........................118
Guidance Mode............................ 108
Guidance Prompts....................58, 92
Guidance Screen............................ 56
H
Hawaii (Operation)
....................... 138
Home Address............................... 97
Hotel/Motel (Lodging)...................34
I
Icon Bar
........................................ 67
Incident Icons................................ 63
INFO button............................10, 79
INFO Screen (Main Info)................79
INFO Screen (Other)...................... 87
INFO Screen Voice Commands....160
Interface Dial................................. 11
Interface Dial Feedback..................92
Interface Dial knob......................... 11
Intersection.............................. 27, 40
K
Key to Zagat Ratings
...................... 89
L
Landmark Icons
............................. 63
Leisure.......................................... 34
Lodging (Hotel/Motel)....................34
Lower Display............................... 12
M
Map Color
................................... 113
Map Coverage.............................. 126
Map Input...................... .......... 27, 45
Map Legend....................... 19, 55, 89
Map Matching.............................. 118
Map Menu..................................... 57
Map Orientation.............................62
Map Scale...................................... 61
Map Screen.............................. 19, 55
MAP/GUIDE button.................10, 56
Maximize Freeways....................... 52
MENU button................................ 10
Menu Color................................. 113
Message........................................85
Messages......................... 78, 79, 115
Microphone................................... 13
2009 TSX

Navigation System167
Index
Minimize Freeways.........................52
Minimize Toll Roads.......................52
N
Name
....................................... 33, 38
NAVI BACK button........................13
NAVI TALK button........................13
Navigation Display Commands......154
Navigation General Commands......153
New Messages................................ 57
O
Off-road Tracking
...................69, 111
One-Way Traffic Icon... 19, 55, 61, 63
On-Screen Commands................... 161
On-Screen Spelling Assist.............161
P
PC Card
........................................ 125
Personal Information.......................93
Phone Number.......................... 33, 38
PIN Number...................................97
Place Name.............................. 36, 38
Place Name by Keyword.................37
Places................................. 27, 33, 95
Previous Destinations..........27, 44, 95
R
Radio Voice Commands
............... 157
Read List................................. 35, 88
Rearview Camera......................... 116
Recalculation.........................69, 100
Reporting Errors.......................... 123
Reroute.......................................... 73
Rerouting.................................... 100
Restaurant..................................... 35
Roadside Assistance.......................87
Route..........................51, 54, 69, 73
Routing & Guidance.....................100
Routing Method............................. 52
S
Save Current Location
.................... 70
Schedule........................................ 85
Screen........................................... 12
Search Waypoint............................ 74
Security Code.............................. 117
Selecting the City.....................28, 40
Selecting the State....................28, 40
Selecting the Street...................30, 42
SETUP button................................ 10
SETUP Screen (Main Setup)
Commands
................................ 160
Shopping....................................... 36
Show Icon on Map.........................64
Sort by Distance to Travel...............37
Split-Screen Guidance.................... 60
State.................................. 28, 40, 47
Street....................................... 30, 42
Switching Display Mode...............113
System Controls............................. 10
System Function Diagram............... 26
System Information......................116
System Initialization.....................117
System Limitations....................... 119
System Setup................................. 91
System Start-up..............................17
T
Temperature Voice Commands
..... 157
Time Adjustment........... .............. 110
Today’s Destinations................ 27, 48
Today’s Destinations List............... 49
Traffic & Weather Status..............115
Traffic Display Legend................... 21
Traffic Flow............................. 23, 66
Traffic Incidents........... 24, 57, 66, 79
Traffic Rerouting......................... 105
Traffic Speed................................. 66
Travel............................................ 36
Trip Computer............................... 83
Troubleshooting........................... 149
2009 TSX

168Navigation System
Index
U
Unit Conversion
..............................86
Units (mile or km)...........................99
Unverified Area Routing...............101
Unverified Streets.............................7
Update DVD.................................124
Using the Voice Control System......14
V
Vehicle
.........................................111
Verbal Reminder...........................112
Verified Streets.................................7
View Routes...................................53
Visiting Your Dealer.....................124
Voice Command Help.....................88
Voice Command Index..................153
Voice Control Basics.......................13
Voice Recognition Feedback............99
Voice Recognition, Improving.........14
Volume..........................................92
W
Warning Icon
..................................82
Warning List...................................81
Warning Map..................................81
Waypoints....................................107
Weather Forecast...........................80
Weather Icons....................64, 66, 82
Weather Information................66, 80
Z
Zagat 2007
...............................35, 39
2009 TSX

Navigation System169
License notice
You have acquired a device (“DEVICE”)
that includes software licensed by ALPINE
ELECTRONICS, INC., from an affiliate of
Microsoft Corporation (collectively “MS”).
Those installed software products of MS
origin, as well as associated media, printed
materials, and “onl ine” or electronic
documentation (“SOFTWARE”) are
protected by international intellectual
property laws a nd treaties. The
SOFTWARE is licensed , not sold. All rights
reserved.
IF YOU DO NOT AGREE TO THIS END
USER LICENSE AGREEMENT
(“EULA”), DO NOT USE THE DEVICE
OR COPY THE SOFTWARE. INSTEAD,
PROMPTLY CONTACT ALPINE
ELECTRONICS,INC., FOR
INSTRUCTIONS ON RETURN OF THE
UNUSED DEVICE(S) FOR A REFUND.
ANY USE OF THE SOFTWARE,
INCLUDING BUT NOT LIMITED TO
USE ON THE DEVICE, WILL
CONSTITUTE YOUR AGREEMENT TO
THIS EULA (OR RATIFICATION OF
ANY PREVIOUS CONSENT). GRANT OF SOFTWARE LICENSE.

This EULA grants you the following
license;
You may use the SOFTWARE only on the
DEVICE.
NOT FAULT TOLERANT. THE
SOFTWARE IS NOT FAULT
TOLERANT. ALPINE ELECTRONICS,
INC., HAS INDEPENDENTLY
DETERMINED HOW TO USE THE
SOFTWARE IN THE DEVICE, AND MS
HAS RELIED UPON ALPINE
ELECTRONICS, INC., TO CONDUCT
SUFFICIENT TESTING TO DETERMINE
THAT THE SOFTWARE IS SUITABLE
FOR SUCH USE.
NO WARRANTIES FOR THE
SOFTWARE. THE SOFTWARE is
provided “AS IS” and with all faults. THE
ENTIRE RISK AS TO SATISFACTORY
QUALITY, PERFORMANCE,
ACCURACY, AND EFFORT
(INCLUDING LACK OF NEGLIGENCE)
IS WITH YOU. ALSO, THERE IS NO
WARRANTY AGAINST
INTERFERENCE WITH YOUR
ENJOYMENT OF THE SOFTWARE OR
AGAINST INFRINGEMENT. IF YOU
HAVE RECEIVED ANY WARRANTIES
REGARDING THE DEVICE OR THE
SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE
NOT BINDING ON, MS.
No Liability for Certain Damages. EXCEPT
AS PROHIBITED BY LAW, MS SHALL
HAVE NO LIABILITY FOR ANY
INDIRECT, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN
CONNECTION WITH THE USE OR
PERFORMANCE OF THE SOFTWARE.
THIS LIMITATION SHALL APPLY
EVEN IF ANY REMEDY FAILS OF ITS
ESSENTIAL PURPOSE.
IN NO EVENT
SHALL MS BE LIABLE FOR ANY
AMOUNT IN EXCESS OF U.S.TWO
HUNDRED FIFTY DOLLARS
(U.S.$250.00).
Limitations on Reve rse Engineering,
Decompilation, and Di sassembly. You may
not reverse engineer , decompile, or
disassemble the SOFT WARE, except and
only to the extent that such activity is
expressly permitted by applicable law
notwithstanding this limitation.
Additional Software/Services. The
SOFTWARE may permit ALPINE
ELECTRONICS,INC.,, MS, Microsoft
Corporation or their a ffiliates to provide or
make available to you SOFTWARE
updates, supplements, add-on components,
or Internet-based se rvices components of
2009 TSX

170Navigation System
the SOFTWARE after the date you obtain
your initial copy of the SOFTWARE
(“Supplemental Components”).
 If ALPINE ELEC
TRONICS,INC.,
provides or makes available to you
Supplemental Components and no other
EULA terms are provided along with the
Supplemental Components, then the
terms of this EULA shall apply.
 If MS, Microsoft Corporation or their affiliates make av ailable Supplemental
Components, and no other EULA terms
are provided, then the terms of this
EULA shall apply, except that the MS,
Microsoft Corporation or affiliate entity
providing the Supplemental
Component(s) shall be the licensor of the
Supplemental Component(s).
ALPINE ELECTRONICS,INC.,, MS,
Microsoft Corporation and their affiliates
reserve the right to di scontinue any Internet-
based services provided to you or made
available to you through the use of the
SOFTWARE. RECOVERY MEDIA.
If SOFTWARE is
provided by ALPINE
ELECTRONICS,INC., on separate media
and labeled “Recovery Media” you may use
the Recovery Media solely to restore or
reinstall the SOFTWARE originally
installed on the DEVICE.
SOFTWARE TRANSFER ALLOWED
BUT WITH RESTRICTIONS. You may
permanently transfer rights under this
EULA only as part of a permanent sale or
transfer of the Device, and only is the
recipient agrees to this EULA. If the
SOFTWARE is an upgrade, any transfer
must also include all prior versions of the
SOFTWARE.
EXPORT RESTRICTIONS. You
acknowledge that SOFTWARE is of US-
origin. You agree to comply with all
applicable international and national laws
that apply to the SOFTWARE, including the
U.S. Export Administrat ion Regulations, as
well as end-user, end-use and country
destination rest rictions issued by U.S. and
other governments.
For additional information on exporting the
SOFTWARE, see http://
www.microsoft.co m/exporting/. As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modificati
ons not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry Canada
Standard RSS-210. Operat ion is subject to
the following two conditi ons: (1) this device
may not cause interference, and (2) this
device must accept any interference that
may cause undesired operation of the
device.
2009 TSX
