Page 50 of 324

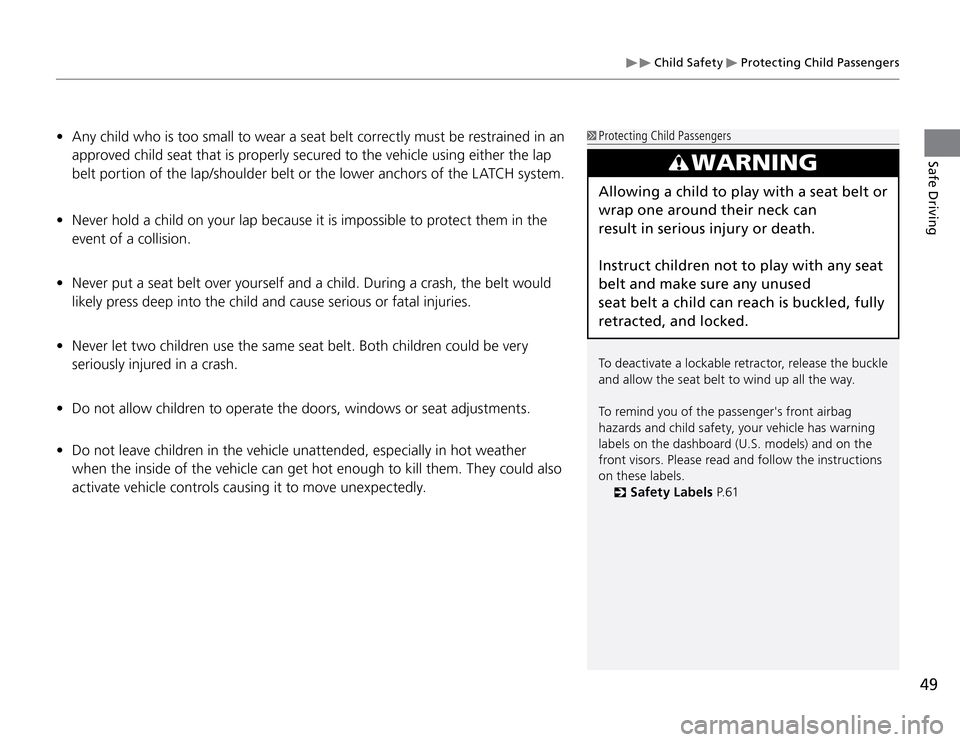

Child Safety
Protecting Child Passengers
49Safe Driving
Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the passenger's front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels.
Safety Labels
P. 61
Any child who is too small to wear a seat belt correctly must be restrained in an t
approved child seat that is properly secured to the vehicle using either the lap
belt portion of the lap/shoulder belt or the lower anchors of the LATCH system.
Never hold a child on your lap because it is impossible to protect them in the t
event of a collision.
Never put a seat belt over yourself and a child. During a crash, the belt would t
likely press deep into the child and cause serious or fatal injuries.
Never let two children use the same seat belt. Both children could be very t
seriously injured in a crash.
Do not allow children to operate the doors, windows or seat adjustments. t
Do not leave children in the vehicle unattended, especially in hot weather t
when the inside of the vehicle can get hot enough to kill them. They could also
activate vehicle controls causing it to move unexpectedly.
WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can
result in serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused
seat belt a child can reach is buckled, fully
retracted, and locked.
Page 51 of 324
Child Safety
Safety of Infants and Small Children
50Safe Driving
Safety of Infants and Small Children
Positioning a rear-facing child seat
Child seats must be placed and secured in a
rear seating position.
Protecting Infants
Rear-facing child seats should never be installed in a
forward facing position.
Always refer to the child seat manufacturer’s
instructions before installation.
WARNING
Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.
Always place a rear-facing child seat in the
rear seat, not the front.
Protecting Infants
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat maker's weight or height limit for the seat, and the infant is
at least one year old.When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position.
It can also interfere with proper operation of the passenger's advanced front
airbag system.
Airbags
P. 3 3
If this occurs, we recommend that you install the child seat directly behind the
front passenger's seat, move the seat as far forward as needed, and leave it
unoccupied. Or, you may wish to get a smaller rear-facing child seat.
Page 52 of 324
Child Safety
Safety of Infants and Small Children
51
Continued
Safe Driving
Protecting Smaller Children
Educate yourself about the laws and regulations
regarding child seat use where you are driving, and
follow the child seat manufacturer's instructions.
Many experts recommend use of a rear-facing seat
up to age two, if the child’s height and weight are
appropriate for a rear-facing seat.
Protecting Smaller Children
If a child is at least one year old and within the weight range indicated by the
child seat manufacturer, the child should be properly restrained in a firmly secured
forward-facing child seat.
Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger's front airbag off. A
rear seat is the safest place for a child.
WARNING
Placing a foward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
Page 59 of 324
Child Safety
Safety of Larger Children
58Safe Driving
Safety of Larger Children
Protecting Larger Children
The following pages give instructions on how to check proper seat belt fit, what
kind of booster seat to use if one is needed, and important precautions for a child
who must sit in front.
Checking Seat Belt Fit
When a child is too big for a child seat, secure the child in a rear seat using the
lap/shoulder seat belt. Have the child sit upright and all the way back, then answer
the following questions.
Checklist
Do the child's knees bend comfortably t
over the edge of the seat?
Does the shoulder belt cross between the t
child's neck and arm?
Is the lap part of the seat belt as low as t
possible, touching the child's thighs?
Will the child be able to stay seated like t
this for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
WARNING
Allowing a child to sit in front can result in
serious injury or death if the passenger’s
front airbag inflates.
If a larger child must ride in front, move
the vehicle seat as far to the rear as
possible, have the child sit up properly
and wear the seat belt properly, using a
booster seat if needed. Safety of Larger Children
Page 61 of 324
Exhaust Gas Hazard
60Safe Driving
Carbon Monoxide GasThe engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle,
carbon monoxide gas will not get into the interior.
Have the exhaust system inspected for leaks whenever
The exhaust system is making an unusual noise. t
The exhaust system may have been damaged. t
The vehicle is raised for an oil change. t
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the
mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill
up with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness
and even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
Page 64 of 324
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used
during driving.
Indicators .............................................. 64
Multi-Information Display Warning and
Information Messages ........................ 72
Gauges and
Multi-Information Display
Gauges ................................................ 75
Multi-Information Display .................... 76
63
Page 70 of 324
69Instrument Panel
Indicators
Continued
Indicator Name On/Blinking Explanation Message
System Message
Indicator t $ P N F T P O B M P O H X J U I B C F F Q X I F O
a problem is detected. A system
message on the multi-information
display appears at the same time. t 8 I J M F U I F J O E J D B U P S J T P O
Q S F T T U I F
(information) button to see
the message again.
t 3 F G F S U P U I F * O E J D B U P S T J O G P S N B U J P O J O
this chapter when a system message
appears on the multi-information
display. Take the appropriate action
for the message.
t 5 I F N V M U J J O G P S N B U J P O E J T Q M B Z E P F T
not return to the normal screen
unless the warning is canceled, or the button is pressed.
—
Turn Signal
Indicators t 5 I F U V S O T J H O B M J O E J D B U P S T C M J O L
when you operate the turn signal
lever.
t * G Z P V Q S F T T U I F I B [ B S E X B S O J O H
button, both indicators and all turn
signals blink at the same time. t Does not blink or blinks rapidly-
A turn signal light bulb has blown.
Change the bulb immediately.
Replacing Light Bulbs P.252, 253
—
High-Beam
Indicator t $ P N F T P O X I F O U I F I J H I C F B N
headlights are on.
t $ P N F T P O X J U I S F E V D F E C S J H I U O F T T
when DRL (daytime running lights)
are on.—
—
Lights On
Indicator t $ P N F T P O X I F O F W F S U I F M J H I U
switch is on, or in AUTO when the
exterior lights are on. t * G Z P V S F N P W F U I F L F Z G S P N U I F
ignition switch while the light is on, a
chime sounds when the driver's door
is opened.
—
Page 73 of 324
Indicators
Multi-Information Display Warning and Information Messages
72Instrument Panel
Multi-Information Display Warning and Information Messages
Message Condition Explanation
t " Q Q F B S T X I F O U I F F O H J O F D P P M B O U U F N Q F S B U V S F H F U T
abnormally high.
Overheating P. 2 8 8
t " Q Q F B S T X I F O U I F G V F M m M M D B Q J T M P P T F P S J T O P U
installed.
Tighten the Fuel Fill Cap P. 2 9 1
t " Q Q F B S T J G U I F S F J T B Q S P C M F N X J U I U I F % 3 - T Z T U F N t ) B W F Z P V S W F I J D M F D I F D L F E C Z B E F B M F S
Daytime Running Lights P.1 0 7
Canadian models
t " Q Q F B S T X I F O X B T I F S n V J E H F U T M P X t 3 F m M M J O H X B T I F S G V J M E
Refilling Window Washer Fluid P. 2 4 6
The following messages appear only on the multi-information display. Press the
(information) button to see the message
again with the system message indicator on.
Page 74 of 324
73Instrument Panel
Indicators
Multi-Information Display Warning and Information Messages
Message Condition Explanation
t " Q Q F B S T X I F O U I F T D I F E V M F E N B J O U F O B O D F J T E V F T P P O
t $ P O T F R V F O U M Z
4 & 3 7 * $ & % 6 & / 0 8 B O E 4 & 3 7 * $ &
PAST DUE" follow.
Maintenance Minder
™ P. 2 2 5
t " Q Q F B S T X I F O Z P V P Q F O U I F E S J W F S h T E P P S X I J M F U I F
ignition key is in ACCESSORY
I. t 5 V S O U I F J H O J U J P O T X U J D I U P - 0 $ ,
0
, then
remove the key.
t " Q Q F B S T X I F O U I F J H O J U J P O L F Z J T U V S O F E U P " $ $ & 4 4 0 3 :
I from ON
II
. (The driver's door is closed.)
—
t " Q Q F B S T X I F O Z P V P Q F O U I F E S J W F S h T E P P S X I J M F U I F
ignition key is in LOCK
0
. t 3 F N P W F U I F L F Z G S P N U I F J H O J U J P O T X J U D I
Continued
Page 75 of 324
74Instrument Panel
Indicators
Multi-Information Display Warning and Information Messages
Message Condition Explanation
6-cylinder models U.S. Canada
t " Q Q F B S T X I F O U I F T U B S U F S T Z T U F N I B T B Q S P C M F N t " T B U F N Q P S B S Z N F B T V S F
I P M E U I F J H O J U J P O
switch to START
III
for up to 15 seconds and
start the engine. Have the vehicle checked by
a dealer.
