Acura TSX 2012 Advanced Technology Guide
Manufacturer: ACURA, Model Year: 2012, Model line: TSX, Model: Acura TSX 2012Pages: 20, PDF Size: 10.96 MB
Page 11 of 20
C o m m o n l y U s e d V o i c e C o m m a n d s ( c o n t i n u e d )
Press and release the Talk button before you give a command.Press and release the Talk button before you give a command.
G e n e r a l C o m m a n d s(Accepted on most screens to change displays)
• Display map
• Display menu
• Information• Display audio
screen
• What time is it?
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: - ATM
- gas station
- Mexican restaurant
- post office - bank
- Acura dealer
- airport
- hospital
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display (or hide):
- ATM
- gas station
- restaurant
- post office • Display north up/
heading up
• Zoom in/out
• Go home
• Display current location
N a v i g a t i o n C o m m a n d s(Accepted on Map screen after a destination is entered)
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset 1/2/3/4/5/6
• XM channel #
• XM 1/2 preset 1/2/3/4/5/6 • CD play
• CD play track #
• CD skip
forward/back
• iPod/USB/HDD play
S e t u p C o m m a n d s(Accepted on Setup screen)
W e a t h e r C o m m a n d s *(Accepted on map screen)
• Brightness up/down
• Volume up/down/ min/max/off • Interface dial
feedback on/off
• Display weather
• Display weather icons • Display weather
warning icons
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands forcurrent screen)
• Voice command help (from the INFO screen - list of all available navigation\b
audio\b and climate control commands)
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
T r a f f i c C o m m a n d s *(Accepted on Map screen)
• Display traffic
• Display traffic speeds • Display traffic icons
• Display traffic incidents/list
*subscription required
• How long/far to the destination?
• Display destination map
• Display entire route • Air conditioner
on/off
• Rear defrost on/off
• Climate control recirculate/fresh
air • Fan speed
up/down
• Temperature # degrees (# = 57–87)
• Temperature max hot/cold
19
18
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f28 PM Page 11
Page 12 of 20
N A V I G A T I O N( T e c h n o l o g y P a c k a g e )
Real-time navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination.
21
2\f
U s i n g t h e F i n d N e a r e s t C o m m a n dE n t e r i n g a D e s t i n a t i o n A d d r e s s U s i n g V o i c e C o n t r o l
Set a destination using a street address. For other destination options\b see
your Navigation Manual.
Press and release the Talk button before you give a command. Find a nearby point of interest\b such as a gas station\b movie theater\b
restaurant\b etc.Press and release the Talk button before you give a command.
1. Say “Find nearest ATM.”
2. A list of the nearest ATMs in
your area is displayed by
shortest distance to
destination.
3. Say the number next to the
destination you want.
4. The system calculates and displays the route.
1.Say “Display menu. ”Say
“Address.”
2. Say “Street,” fhensaythe
street name on the next
screen. Do not include the
direction (N\b S\b E\b W) or type
(St.\b Ave.\b Blvd.\b etc.).
3. A list of street names appears. Say the number next to the
street you want. 4.
Say the entire street address
number. For example\b “\f\b2\b3\b
4.” If necessary\b say“OK” to
proceed.
5. If the street address is in more than one city\b a list of city
names appears. Saythe
number next to the city you
want.
6. The system displays the “Calculate route to” screen.
Say “OK” to set the route.
Calculated Route
Distance to go
Direction of destination
Current vehicle
location
M a p S c r e e n
L e g e n d
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f28 PM Page 12
Page 13 of 20
16
Press and release the Talk button before you give a command.Press and release the Talk button before you give a command.
D i s p l a y i n g T r a f f i c I n f o r m a t i o n
Say“Display traffic” to view traffic flow and incident icons.
NOTE:Traffic flow and incident
icons can only be displayed on
map scales of 5 miles (8 km) or
less.
Heavy traffic
Moderate traffic
Free flow traffic
* Subscription\bbased service through Sirius XM Radio®(free 90\bday trial upon vehicle purchase)
Traffic
Flow
data
Incident
icon
Incident
Incident Icons
Congestion
Construction
Road
closed
Weather
A C U R A L I N K R E A L T I M E W E A T H E RT M*( i f e q u i p p e d )
D i s p l a y i n g W e a t h e r I c o n s
Say “Display weather”to view weather icons for each city.
*Subscription\bbased service through Sirius XM Radio®(free 90\bday trial upon vehicle purchase)
Clear
Weather Icons
Partly
Cloudy
Cloudy
Fog
Rain
Snow
Provides continuously updated weather conditions\b warnings\b and forecasts in
major metro areas.
1. Say “Display traffic incidents”
to view a list of incidents on
your route. 3.
Say “Avoid,” and the incident
list returns.
4. Say “Reroute” to set the new
route.
T r a f f i c R e r o u t i n gT M
When a destination is set\b you can create a detour to avoid traffic incidents
or congestion (if Traffic Rerouting is set to ON in Setup).
W e a t h e r F o r e c a s t
Say “Weather forecast” to view a
1-day or 3-day forecast of your
current position or city vicinity.
R a d a r I m a g e M a p
Say “Radar map” to view color-
coded rain or snow systems.
W e a t h e r W a r n i n g L i s t
Say “Warning list sorted by distance”
to view a list of all U.S. weather
warnings by distance.
W e a t h e r W a r n i n g M a p
Say “Warning map” to view color-
coded severe weather systems.
D i s p l a y i n g W e a t h e r I n f o r m a t i o n
Say “Information,” then“Weather information” for the following options:
NOTE:Weather icons are
available on all map scales.
A C U R A L I N K R E A L T I M E T R A F F I CT M*( i f e q u i p p e d )
Provides continuously updated info\b including traffic speed\b incidents\b and
construction in major metro areas.
2.Say the number of the incident
you want to avoid. When the
incident appears\b say“Traffic
detail.”
22 23
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f28 PM Page 13
Page 14 of 20

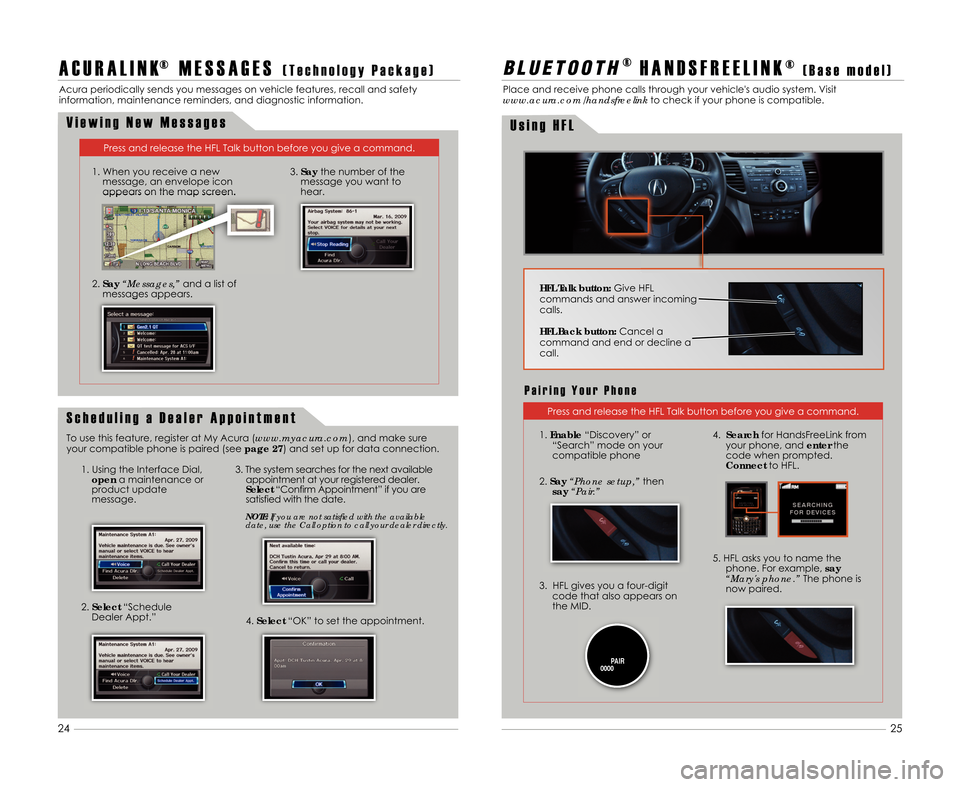

A C U R A L I N K® M E S S A G E S( T e c h n o l o g y P a c k a g e )
Acura periodically sends you messages on vehicle features\b recall and safety
information\b maintenance reminders\b and diagnostic information.
B L \b E T O O T H® H A N D S F R E E L I N K ®( B a s e m o d e l )
Place and receive phone calls through your vehicle's audio system. Visit
www.acura.com/handsfreelink to check if your phone is compatible.
U s i n g H F L
HFL Talk button:Give HFL
commands and answer incoming
calls.
HFL \fack button: Cancel a
command and end or decline a
call.
25
24
Press and release the HFL Talk button before you give a command.
S c h e d u l i n g a D e a l e r A p p o i n t m e n t
1. When you receive a new
message\b an envelope icon
appears on the map screen.
2. Say “Messages,” and a list of
messages appears.
1. Using the Interface Dial\b open a maintenance or
product update
message.3. The system searches for the next available appointment at your registered dealer.
Select “Confirm Appointment” if you are
satisfied with the date.
NOTE: If you are not satisfied with the available
date, use the Call option to call your dealer directly.
2. Select “Schedule
Dealer Appt.”
4. Select “OK” to set the appointment.
To use this feature\b register at My Acura (www.myacura.com)\b and make sure
your compatible phone is paired (see page 27) and set up for data connection.
V i e w i n g N e w M e s s a g e s
3.Say the number of the
message you want to
hear.
Press and release the HFL Talk button before you give a command.
1. Enable “Discovery” or
“Search” mode on your
compatible phone
3. HFL gives you a four-digit code that also appears on
the MID.
2.Say “Phone setup,” then
say “Pair.” 4.
Search for HandsFreeLink from
your phone\b and enterthe
code when prompted.
Connect to HFL.
PAIR
0000
P a i r i n g Y o u r P h o n e
5. HFL asks you to name the
phone. For example\b say
“Mary's phone.” The phone is
now paired.
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f29 PM Page 14
Page 15 of 20

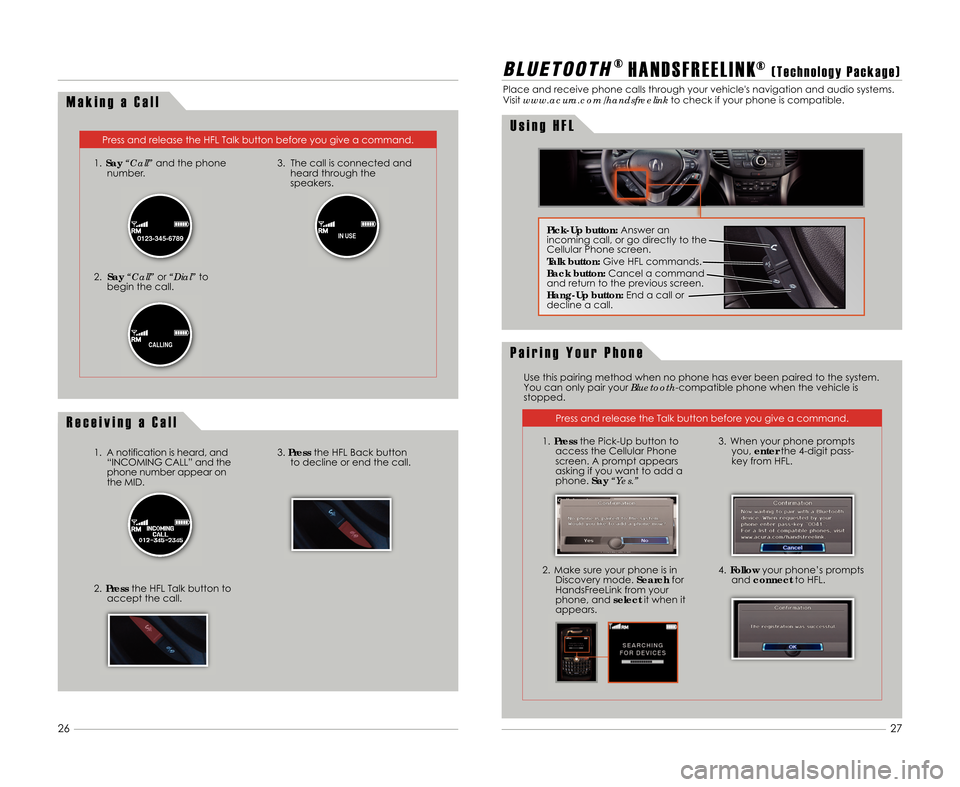

M a k i n g a C a l l
Press and release the HFL Talk button before you give a command.
1. Say “Call” and the phone
number.
2. Say “Call” or“Dial” to
begin the call. 3. The call is connected and
heard through the
speakers.
B L \b E T O O T H®H A N D S F R E E L I N K®( T e c h n o l o g y P a c k a g e )
Place and receive phone calls through your vehicle's navigation and audio systems.
Visitwww.acura.com/handsfreelink to check if your phone is compatible.
27
26
0123 345 6789IN USE
CALLINGP a i r i n g Y o u r P h o n e
Press and release the Talk button before you give a command.
2. Make sure your phone is in Discovery mode. Searchfor
HandsFreeLink from your
phone\b and selectit when it
appears. 3. When your phone prompts
you\b enter the 4-digit pass-
key from HFL.
4. Follow your phone’s prompts
and connect to HFL.
Use this pairing method when no phone has ever been paired to the system.
You can only pair your Bluetooth-compatible phone when the vehicle is
stopped.
U s i n g H F L
Pick Up button: Answer an
incoming call\b or go directly to the
Cellular Phone screen.
Talk button: Give HFL commands.
\fack button: Cancel a command
and return to the previous screen.
Hang Up button: End a call or
decline a call.
1. Press the Pick-Up button to
access the Cellular Phone
screen. A prompt appears
asking if you want to add a
phone. Say“Yes.”
R e c e i v i n g a C a l l
1. A notification is heard\b and
“INCOMING CALL” and the
phone number appear on
the MID.
2. Press the HFL Talk button to
accept the call.3. Press the HFL Back button
to decline or end the call.
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f29 PM Page 15
Page 16 of 20
29
28

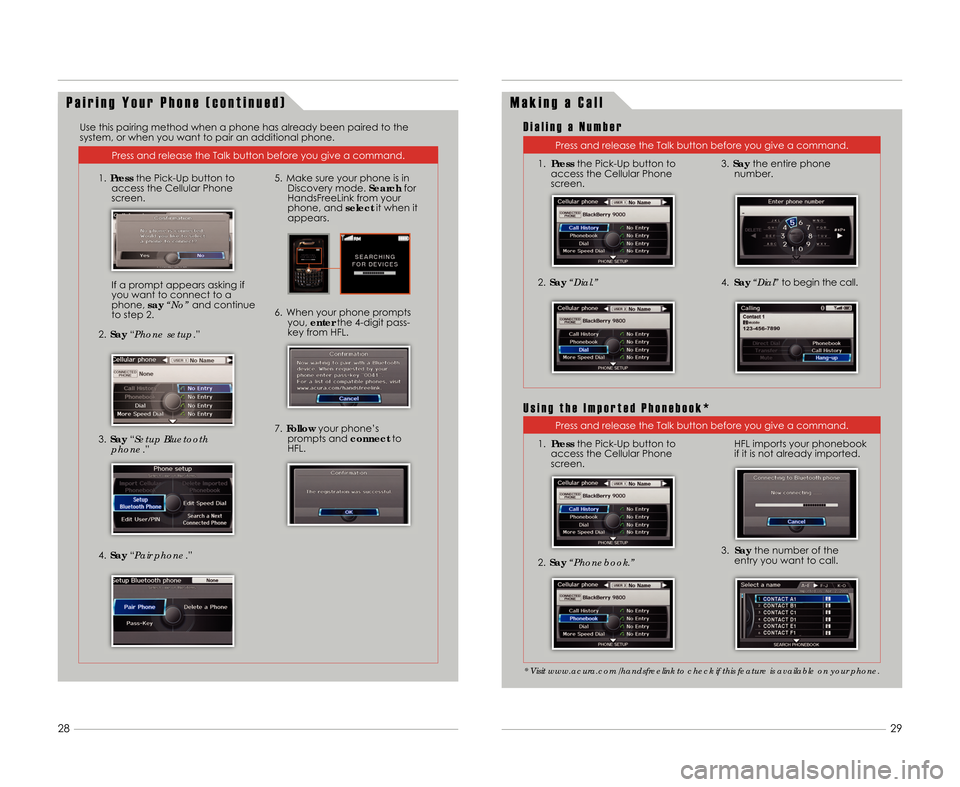

P a i r i n g Y o u r P h o n e ( c o n t i n u e d )
Press and release the Talk button before you give a command.
3. Say “Setup Bluetooth
phone .”
2.
Say “Phone setup.”
6. When your phone prompts
you\b enter the 4-digit pass-
key from HFL.
1. Press the Pick-Up button to
access the Cellular Phone
screen.
If a prompt appears asking if
you want to connect to a
phone\b say“No” and continue
to step 2.
4. Say “Pair phone.”
7.Follow your phone’s
prompts and connectto
HFL.
Use this pairing method when a phone has already been paired to the
system\b or when you want to pair an additional phone.
5. Make sure your phone is inDiscovery mode. Searchfor
HandsFreeLink from your
phone\b and selectit when it
appears.
M a k i n g a C a l l
Press and release the Talk button before you give a command.
1. Press the Pick-Up button to
access the Cellular Phone
screen.
2. Say “Dial.”
3.Say the entire phone
number.
4. Say “Dial” to begin the call.
D i a l i n g a N u m b e r
Press and release the Talk button before you give a command.
1. Press the Pick-Up button to
access the Cellular Phone
screen.
2. Say “Phonebook.”
HFL imports your phonebook
if it is not already imported.
3. Say the number of the
entry you want to call.
* Visit www.acura.com/handsfreelink to check if this feature is available on your phone.
U s i n g t h e I m p o r t e d P h o n e b o o k *
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f29 PM Page 1\b
Page 17 of 20
31
3\f

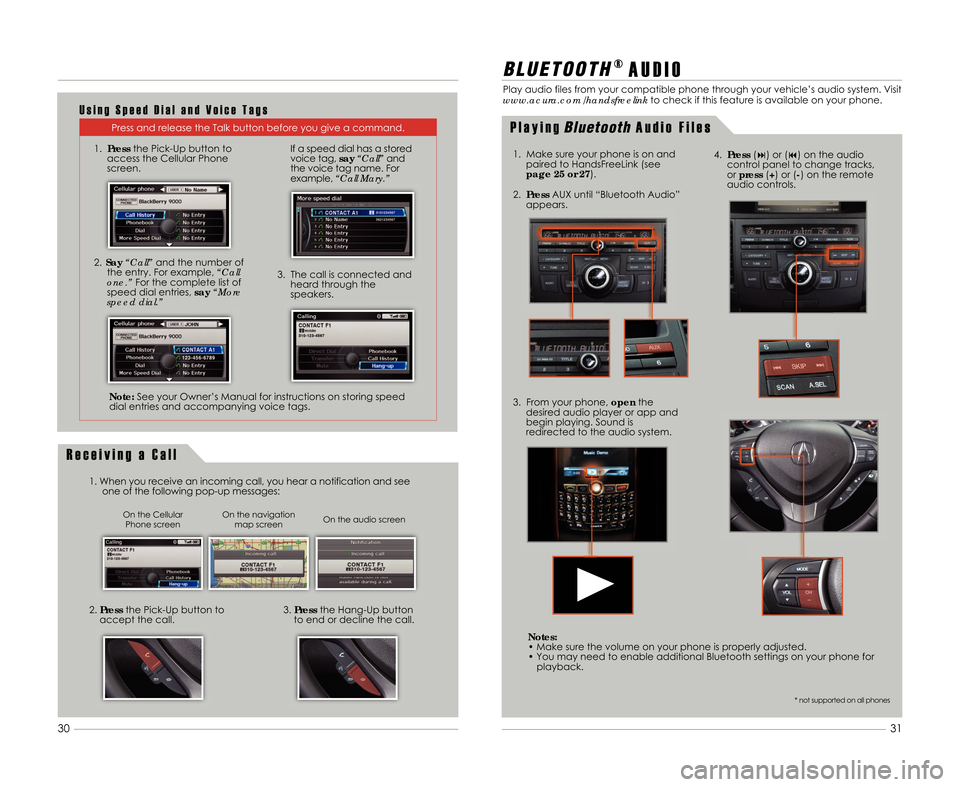

B L \b E T O O T H®
A U D I O
Play audio files from your compatible phone through your vehicle’s audio system. Visit
www.acura.com/handsfreelink to check if this feature is available on your phone.
1. Make sure your phone is on and paired to HandsFreeLink (see
page 2\b or 27).
Notes:
• Make sure the volume on your phone is properly adjusted.
• You may need to enable additional Bluetooth settings on your phone for playback. 4.
Press ( ) or ( ) on the audio
control panel to change tracks\b
or press (+) or ( ) on the remote
audio controls.
2. Press AUX until “Bluetooth Audio”
appears.
3. From your phone\b openthe
desired audio player or app and
begin playing. Sound is
redirected to the audio system.
P l a y i n gBluet\f\fthA u d i o F i l e s
* not supported on all phones
R e c e i v i n g a C a l l
1. When you receive an incoming call\b you hear a notification and see one of the following pop-up messages:
3.Press the Hang-Up button
to end or decline the call.2. Press the Pick-Up button to
accept the call.
On the audio screen
On the navigation
map screen
On the Cellular
Phone screen
Press and release the Talk button before you give a command.
U s i n g S p e e d D i a l a n d V o i c e T a g s
Note: See your Owner’s Manual for instructions on storing speed
dial entries and accompanying voice tags. 3. The call is connected and
heard through the
speakers.
2.Say “Call” and the number of
the entry. For example\b “Call
one.” For the complete list of
speed dial entries\b say“More
speed dial.” If a speed dial has a stored
voice tag\b say“Call” and
the voice tag name. For
example\b “Call Mary.”
1.
Press the Pick-Up button to
access the Cellular Phone
screen.
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f31 PM Page 17
Page 18 of 20
33
32
H A R D D I S C D R I V E ( H D D ) A U D I O( T e c h n o l o g y P a c k a g e )
Automatically record CDs onto your vehicle’s hard drive (by system default). Songs
begin to record once a CD is inserted into the disc slot.
P l a y i n g H D D A u d i o F i l e s
S e a r c h i n g f o r M u s i c
1. Press AUDIO.3. The first song of the last recorded
album or the last song selected
plays. Press( ) or ( ) or (+) or ( )
to skip through songs.
1. Push the interface dial up to
select MUSIC SEARCH.
2. Select one of the categories. 3.
Select a track and pressENTER
to begin playing.
2. Press DISC/HDD until HDD appears.
3.Press AUX until “iPod” or “USB”
appears to begin playing.
2. Connect the USB connector to your
iPod dock connector or flash drive.1. Open the center console\b and
pull out the USB adapter cable.
1. Press and hold XM for about 2
seconds.
2. To replay stored information\b push
the interface dial down. 3.
Turn the selector knob to select
“NOTE\b” then pressENTER.
4. Turn the selector knob to select a
sound file\b then pressENTER. The
selected recording plays.
i P o d ® o r U S B F l a s h D r i v e
Play audio files from your compatible iPod or USB flash drive through your vehicle’s
audio system. See your Owner’s Manual for a list of compatible devices.
C o n n e c t i n g a n d P l a y i n g A u d i o F i l e s
R e c o r d i n g S o n g S a m p l e s
iPod is a registered trademark of Apple Computer\b Inc.\b registered in the U.S. and other countries. iPod not included.
N o t e F u n c t i o n( T e c h n o l o g y P a c k a g e )
Store up to 3\f ten-second recordings of songs and song information from XM®Radio
(with an active subscription).
4. Press SKIP ( ) or ( ) to change
tracks.
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f33 PM Page 18
Page 19 of 20
35
34
P l a y i n g A u d i o F i l e s U s i n g V o i c e C o m m a n d s ( c o n t i n u e d )
Press and release the Talk button before you give a command.
U s i n g t h e “ L i s t ” C o m m a n d
The system
provides
voice
feedback
and lists
possible
matches.
A list of tracks
from the
selected artist
displays.
Say
"iPod search"
or "HDD search."
Say "List" and
one of the
options on the
Search Mode
screen. For
example\b say
"List Artist XYZ."
Say the
number of
your selection.
For example\b
say "One."
The system
plays the
selection and
returns to the
Search Mode
screen. Say
the
number of
the artist.
For
example\b
say "Four."
if exact
matchfound if exact
match
not found

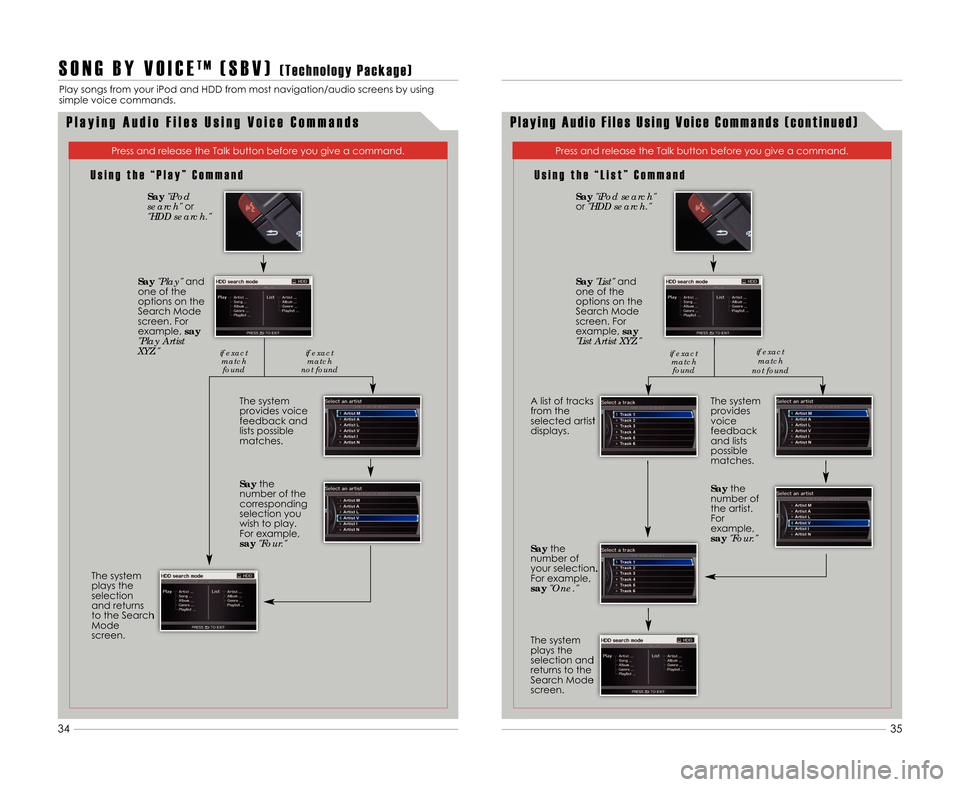

S O N G B Y V O I C ET M( S B V )( T e c h n o l o g y P a c k a g e )
Play songs from your iPod and HDD from most navigation/audio screens by using
simple voice commands.
P l a y i n g A u d i o F i l e s U s i n g V o i c e C o m m a n d s
U s i n g t h e “ P l a y ” C o m m a n d
Press and release the Talk button before you give a command.
The system
provides voice
feedback and
lists possible
matches.
The system
plays the
selection
and returns
to the Search
Mode
screen.
Say "iPod
search" or
"HDD search."
Say "Play" and
one of the
options on the
Search Mode
screen. For
example\b say
"Play Artist
XYZ."
Saythe
number of the
corresponding
selection you
wish to play.
For example\b
say "Four."
if exact
matchfound if exact
match
not found
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f33 PM Page 19
Page 20 of 20
R E G I S T E R A TW W W . M Y A C U R A . C O M
My Acura allows you to explore features and technologies specific to your vehicle\b
schedule service appointments\b obtain and update maintenance and service
records\b manage your financial services account\b and access other useful
information. Register at www.myacura.comto ensure that you continue to enjoy the
experience of owning an Acura.
37
36
S A F E T Y R E M I N D E R
Your vehicle is equipped with airbags. Airbags do not replace your seat
belts; they add to the protection offered by seat belts. Airbags can help
protect you in some types of collisions\b but they do not provide protection in
all collisions.
Always make sure you and your passengers wear seat belts\b and that young
children are properly secured in a child seat or booster in the rear seat.
Never place an infant seat in the front passenger’s seat as the force of a
deploying airbag can seriously injure an infant.
F U E L R E Q U I R E M E N T
• Only use unleaded gasoline of 91 octane or higher.
• Some gasoline in North America contains MMT\b a manganese-based fuel additive. Prolonged and consistent use of gasoline containing
MMT can deteriorate your vehicle’s performance\b fuel economy\b and
the emission control system. Always use MMT-free gasoline if available.
Failures caused by use of gasoline containing MMT may not be
covered under warranty.
• “TOP TIER Detergent Gasoline” meets a new gasoline standard jointly established by leading automotive manufacturers to meet the needs
of today's advanced engines. In most cases\b qualifying gasoline
retailers will identify their gasoline as having met “TOP TIER Detergent
Gasoline” standards at the retail location. This fuel is guaranteed to
contain the proper level of detergent additives and be free of metallic
additives. This helps avoid build-up of deposits in your engine and
emission control system. Because the level of detergency and harmful
metallic additives (such as MMT) in gasoline vary in the market\b Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to
help maintain the performance and reliability of your vehicle. For more
information\b visit www.toptiergas.com.
• For further important information on fuel and lubricants for your car and information on gasoline that does not contain MMT\b contact your
dealer or visit My Acura at www.myacura.com.
12 TSX 5D ATG\fATG_NEW STYLE \b/1/2011 2\f33 PM Page 20
