Bluetooth® HandsFreeLink®

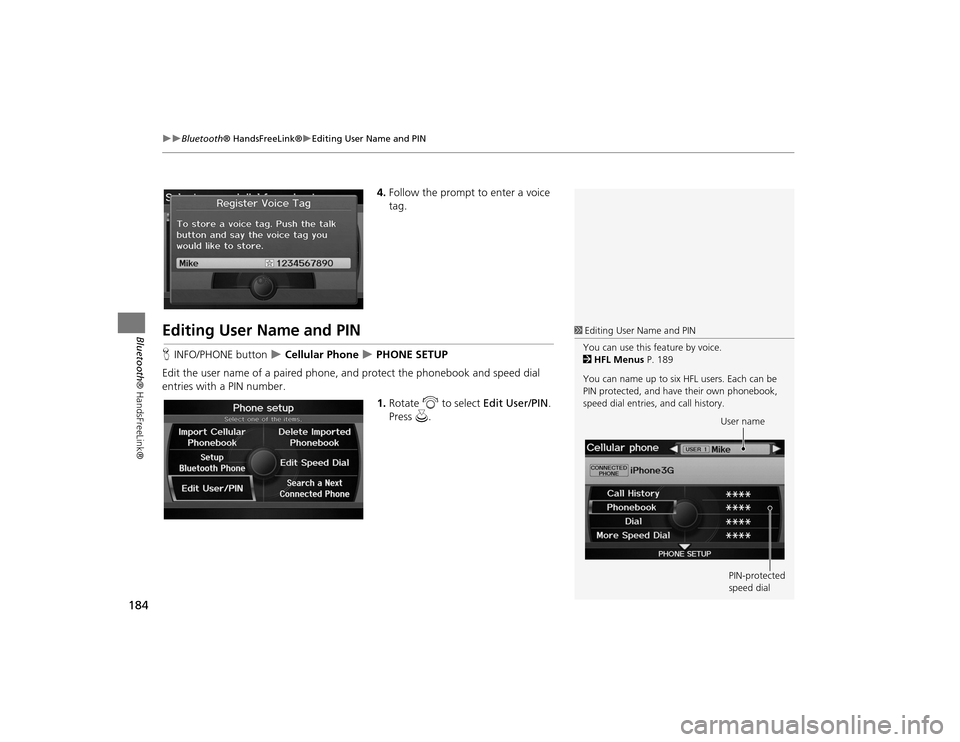

Editing User Name and PIN
Bluetooth ® HandsFreeLink®
4.Follow the prompt to enter a voice
tag.
Editing User Name and PINHINFO/PHONE button
 Cellular Phone
 PHONE SETUP
Edit the user name of a paired phone, and protect the phonebook and speed dial
entries with a PIN number. 1.Rotate i to select Edit User/PIN .
Press u.
1Editing User Name and PIN
You can use this feature by voice.
2 HFL Menus P. 189
You can name up to six HFL users. Each can be
PIN protected, and have their own phonebook,
speed dial entries, and call history.
User name
PIN-protected
speed dial
TSX_KA-31TL1820.book 184 ページ ２０１１年６月２４日　金曜日　午後３時４３分

185

Bluetooth® HandsFreeLink®
Making a Call
Bluetooth® HandsFreeLink®
2.Rotate i to select an item. Press
u .
The following items are available:
• Name: Enter a name.
• PIN: Enter a 4-digit PIN. Re-enter to confirm. You can select DO NOT USE PIN to
remove a PIN number.
• Delete: Deletes the user name and the user’s call history and phonebook.
Making a CallMake calls by entering a number or using the imported phonebook, call history, or
speed dial entries.2Using the Phonebook
P. 186
2Entering a Phone Number
P. 186
2Using Call History
P. 187
2Using Speed Dial
P. 187
1Making a Call
You can use this feature by voice.
2 HFL Menus P. 189
When you say d “Call by number” or d “Call
by voice tag” on any screen, the following screen
appears:
You can make a phone call to a phone number
or a speed dial entry with a voice tag using a
voice command (e.g., say d “Call John Smith” ).
2 Registering a Voice Tag to a Speed Dial
Entry P. 183
HFL allows you to talk for up to 30 minutes after
you remove the key from the ignition. This may
drain the vehicle’s battery.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in
the vehicle, a first paired phone the system finds
will be automatically linked.
TSX_KA-31TL1820.book 185 ページ ２０１１年６月２４日　金曜日　午後３時４３分

186

Bluetooth® HandsFreeLink®
Making a Call
Bluetooth ® HandsFreeLink®
HINFO/PHONE button
 Cellular Phone
 Phonebook
1. Rotate i to select a name. Press
u .

Move w or y to select
alphabetical tabs to display the
entries in the group.

Alternatively, move r to select
SEARCH PHONEBOOK . Enter
the first few letters to search for
an entry.
2. Rotate i to select a number.
Press u to begin dialing.
H INFO/PHONE button
 Cellular Phone
 Dial
1. Enter a phone number.
2. Move r to select DIAL to begin
dialing.
■ Using the Phonebook
1 Using the Phonebook
You must first import a phonebook before using
it to make calls.
2 Importing Phonebook Data P. 181
■Entering a Phone Number
1 Entering a Phone Number
A command that consists of several words can be
spoken together. For example, say d “123-456-
7890” at once.
TSX_KA-31TL1820.book 186 ページ ２０１１年６月２４日　金曜日　午後３時４３分

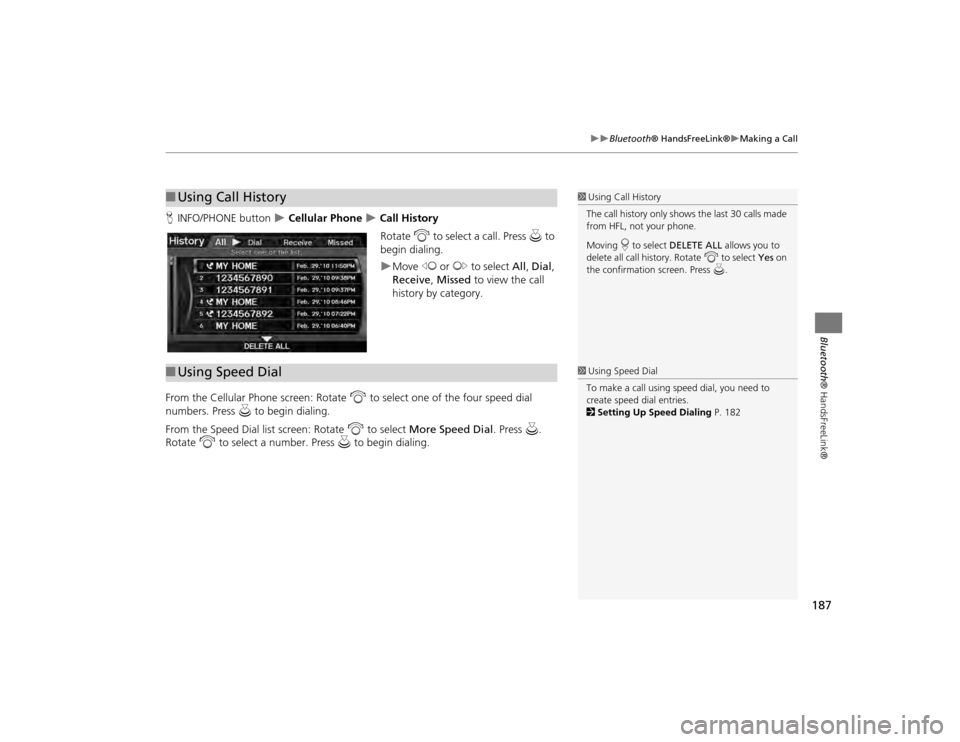

187

Bluetooth® HandsFreeLink®
Making a Call
Bluetooth® HandsFreeLink®
HINFO/PHONE button
 Cellular Phone
 Call History
Rotate i to select a call. Press u to
begin dialing.Move w or y to select All , Dial ,
Receive , Missed to view the call
history by category.
From the Cellular Phone screen: Rotate i to select one of the four speed dial
numbers. Press u to begin dialing.
From the Speed Dial list screen: Rotate i to select More Speed Dial . Press u.
Rotate i to select a number. Press u to begin dialing.
■Using Call History
1 Using Call History
The call history only shows the last 30 calls made
from HFL, not your phone.
Moving r to select DELETE ALL allows you to
delete all call history. Rotate i to select Yes on
the confirmation screen. Press u.
■Using Speed Dial
1 Using Speed Dial
To make a call using speed dial, you need to
create speed dial entries.
2 Setting Up Speed Dialing P. 182
TSX_KA-31TL1820.book 187 ページ ２０１１年６月２４日　金曜日　午後３時４３分

188

Bluetooth® HandsFreeLink®
Receiving a Call
Bluetooth ® HandsFreeLink®
Receiving a Call
1.Press the h (Pick-Up) button to
answer a call and display the
Calling screen.
“HANDSFREELINK” is also
displayed on the display.
2. Press the j (Hang-Up) button to
terminate the call.
The following options are available during a call:
• Direct Dial (available on some phones): Allows you to send numbers or names
during a call. This is useful when you call an automated phone system.
• Transfer : Allows you to transfer a call from HFL to your phone, or from your
phone to HFL.
• Mute : Allows you to mute your voice.
1Receiving a Call
An incoming call notif ication appears on the
screen, and you hear an audible ring tone.
If your phone has Call Waiting, press the h
button to put the original call on hold and
answer the incoming call. To return to the
original call, press the h button again. If you
want to hang up the origin al call and answer the
new call, press the j button.
To change the volume leve l of HFL, use the audio
system volume knob or the steering wheel
volume controls.
Some phones may send battery, signal strength,
and roaming status information to the screen.
Call ID Bluetooth indicator Roaming status
Signal strength Battery level
TSX_KA-31TL1820.book 188 ページ ２０１１年６月２４日　金曜日　午後３時４３分

189

Bluetooth® HandsFreeLink®
HFL Menus
Bluetooth ® HandsFreeLink®
HFL MenusUse HFL when the vehicle’s ignition is in the ACCESSORY (I) or ON (II) position.
You can operate HFL by voice when on the Cellular Phone screen. Below is the flow
chart showing available voice commands.
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to the system while the
vehicle is parked.
“Pair Phone”“Delete a Phone”
“Name”“Delete”“PIN”
“Edit User/PIN”“Setup Bluetooth Phone”“Search for Next
Connected Phone”
“Phone Setup”
“Import Cellular Phonebook”
“Pass-Key”
Continued Press the h (Pick-Up) button to display the Cellular Phone screen.
Press the d (Talk) button each time you give a voice command.
Pair your phone to the system.
2Pairing a Phone P. 176
Set a “fixed” or “random” pass-key code for phone
pairing. 2Changing the Pass-key P. 178
Delete a previously paired phone.
2 Deleting a Paired Phone P. 179
Switch from a currently linked phone to another paired phone.
2 Changing the Currently Paired Phone P. 180
Create a user name
for a paired phone.
Delete a user name and settings for a paired phone.
Create a PIN number for a paired phone.
Import your entire
cell phone’s phonebook data to the system.
2 Importing Phonebook Data P. 181
2 Editing User Name and
PIN P. 184
TSX_KA-31TL1820.book 189 ページ ２０１１年６月２４日　金曜日　午後３時４３分

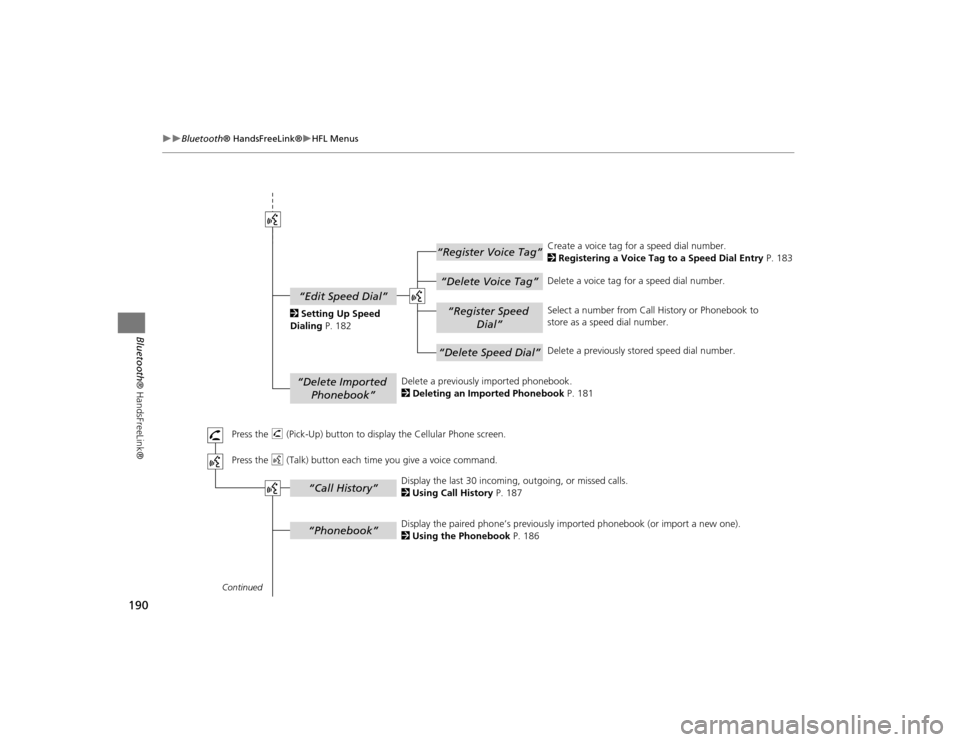

190

Bluetooth® HandsFreeLink®
HFL Menus
Bluetooth ® HandsFreeLink®
“Register Voice Tag”“Delete Voice Tag”“Register Speed
Dial”“Delete Speed Dial”
“Edit Speed Dial”“Delete Imported Phonebook”“Phonebook”“Call History”
Continued Press the h (Pick-Up) button to display the Cellular Phone screen.
Press the d (Talk) button each time you give a voice command.Delete a previously
imported phonebook.
2 Deleting an Imported Phonebook P. 181 Create a voice tag for a speed dial number.
2
Registering a Voice Tag to a Speed Dial Entry P. 183
Delete a voice tag for a speed dial number.
Select a number from Call History or Phonebook to
store as a speed dial number.
Delete a previously st ored speed dial number.
2
Setting Up Speed
Dialing P. 182
Display the paired phone’s previously imported phonebook (or import a new one).
2 Using the Phonebook P. 186
Display the last 30 incoming,
outgoing, or missed calls.
2 Using Call History P. 187
TSX_KA-31TL1820.book 190 ページ ２０１１年６月２４日　金曜日　午後３時４３分

191

Bluetooth® HandsFreeLink®
HFL Menus
Bluetooth ® HandsFreeLink®
“Direct Dial”
“Dial”
“Mute”“Transfer”“Eric”*“Mike”*“Lisa”*“John”*
“More Speed
Dial”“Speed dial entries”
“Dial”
The first four on the Cellular Phone screen.
* : Example
Display a list of all 20 speed dial entries.
2
Using Speed Dial P. 187
2 Using Speed Dial P. 187 Send numbers or na
mes during a call.
Say a phone number to dial.
2
Entering a Phone Number P. 186
Mute your voice during a call.
Transfer a call from HFL to your phone, or from your
phone to HFL.
TSX_KA-31TL1820.book 191 ページ ２０１１年６月２４日　金曜日　午後３時４３分

194AcuraLink® Messages
AcuraLink® MessagesAcuraLink® provides a direct communication link between your vehicle and Acura.
Working through XM® Radio, AcuraLink works in conjunction with your vehicle’s
navigation system, Bluetooth® HandsFreeLink® (HFL), and au dio system to send and
receive messages.Reading MessagesAn envelope icon appears at the botto m left of the navigation screen when
there is a new message.
H ENTER button (on map)
 New Messages
Rotate i to select a message. Press
u .
■New Messages
1 AcuraLink® Messages
To use some AcuraLink functions:•Registration at the My Acura website
(www.owners.acura.com) is required for some
settings. If you do not ha ve internet access, call
Acura Client Services at (800) 382-2238. You
can also set your AcuraLink preference for
what types of messages you want to receive.•A Bluetooth -compatible cell phone needs to be
paired to Bluetooth ® HandsFreeLink®.
2 Bluetooth ® HandsFreeLink® P. 174•Setting up the Phone-D ata Connection is
required for access to the AcuraLink server.
2 AcuraLink/Messages P. 63
1Reading Messages
Messages may not appear immediately after your
vehicle purchase. It can ta ke several days for your
dealer to register your vehicle’s ID.
New messages are at the top of the list.
Important messages are identified by an
exclamation mark on the envelope icon.
TSX_KA-31TL1820.book 194 ページ ２０１１年６月２４日　金曜日　午後３時４３分

205

Information Functions
Map Data Update Status
Other Features
Map Data Update StatusHINFO/PHONE button
 Other
 Map Data Update Status
Check the map data update status when updating the map database.
Roadside AssistanceH INFO/PHONE button
 Other
 Roadside Assistance
Acura Roadside Assistance is pr ovided as a service to Acura clients. Use this feature
to call for assistance when a Bluetooth-compatible phone is paired to Bluetooth®
HandsFreeLink®.
1.Rotate i to select the country.
Press u.

The phone number for Roadside
Assistance and your vehicle
position information are
displayed.
1Map Data Update Status
This operation is only avai lable during a database
update.1 Roadside Assistance
Your Bluetooth -compatible phone must be
paired to use this feature.
2 Pairing a Phone P. 176
Continued
